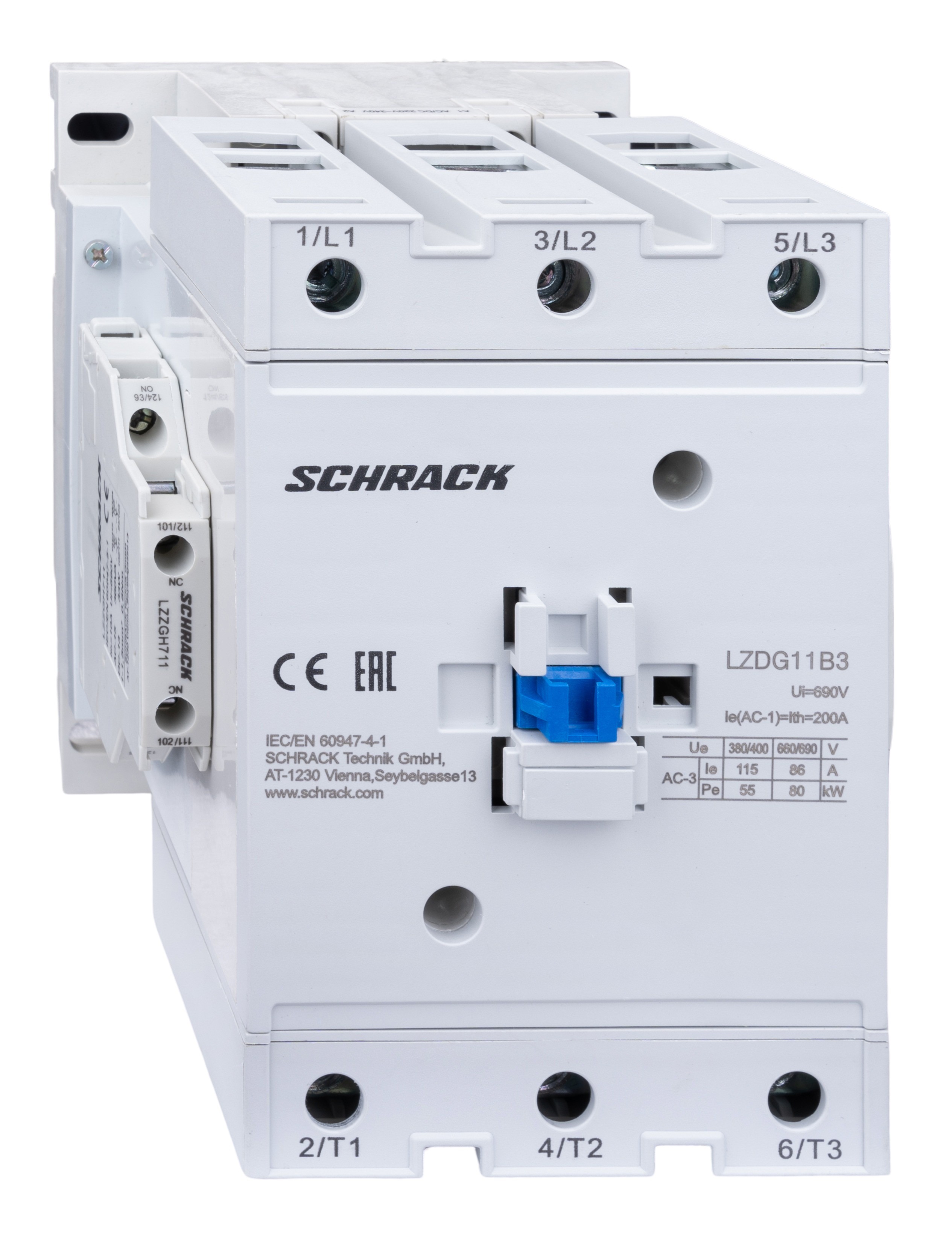

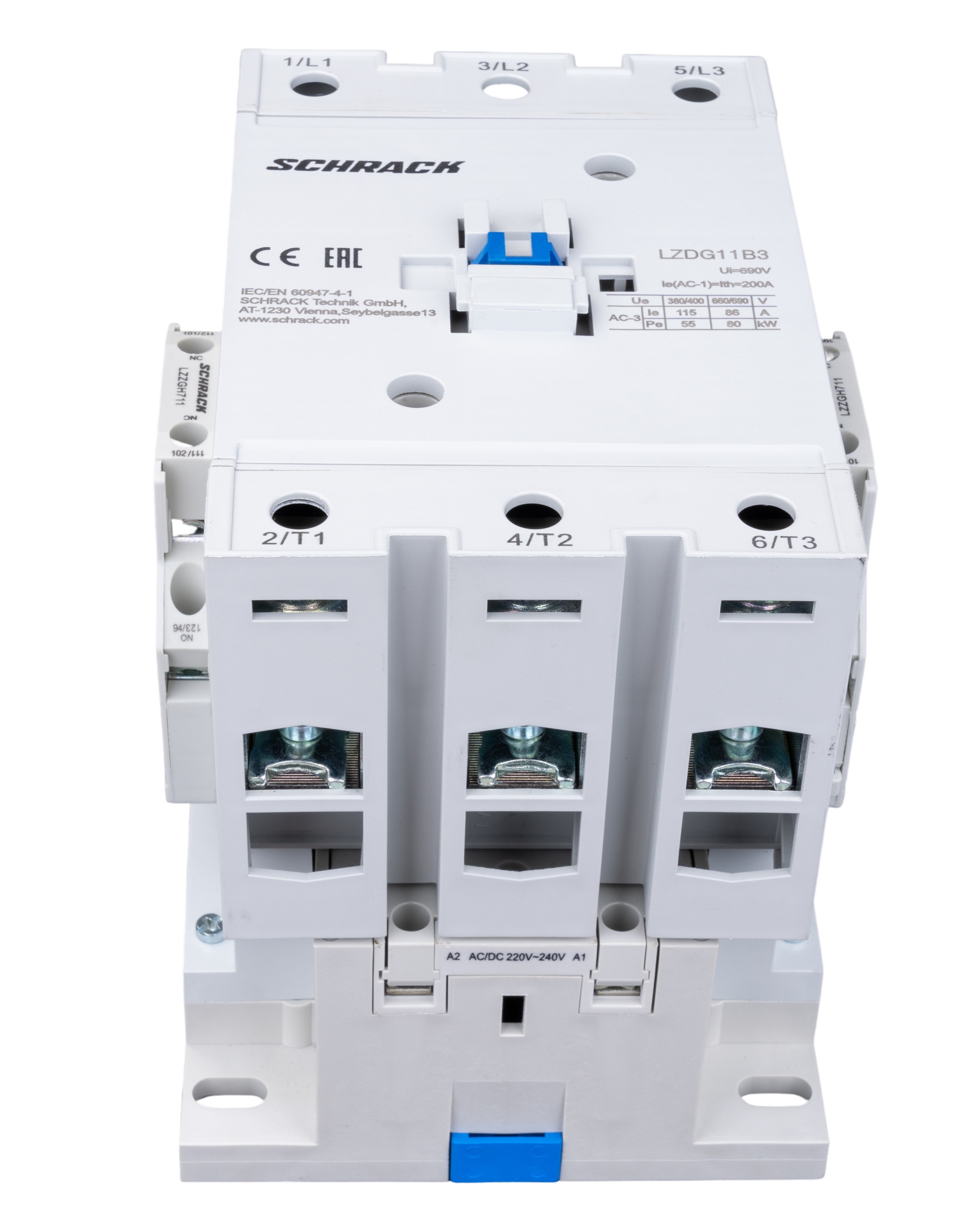

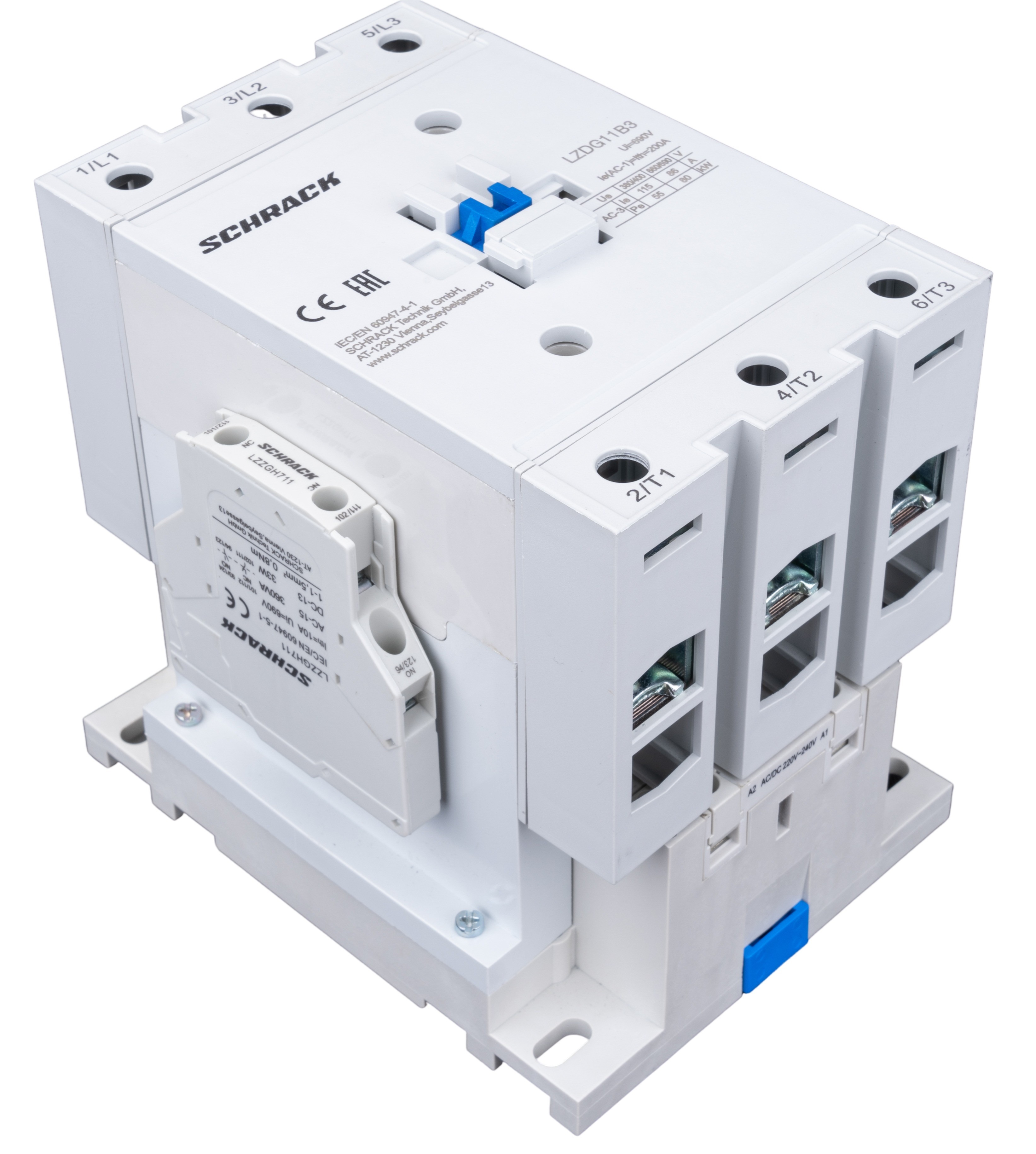

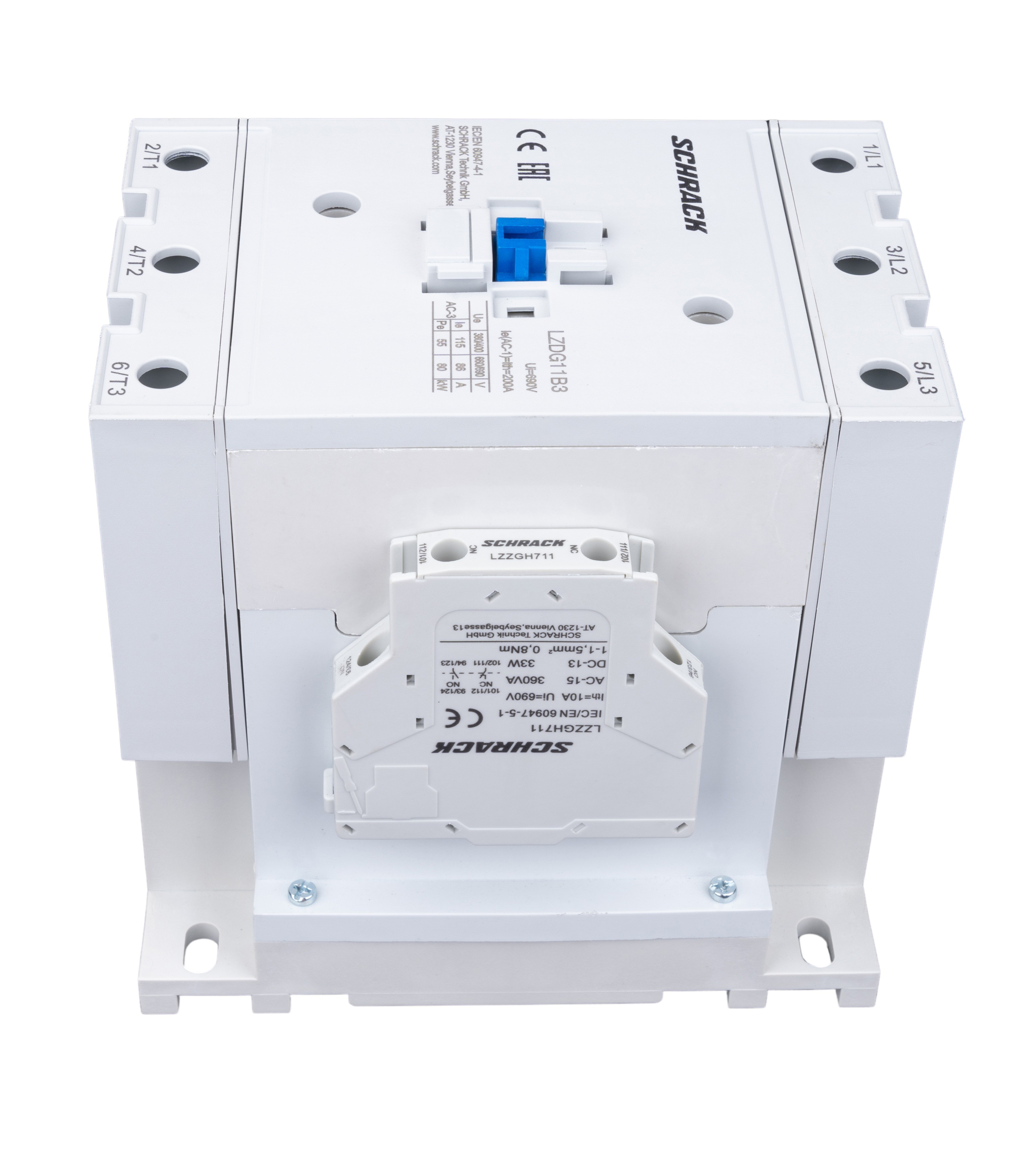

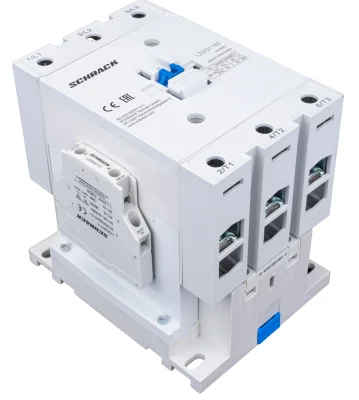

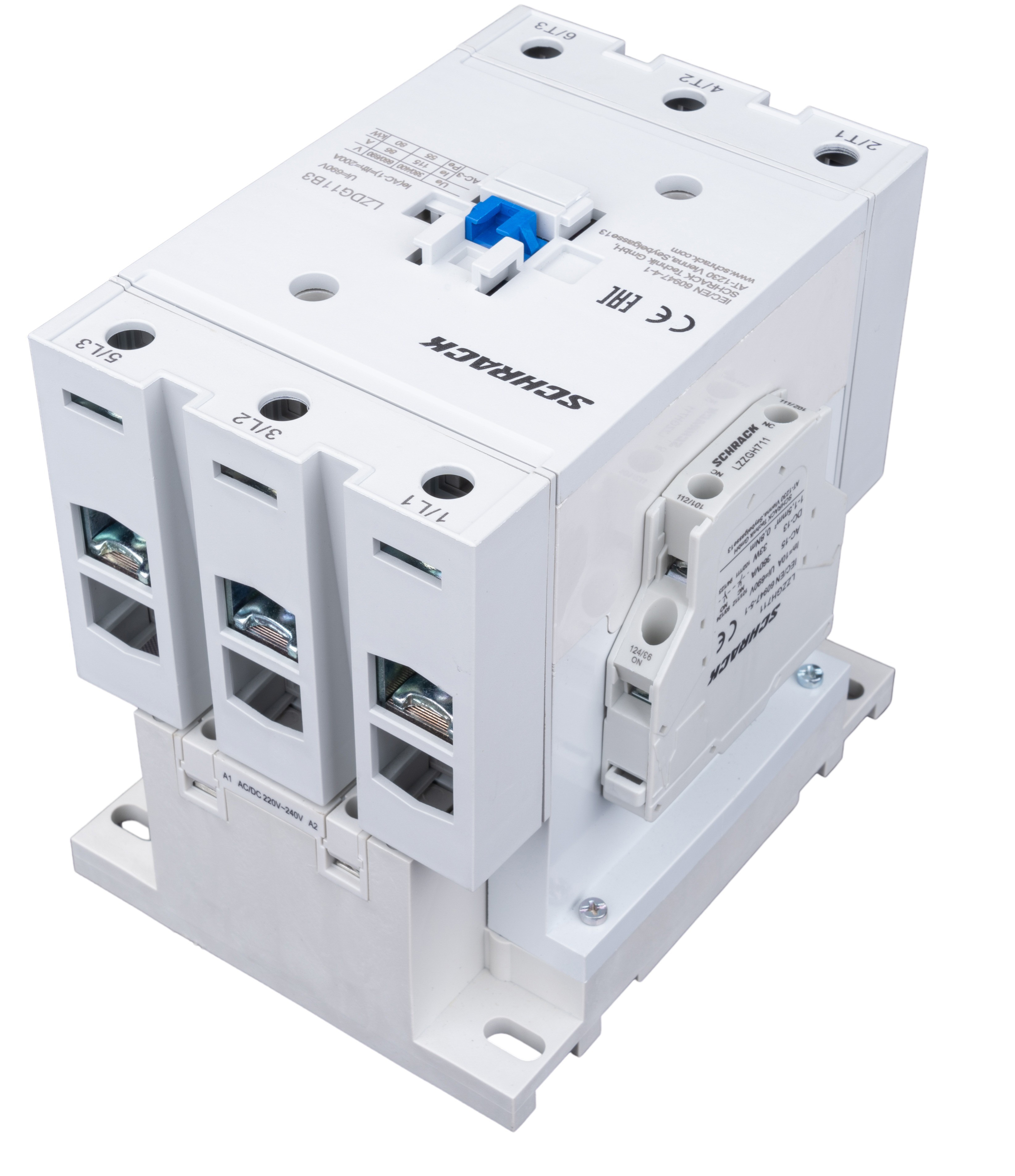

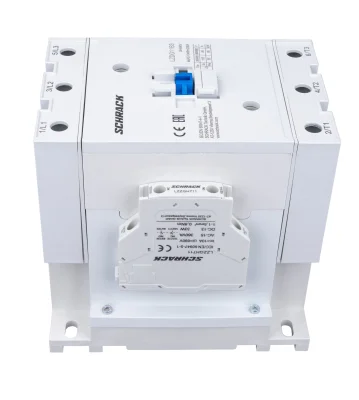

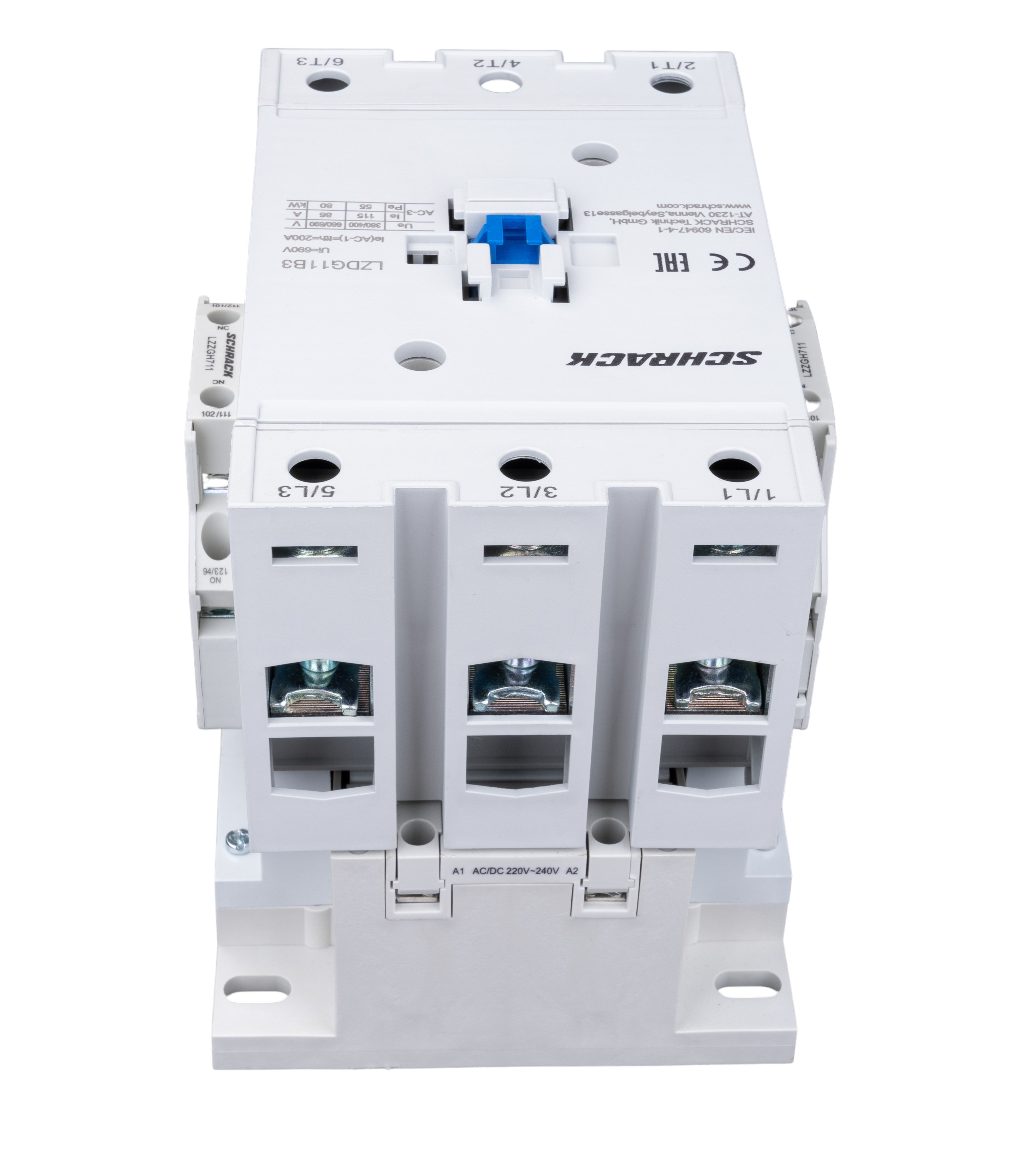

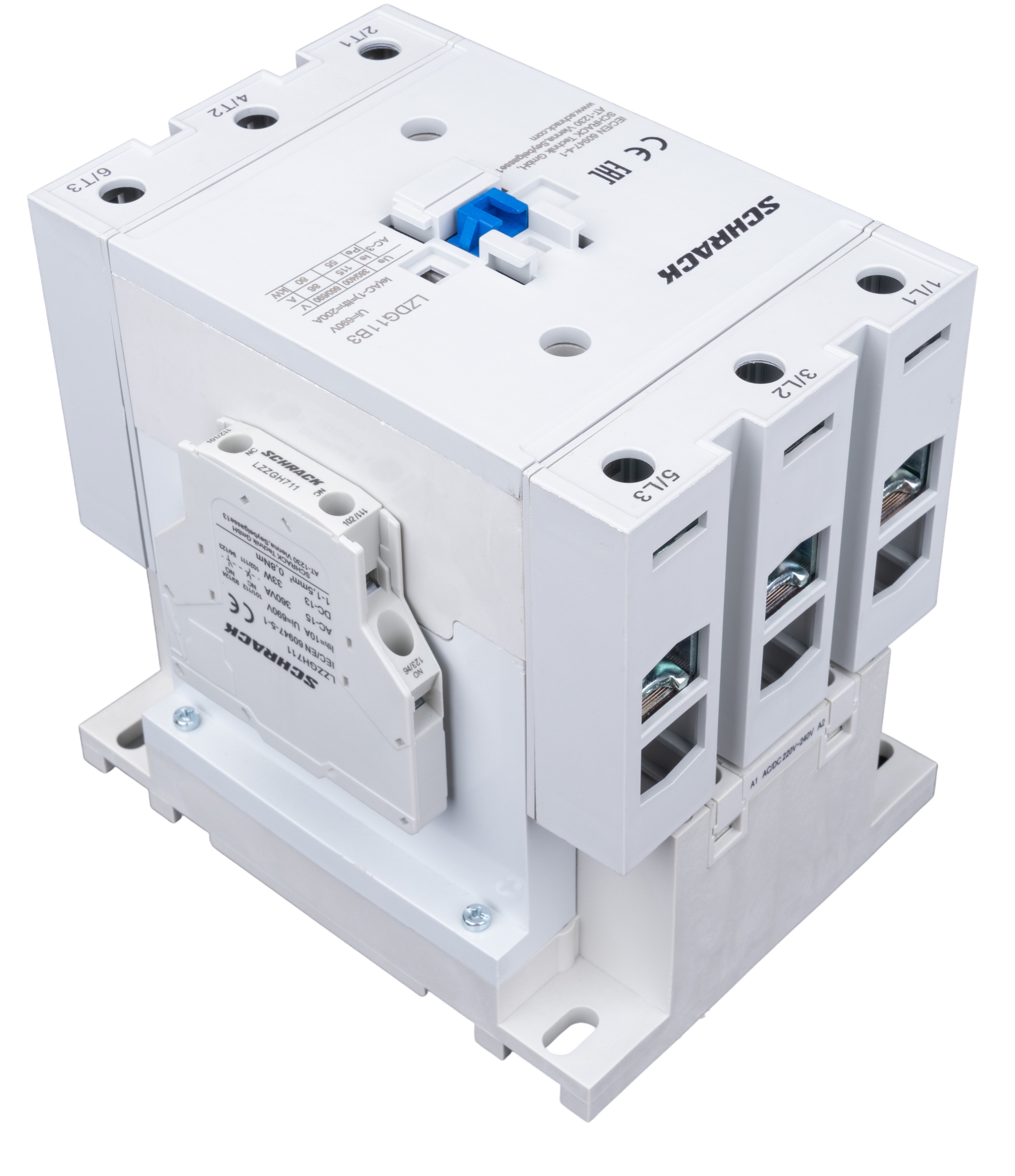

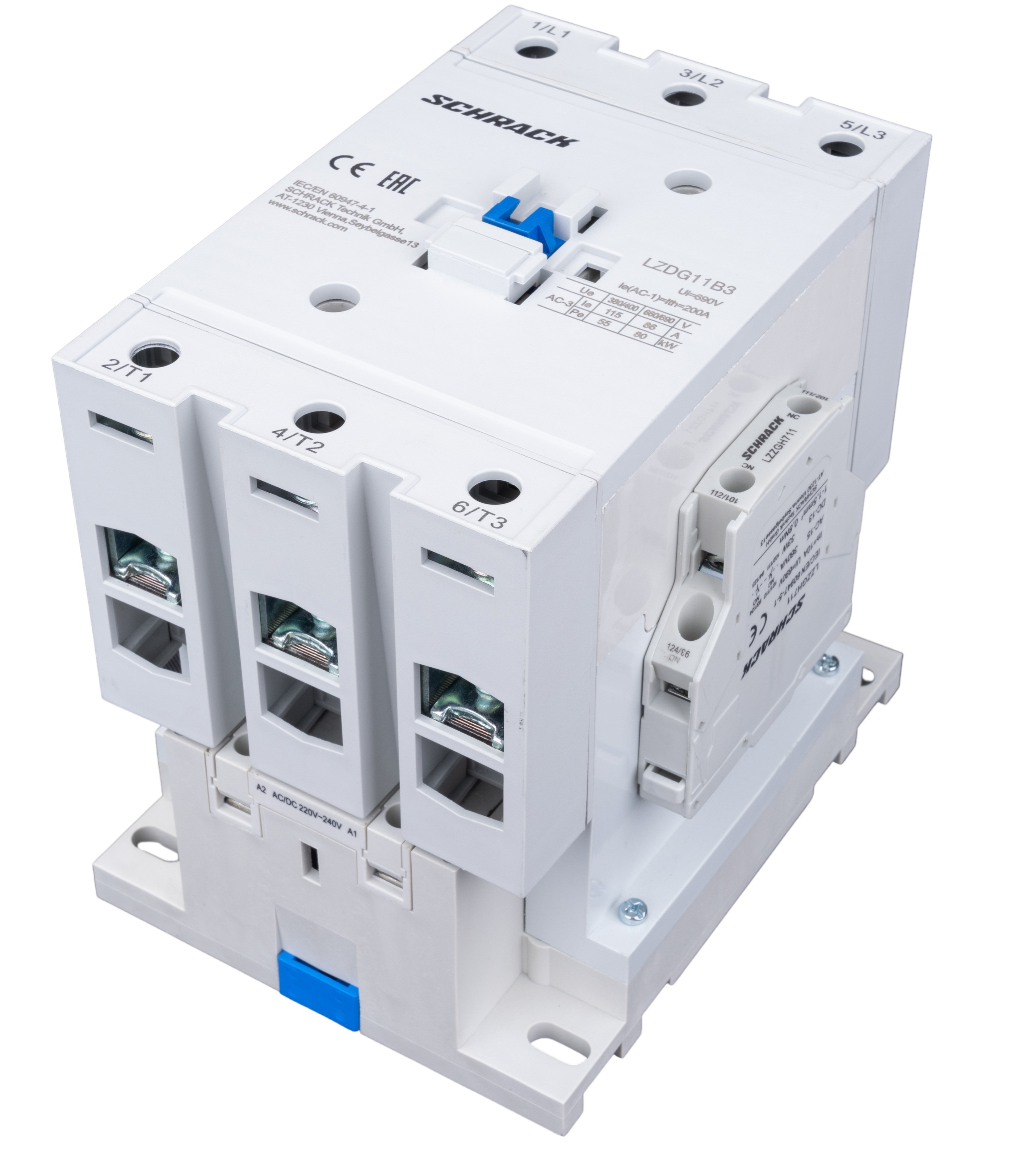

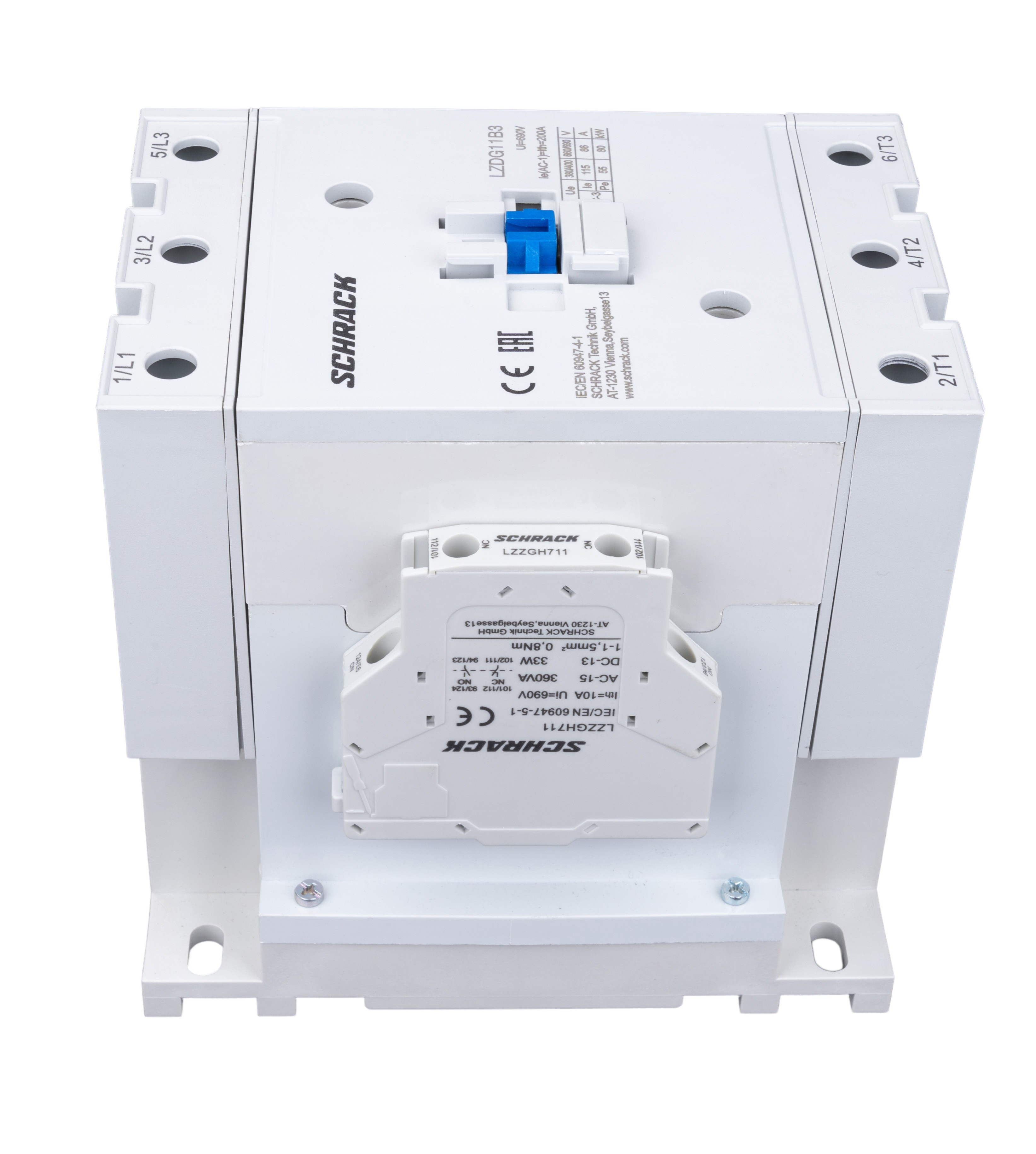

CUBICO Grand 55kW Contactor/400V/115A/1NO+1NC/230VAC

The CUBICO Grand power contactor is designed for switching three-phase asynchronous electric motors and other industrial loads in alternating current networks. The contactor is rated for a nominal current of 115 A at a voltage of 400 V and ensures switching of loads with a power of 55 kW (AC-3 category).

Main characteristics:

• Coil control voltage: 230 V alternating current
• Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
• Power dissipation: 29 W
• Operating temperature range: from −25 °C to +60 °C
• Size: Grand (60 mm contact block height)

Dimensions and weight:

• Width: 120 mm
• Height: 156 mm
• Depth: 155 mm
• Net weight: 3.39 kg

Package contents: available in packs of 1 or 2 units.

The contactor complies with DIN EN 60947-4-1 standards and is used in industrial distribution panels, automation systems, and electric motor control systems.
