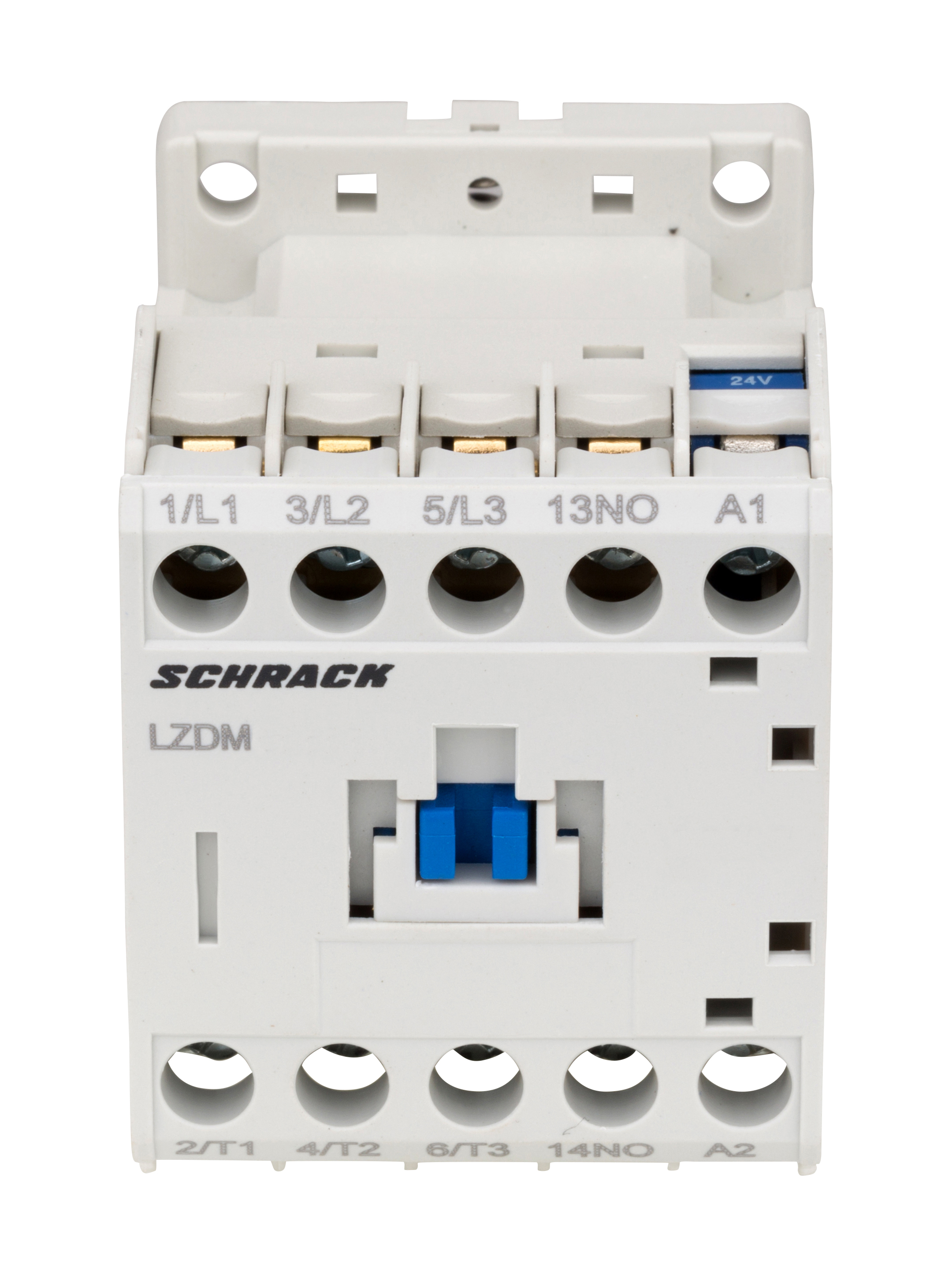

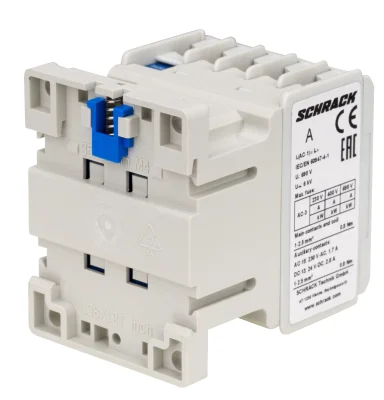

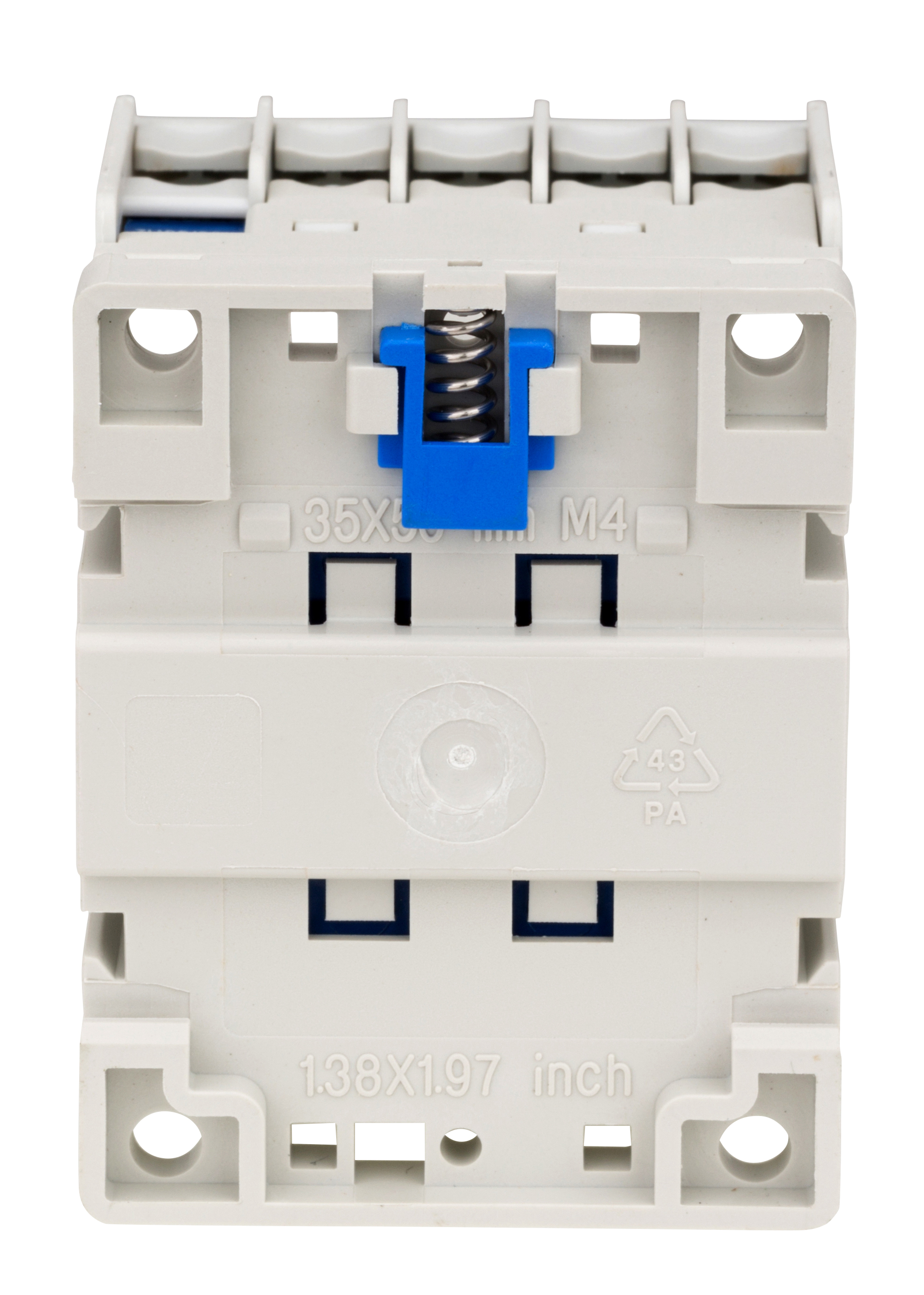

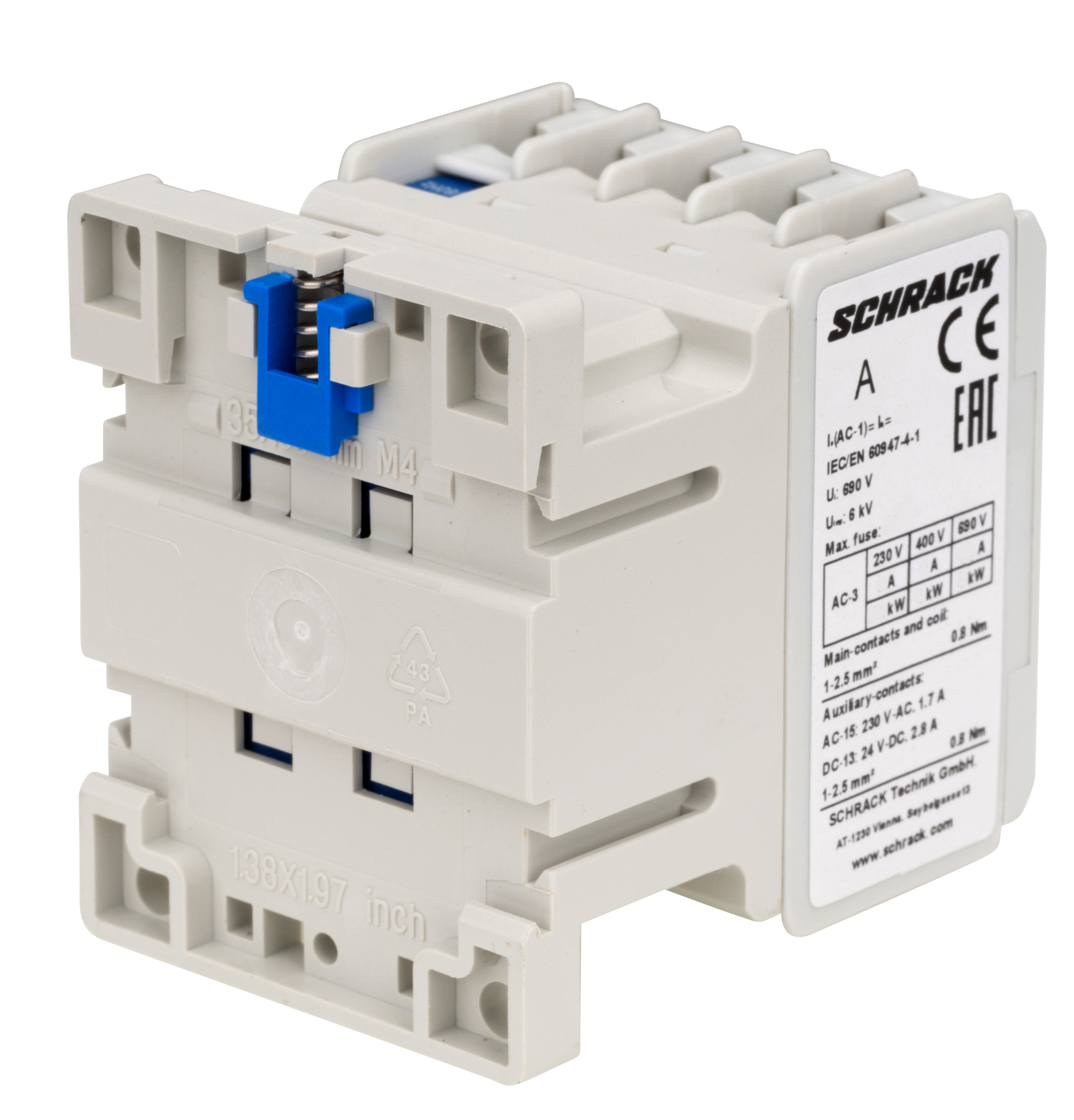

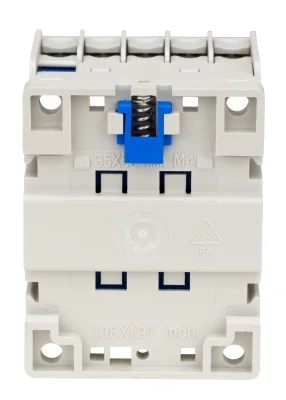

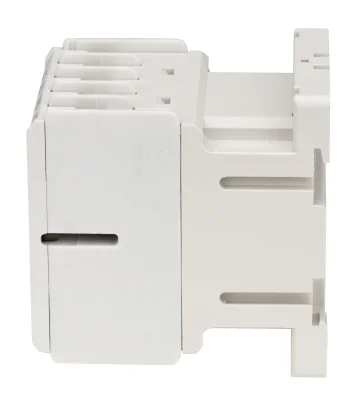

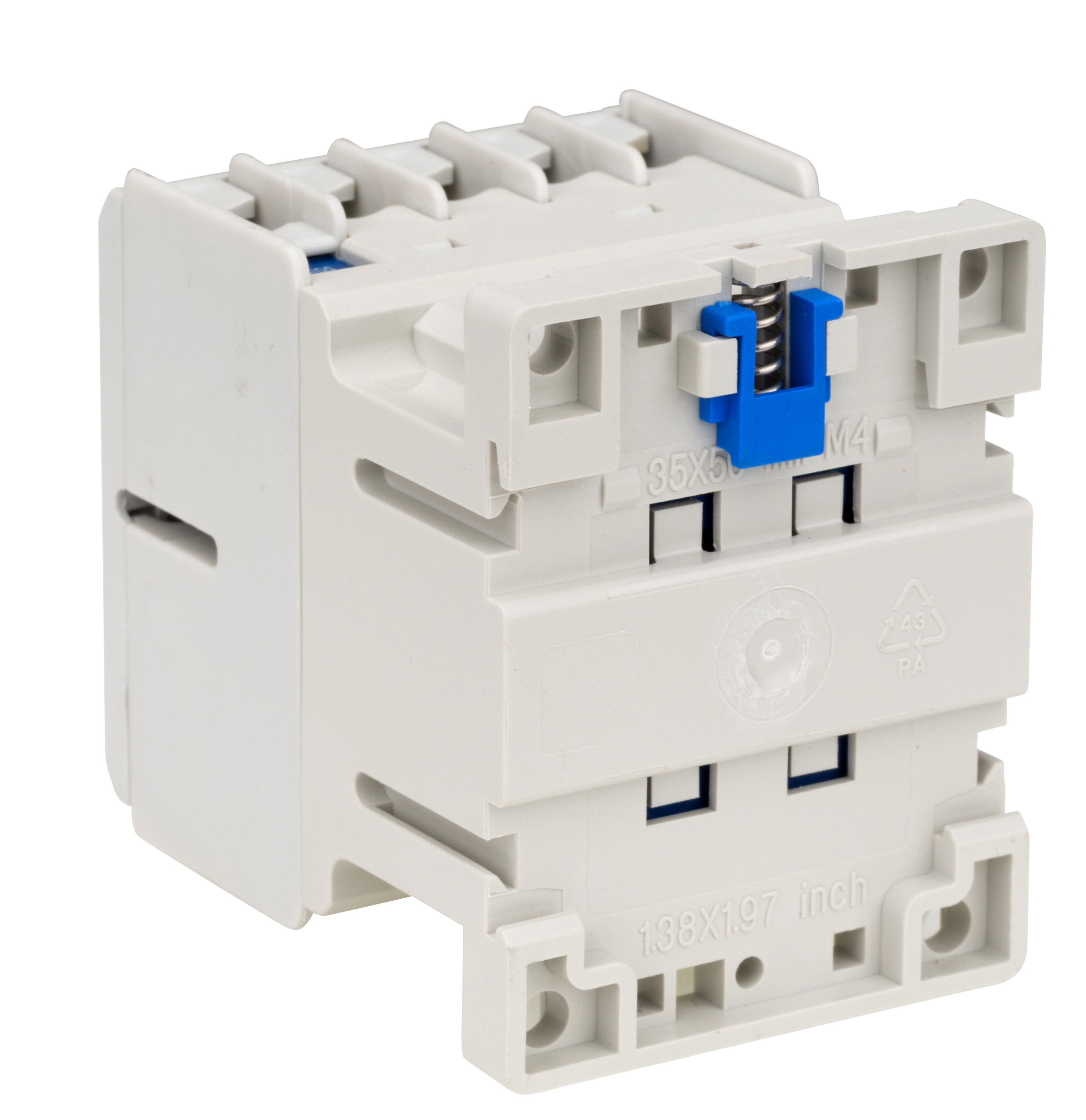

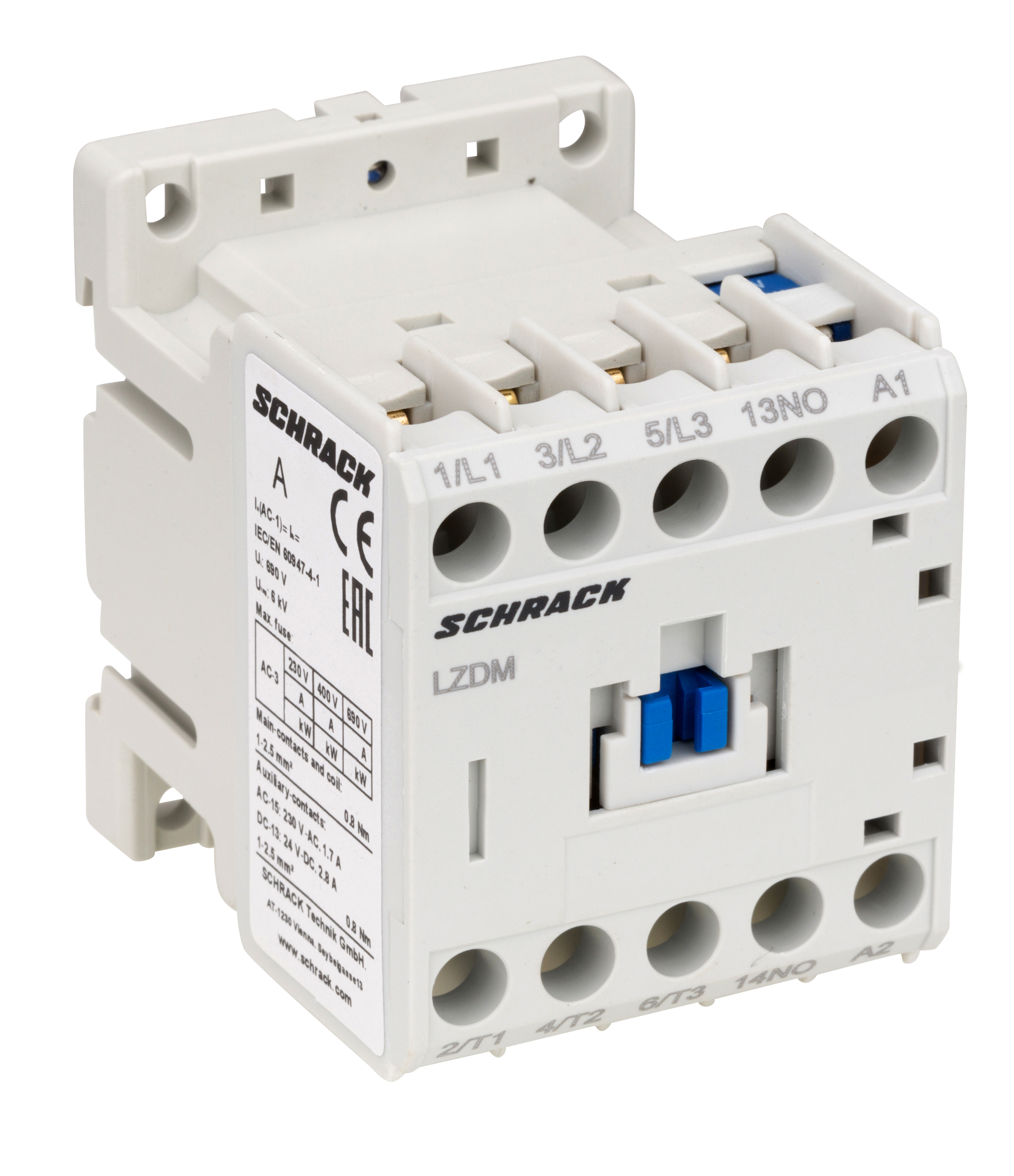

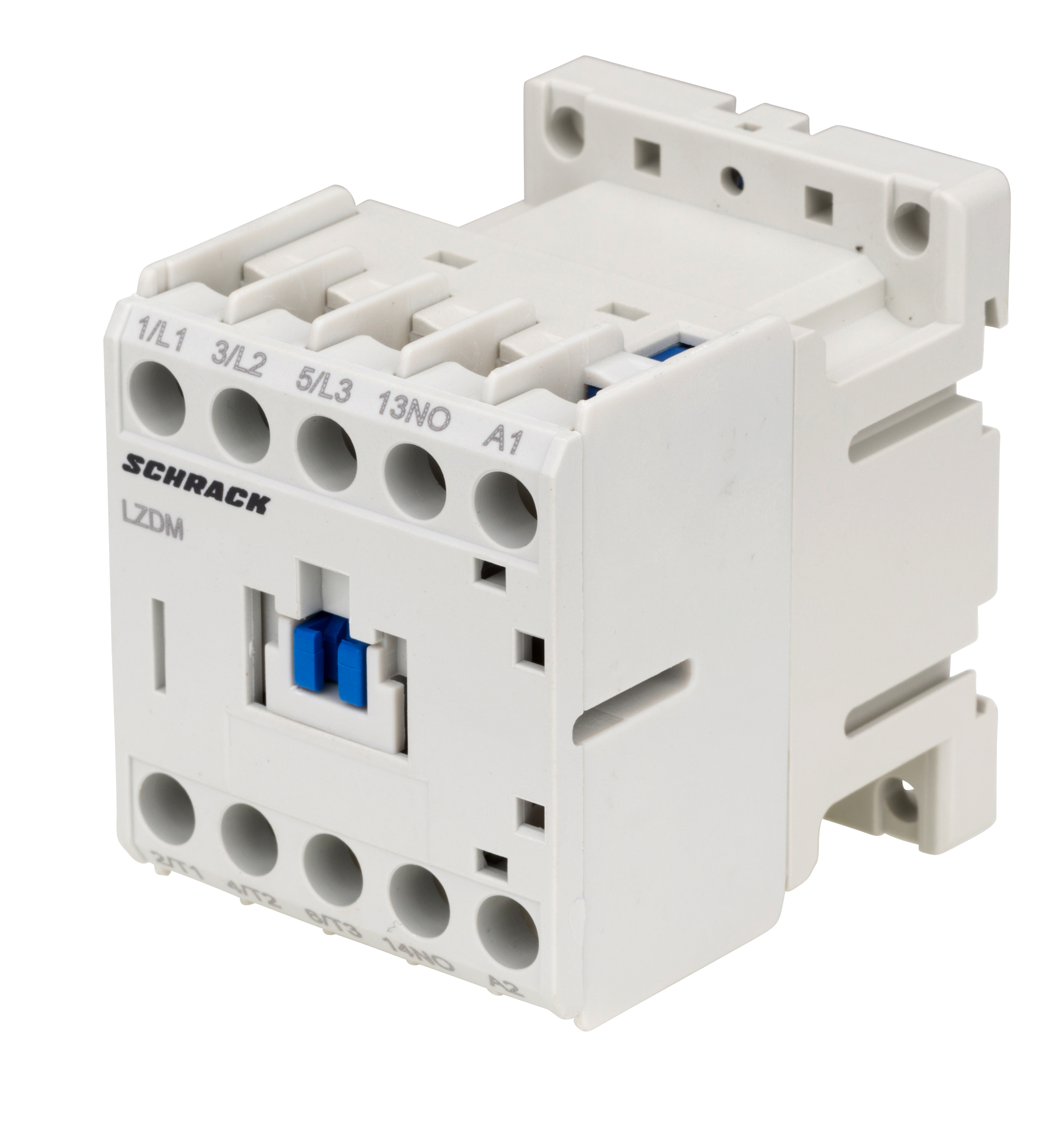

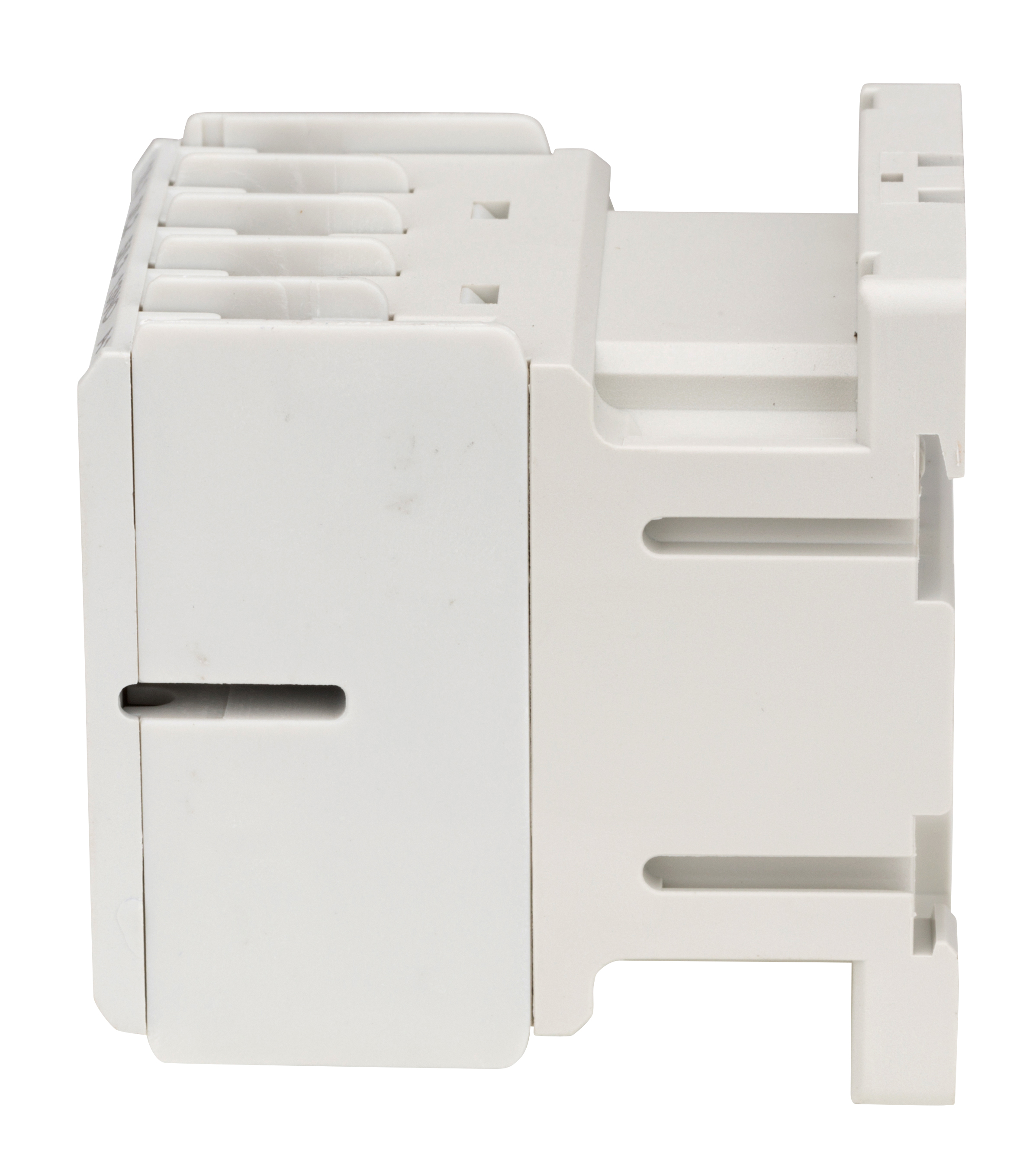

CUBICO Mini Contactor 2.2kW/AC3/6A/1NO Coil 24VAC

Article: LZDM0610--

Контакторы CUBICO Mini

7 630 ₸

To order

A compact electromagnetic contactor of the CUBICO Mini series designed for switching asynchronous motors and resistive loads in alternating current networks. The contactor provides reliable control of electrical equipment with rated power up to 2.2 kW in the AC-3/400V application category.

Main characteristics:

  • Rated current of main contacts: 6 A (AC-3/400V)
  • Rated current AC-1/690V: 20 A
  • Control coil voltage: 24 V alternating current
  • Main contacts: 3 closing contacts (3NO)
  • Auxiliary contacts: 1 closing contact (1NO)
  • Coil power consumption: 6.7 W

Overall dimensions and weight:

  • Width: 46 mm
  • Height: 59 mm
  • Depth: 58 mm
  • Weight: 0.18 kg

Operating conditions:

  • Minimum ambient temperature: -25°C
  • Maximum ambient temperature: +60°C

The miniature size of the contactor allows it to be installed in control cabinets with limited space. The design ensures high reliability and long service life under multiple operations.

EAN code9004840024579
Width (net)46.00 mm
Height (net)59.00 mm
Depth (net)58.00 mm
Weight (net)0.18 kg
Power loss6.70 W
Min. ambient temperature-25°C
Max. ambient temperature60°C
SizeMini
TypeContactor
Auxiliary contacts1 closing contact
Coil voltage AC24V alternating current
Rated current6A
DeviceContactor
Rated current AC-1/690V20A
Rated current AC-3/400V6A
Rated power AC-3/400V2.2 kW
Main contacts3 closing contacts
ManufacturerSchrack
Packaging1 pc., 108 pc.
