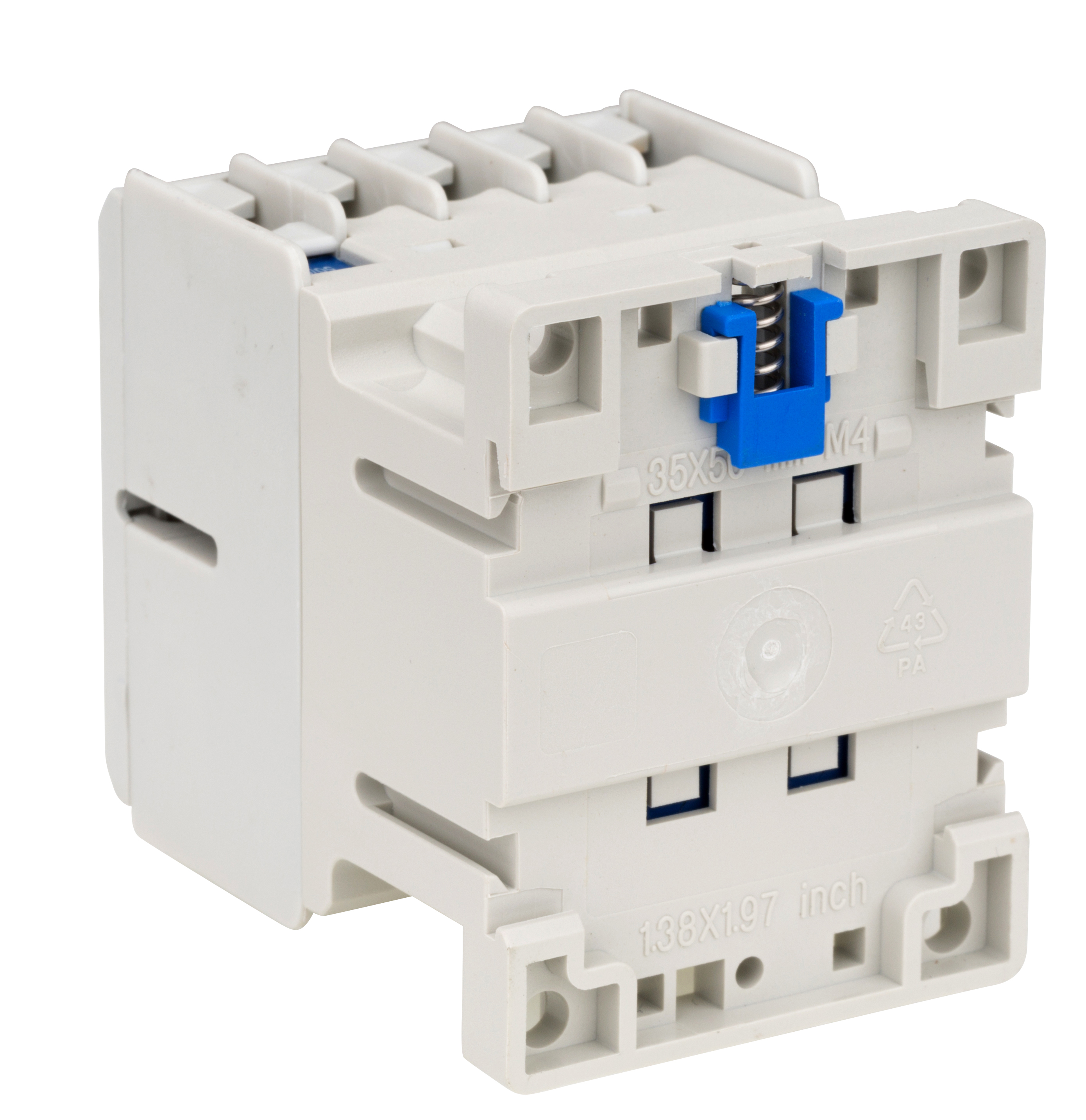

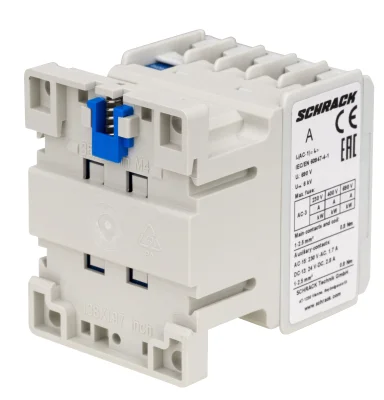

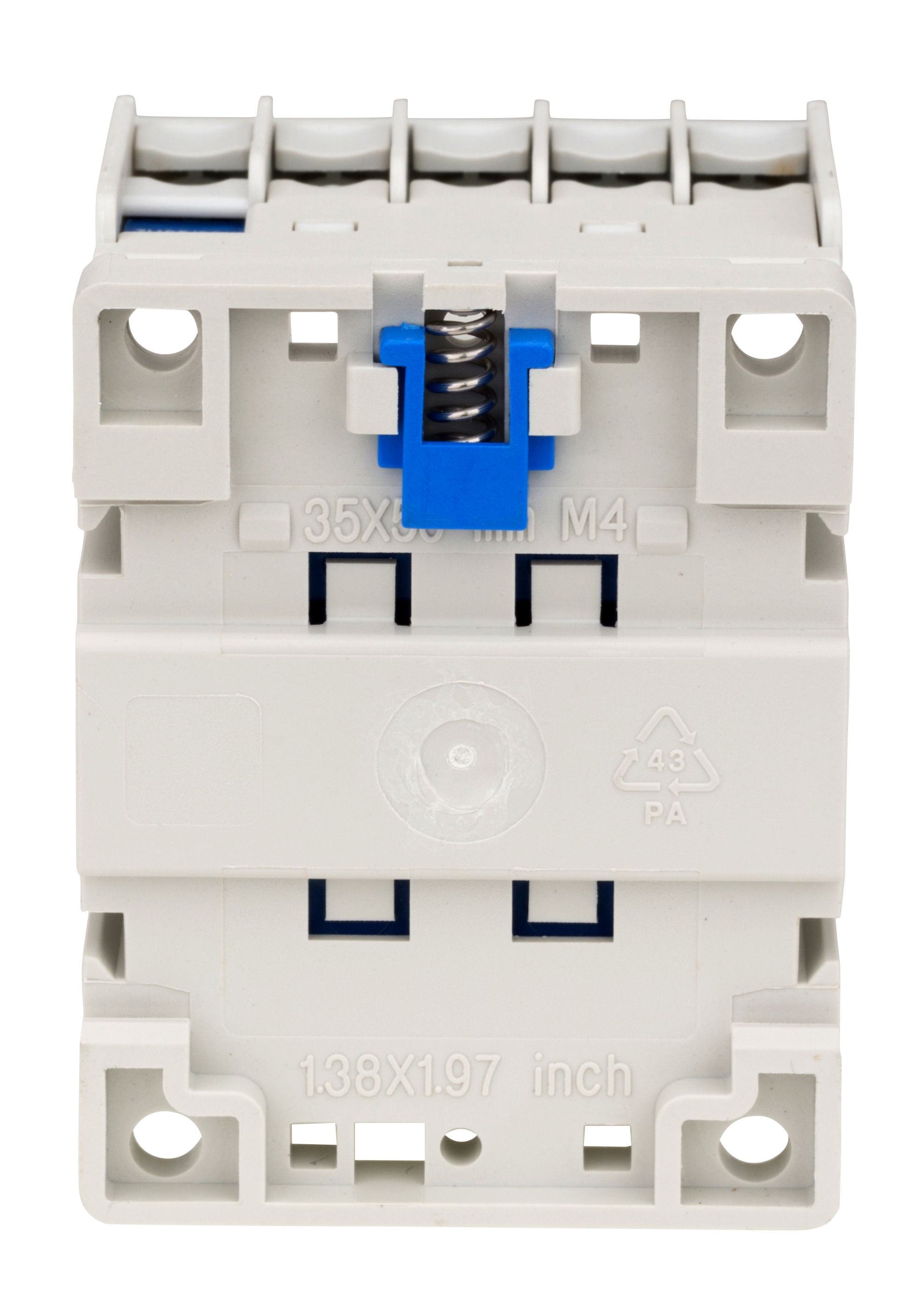

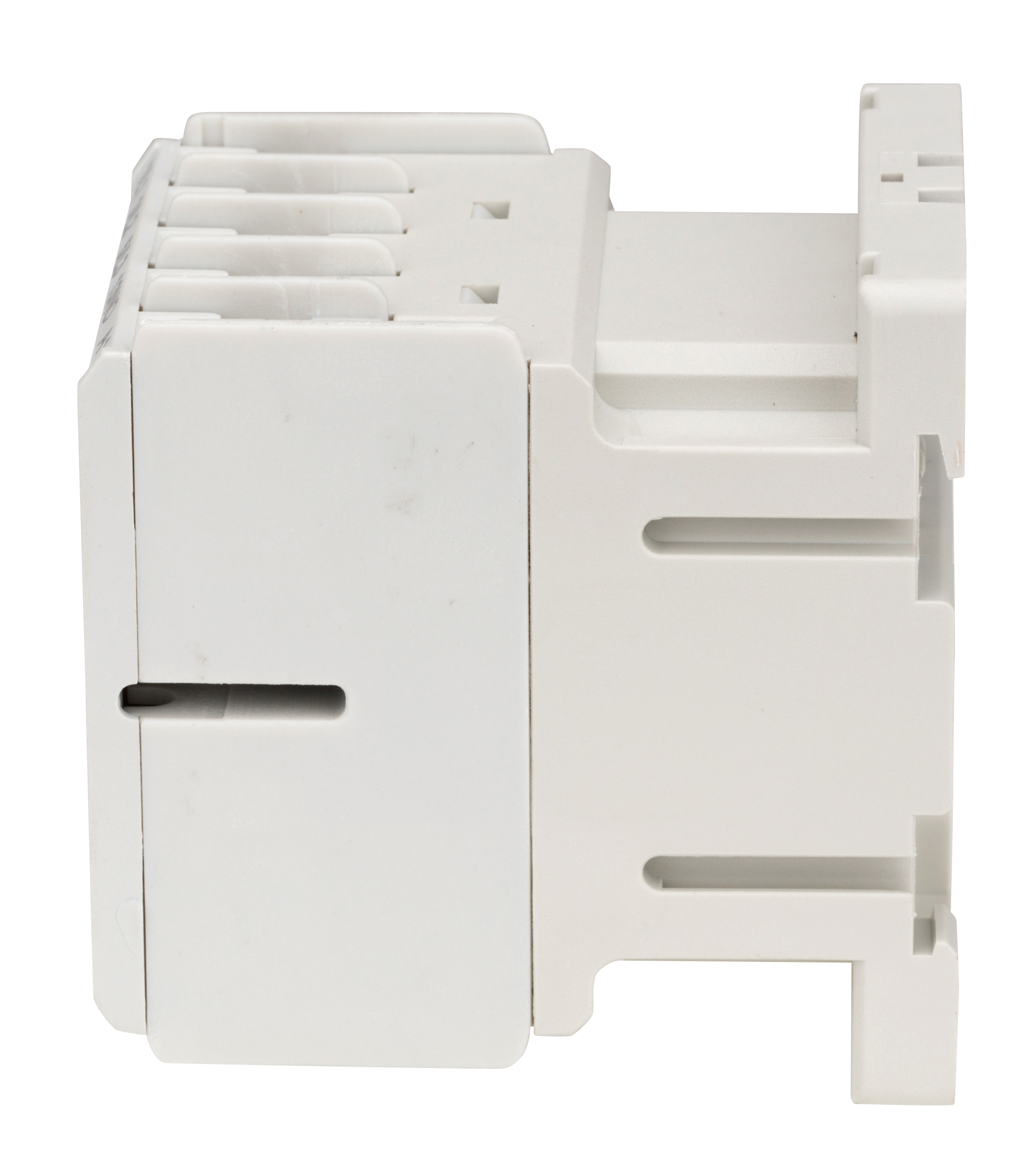

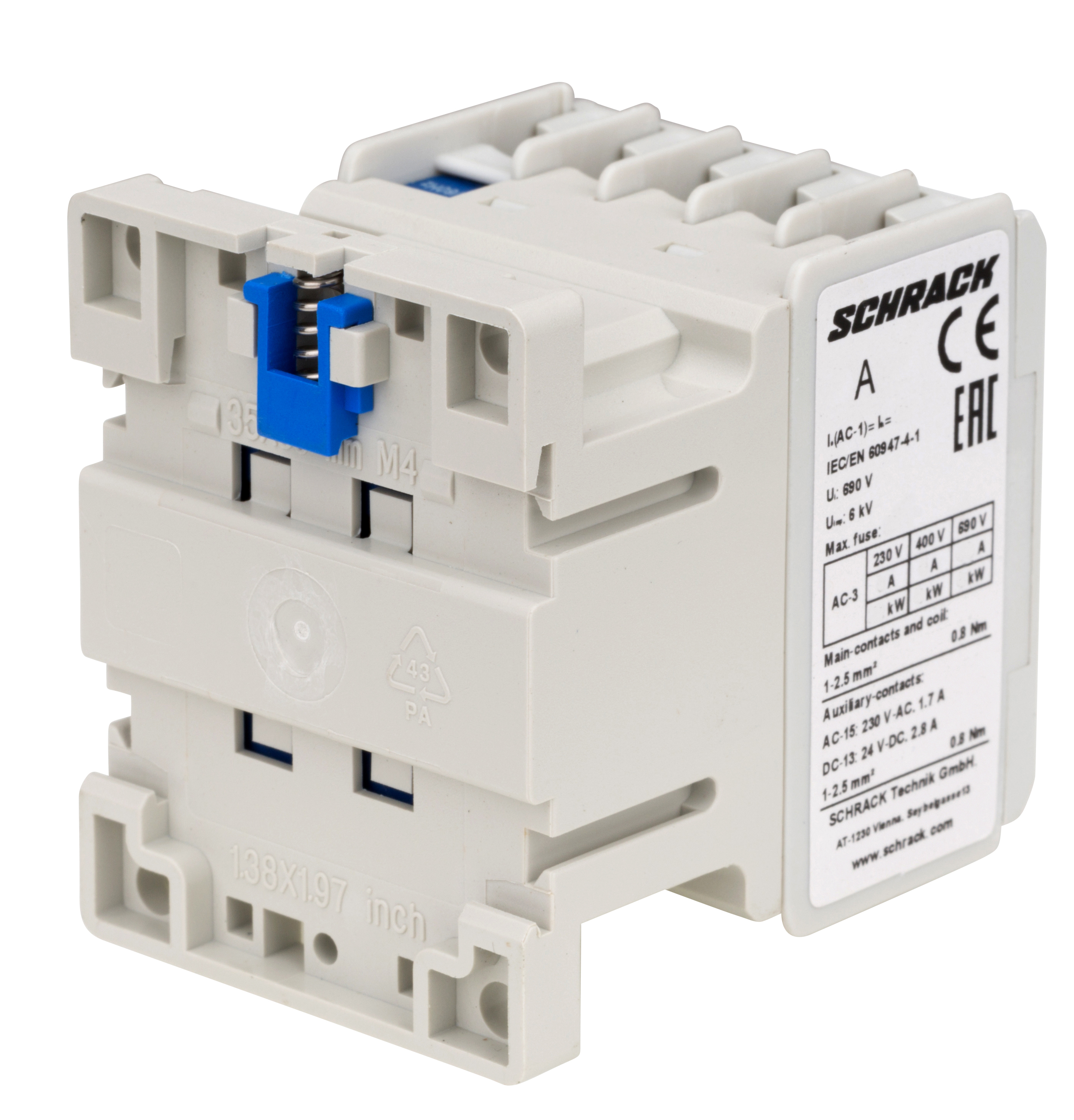

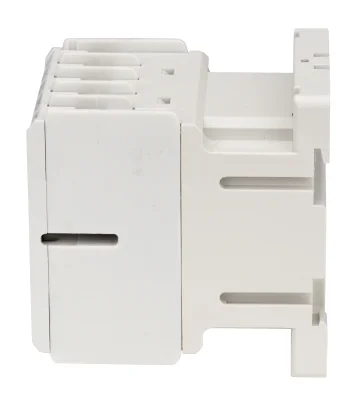

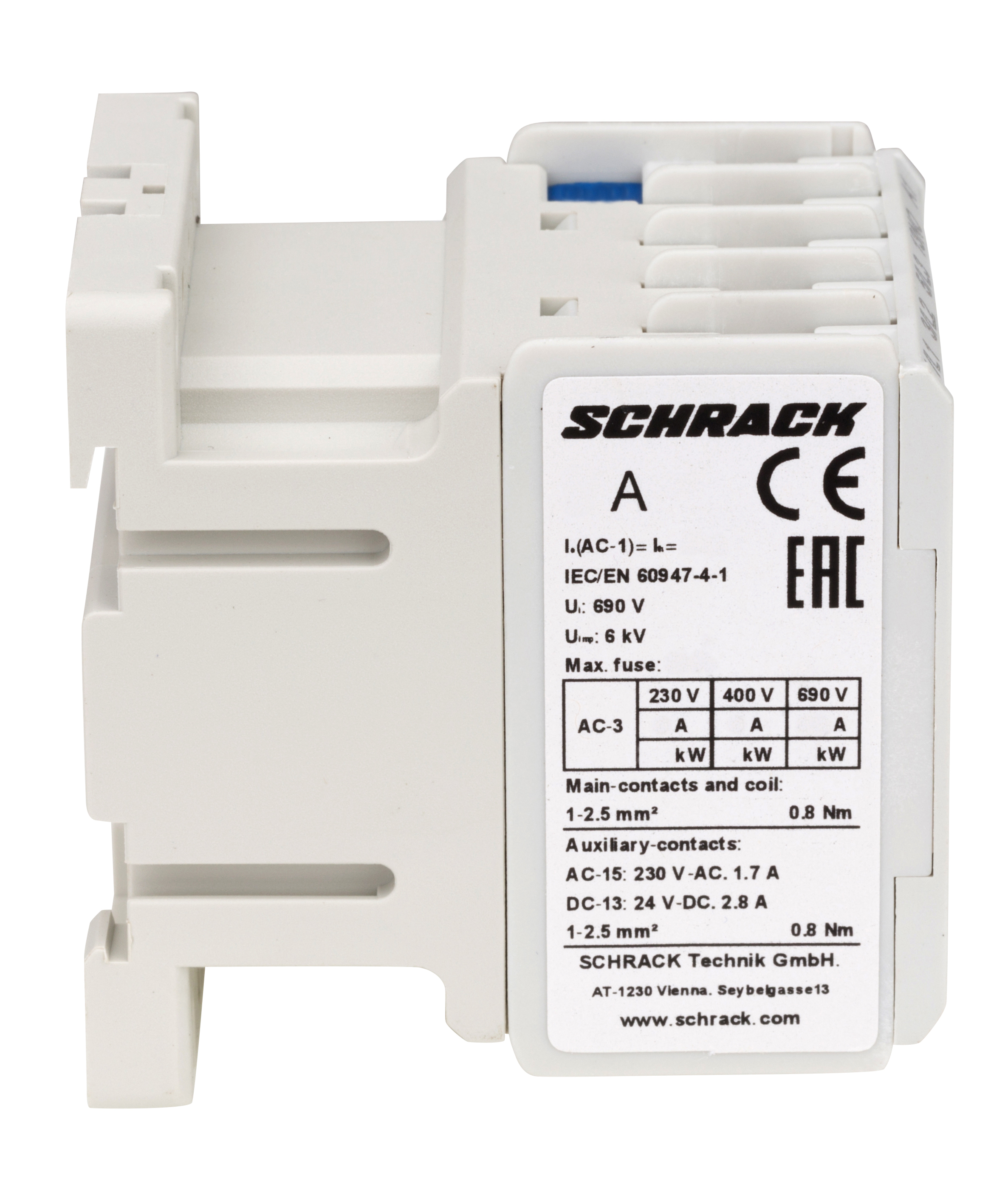

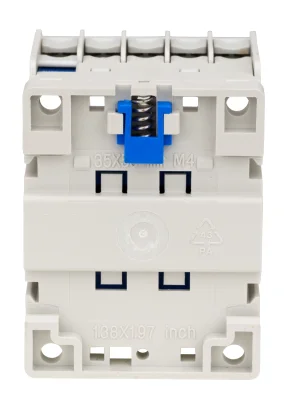

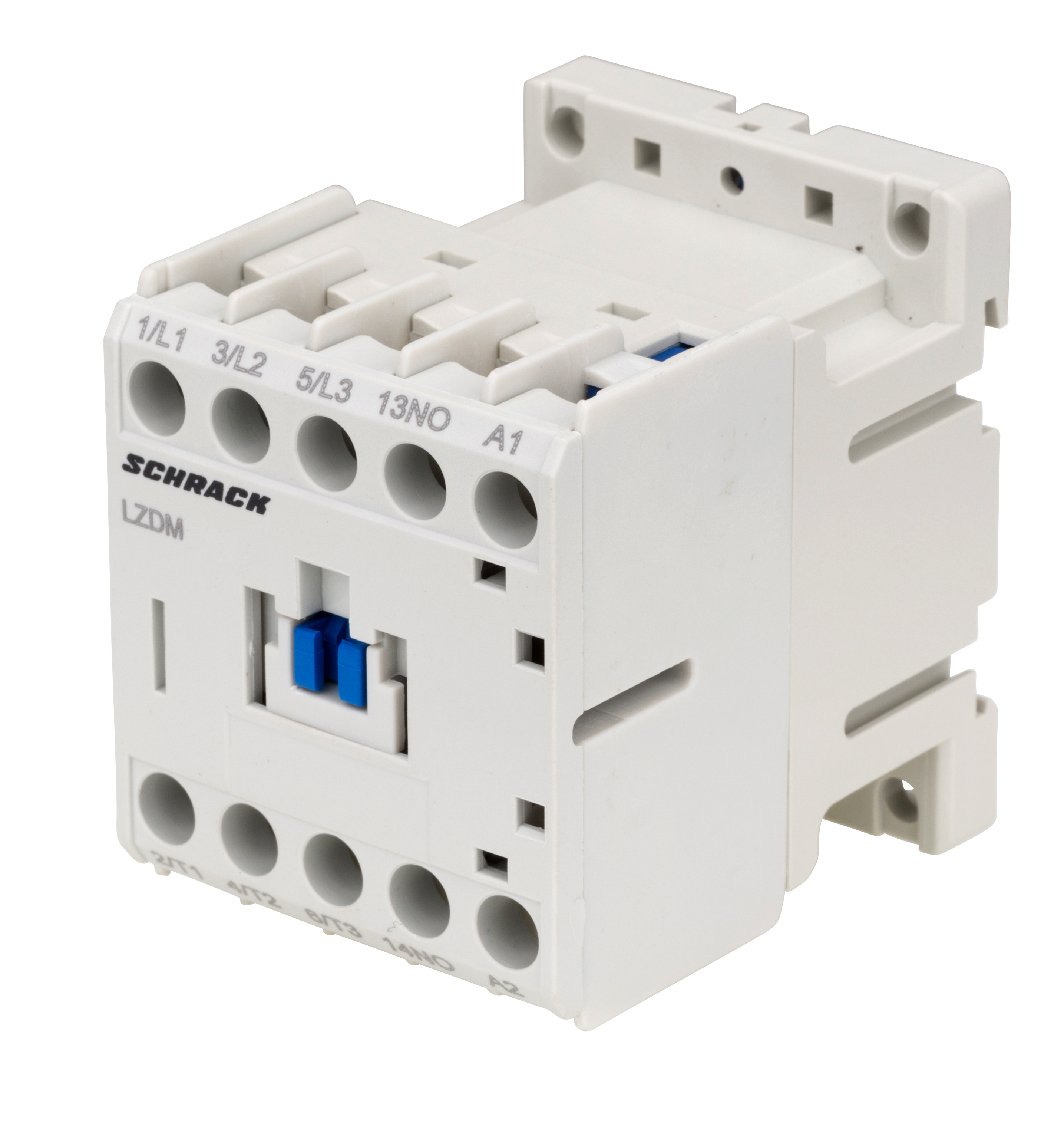

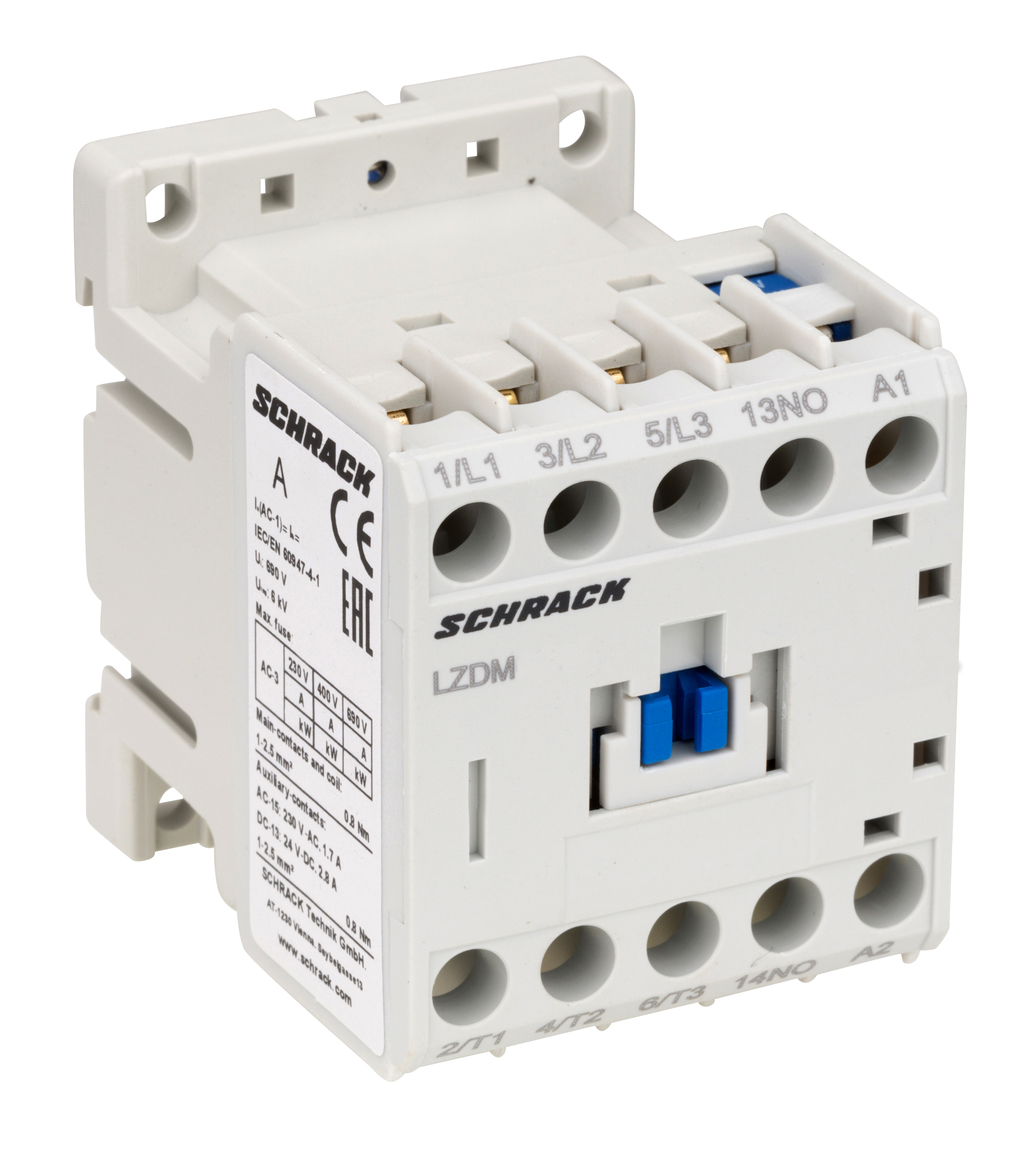

CUBICO Mini Contactor 4kW/AC3/9A/1NC 230VAC Coil

The CUBICO Mini is a compact contactor designed for switching asynchronous AC motors and power circuits. The device provides reliable control of loads up to 4 kW at a rated current of 9 A in the AC-3 application category at 400 V voltage.

Main Characteristics:

• Coil voltage: 230 V AC
• Rated current: 9 A
• Rated power (AC-3/400V): 4 kW
• Rated current (AC-1/690V): 20 A
• Main contacts: 3 normally open contacts
• Auxiliary contacts: 1 normally closed contact
• Power loss: 7.10 W
• Size class: Mini

Constructive Parameters:

• Dimensions (width × height × depth): 46 × 59 × 58 mm
• Weight: 0.18 kg
• Operating temperature range: -25°C to +60°C

Supply:

• EAN code: 9004840024623
• Packaging: 1 pc or 108 pcs
• Manufacturer: Schrack

Compact dimensions and low weight enable integration of the contactor into control cabinets with limited space. The device meets standard requirements for electromagnetic starters and contactors for industrial applications.
