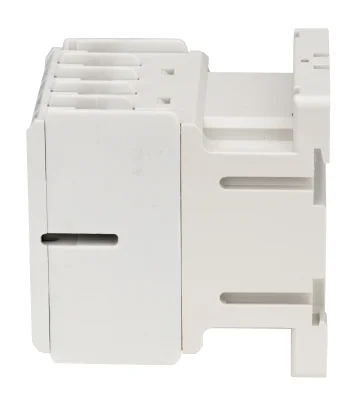

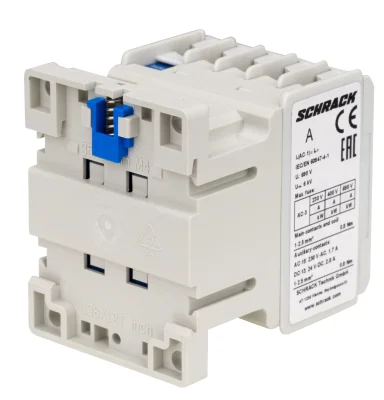

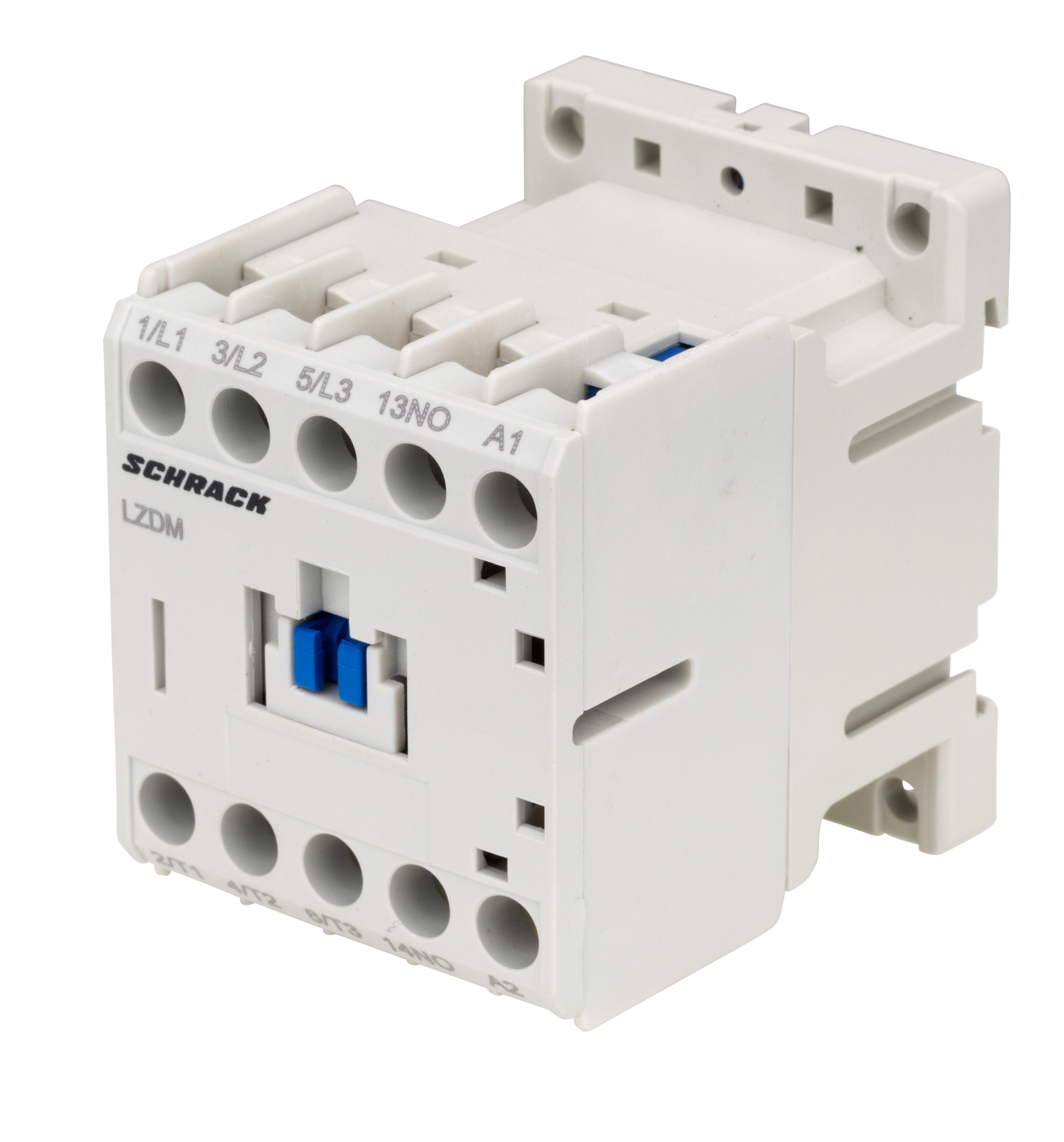

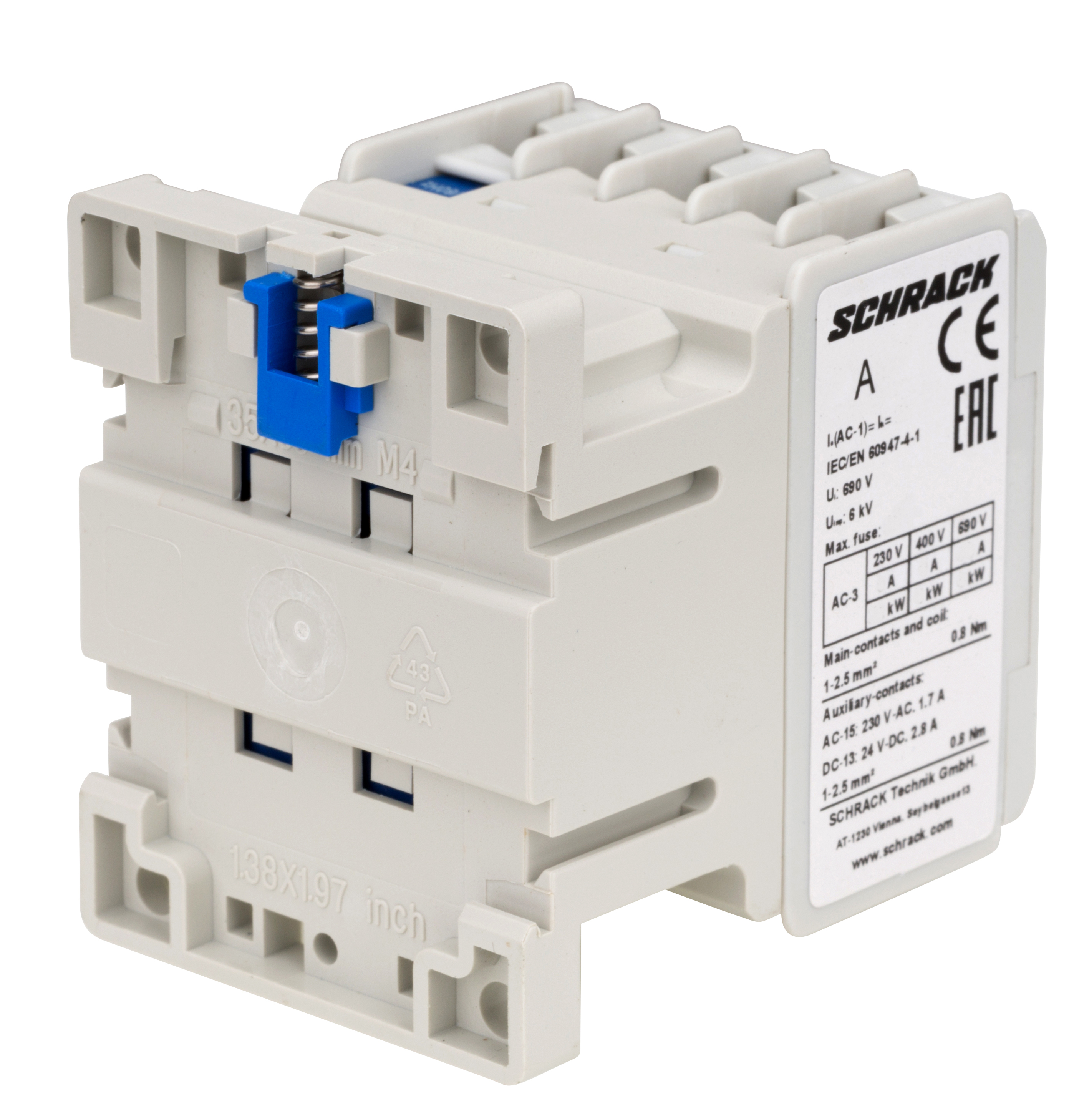

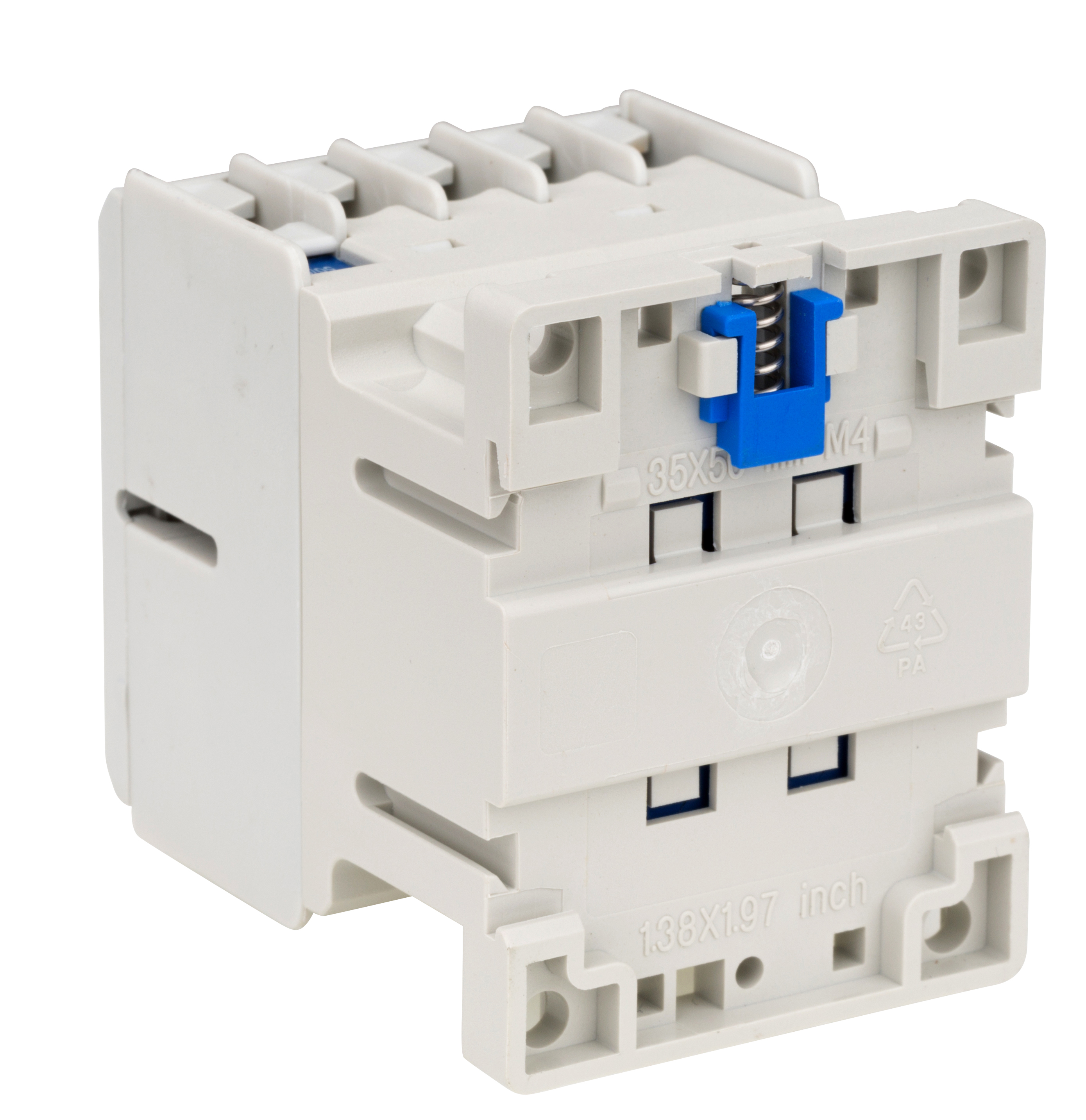

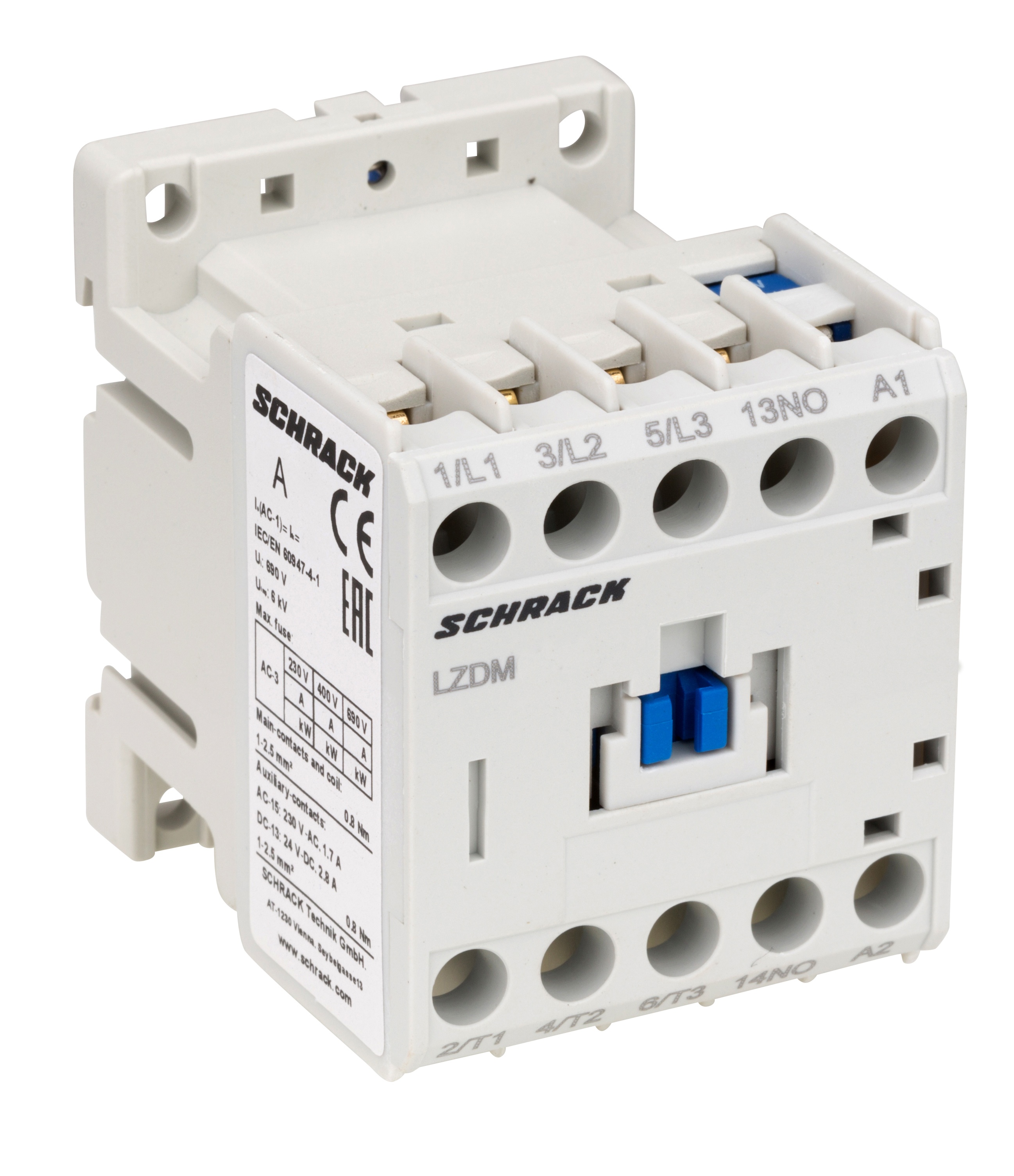

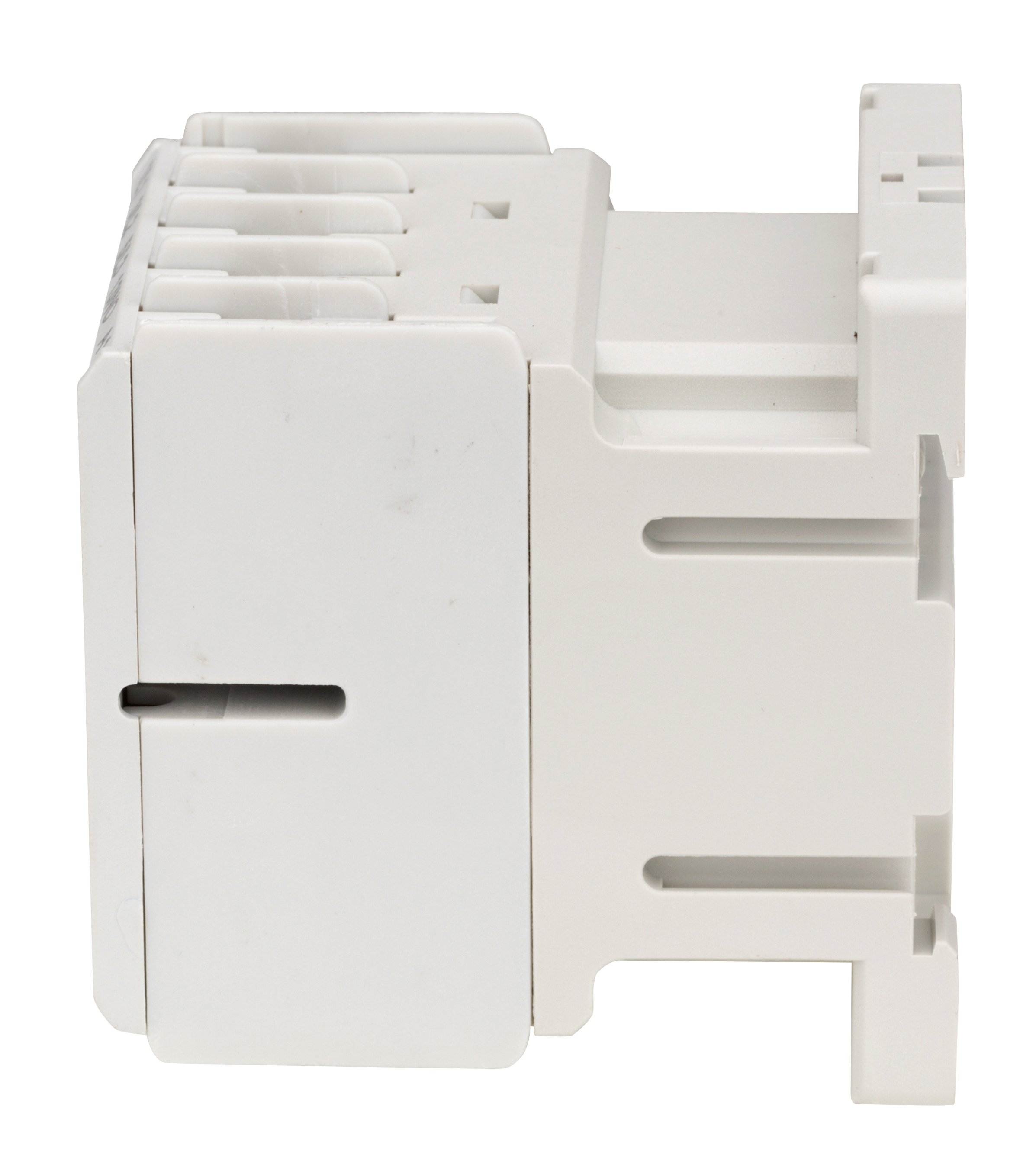

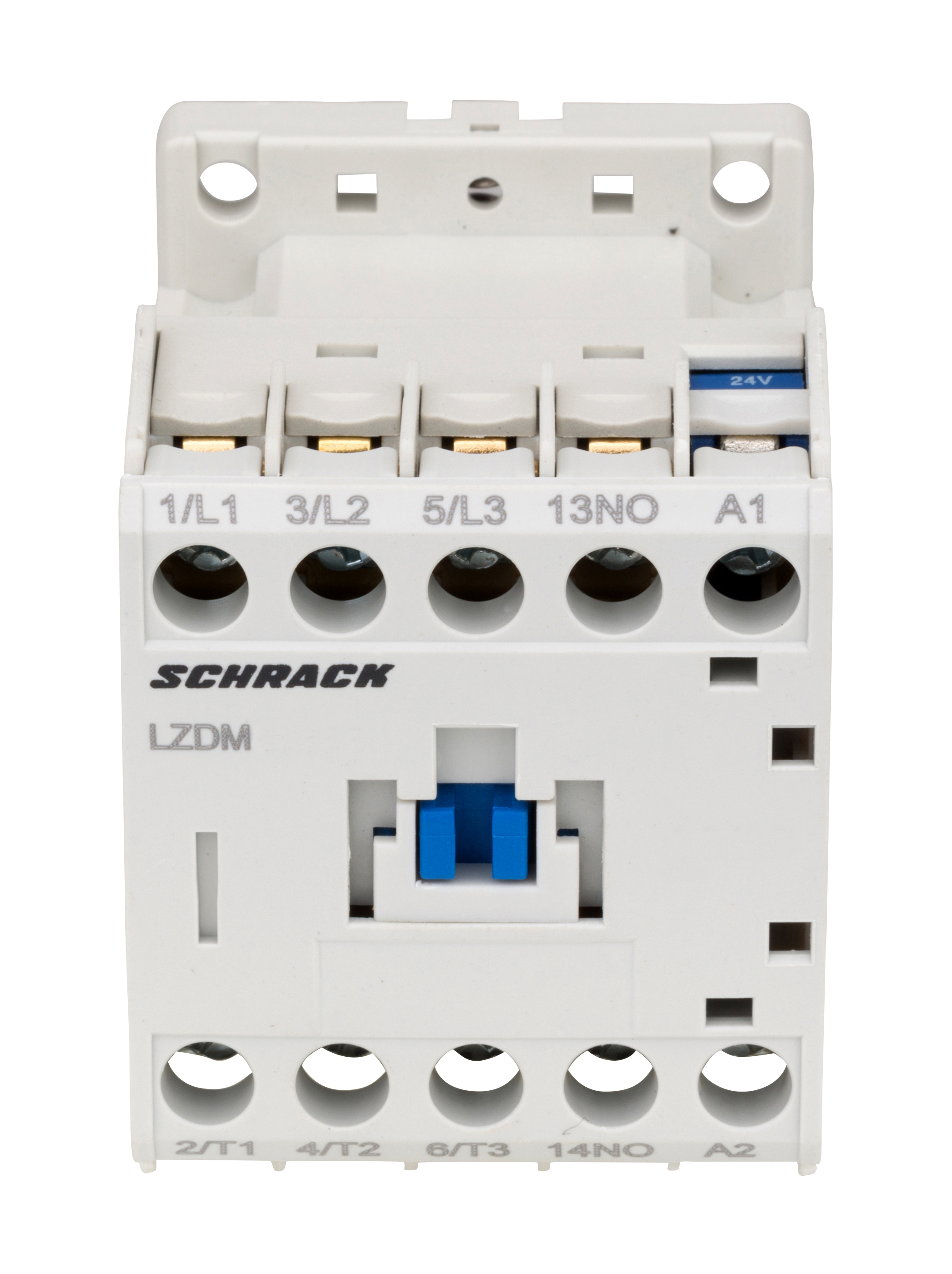

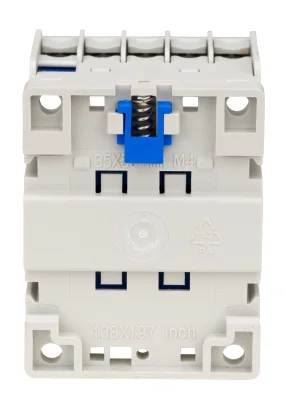

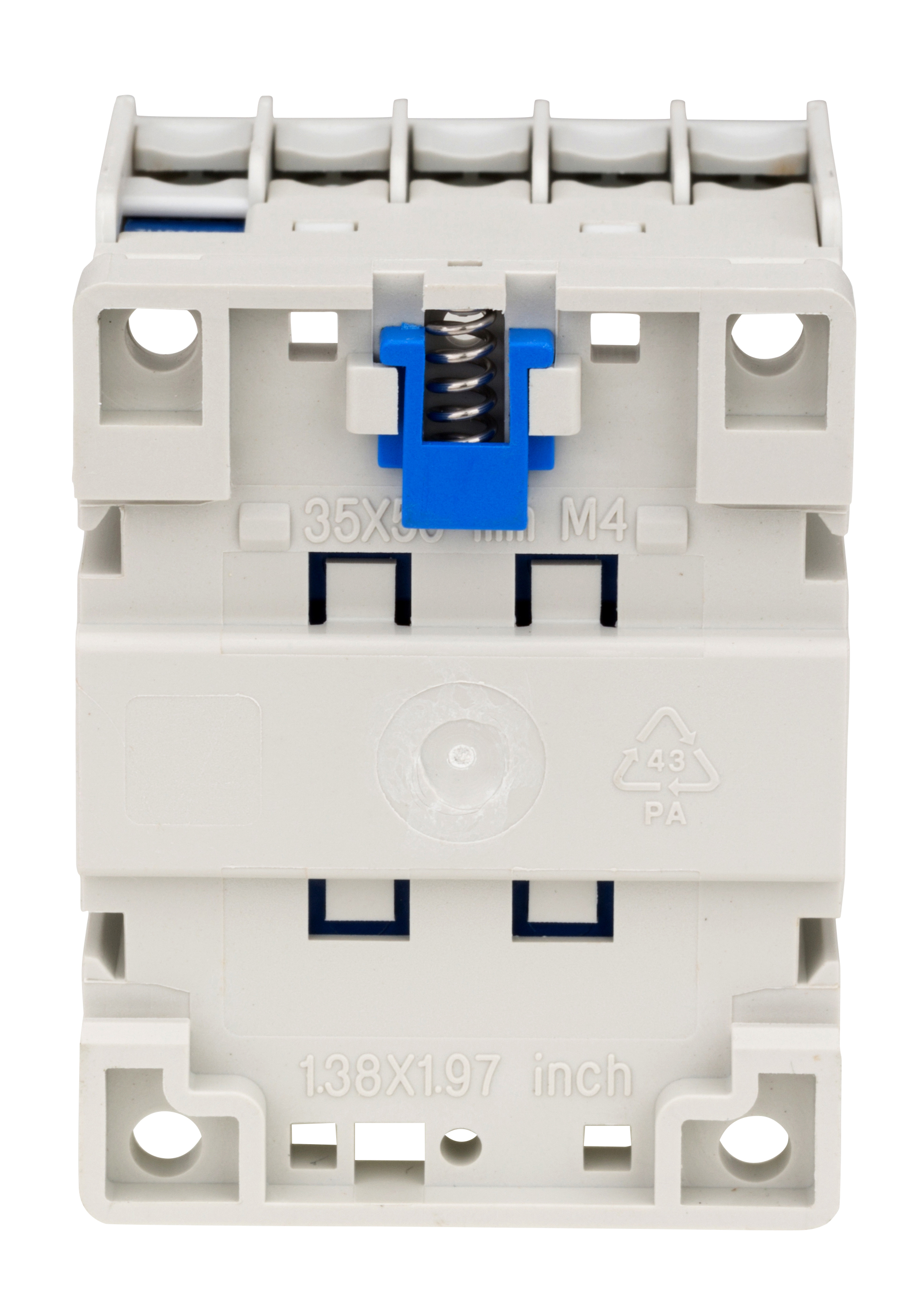

CUBICO Mini 5.5kW/AC3/12A/1NC coil 230VAC contactor

Article: LZDM1223--

Контакторы CUBICO Mini

8 295 ₸

To order

The CUBICO Mini contactor is designed to control asynchronous motors and other electrical equipment in alternating current circuits. The device provides reliable electromechanical switching with minimal power loss.

Main characteristics:

  • Rated power: 5.5 kW (AC-3/400V)
  • Rated current: 12 A (AC-3/400V)
  • Maximum current: 20 A (AC-1/690V)
  • Coil voltage: 230 V AC
  • Main contacts: 3 normally open contacts (3NO)
  • Auxiliary contacts: 1 normally closed contact (1NC)
  • Power loss: 8.8 W
  • Operating temperature range: -25°C to +60°C

Dimensions:

  • Width: 46 mm
  • Height: 59 mm
  • Depth: 58 mm
  • Weight: 0.18 kg

Design and packaging:

The compact Mini size is ideal for installation in control cabinets with limited space. EAN code: 9004840024685. Manufacturer: Schrack. Available packaging: 1 pc., 108 pc.

EAN code9004840024685
Width net46.00 mm
Height net59.00 mm
Depth net58.00 mm
Weight net0.18 kg
Power loss8.80 W
Min. ambient temperature-25°C
Max. ambient temperature60°C
SizeMini
TypeContactor
Installed auxiliary contacts1 normally closed contact
Coil voltage AC230 V AC
Rated current12 A
DeviceContactor
Rated current AC-1/690V20 A
Rated current AC-3/400V12 A
Rated power AC-3/400V5.5 kW
Main contacts3 normally open contacts
ManufacturerSchrack
Packaging1 pc., 108 pc.
