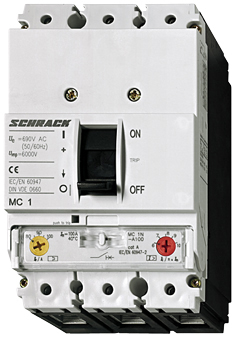

Automatic Circuit Breaker 50A/3, 100kA, Type M
Article: MC150336--
138 090 ₸
To order
Three-pole automatic circuit breaker with nominal current 50 A and short-circuit breaking capacity 100 kA. Equipped with Type M thermal-magnetic release device for protection of electrical circuits and motors against overloads and fault currents.
Technical parameters:
- Number of poles: 3
- Nominal current: 50 A
- Breaking capacity: 100 kA
- Release type: M (thermal-magnetic device)
- Power loss: 15 W
- Operating temperature range: -25°C to +60°C
- Dimensions (W × H): 90 × 145 mm
- Weight: 1.05 kg
- Manufacturer: Schrack
Application:
Designed for installation in distribution boards and control panels of industrial and commercial electrical installations, provides reliable protection of electrical networks with rated voltage up to 690 V AC.
| EAN code | 9004840579000 |
|---|---|
| Width (net) | 90.00 mm |
| Height (net) | 145.00 mm |
| Weight (net) | 1.05 kg |
| Power loss | 15.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Device type | Power switch |
| Nominal current | 50 A |
| Short-circuit breaking capacity | 100 kA |
| Size | 1 |
| Release mechanism | M thermal-magnetic motor protection device |
| Manufacturer | Schrack |
| Packaging | 1 pcs |
