Mounting Plate for MC1 on DIN Rail
Article: MC190213--
10 710 ₸
To order
The mounting plate is designed for installing modular contactors MC1 on a standard DIN rail. The plate ensures reliable and quick equipment fastening in electrical cabinets and control panels. The product is manufactured from high-strength material and is rated for operation over a wide temperature range.
Key Characteristics:
- Compatibility: MC1 series contactors
- Mounting type: On 35 mm DIN standard rail

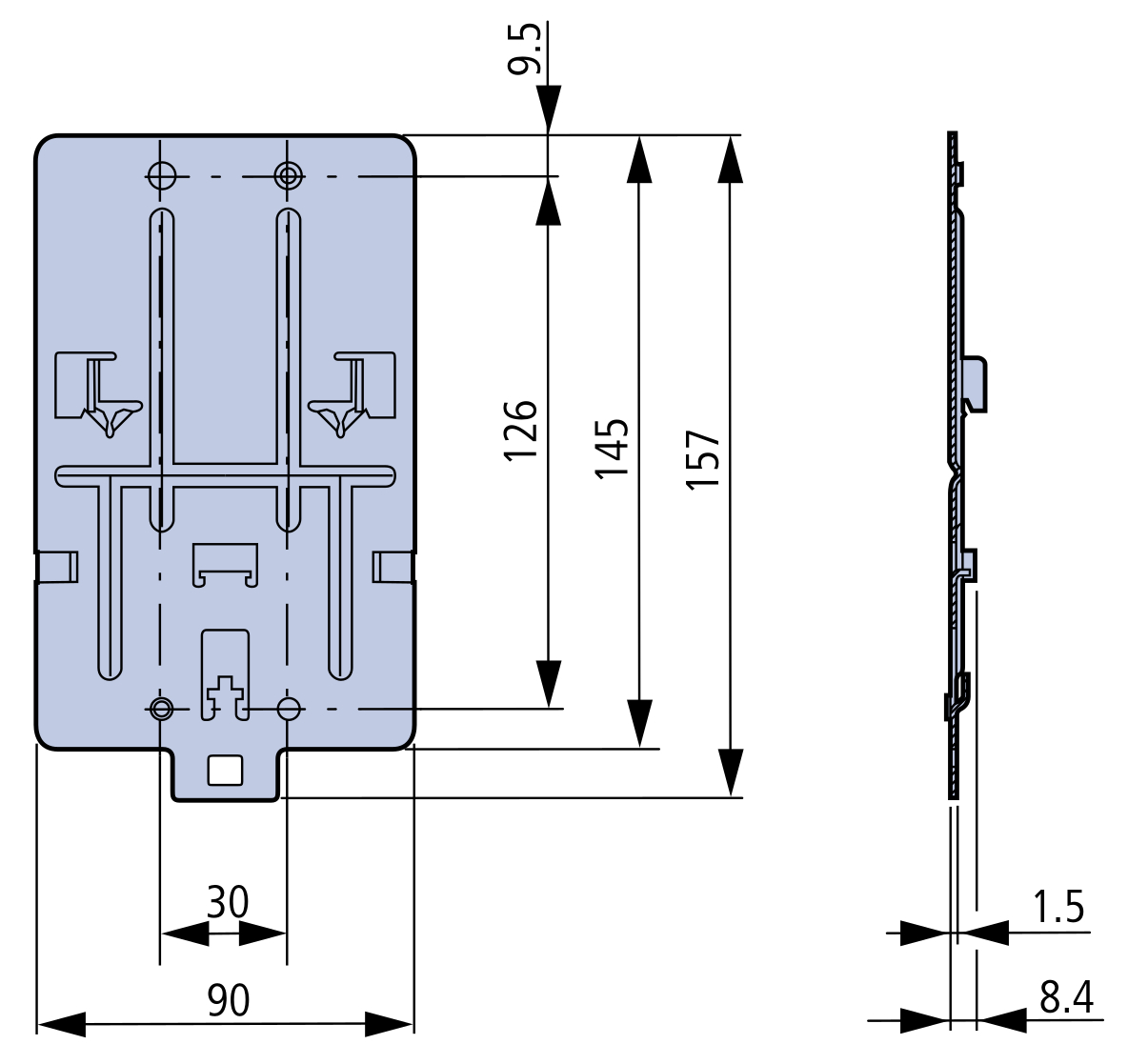

- Dimensions (net): 158 × 90 × 10 mm
- Weight: 0.15 kg
- Operating temperature range: -25°C to +60°C
- Manufacturer: Schrack
- EAN code: 9004840263022
Application: Fastening system for modular installation in electrical cabinets, distribution panels, and automated control systems.
| EAN code | 9004840263022 |
|---|---|
| Net length | 158.00 mm |
| Net width | 90.00 mm |
| Net height | 10.00 mm |
| Net weight | 0.15 kg |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Device | Accessories |
| Size | 1 |
| Accessories | Mounting, fastening |
| Manufacturer | Schrack |
| Packaging | 1 pcs, 110 pcs |
