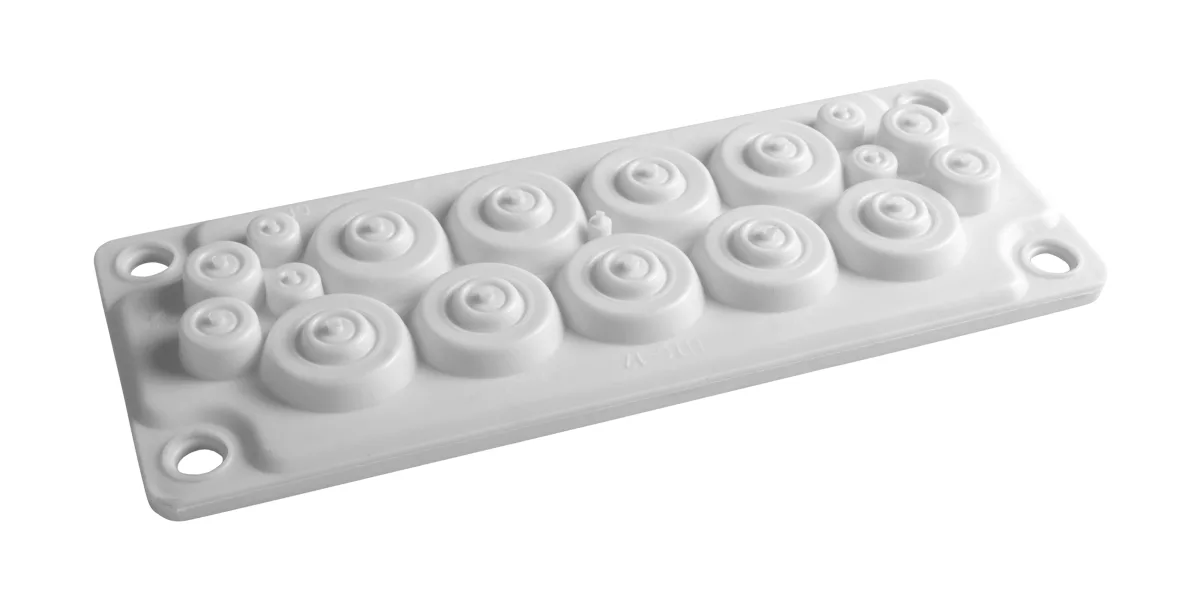

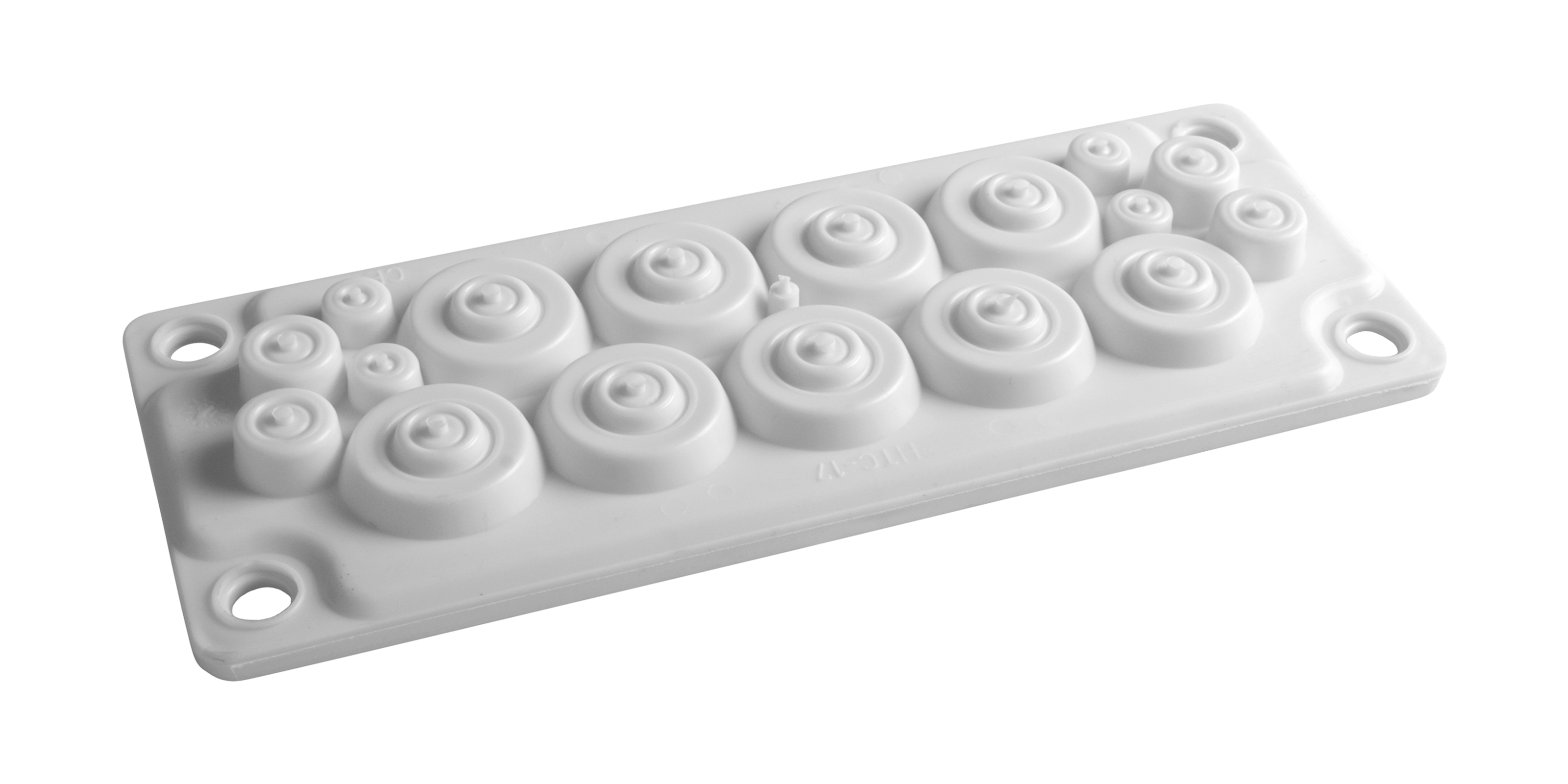

Gland plate for WSTVBF, 17 inlets, IP55
Article: WSTBT2117G
6 020 ₸
In stock
Gland plate designed for WSTVBF electrical systems. Equipped with 17 cable inlets. Provides complete water and dust protection in accordance with IP55 rating. Supplied with plastic gland plate and 4 plastic rivets.
| EAN code | 9004840852684 |
|---|---|
| Width (net) | 216.00 mm |
| Height (net) | 84.00 mm |
| Depth (net) | 21.00 mm |
| Weight (net) | 0.19 kg |
| Minimum ambient temperature | -40°C |
| Maximum ambient temperature | 130°C |
| Length | 216 mm |
| Degree of protection | IP55 |
| Color | RAL 7035 (light gray) |
| Supply includes | Plastic gland plate, 4 plastic rivets |
| Packaging | 1 pc. |
