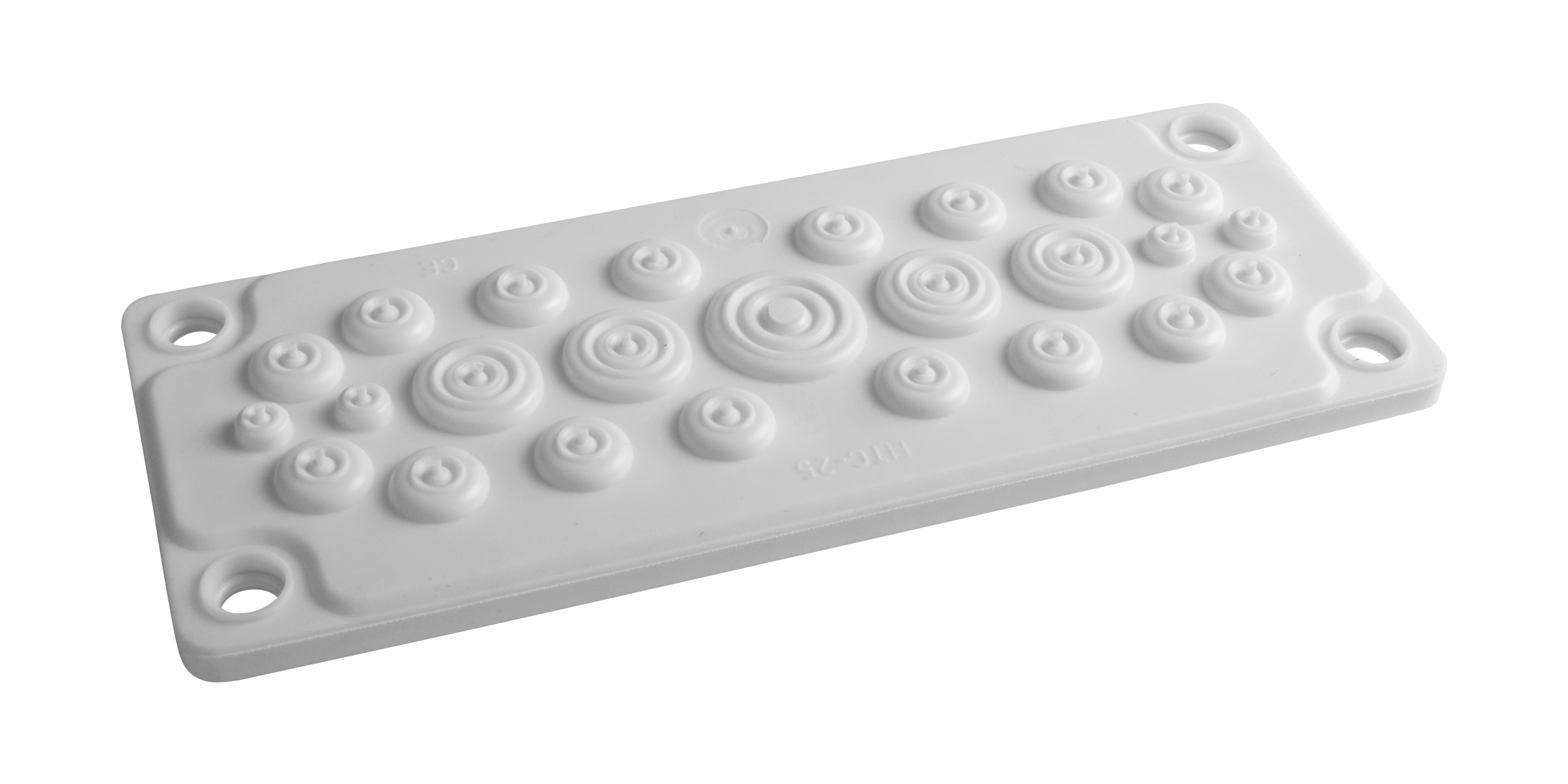

Gland plate for WSTVBF, 25 entries, IP65
Article: WSTBT2125G
7 150 ₸
In stock
Gland plate for WSTVBF is designed for organizing cable entries in distribution cabinets and enclosures. The panel provides hermetic sealing of cables and protects the internal space of equipment from moisture and dust.
Main characteristics:
- Number of entries: 25
- Degree of protection: IP65 (complete protection against dust and water jets)
- Dimensions: 216 × 84 × 22 mm
- Weight: 0.23 kg
- Color: RAL 7035 (light gray)
- Operating temperature range: from −40 °C to +130 °C
The package includes:
- Plastic gland plate
- 4 plastic rivets for fastening
Application:
The panel is mounted on the wall of a distribution cabinet or enclosure and allows organizing cable passages while maintaining the required degree of protection. Plastic construction ensures dielectric properties and corrosion resistance. Compact dimensions and low weight simplify installation.
Item number: 9004840852608
| EAN code | 9004840852608 |
|---|---|
| Width net | 216.00 mm |
| Height net | 84.00 mm |
| Depth net | 22.00 mm |
| Weight net | 0.23 kg |
| Minimum ambient temperature | -40°C |
| Maximum ambient temperature | 130°C |
| Length | 216 mm |
| Degree of protection | IP65 |
| Color | RAL 7035 (light gray) |
| Supply includes | Plastic gland plate, 4 plastic rivets |
| Packaging | 1 pc. |
