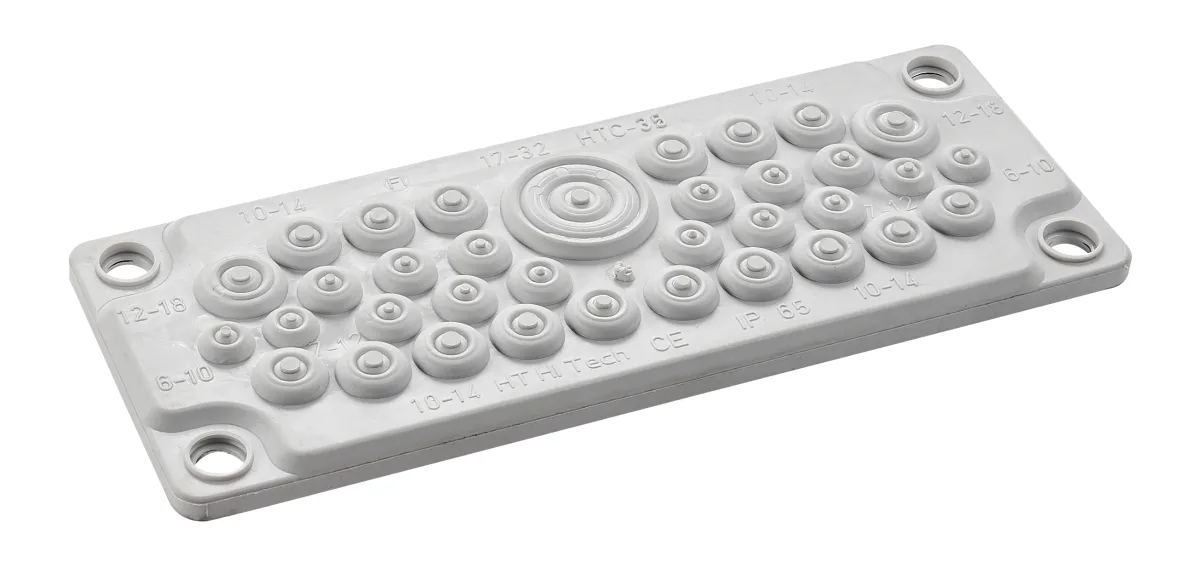

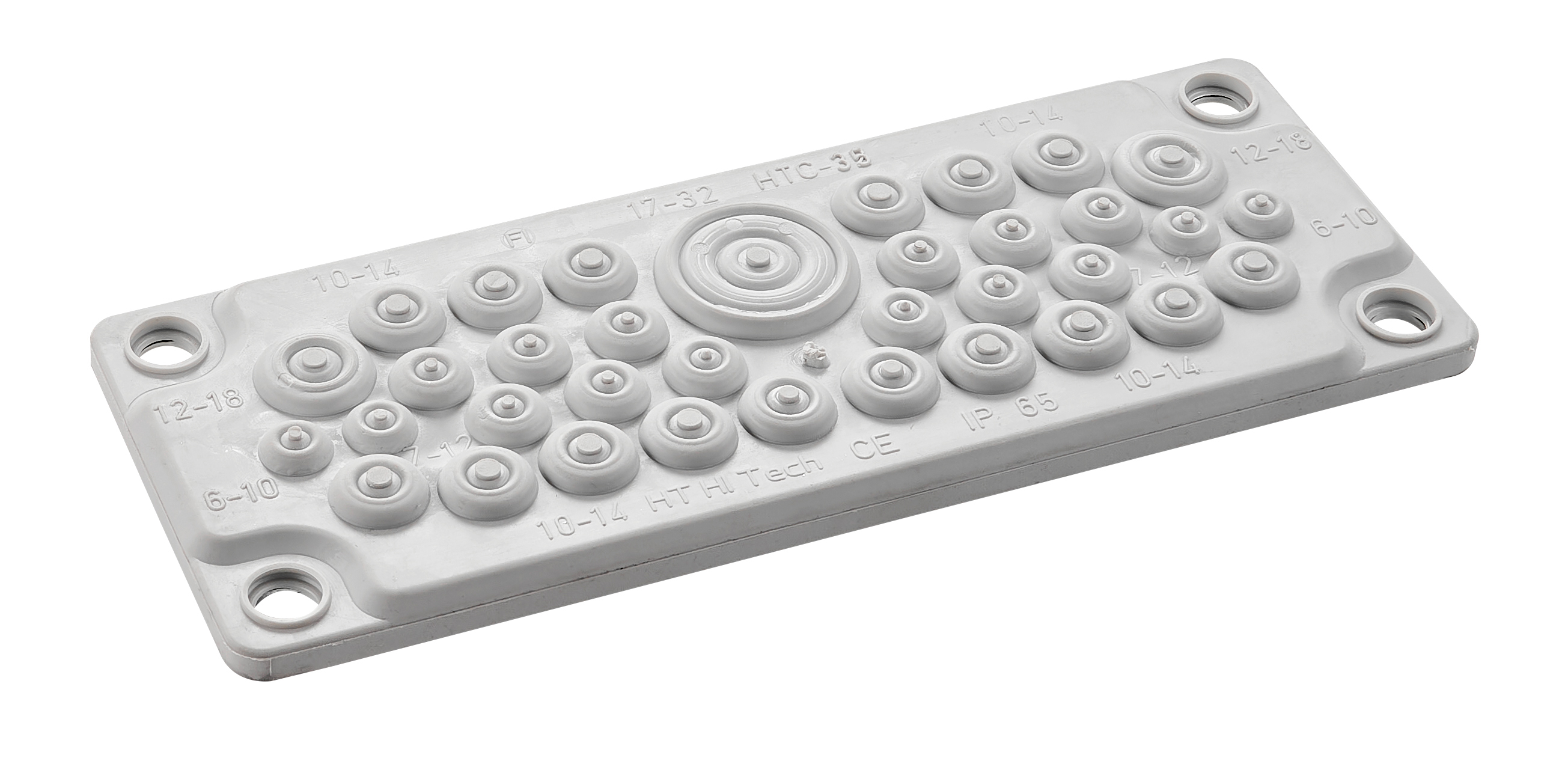

Gland Panel for WSTVBF, 35 Entries, IP65
Article: WSTBT2135G
7 150 ₸
To order
Gland panel for WSTVBF series switchgear with 35 entries, designed for installation of cable glands and sealing of openings in electrical enclosures and equipment housings.
Main Parameters:
- Number of Entries: 35
- Degree of Protection: IP65 (complete protection against dust and water jets)
- Dimensions: 216 × 84 × 25 mm (L × H × D)
- Weight: 0.23 kg
- Color: RAL 7035 (light gray)
Operating Conditions:
- Operating Temperature Range: from −40 °C to +130 °C
- Resistant to significant temperature fluctuations, suitable for use in conditions of high humidity
Package Contents:
- Plastic gland plate
- 4 plastic rivets for installation
Material: Plastic (resistant to mechanical impact and UV radiation)
The panel is compatible with the WSTVBF system and provides reliable sealing when installing cable glands, complies with IP65 standards for use in dusty and humid environments.
EAN Code: 9004840852622
| EAN Code | 9004840852622 |
|---|---|
| Net Width | 216.00 mm |
| Net Height | 84.00 mm |
| Net Depth | 25.00 mm |
| Net Weight | 0.23 kg |
| Min. Ambient Temperature | −40 °C |
| Max. Ambient Temperature | 130 °C |
| Length | 216 mm |
| Degree of Protection | IP65 |
| Color | RAL 7035 (light gray) |
| Supply Includes | Plastic gland plate, 4 plastic rivets |
| Packaging | 1 pc |
