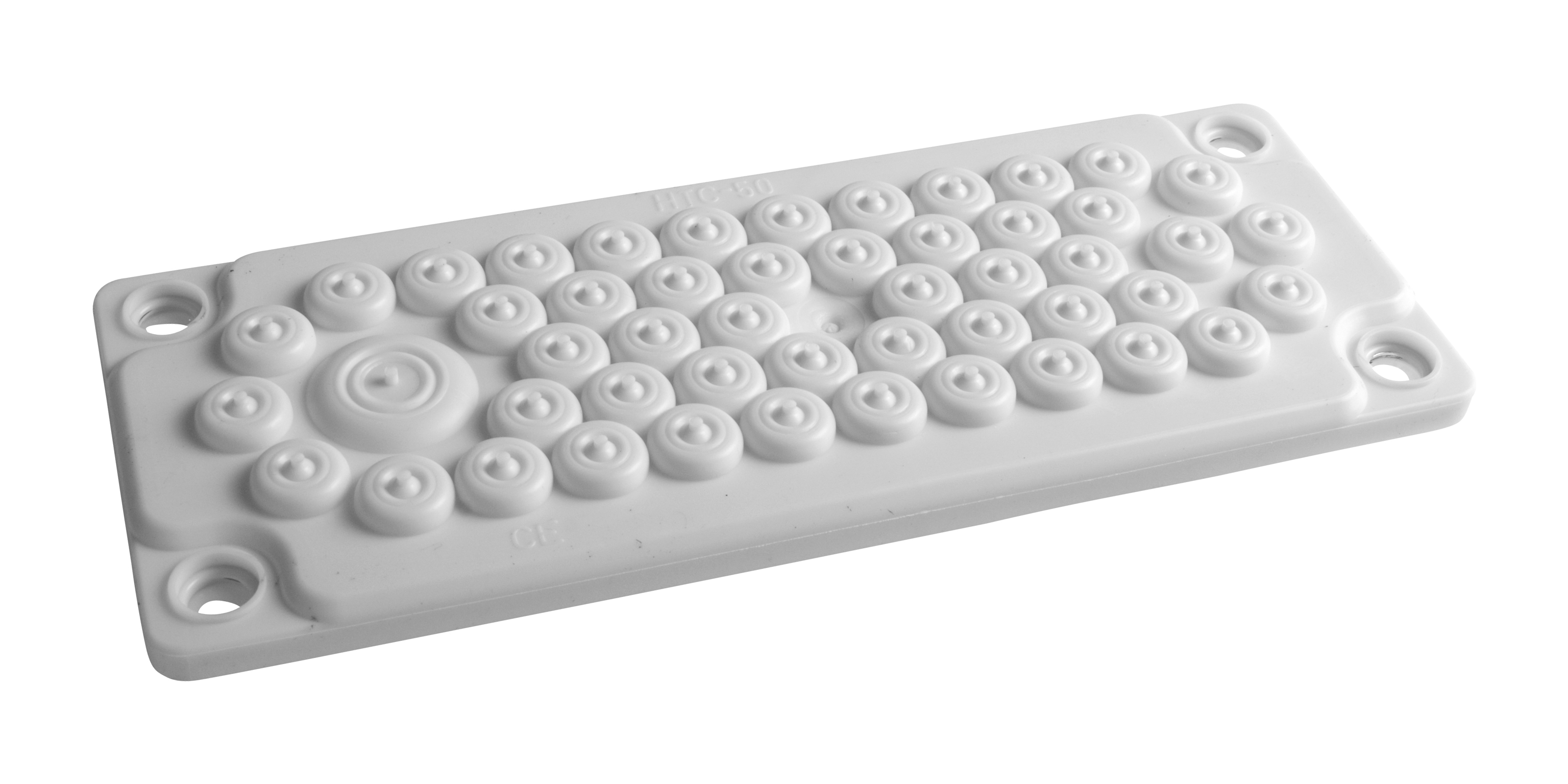

Gland Plate for WSTVBF, 50 Inlets, IP65
Article: WSTBT2150G
7 150 ₸
In stock
Gland Plate for WSTVBF — a component part of an electrical distribution enclosure, designed for organizing cable inlets.
Key Characteristics:
- Number of Inlets: 50 pcs
- Degree of Protection: IP65 (dust and moisture protection)
- Color: RAL 7035 (light gray)
- Material: plastic
Dimensions:
- Length: 216 mm
- Height: 84 mm
- Depth: 23 mm
- Net Weight: 0.23 kg
Operating Temperature Range: from -40°C to +130°C
Included in Supply:
- Plastic gland plate
- 4 plastic rivets (for fastening)
Application: The plate is designed for installation in WSTVBF series electrical distribution enclosures, providing hermetic sealing of cable entries and protection against moisture and dust ingress into the enclosure. Guarantees compliance with IP65 protection rating when cable glands and inlets are properly installed.
| EAN Code | 9004840852639 |
|---|---|
| Net Width | 216.00 mm |
| Net Height | 84.00 mm |
| Net Depth | 23.00 mm |
| Net Weight | 0.23 kg |
| Minimum Ambient Temperature | -40°C |
| Maximum Ambient Temperature | 130°C |
| Length | 216 mm |
| Degree of Protection | IP65 |
| Color | RAL 7035 (light gray) |
| Supply Includes | Plastic gland plate, 4 plastic rivets |
| Packaging | 1 pc |
