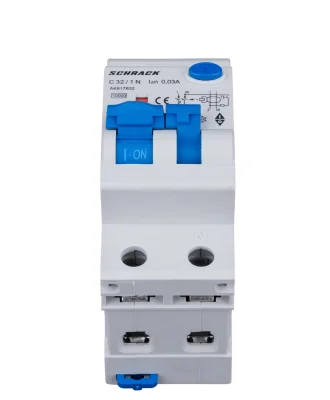

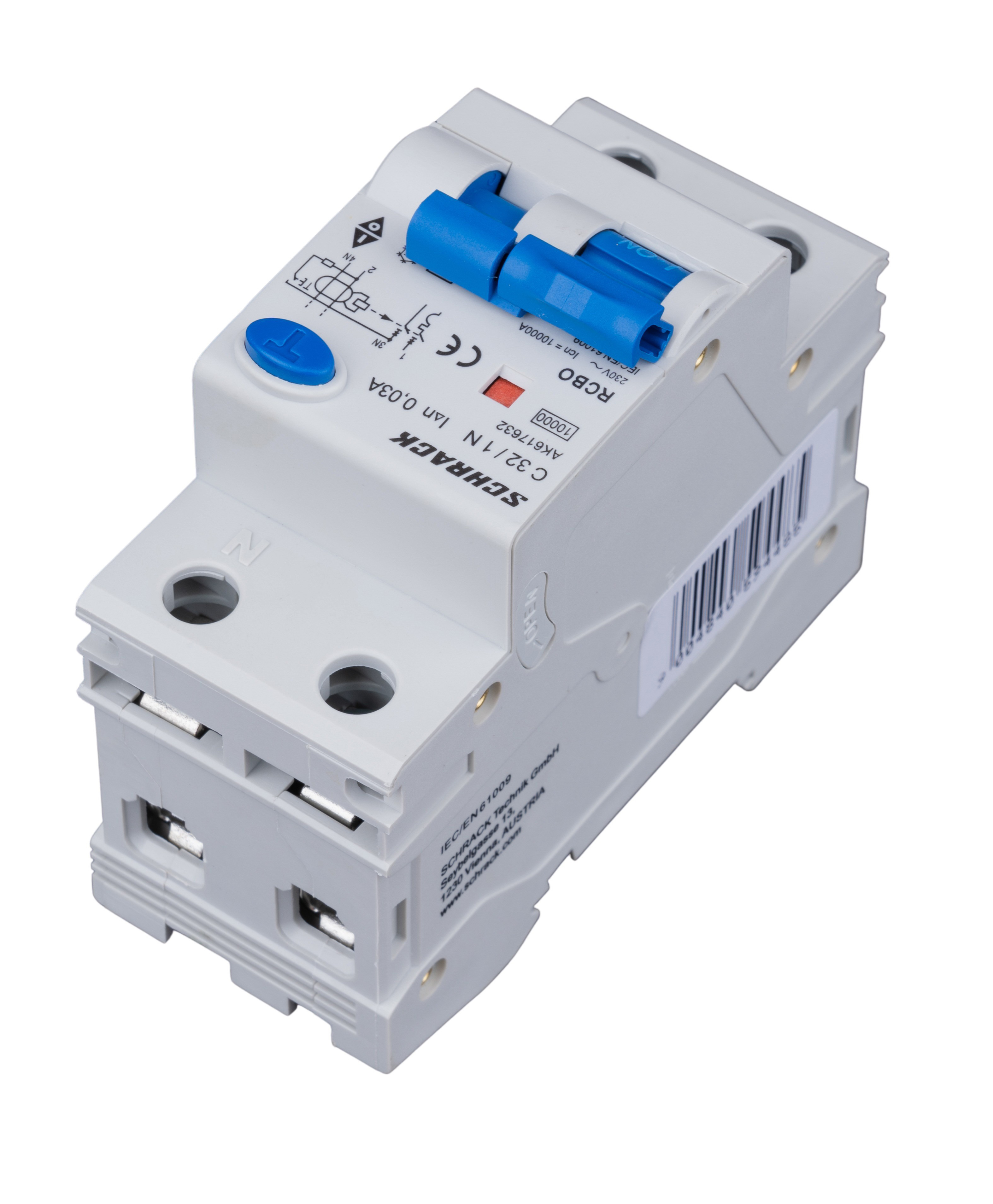

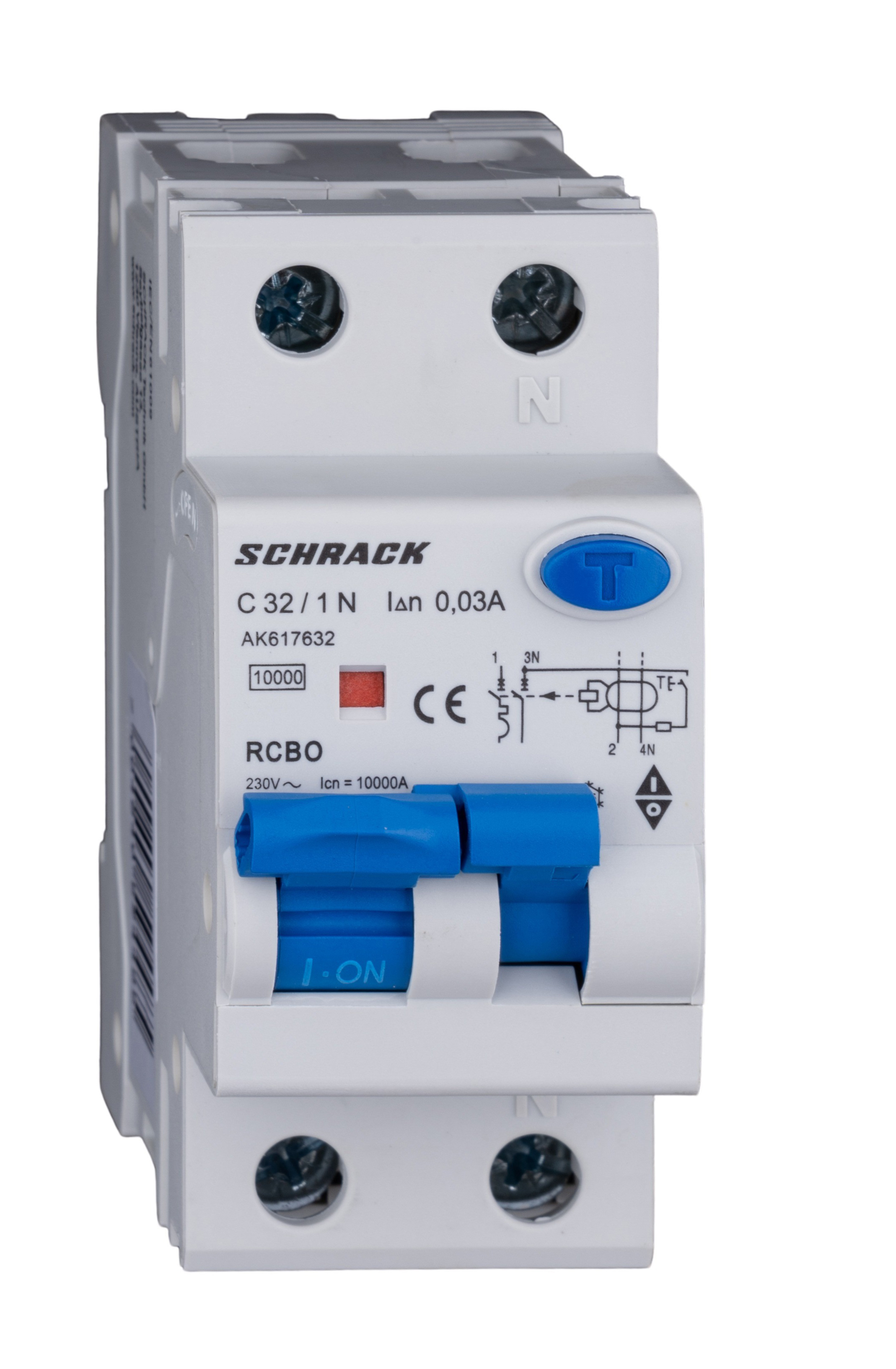

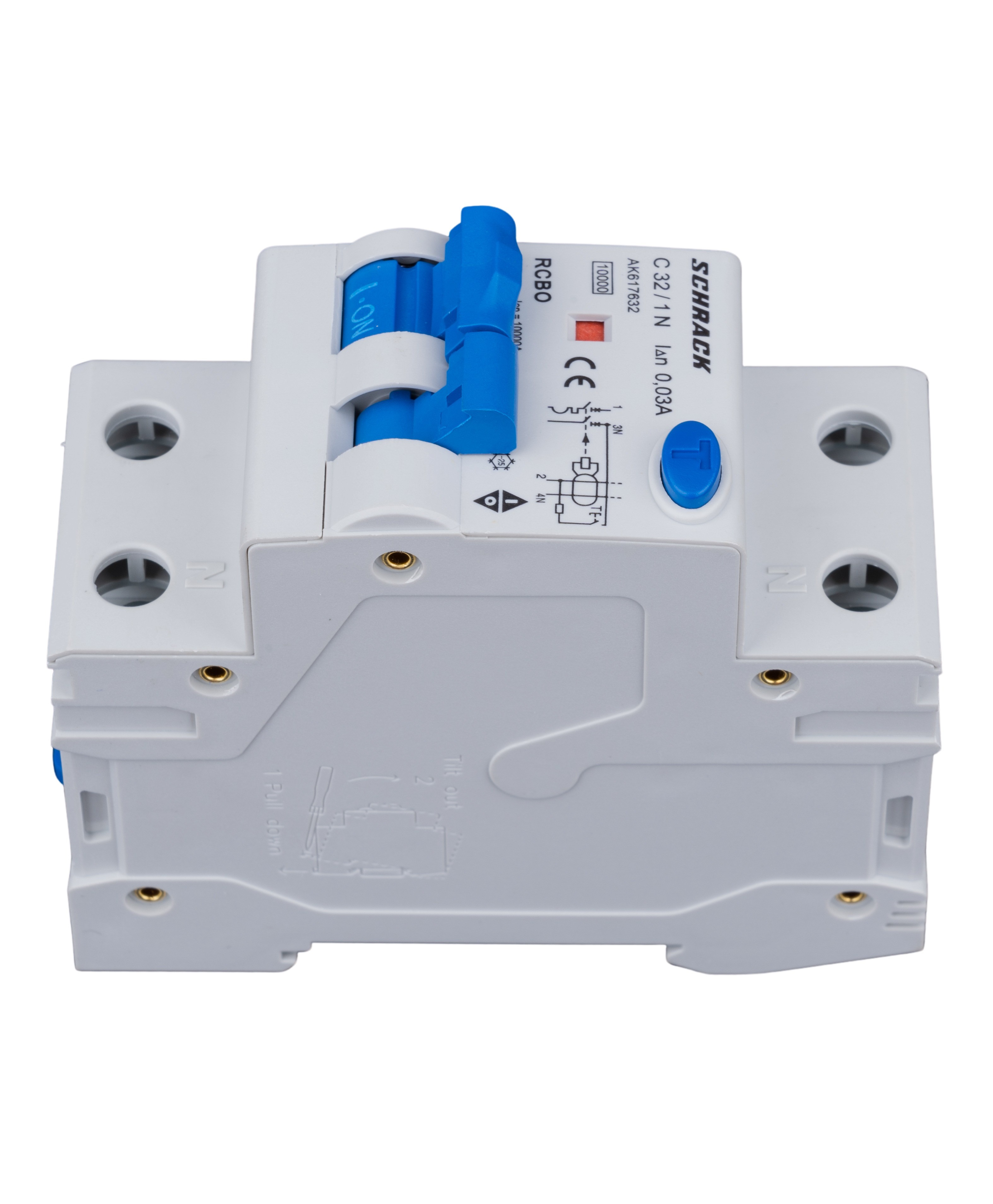

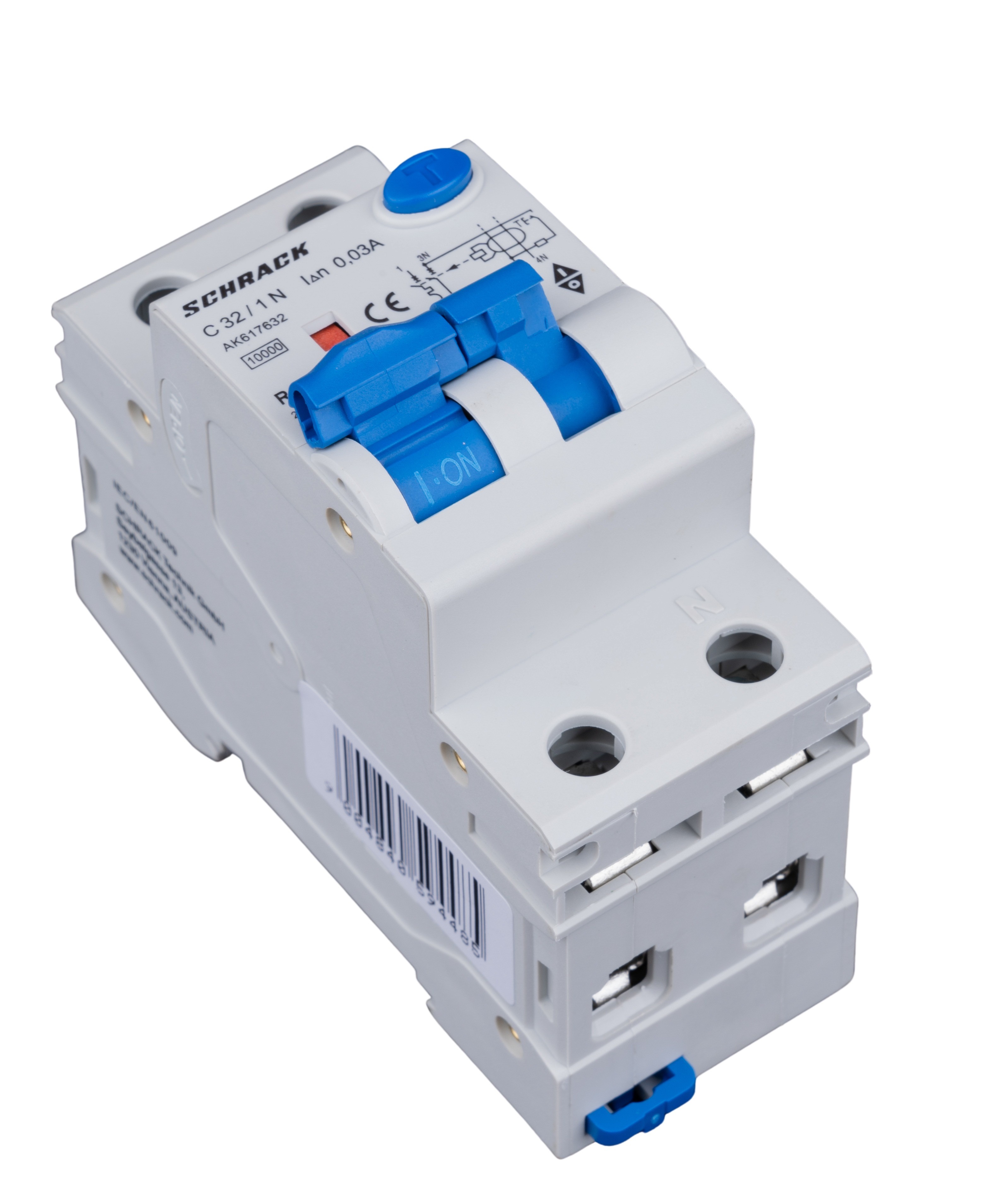

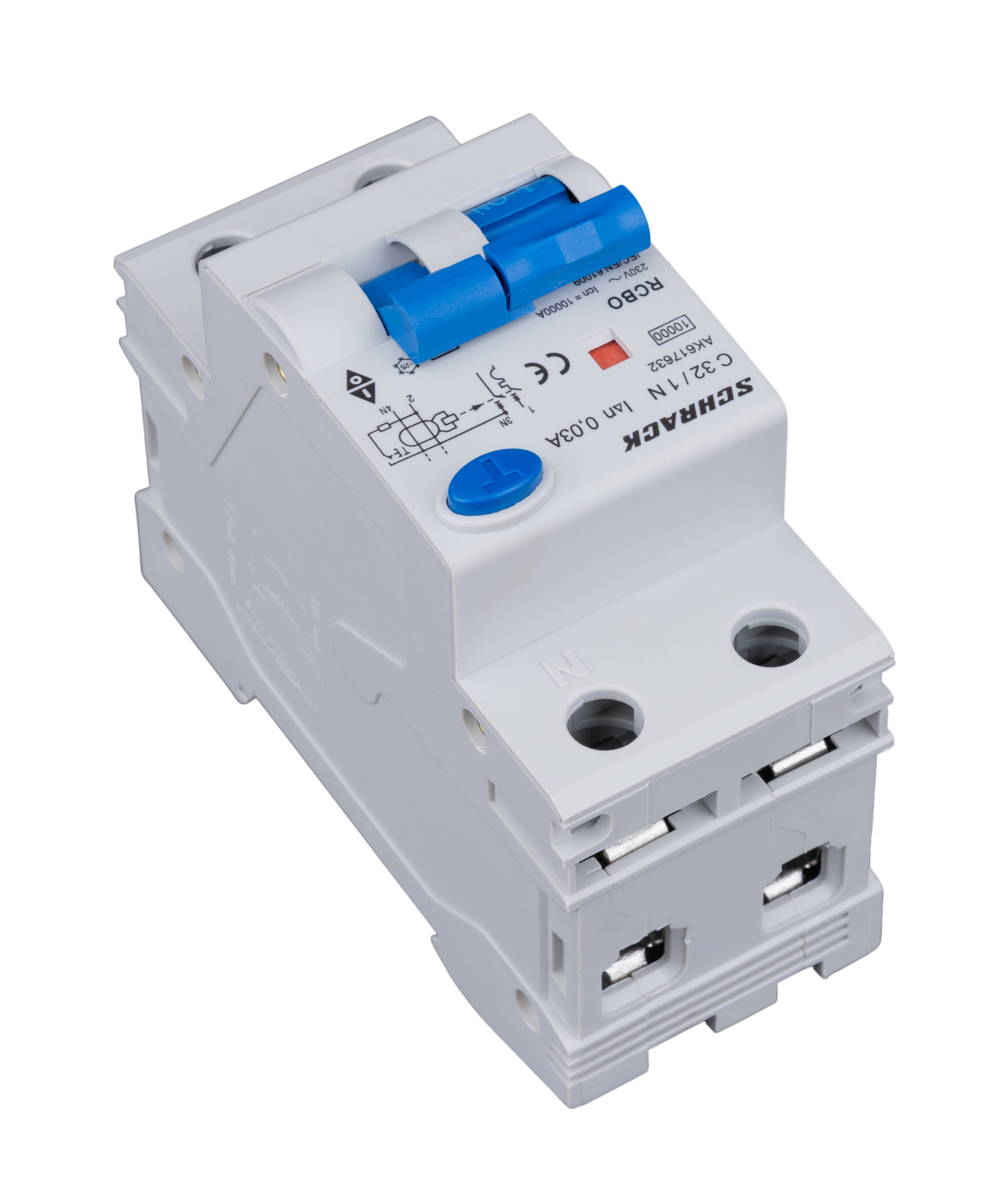

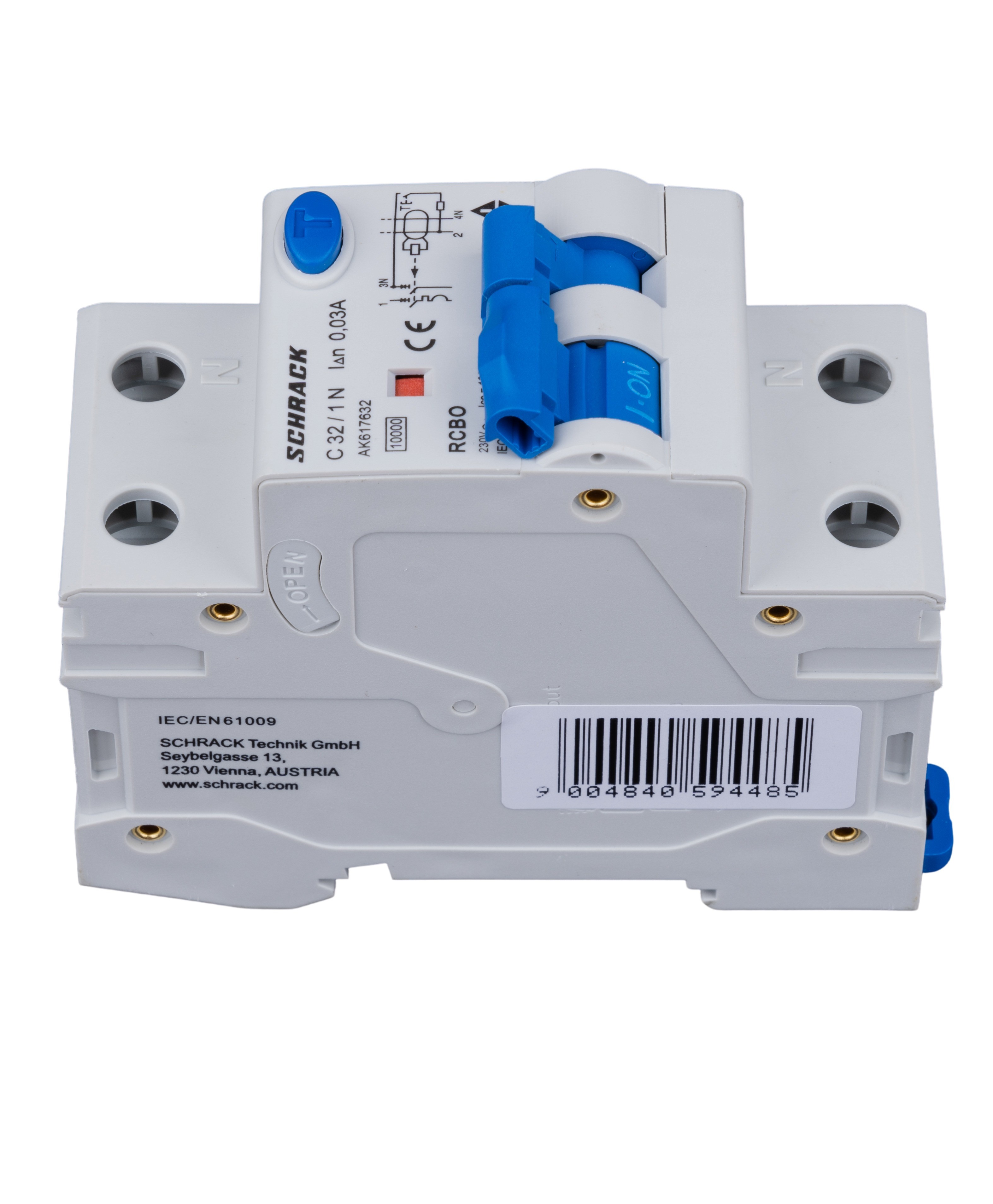

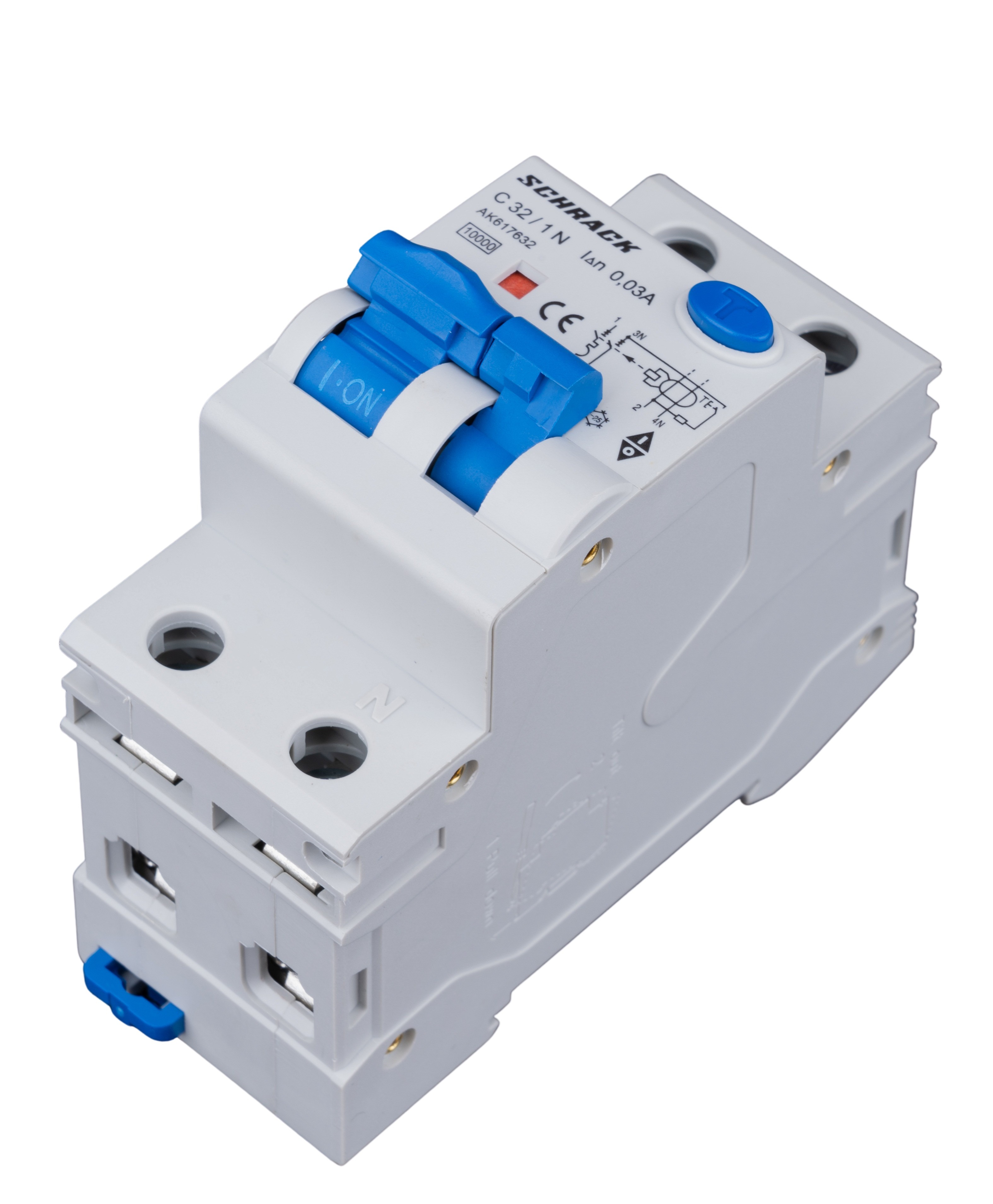

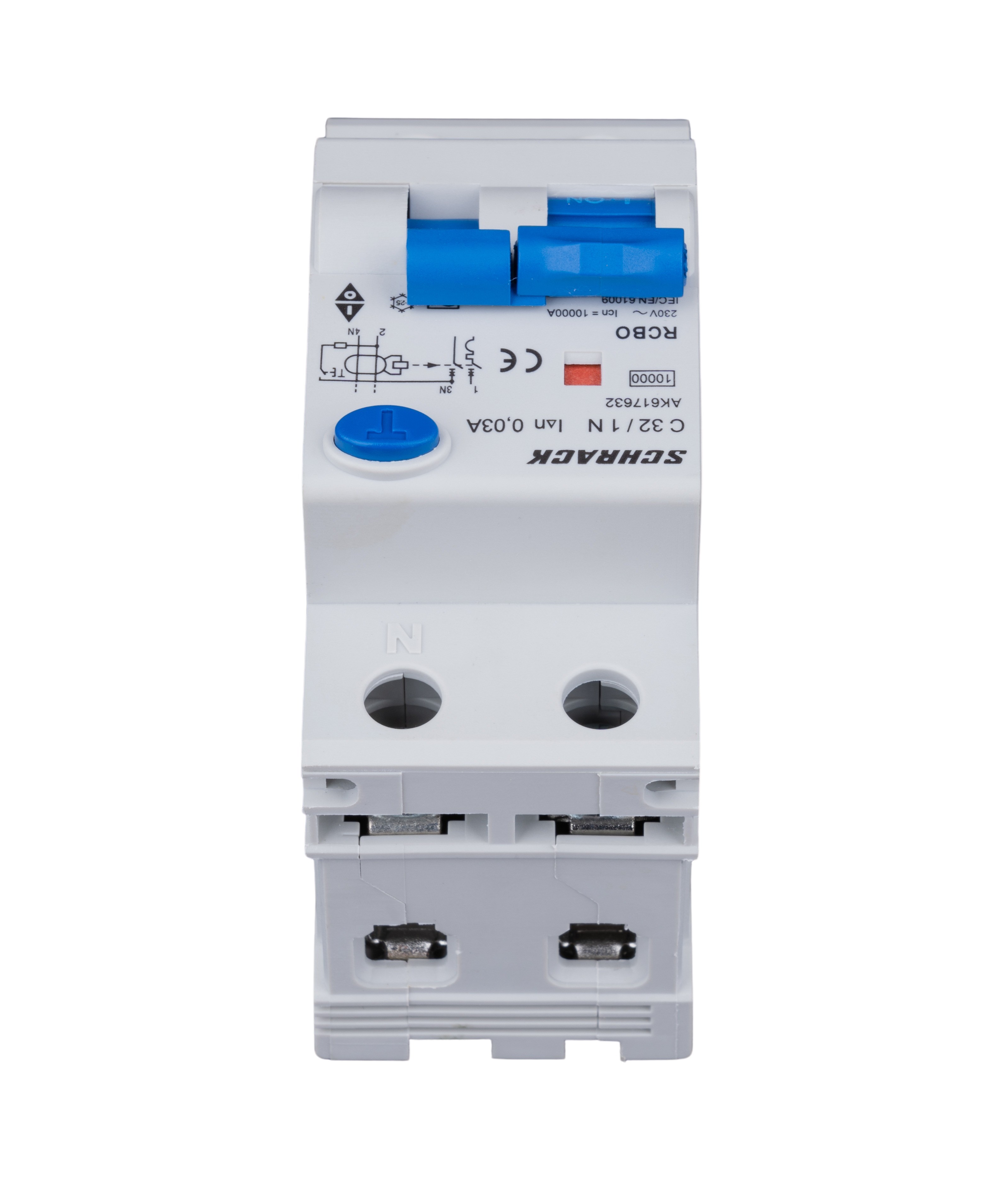

Automatic Circuit Breaker with RCD C32A/1+N, 10kA, 30mA, Type A

Combined automatic circuit breaker with integrated residual current device (RCD). Designed to protect electrical circuits from overloads, short circuits, and indirect contact with live-conducting parts.

Main Parameters:

• Rated Current: 32 A
• Configuration: 1 phase + neutral (1+N)
• Rated Sensitivity: 30 mA
• Operating Type: A (sensitive to sinusoidal and pulsating alternating current, including direct component)
• Disconnection Characteristic: C (designed for circuits with moderate inrush currents)
• Switching Capacity: 10 kA
• Response Class: instantaneous

Technical Characteristics:

• Rated Voltage: 230 V AC (50/60 Hz)
• Power Loss: 6.26 W
• Operating Temperature Range: from -25 °C to +60 °C
• Degree of Protection: IP20
• Mounting: on 35 mm DIN rail
• Space Width: 36 mm (2 modules)

Standards Compliance:

The device has been designed and tested in accordance with international standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, and IEC 61009-2-1, which guarantees reliability and safety during operation.

Application Area:

Recommended for use in residential, commercial, and industrial electrical installations with 230 V AC voltage to protect lighting and socket group circuits.
