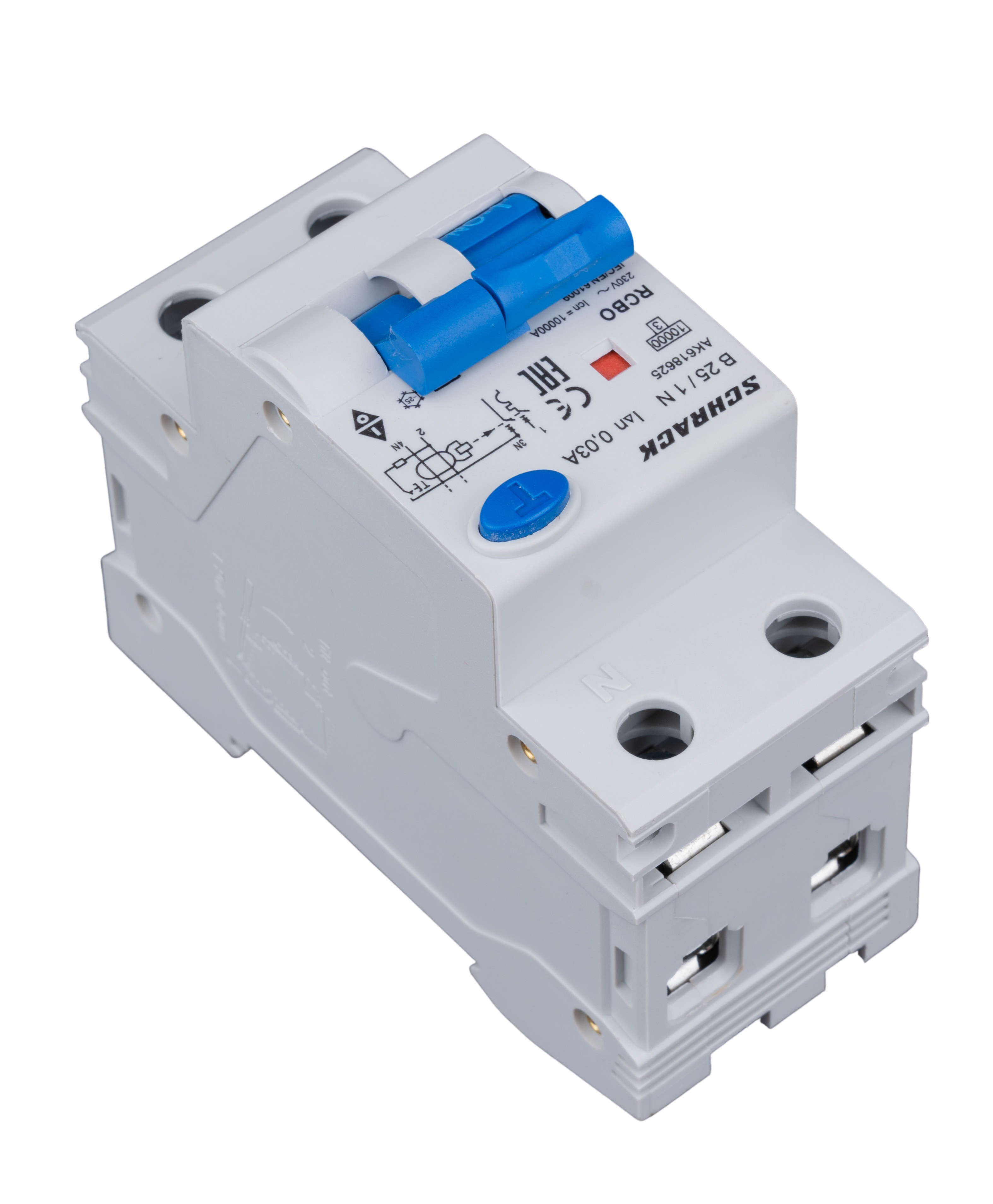

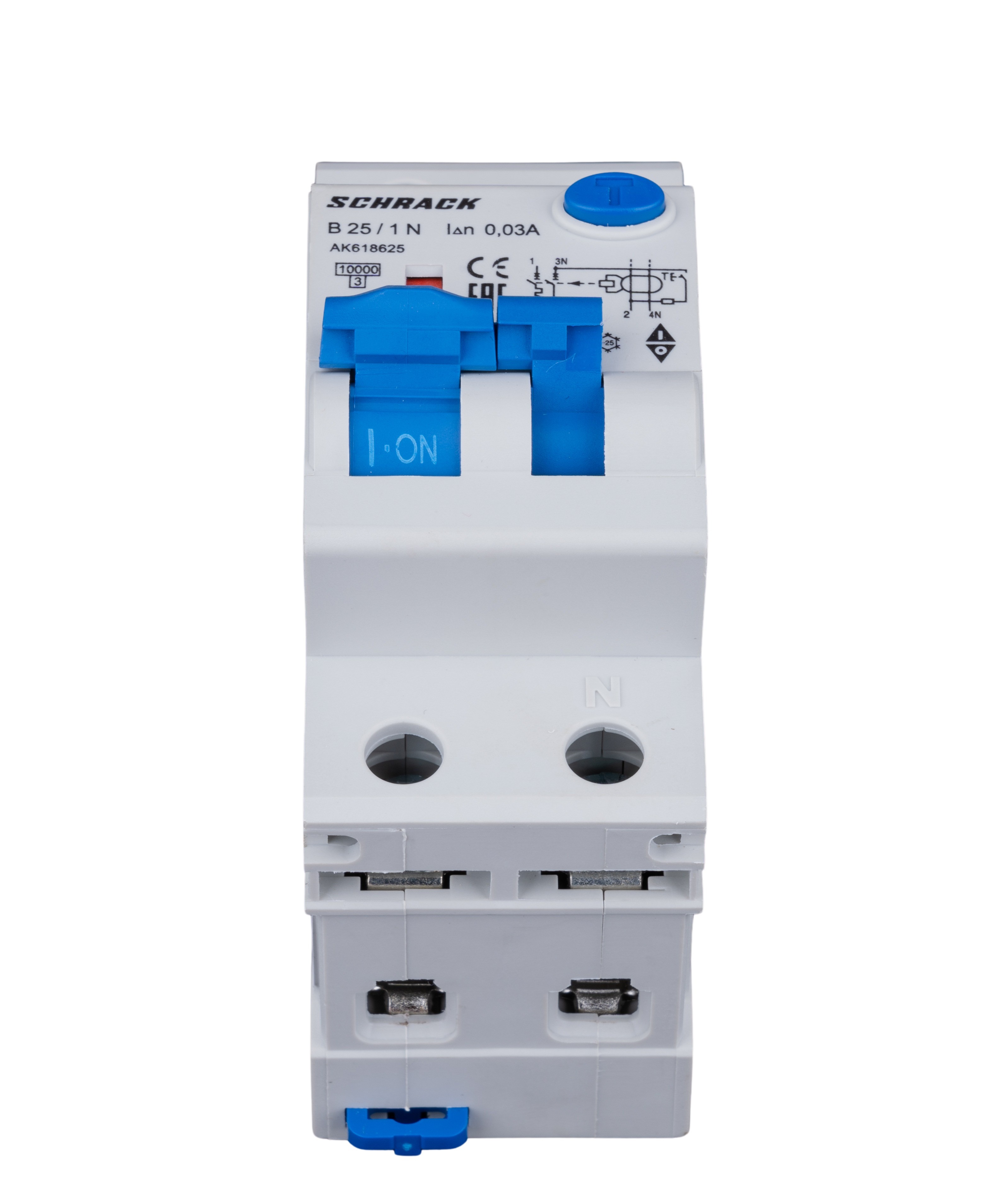

Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A
22 980 ₸
An automatic circuit breaker with integrated residual current device (RCD) designed to provide simultaneous protection of electrical circuits against overloads, short circuits, and dangerous earth leakage currents.
Main parameters:
- Nominal current: 25 A
- Configuration: 1 pole + neutral (1+N)
- Breaking capacity: 10 kA
- Nominal leakage current sensitivity: 30 mA
- Trip characteristic: B (instantaneous)
- Sensitivity type: A (responds to sinusoidal and pulsating leakage currents)
Technical specifications:
- Ambient temperature range: -25°C to +60°C
- Power dissipation: 7.98 W
- Dimensions: 77 × 36 × 85 mm
- Weight: 0.21 kg
Standards compliance:
The device complies with international standards EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1, ensuring reliability and safety in operation.
Application scope:
Used in residential and industrial electrical installations to protect electrical circuits from dangerous earth leakage currents, overloads, and short circuits. Recommended for use in protection against electric shock hazards.
Manufacturer: Schrack (AMPARO series)
Packaging: 1 pc. or 90 pcs. per package
| EAN code | 9004840862560 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power dissipation | 7.98 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (sensitivity) | A (sensitive to pulsating current) |
| Type (tripping) | Instantaneous |
| Nominal leakage current sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pc., 90 pcs. |

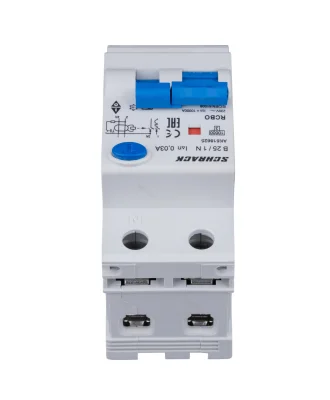

- Photo 1: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

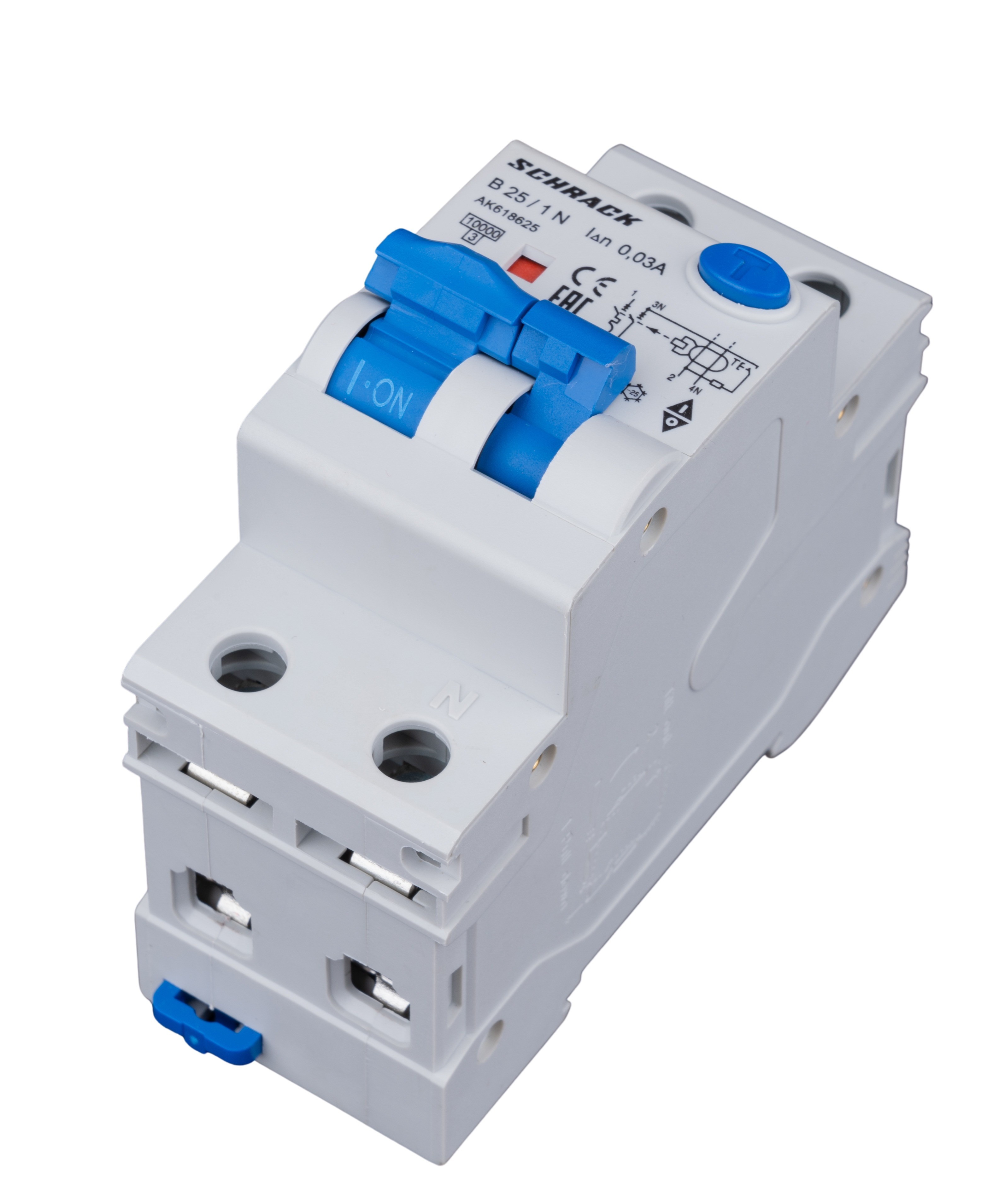

- Photo 2: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 494 KB)

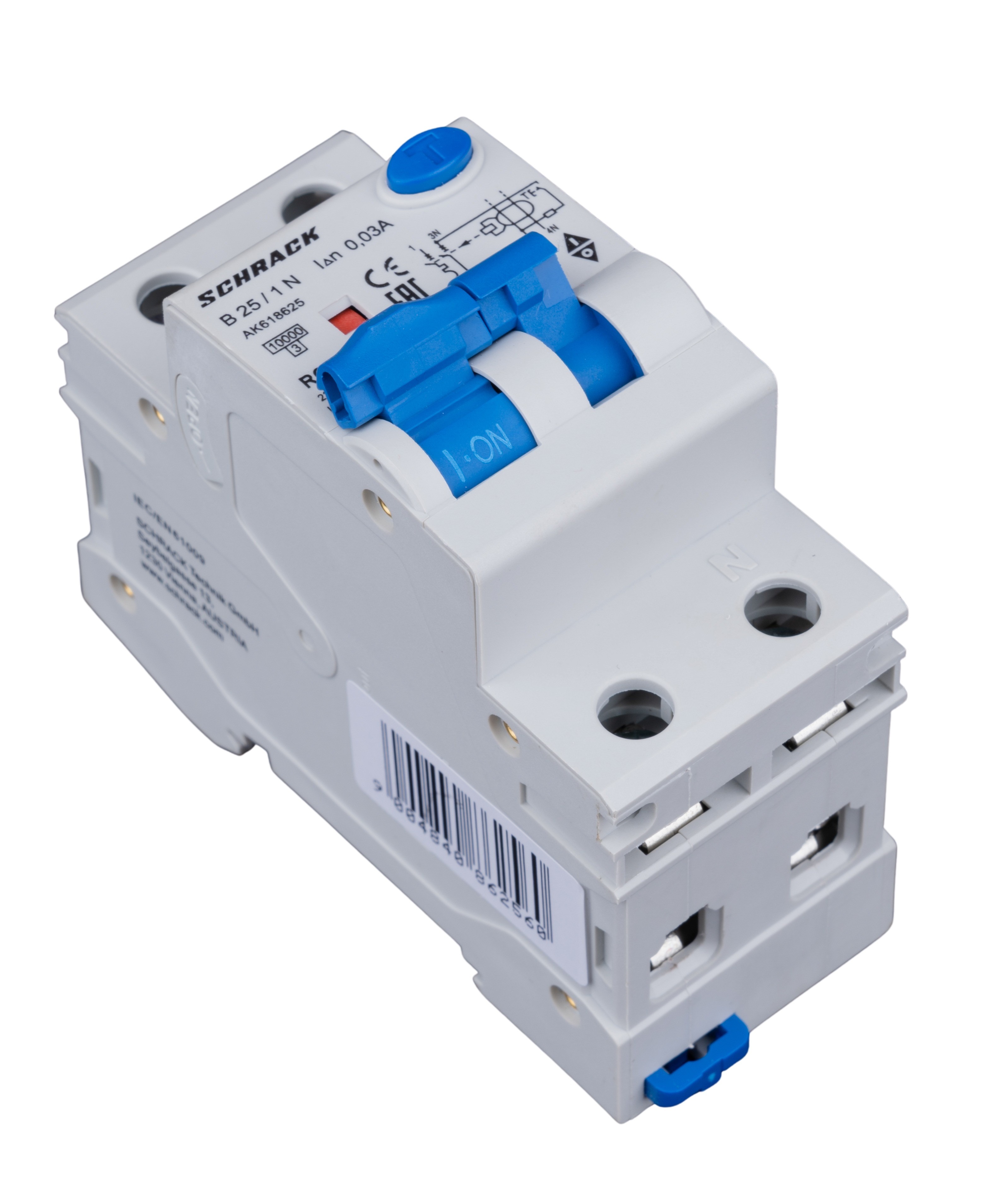

- Photo 3: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 638 KB)

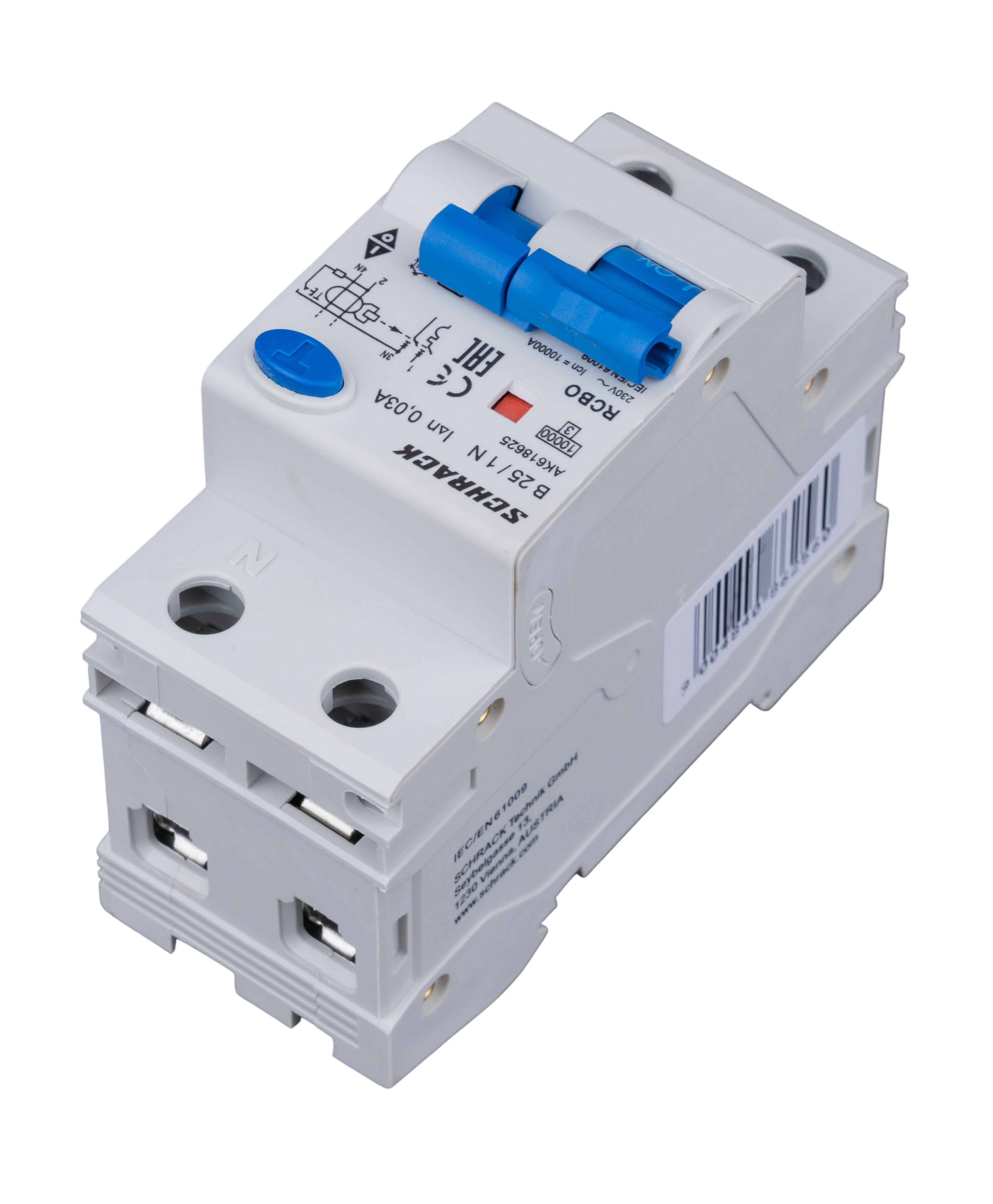

- Photo 4: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

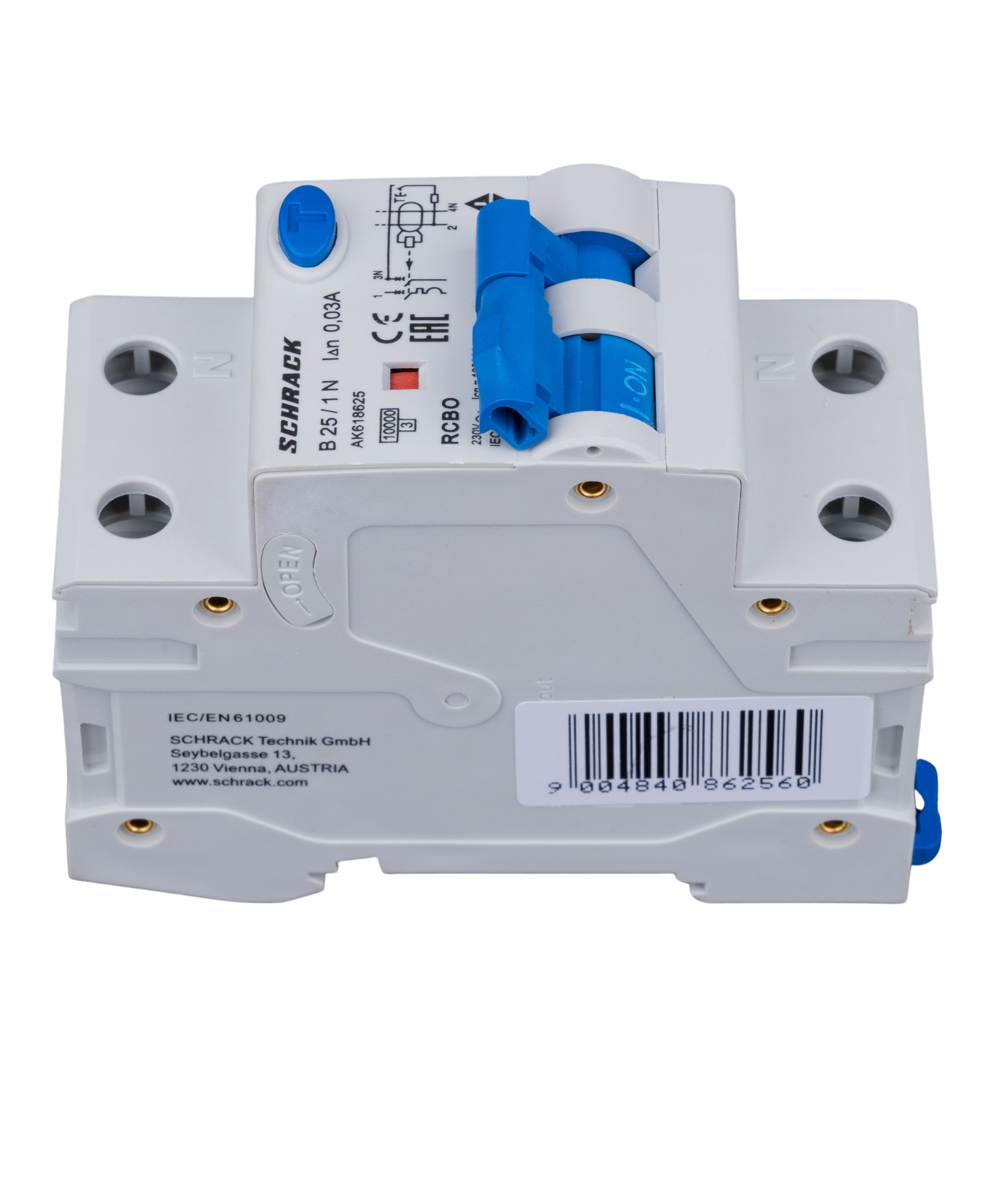

- Photo 5: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

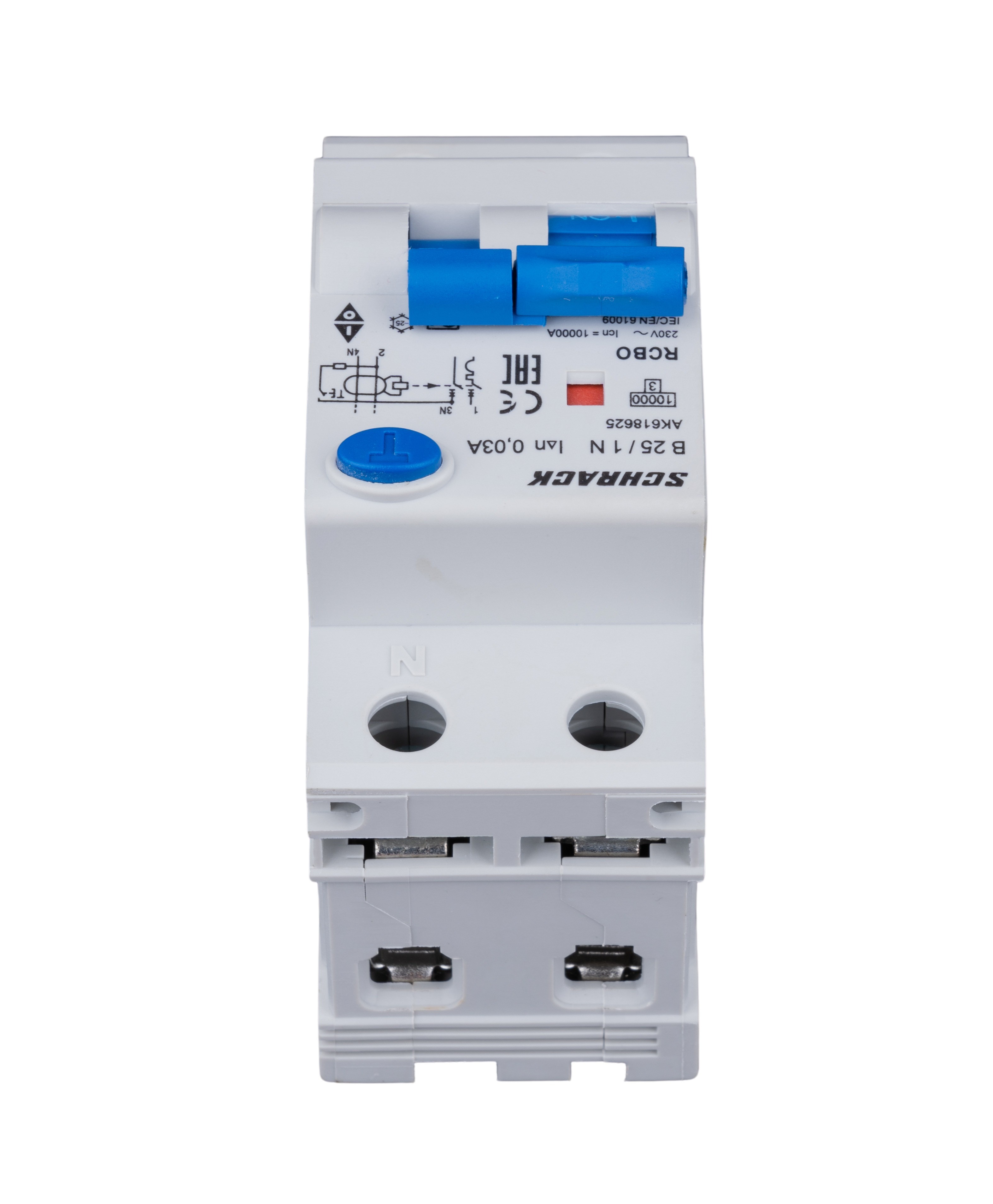

- Photo 6: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 475 KB)

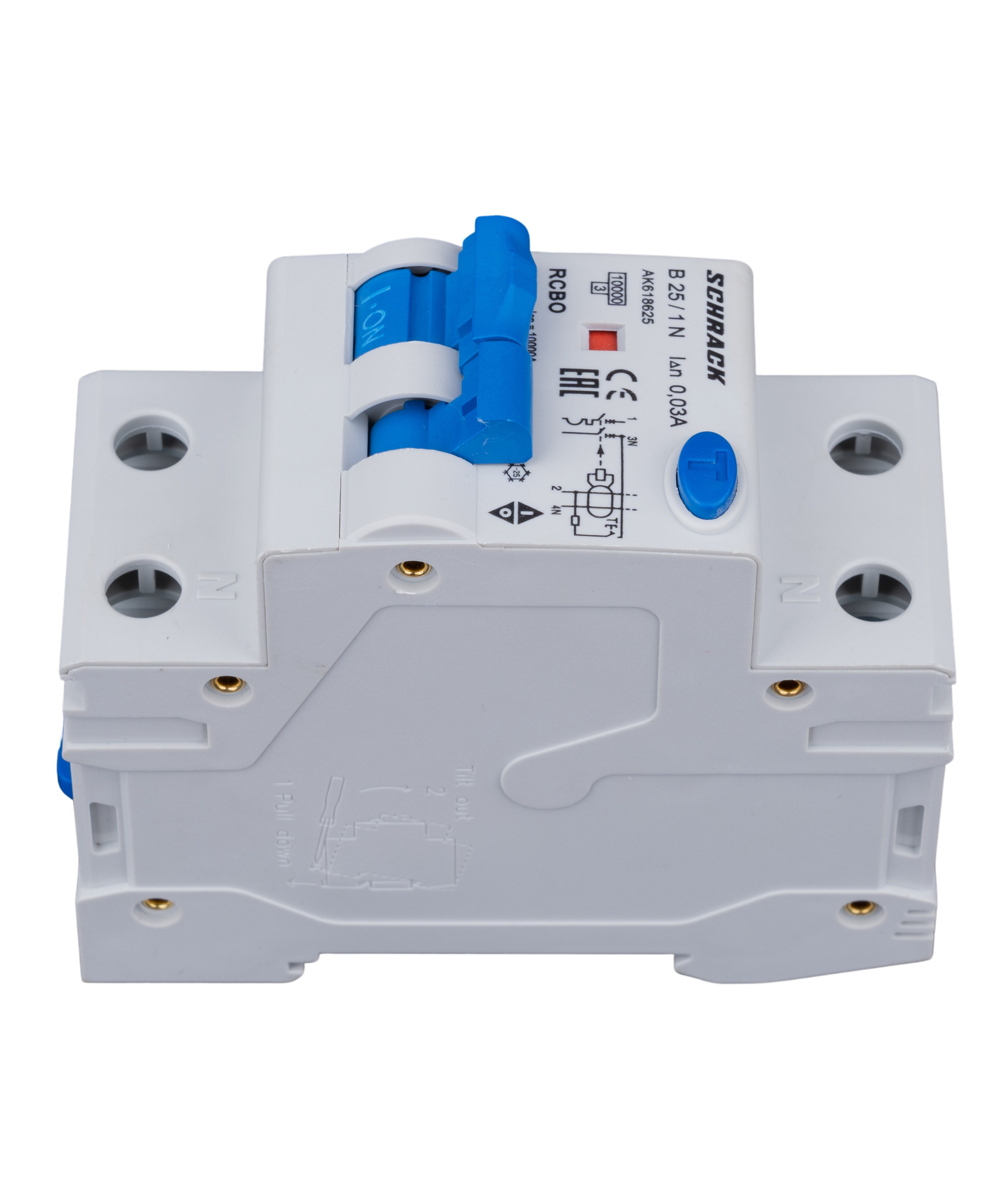

- Photo 7: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)

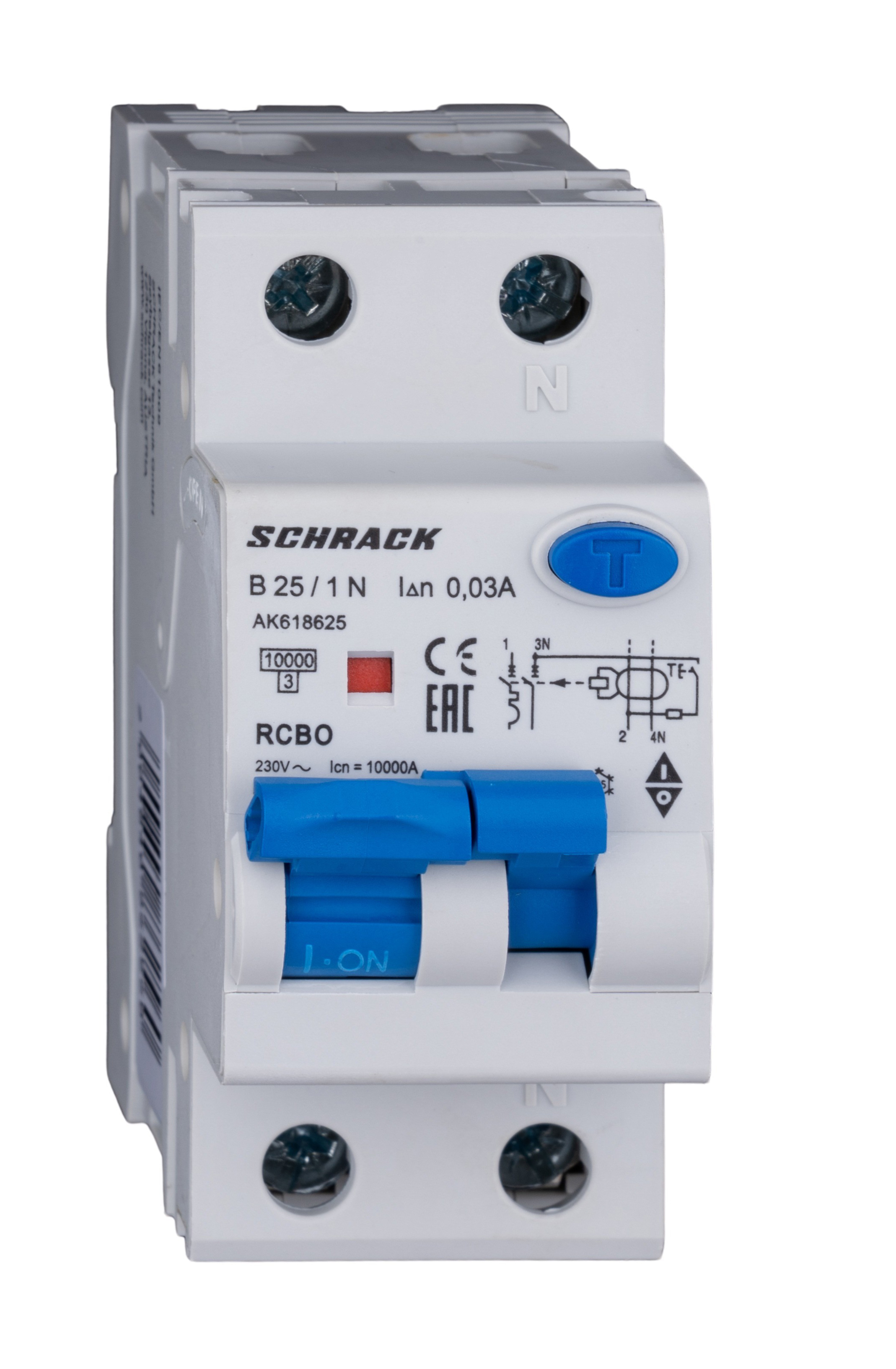

- Photo 8: Automatic circuit breaker with RCD B25A/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)
