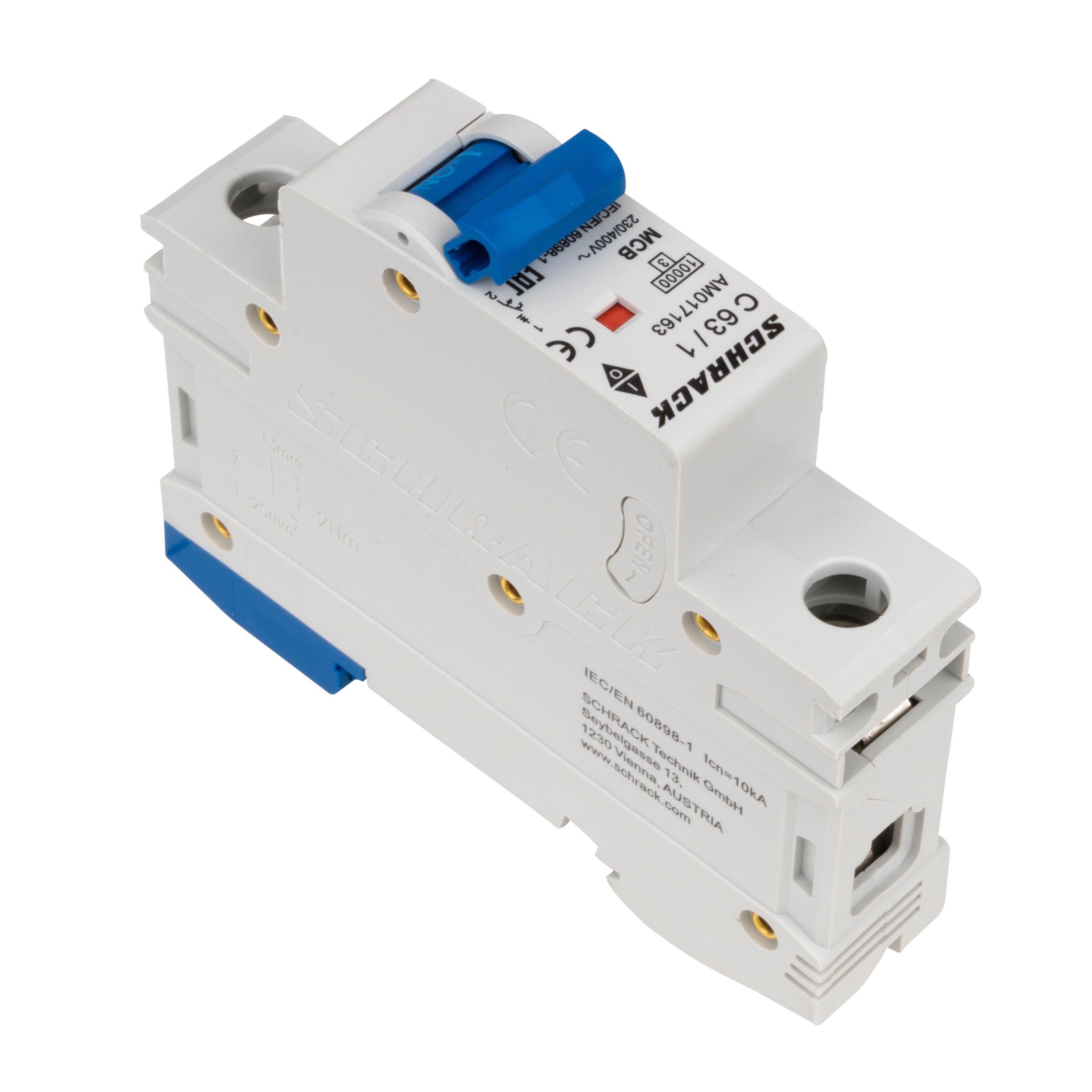

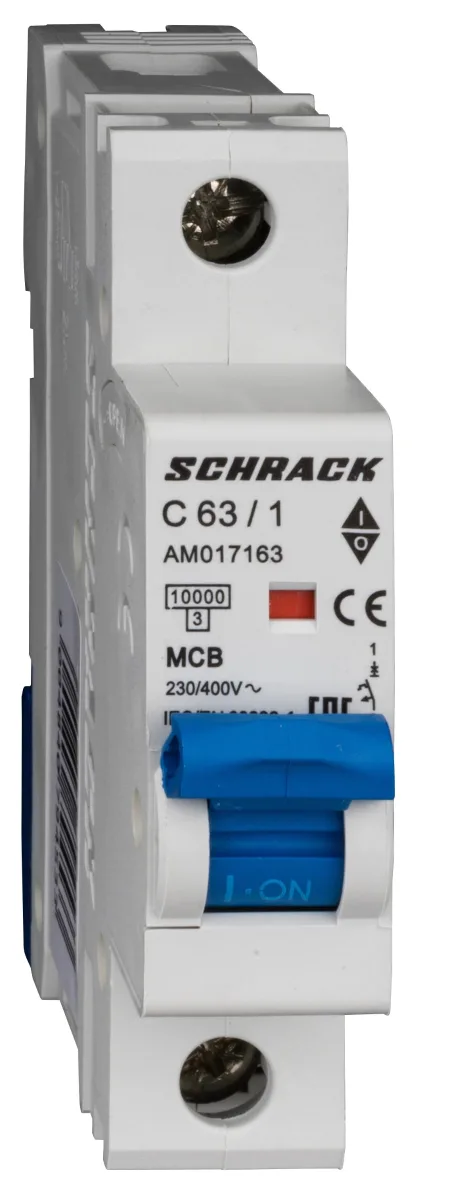

Automatic Circuit Breaker C63A/1, 10kA
1 / 9
Automatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kAAutomatic Circuit Breaker C63A/1, 10kA

Automatic Circuit Breaker C63A/1, 10kA

Article: AM017163--

Автоматические выключатели AMPARO

3 819 ₸

In stock
WhatsAppTelegram

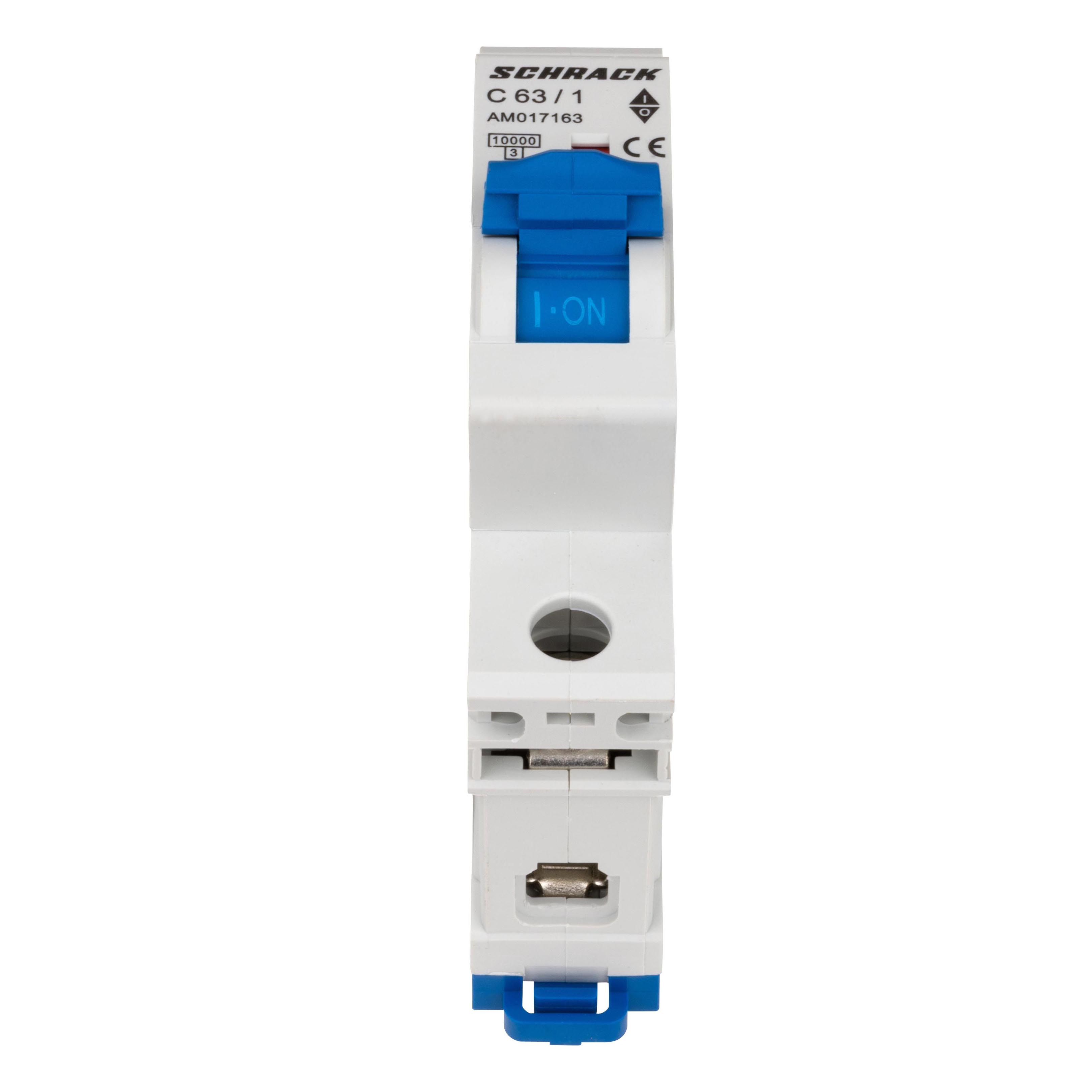

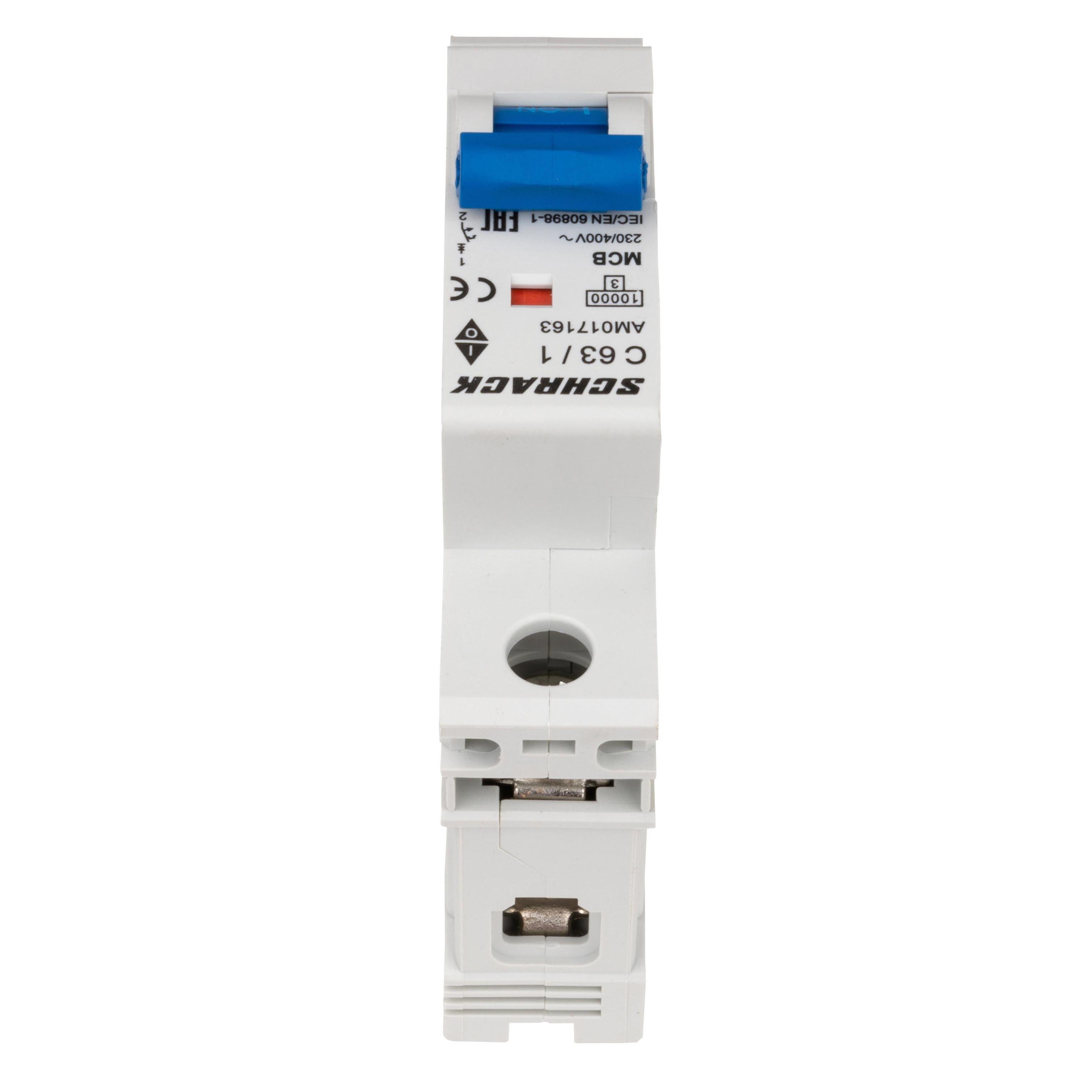

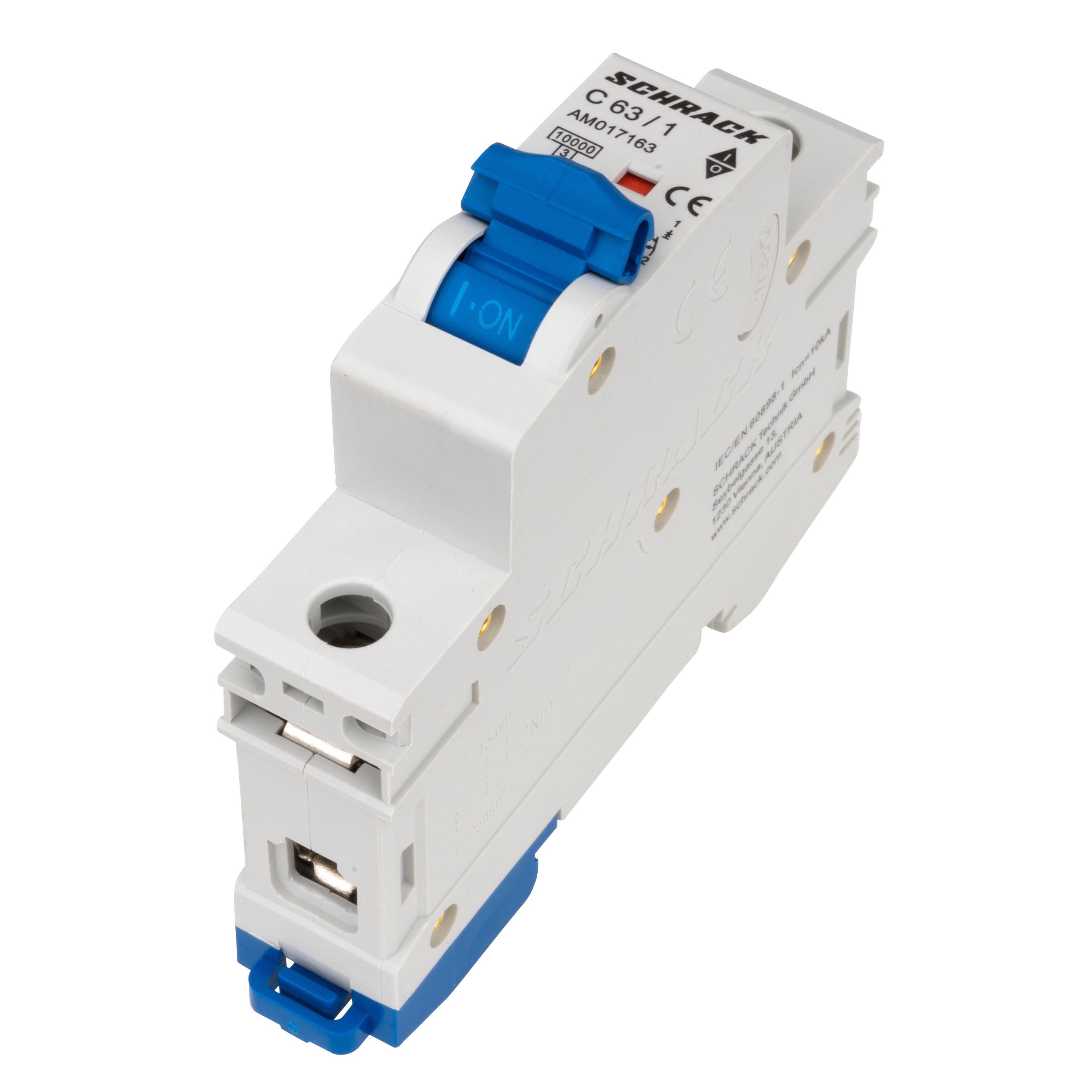

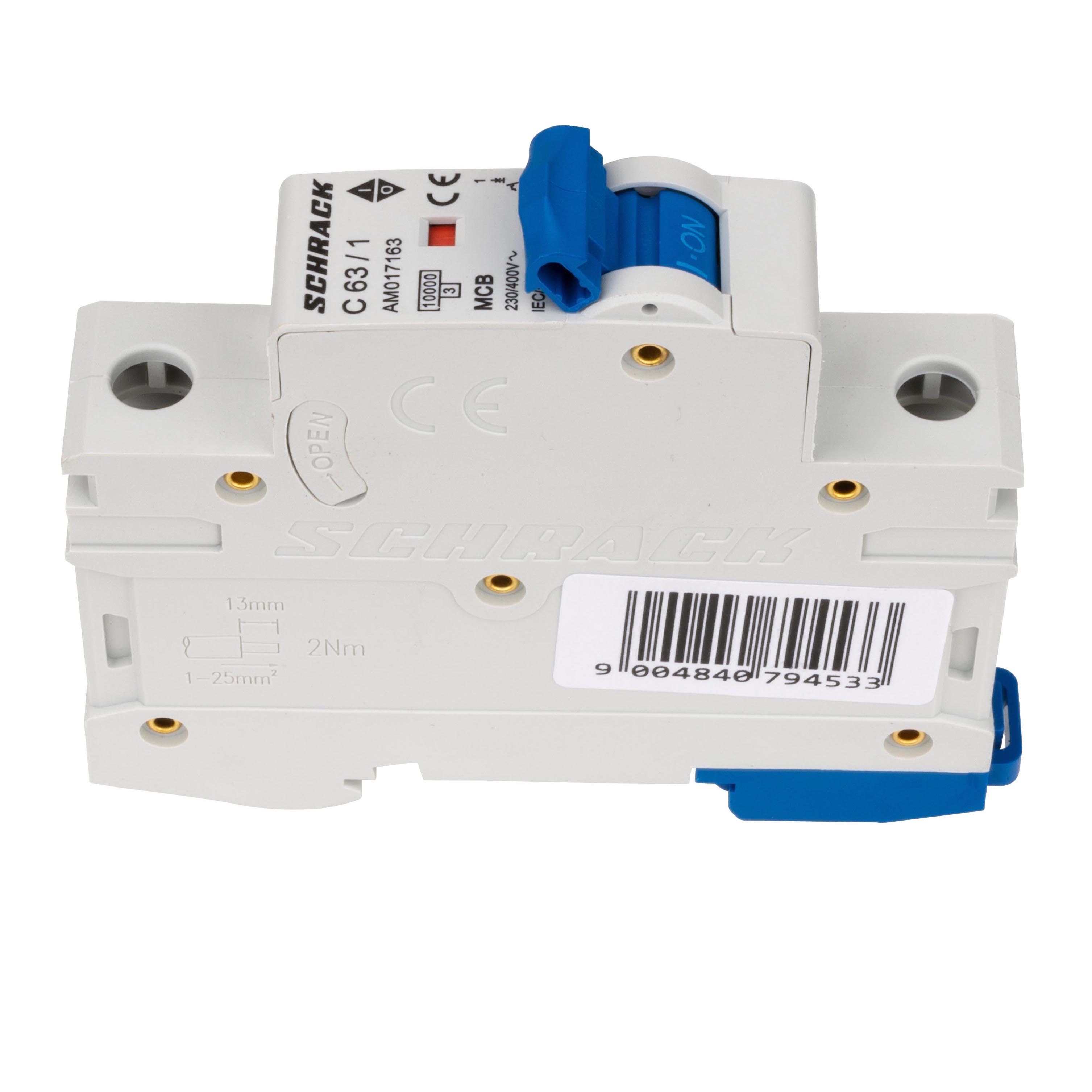

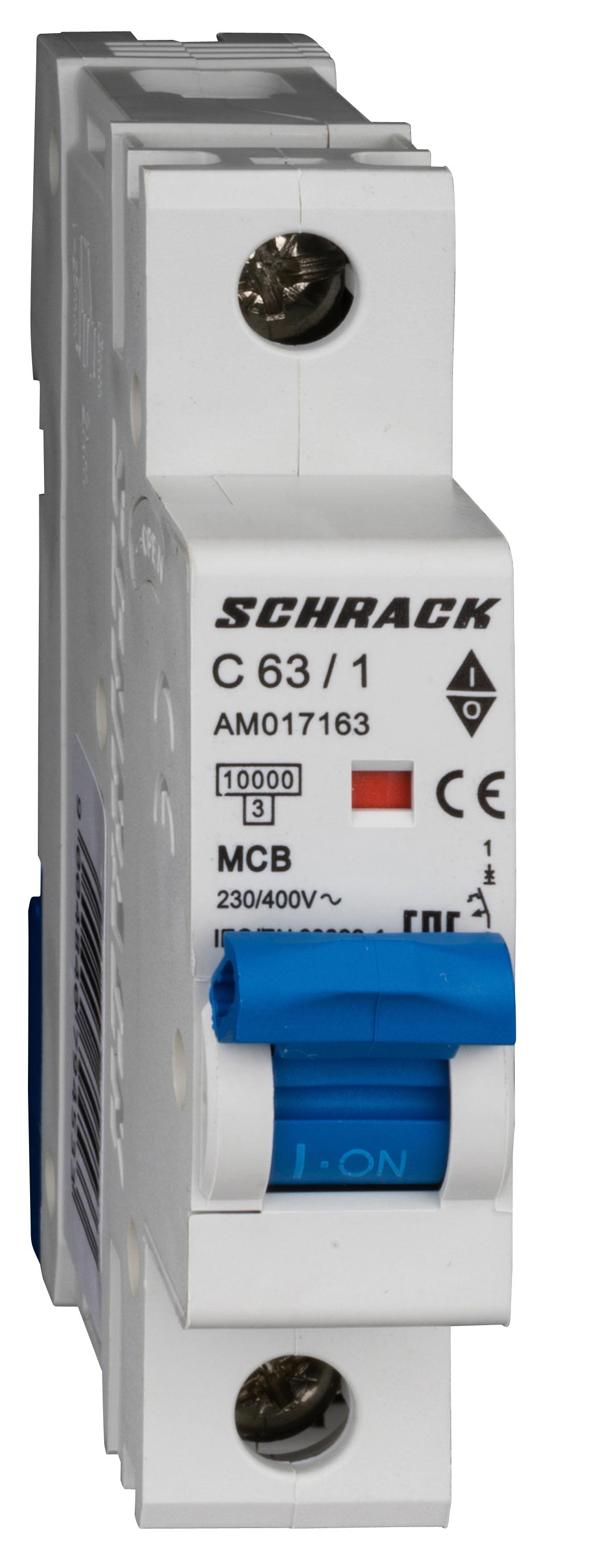

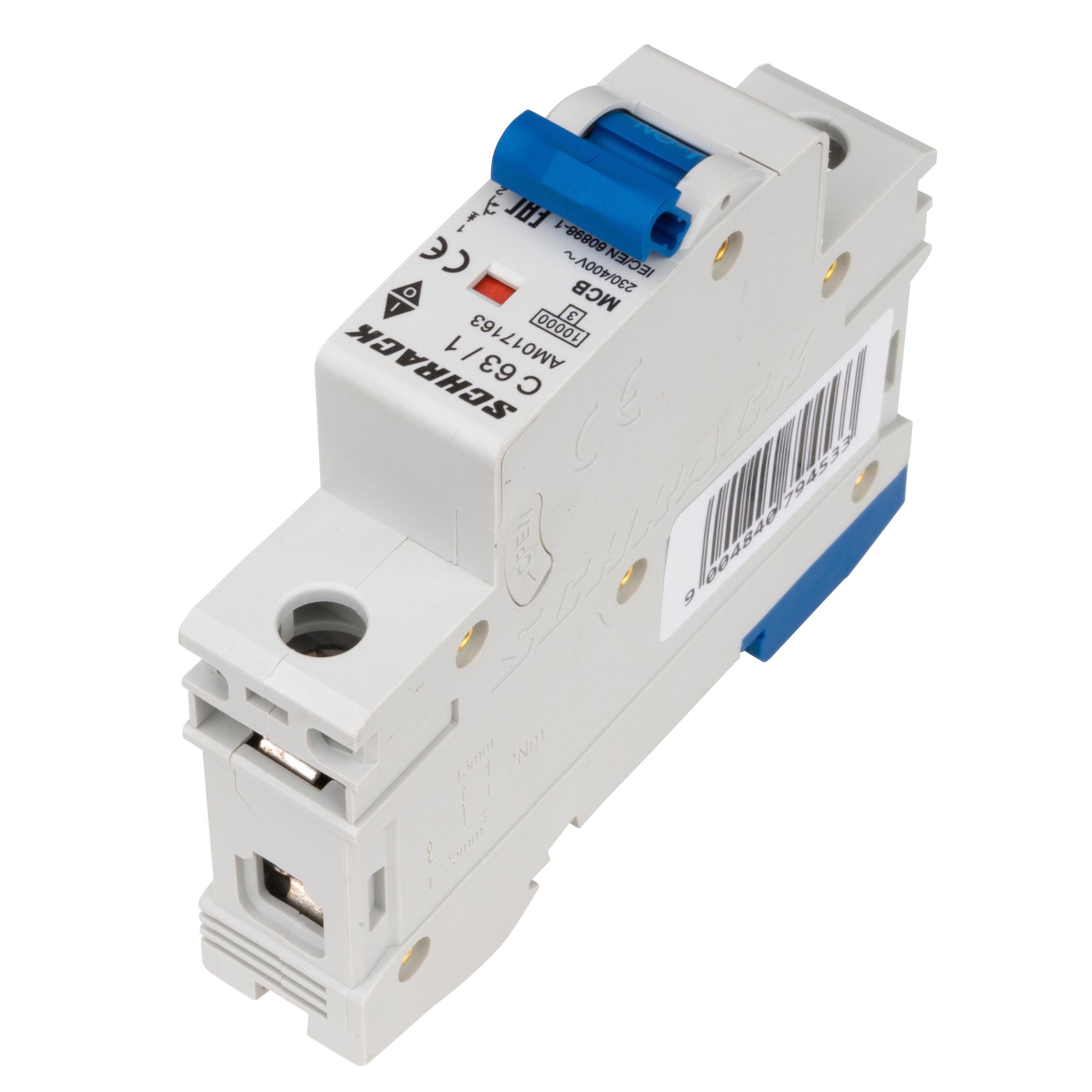

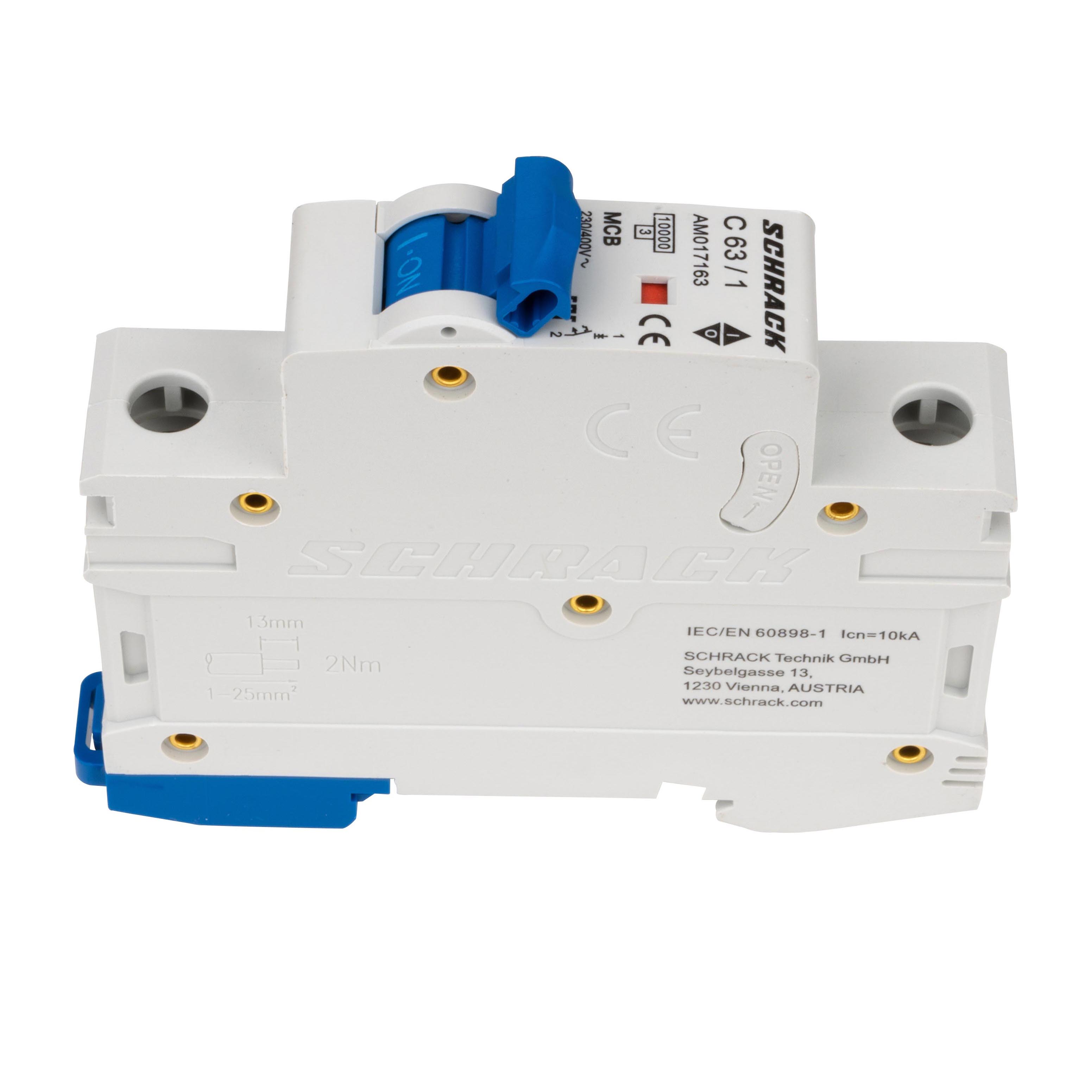

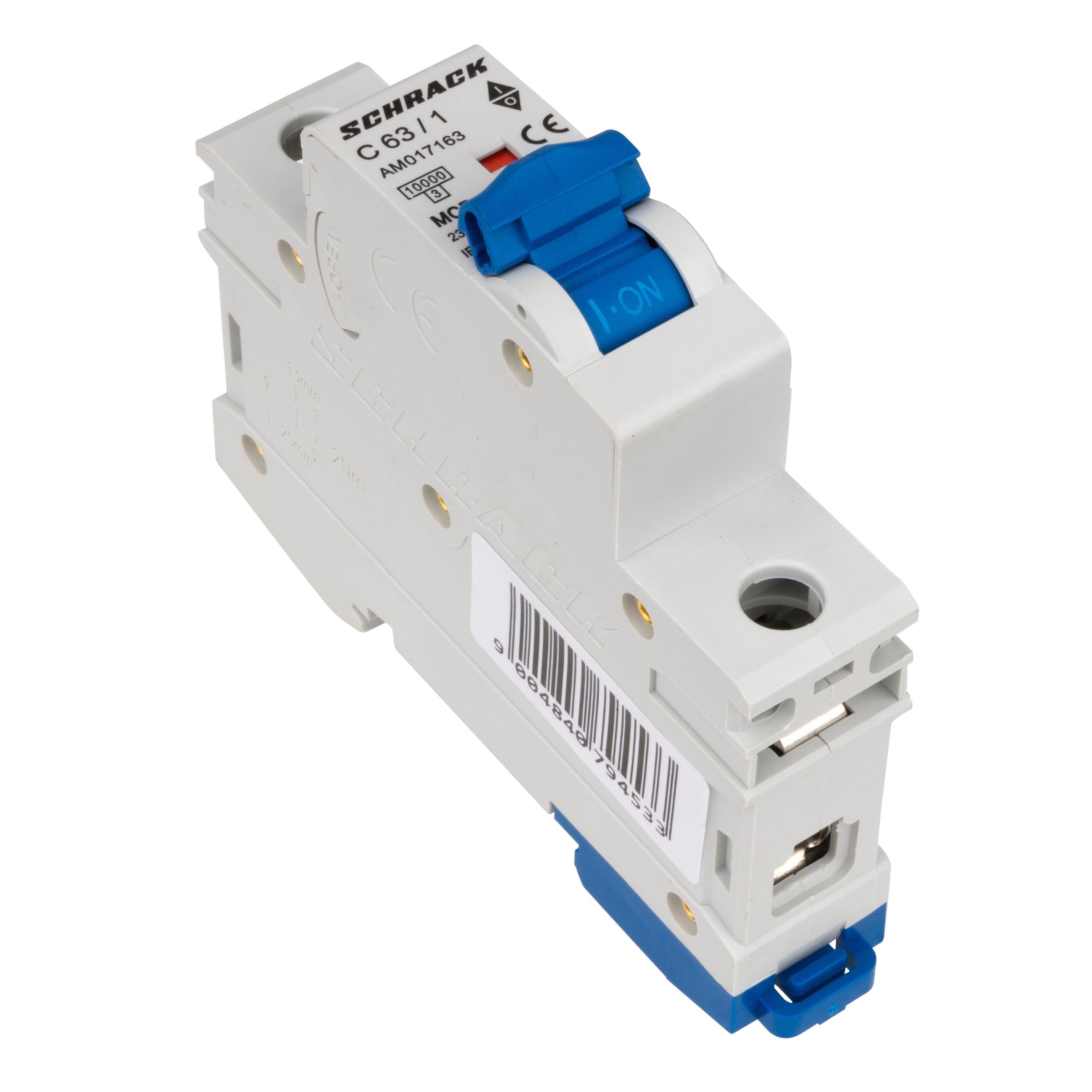

Automatic Circuit Breaker C63A/1 10kA (AMPARO series, AM10 type) is designed to protect electrical circuits from overload and short circuit currents in residential and industrial AC networks.

Main characteristics:

  • Rated current: 63A
  • Trip characteristic: C (for circuits with moderate inrush currents)
  • Breaking capacity: 10kA
  • Number of poles: 1 (single-pole)
  • Voltage: AC 230V (standard)
  • Execution type: AC-MCB (modular AC circuit breaker)
  • Power loss: 5.75W at rated current
  • Operating temperature range: from -25°C to +70°C

Constructive parameters:

  • Dimensions: 86 × 18 × 77 mm
  • Weight: 0.11 kg
  • EAN code: 9004840794533

Regulatory basis: EN 60898-1:2019, IEC 60898-1

Manufacturer: Schrack (Austria)

Packaging options: single units, 12 pieces, 180 pieces per pallet

The breaker provides reliable protection of electrical equipment and complies with current safety standards for use in distribution boards and control panels.

EAN code9004840794533
Net length86.00 mm
Net width18.00 mm
Net height77.00 mm
Net weight0.11 kg
Power loss5.75 W
Min. ambient temperature-25°C
Max. ambient temperature70°C
CharacteristicC
Pole1
Current rating63 A
TypeAM10
SeriesAMPARO
Breaking capacity10 kA
ExecutionAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pc., 12 pcs., 180 pcs.
