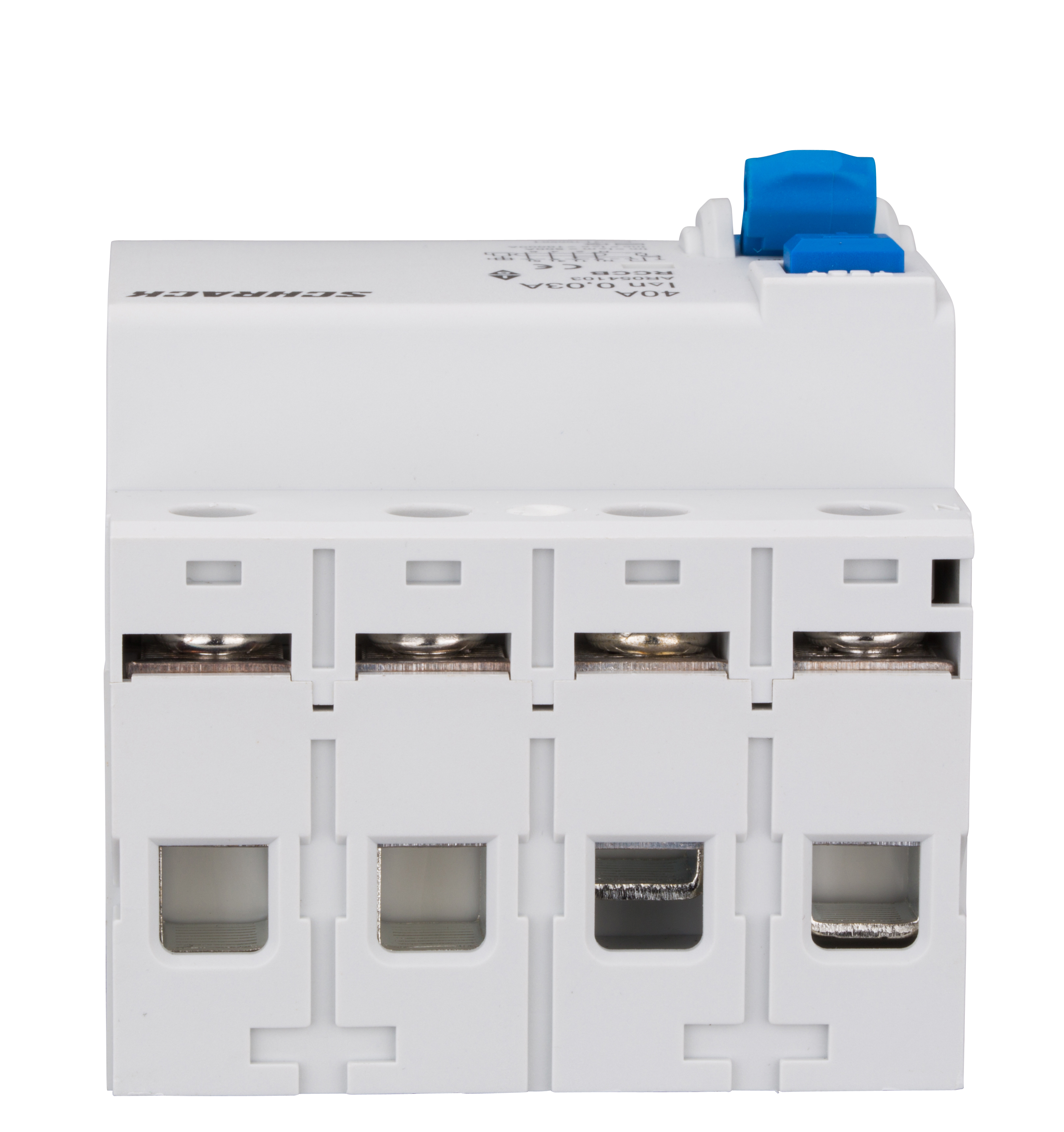

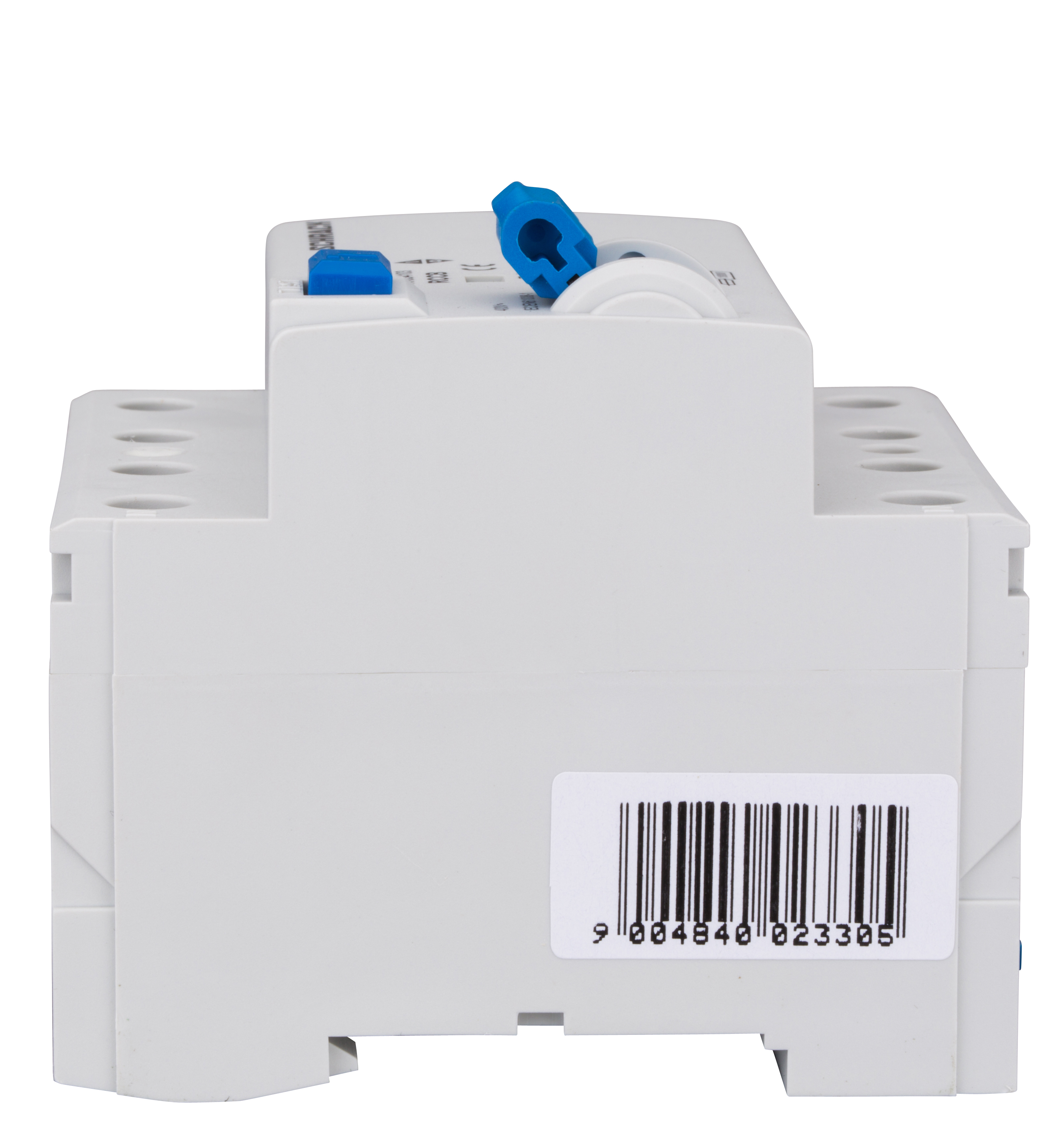

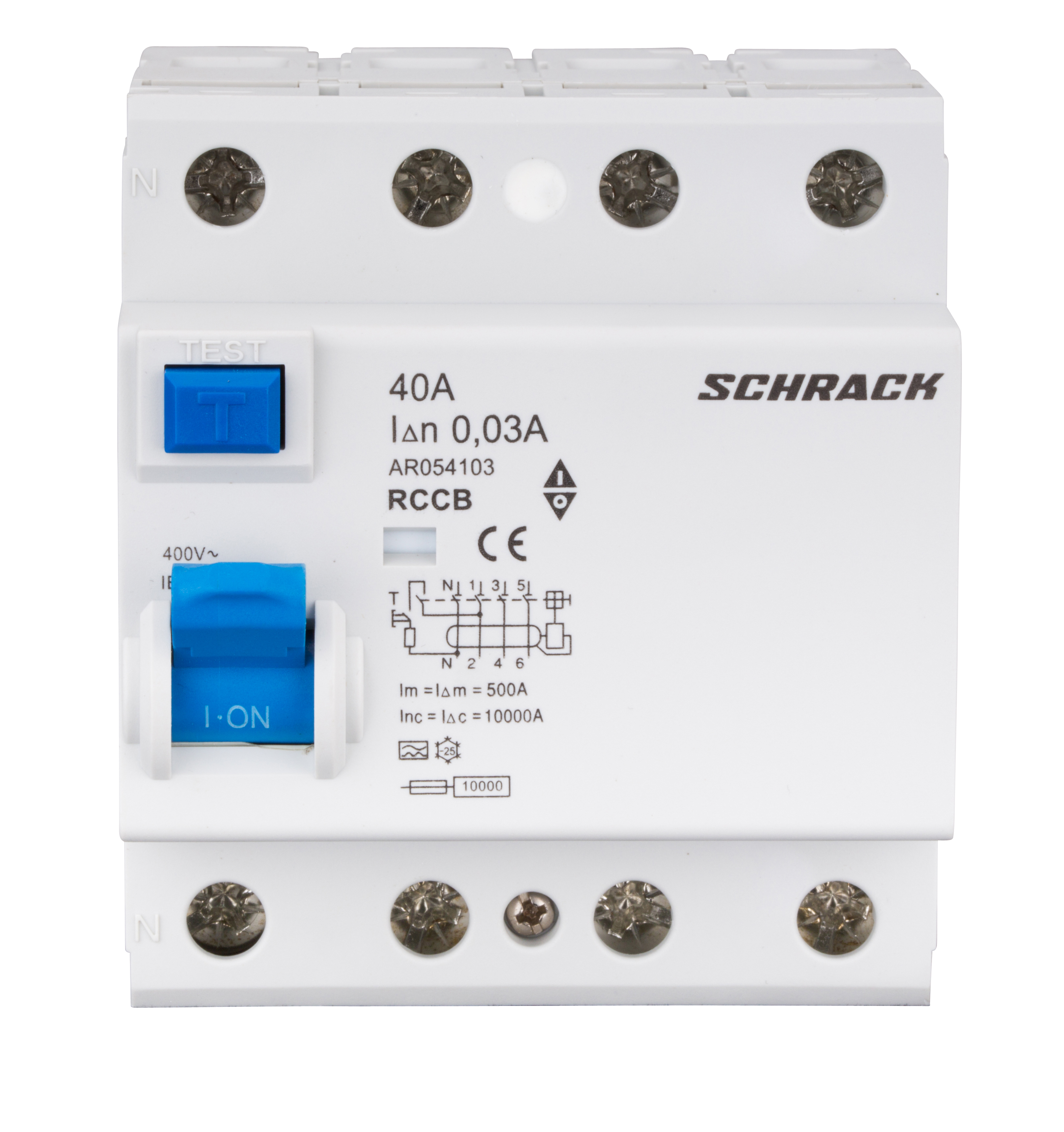

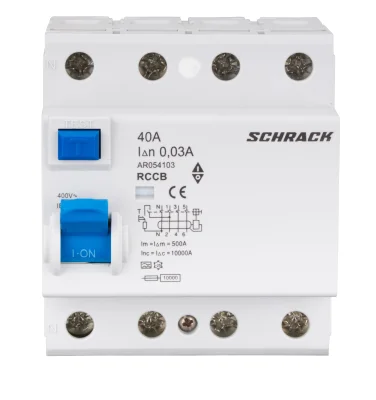

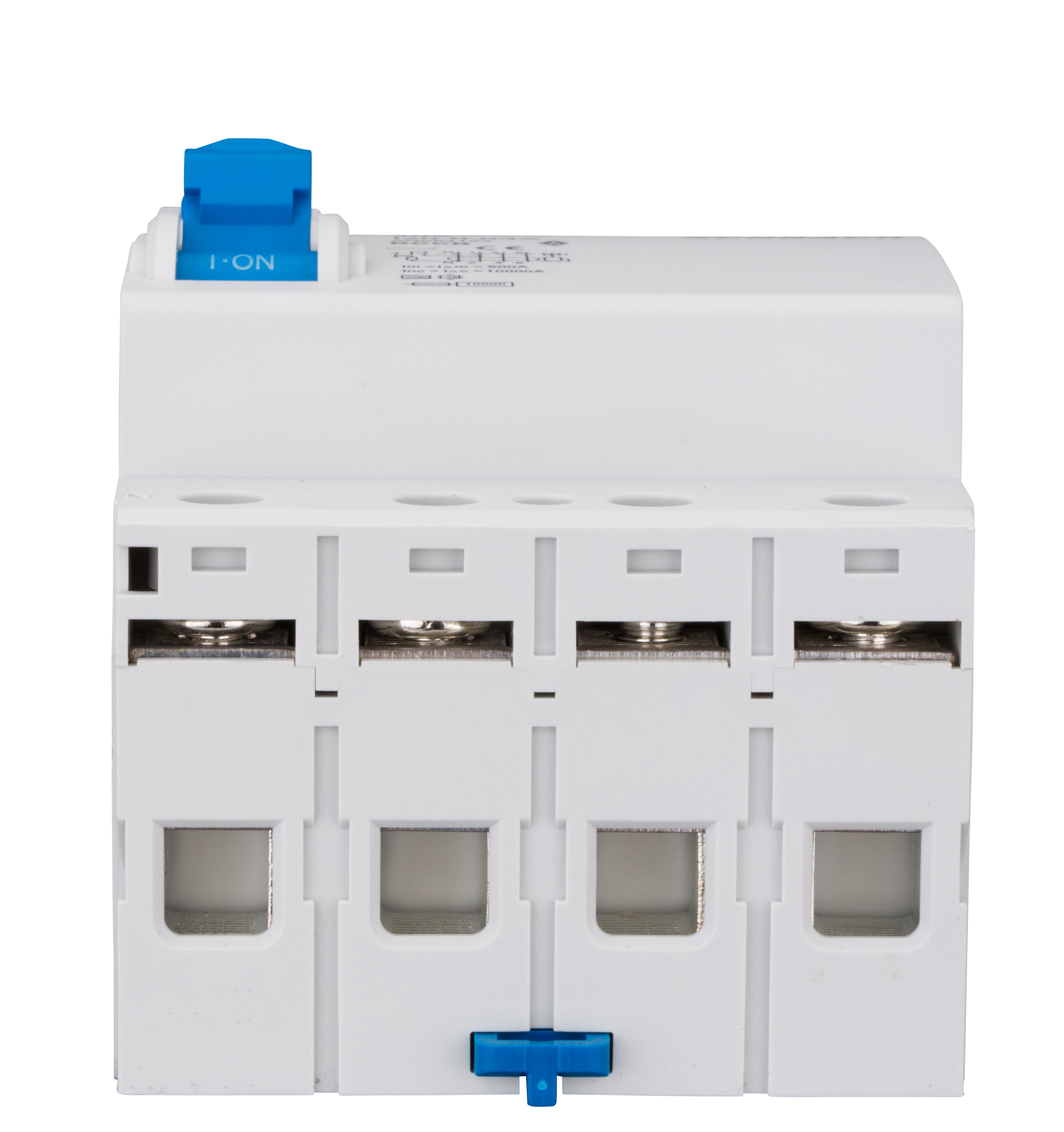

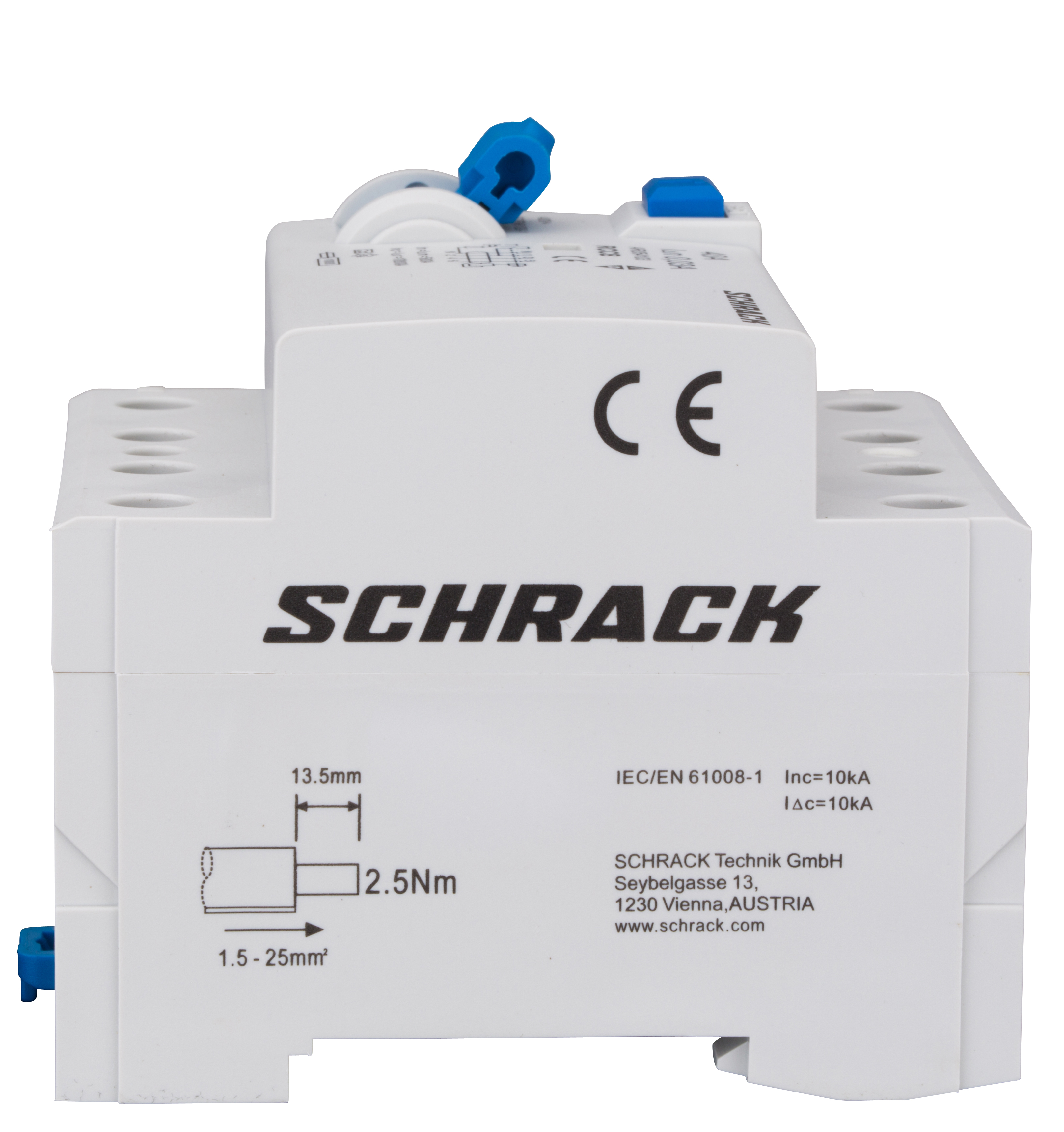

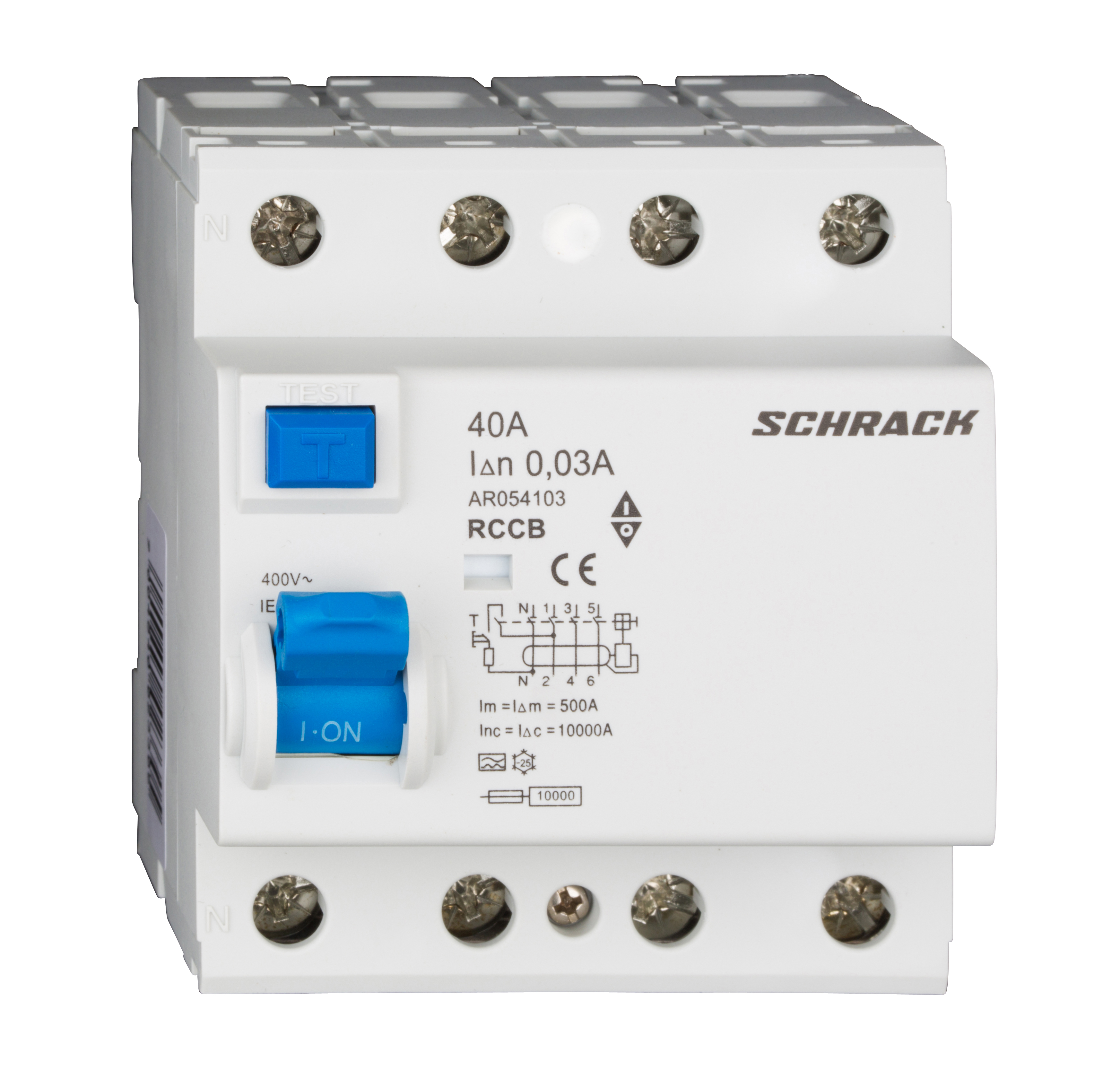

RCD 40A/4, 10kA, 30mA, Type A
1 / 6
RCD 40A/4, 10kA, 30mA, Type ARCD 40A/4, 10kA, 30mA, Type ARCD 40A/4, 10kA, 30mA, Type ARCD 40A/4, 10kA, 30mA, Type ARCD 40A/4, 10kA, 30mA, Type ARCD 40A/4, 10kA, 30mA, Type A

RCD 40A/4, 10kA, 30mA, Type A

Article: AR054103--

УЗО AMPARO

29 520 ₸

In stock
WhatsAppTelegram

Residual Current Device (RCD) Schrack AMPARO series is designed to protect against electric shock and leakage in alternating current circuits.

Main Parameters:

  • Rated Current: 40 A
  • Trip Current (Sensitivity): 30 mA
  • Switching Capacity: 10 kA
  • Configuration: N+3 (four-pole)
  • Type: A — responds to alternating and pulsating direct current
  • Trip Speed: immediate disconnection

Technical Characteristics:

  • Power Loss: 17 W
  • Temperature Range: from -25 °C to +60 °C
  • Dimensions: 49.5 × 72 × 84 mm
  • Weight: 0.37 kg
  • EAN Code: 9004840023305

Compliance Standards: AS/NZS 61008.1, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, IEC 61008-1, IEC 61008-2-1

Packaging: supplied individually or in multiples of 45 units.

EAN Code9004840023305
Net Length49.50 mm
Net Width72.00 mm
Net Height84.00 mm
Net Weight0.37 kg
Power Loss17.00 W
Minimum Ambient Temperature-25 °C
Maximum Ambient Temperature60 °C
TypeA (sensitive to pulsating current)
Typeimmediate
Rated Current40 A
Current40 A
Trip Current30 mA
Rated Sensitivity IΔn30 mA
PolesN+3
Switching Capacity10 kA
StandardAS/NZS 61008.1, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, IEC 61008-1, IEC 61008-2-1
SeriesAMPARO
ManufacturerSchrack
Packaging1 unit, 45 units
