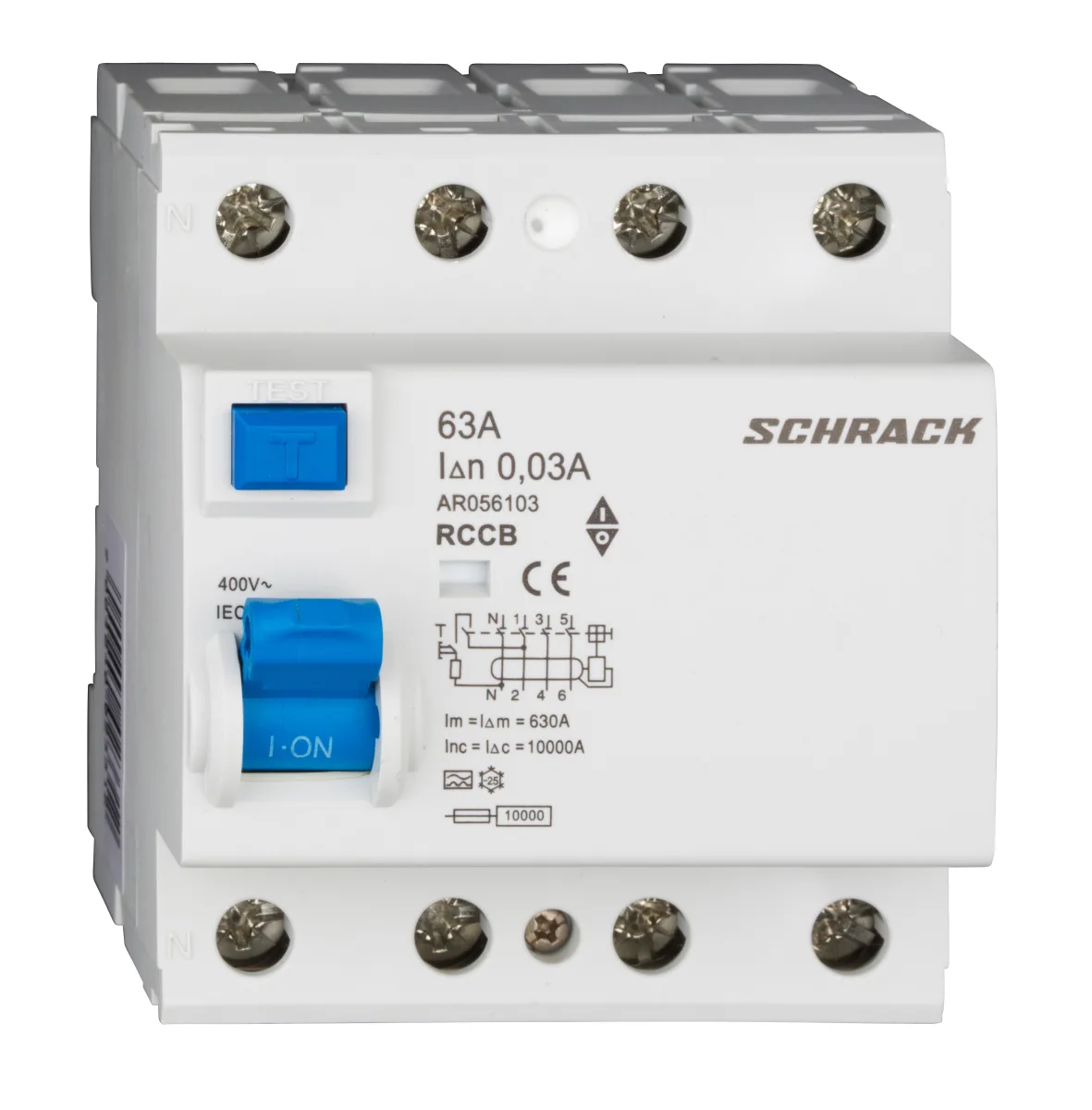

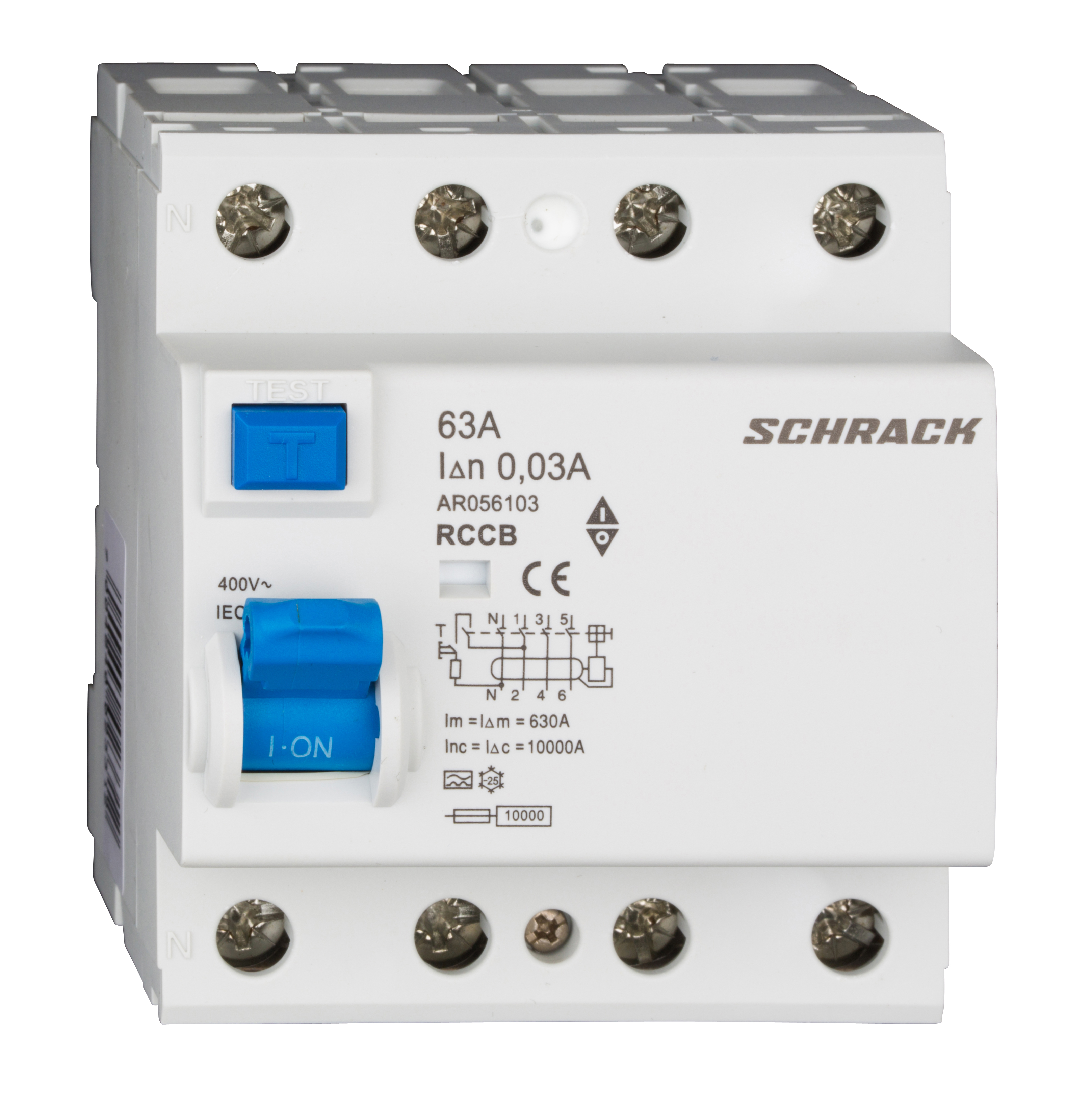

Residual Current Device (RCD) of the AMPARO series manufactured by Schrack is designed to provide protection against electric shock and ground leakage in electrical networks.
Main characteristics:
- Nominal current: 63 A
- Trip current (sensitivity): 30 mA
- Rated breaking capacity: 10 kA
- Configuration: 4-pole (N+3)
- Type of response: A — sensitive to pulsating (rectified) sinusoidal alternating current, recommended for circuits with electronics
- Response time: instantaneous
Technical parameters:
- Rated voltage: in accordance with standards EN 61008-1, IEC 61008-1
- Operating temperature range: from −25 °C to +60 °C
- Power loss: 22.50 W
- Gross dimensions (net): 72 × 49.50 × 84 mm
- Weight: 0.37 kg
Regulatory basis:
The RCD complies with the requirements of standards AS/NZS 61008.1, EN 61008-1:2012 (with amendments A1, A2, A11, A12), EN 61008-2-1:1994 (with amendment A11), IEC 61008-1 and IEC 61008-2-1, which guarantees reliability and compatibility with distribution systems.
Available packaging options: 1 pcs., 45 pcs.
EAN: 9004840023312
| EAN code | 9004840023312 |
|---|---|
| Net length | 49.50 mm |
| Net width | 72.00 mm |
| Net height | 84.00 mm |
| Net weight | 0.37 kg |
| Power loss | 22.50 W |
| Minimum ambient temperature | -25 °C |
| Maximum ambient temperature | 60 °C |
| Type | A (sensitive to pulsating current) |
| Response type | Instantaneous |
| Rated current | 63 A |
| Current rating | 63 A |
| Trip current | 30 mA |
| Rated sensitivity IΔn | 30 mA |
| Poles | N+3 |
| Breaking capacity | 10 kA |
| Standard | AS/NZS 61008.1, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, IEC 61008-1, IEC 61008-2-1 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 45 pcs. |
