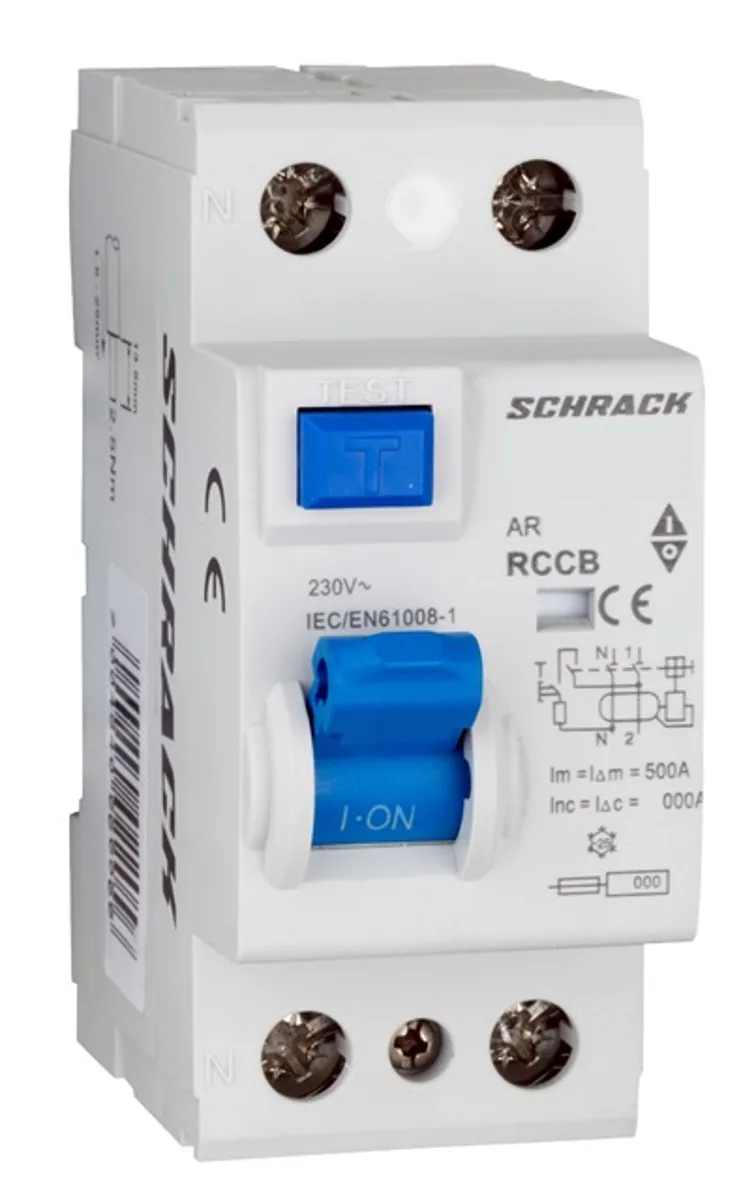

Residual Current Device (RCD) of AMPARO series manufactured by Schrack is designed to protect electrical circuits from leakage currents and electrical shock hazards.
Main Characteristics:
- Rated Current: 25 A
- Tripping Current (IΔn): 10 mA
- Switching Capacity: 6 kA
- Tripping Type: AC (sensitive to alternating sinusoidal differential current)
- Number of Poles: N+1 (single-phase connection with neutral)
- Tripping Speed: instantaneous
Technical Parameters:
- Power Loss: 7 W
- Operating Temperature Range: from –25°C to +60°C
- Modular Size: 49.5 × 36 × 84 mm
- Weight: 0.21 kg
Standards Compliance:
The RCD is manufactured in accordance with EN 61008-1:2012 + amendments, IEC 61008-1:2012, AS/NZS 61008.1 and other international safety standards.
Application:
Used in single-phase alternating current networks to protect electrical installations from leakage currents, prevent electrical shock to people, and provide protection against fires caused by insulation faults.
| EAN Code | 9004840260793 |
|---|---|
| Net Length | 49.50 mm |
| Net Width | 36.00 mm |
| Net Height | 84.00 mm |
| Net Weight | 0.21 kg |
| Power Loss | 7.00 W |
| Minimum Ambient Temperature | -25°C |
| Maximum Ambient Temperature | 60°C |
| Type | AC (sensitive to alternating current) |
| Tripping Type | Instantaneous |
| Rated Current | 25 A |
| Current Rating | 25 A |
| Tripping Current | 10 mA |
| Rated Sensitivity IΔn | 10 mA |
| Pole | N+1 |
| Switching Capacity | 6 kA |
| Standard | AS/NZS 61008.1, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, IEC 61008-1, IEC 61008-2-1 |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 90 pcs. |
