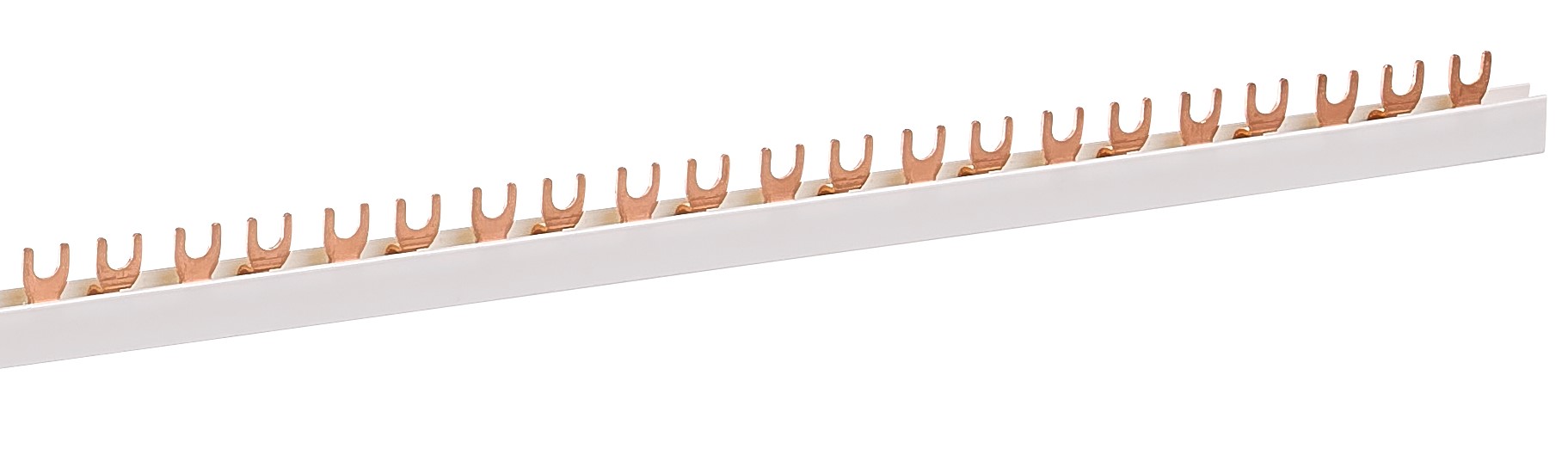

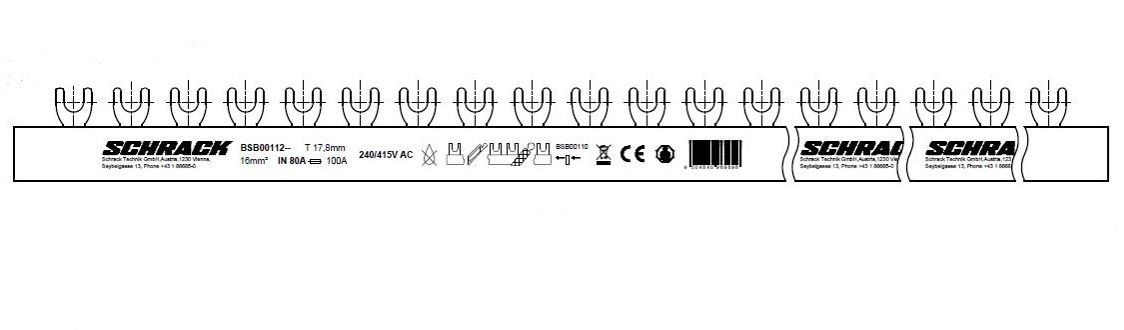

Fork-type busbar 2-pole 16mm², 1 meter, BSB
Article: BSB00112--
17 050 ₸
In stock
Two-pole fork-type busbar with 16 mm² cross-section and 1 meter length designed for power distribution in low-voltage electrical distribution devices. Manufactured in fork-type configuration with the capability to install modular contact inserts.
Technical Parameters:
- Conductor cross-section: 16 mm²
- Number of poles: 2
- Length: 1000 mm
- Copper content: 485 g
- Power loss: 14 W
- Transverse dimensions: height 31 mm, depth 16 mm
- Net weight: 0.52 kg
Operating Conditions:
- Temperature range: from -35°C to +70°C
- Standard compliance: EN 61439-1
- Manufacturer: Schrack
Compatibility:
The busbar is compatible with BC, BM, BO and Amparo series distribution devices. Supports installation of LS, FI and LS/FI type contact inserts with 17.8 mm pitch.
Packaging: 1 pcs. or multiples of 20 pcs.
| EAN code | 9004840969696 |
|---|---|
| Net length | 1000.00 mm |
| Net height | 31.00 mm |
| Net depth | 16.00 mm |
| Net weight | 0.52 kg |
| Copper content | 485.0000 g |
| Power loss | 14.00 W |
| Min. ambient temperature | -35°C |
| Max. ambient temperature | 70°C |
| Series | BC, BM, BO and Amparo |
| Insert | LS, FI, LS/FI (pitch 17.8 mm) |
| Design | Fork-type configuration |
| Poles | 2 |
| Cross-section | 16 mm² |
| Standard | EN 61439-1 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 20 pcs. |
