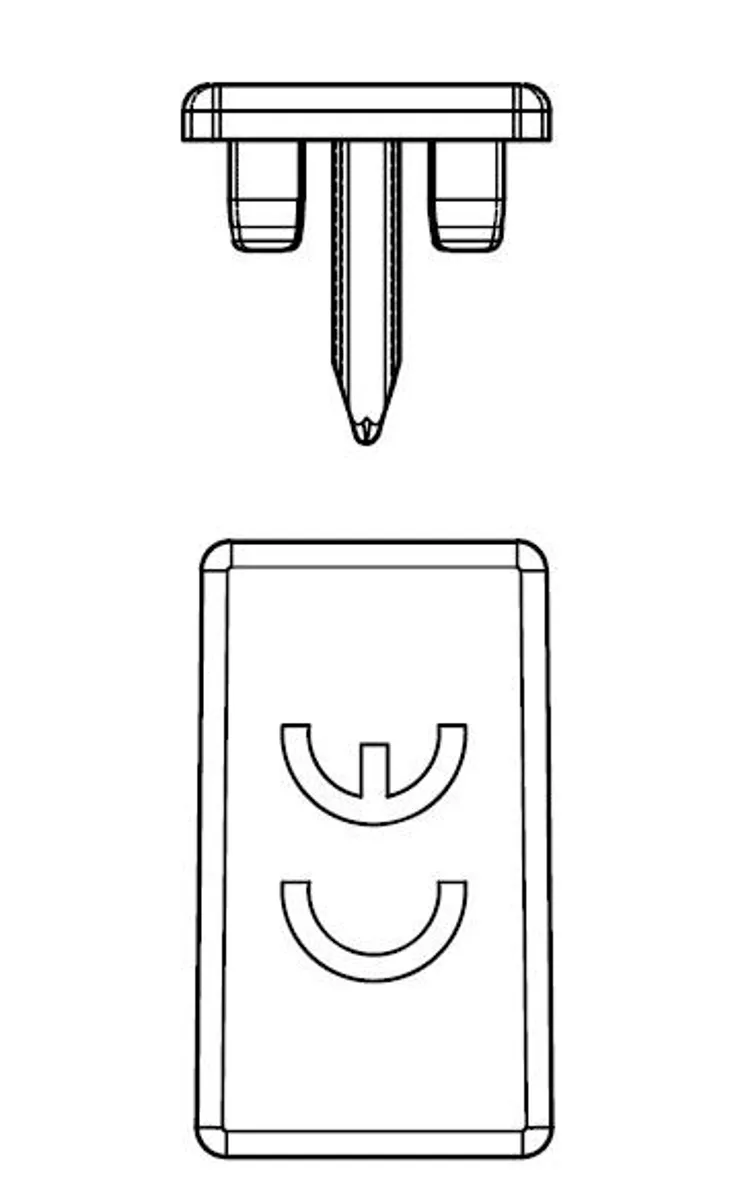

End Cap for 2-pole BSB 16 mm² Busbar
Article: BSB00110--
205 ₸
In stock
End cap for two-pole BSB busbar series with 16 mm² cross-section designed for sealing the ends of distribution busbars. The product provides protection against dust and moisture, preventing accidental contact with conductive elements.
Key Characteristics:
- Number of poles: 2
- Busbar cross-section: 16 mm²
- Compatibility: BSB busbars with 17.8 mm pitch
- Insert types: LS, FI, LS/FI
- Constructive variants: Fork design, Pin design
- Operating temperature range: -35°C to +70°C
- Dimensions: 10 × 11 × 12 mm
- Weight: 0.01 kg
- Manufacturer: Schrack
- EAN code: 9004840942880
Packaging options: 1 pc., 10 pc., 400 pc.
The end cap is easily mounted on the ends of distribution busbars and provides reliable protection of electrical contacts during operation.
| EAN code | 9004840942880 |
|---|---|
| Length (net) | 10.00 mm |
| Width (net) | 11.00 mm |
| Height (net) | 12.00 mm |
| Weight (net) | 0.01 kg |
| Minimum ambient temperature | -35°C |
| Maximum ambient temperature | 70°C |
| Series | Accessories |
| Inserts | LS, FI, LS/FI (pitch 17.8 mm) |
| Design type | Fork design, Pin design |
| Poles | 2 |
| Cross-section | 16 mm² |
| Accessories | End cap |
| Manufacturer | Schrack |
| Packaging | 1 pc., 10 pc., 400 pc. |
