Two-pole residual current device (RCD) with a nominal current of 100 A and an operating current of 300 mA, designed to protect electrical circuits from electric shock and earth leakage faults. Sensitive to alternating current (AC type). A breaking capacity of 10 kA ensures reliable disconnection under critical operating conditions.
Technical parameters:
- Nominal current: 100 A
- Differential operating current (IΔn): 300 mA
- Number of poles: 2
- Type of tripping: instantaneous
- Type of characteristic: AC (responds to sinusoidal alternating current)
- Breaking capacity: 10 kA
- Power dissipation: 13.60 W
- Operating temperature range: from −25 °C to +60 °C

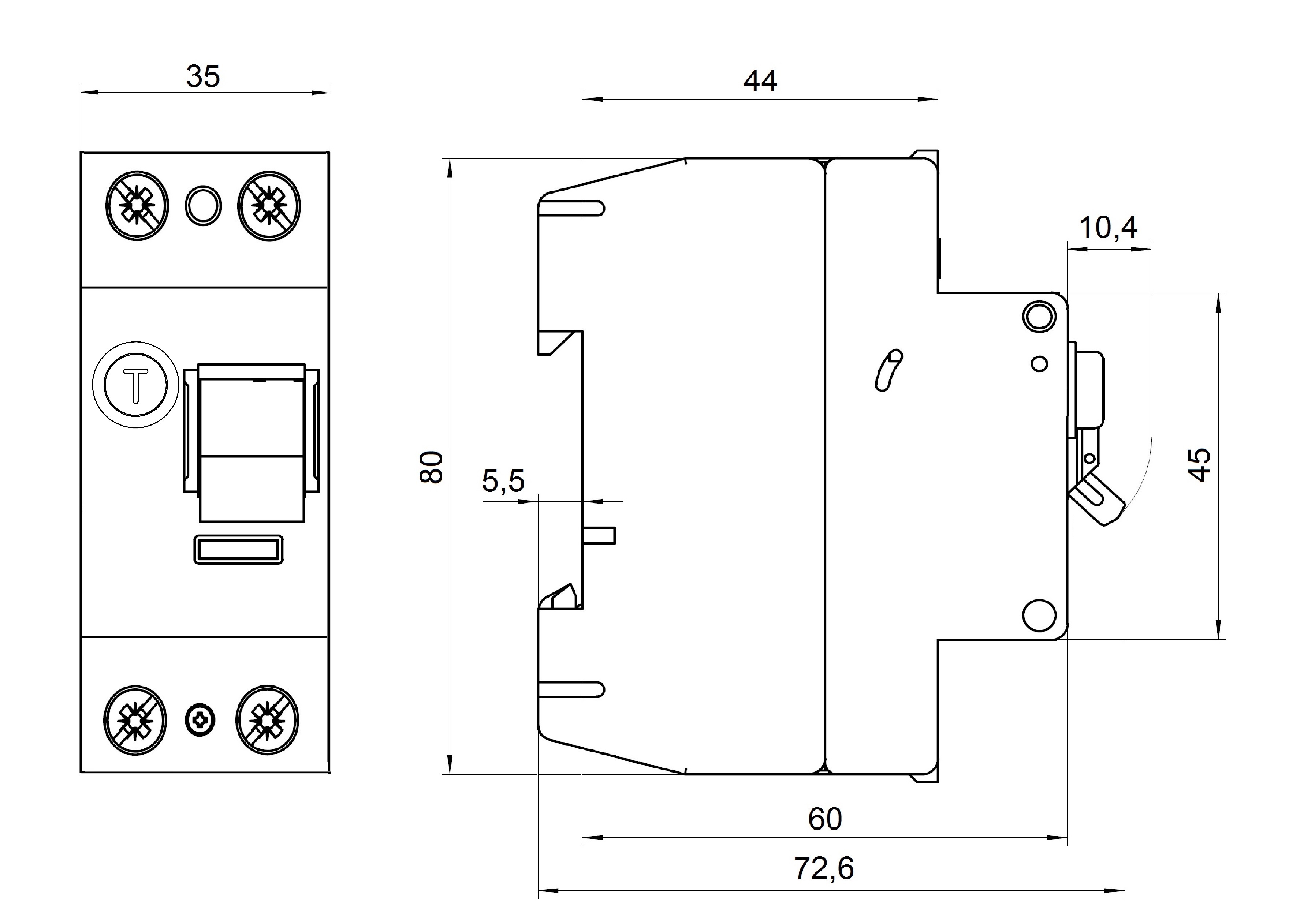

- Physical dimensions: 35 × 80 × 71 mm
- Net weight: 0.22 kg
Compliance with standards: EN 50581:2012, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998
Series: BC-ME
Manufacturer: Schrack
Packaging: 1 or 60 pcs.
The RCD is intended for installation on DIN rails in distribution boards and electrical switch installations in residential, commercial and industrial facilities.
| EAN code | 9004840529098 |
|---|---|
| Width (net) | 35.00 mm |
| Height (net) | 80.00 mm |
| Depth (net) | 71.00 mm |
| Weight (net) | 0.22 kg |
| Power dissipation | 13.60 W |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 60 °C |
| Type | AC (sensitive to alternating current) |
| Type | instantaneous |
| Nominal current | 100 A |
| Current strength | 100 A |
| Operating current | 300 mA |
| Nominal sensitivity IΔn | 300 mA |
| Poles | 2 |
| Breaking capacity | 10 kA |
| Standard | EN 50581:2012, EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998 |
| Series | BC-ME |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 60 pcs. |
