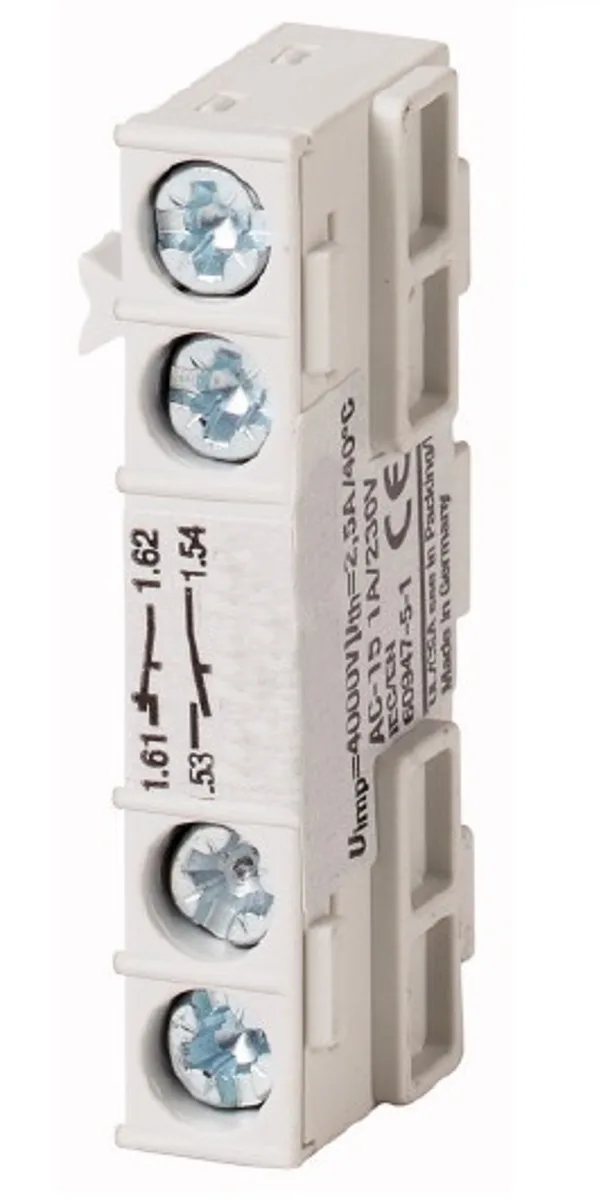

Auxiliary Contact, Front-mounted 1NO+1NC BE5/BE6
Article: BE082882--
5 555 ₸
In stock
Auxiliary contact for front-mounting on electromagnetic devices of the BE5/BE6 series. The contact system consists of one normally open contact (1NO) and one normally closed contact (1NC), providing reliable switching of control circuits.
Technical Specifications:
- Contact configuration: 1 normally open + 1 normally closed contact
- Rated current ranges: 0.10–0.40 A, 0.40–2.5 A, 2.5–16 A, 16–32 A, 24–40 A, 40–63 A
- Rated short-circuit power: 100 kA, 16 kA, 50 kA depending on current range
- Operating temperature range: –25°C to +60°C
- Overall dimensions: 76 × 70 × 68 mm
- Weight: 0.02 kg
- Mounting type: Front-mounted
- Compatibility: BE5/BE6
- Manufacturer: Schrack
- EAN code: 9004840256574
The auxiliary contact is designed to expand the functionality of main contact blocks, providing additional control and signaling capabilities in electrical circuits. The product is supplied packaged in quantities of 1, 350, or 7000 pieces.
| EAN code | 9004840256574 |
|---|---|
| Net length | 76.00 mm |
| Net width | 70.00 mm |
| Net height | 68.00 mm |
| Net weight | 0.02 kg |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Current range | 0.10-0.40 A, 0.40-2.5 A, 2.5-16 A, 16-32 A, 24-40 A, 40-63 A |
| Rated short-circuit power | 100 kA; 16 kA; 50 kA |
| Type | Accessories |
| Size | BE5/BE6 |
| Accessories | Auxiliary contact |
| Auxiliary contacts | 1 normally open contact + 1 normally closed contact |
| Manufacturer | Schrack |
| Packaging | 1 pc., 350 pc., 7000 pc. |
