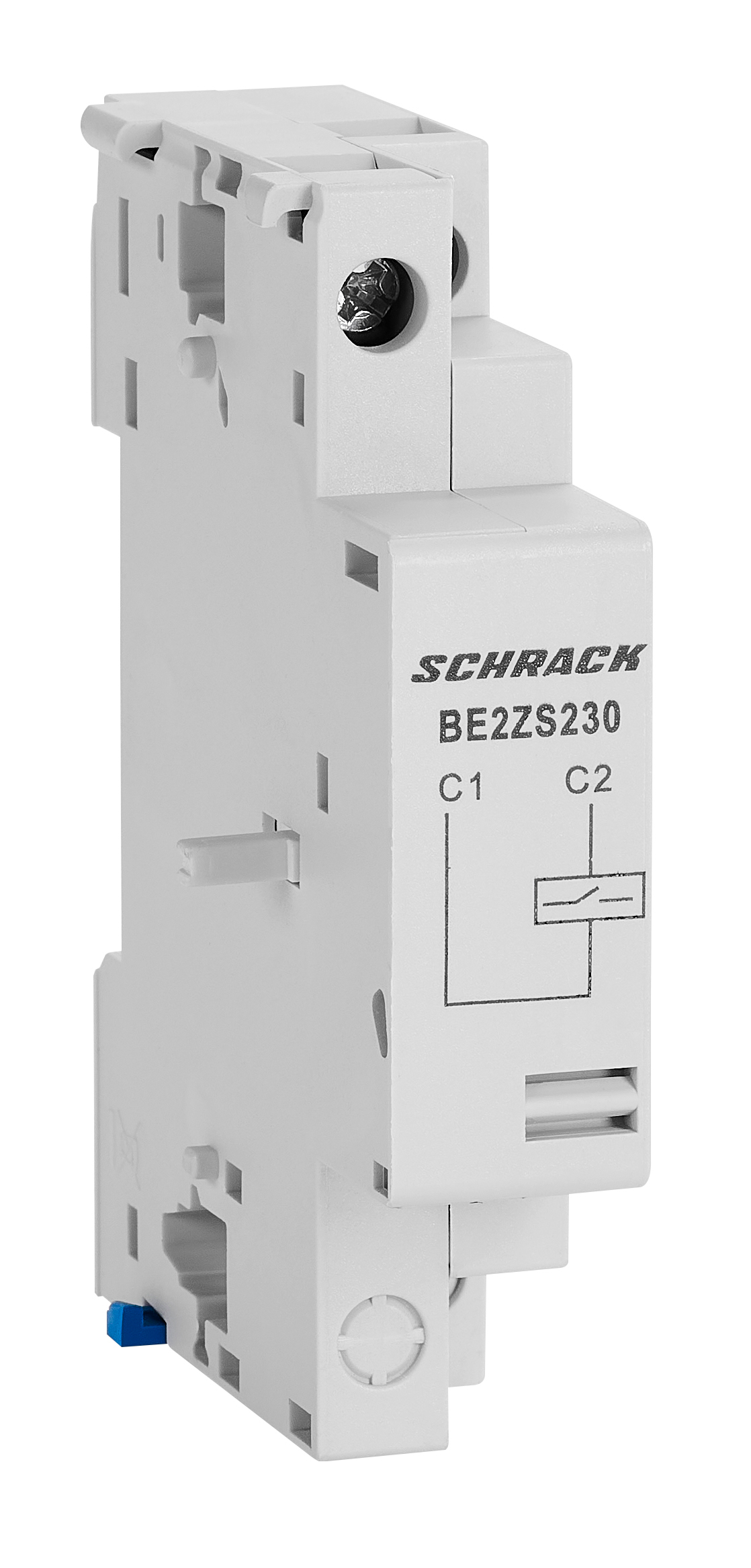

Independent Release BE2 230VAC 50Hz
Article: BE2ZS230--
5 805 ₸
In stock
The independent release BE2 is designed for use in electrical circuits with 230 V alternating current at 50 Hz frequency. The device belongs to the category of working current releases and provides reliable disconnection of the electrical circuit in case of emergency situations.
Technical Parameters:
- Rated Voltage: 230 V AC
- Frequency: 50 Hz
- Power Loss: 2.00 W
- Operating Temperature Range: from -5°C to +40°C
- Dimensions in mm: width 25.20 × height 65.50 × depth 86.80
- Net Weight: 0.09 kg
- EAN Code: 9004840796643
- Manufacturer: Schrack
The release is mounted on a DIN rail and can be supplied in packages of 1, 2, or 120 pieces depending on customer requirements.
| EAN Code | 9004840796643 |
|---|---|
| Width (Net) | 25.20 mm |
| Height (Net) | 65.50 mm |
| Depth (Net) | 86.80 mm |
| Weight (Net) | 0.09 kg |
| Power Loss | 2.00 W |
| Min. Ambient Temperature | -5°C |
| Max. Ambient Temperature | 40°C |
| Size | 0 |
| Type | Accessories |
| Accessories | Working Current Release |
| Manufacturer | Schrack |
| Packaging | 1 piece, 2 pieces, 120 pieces |
