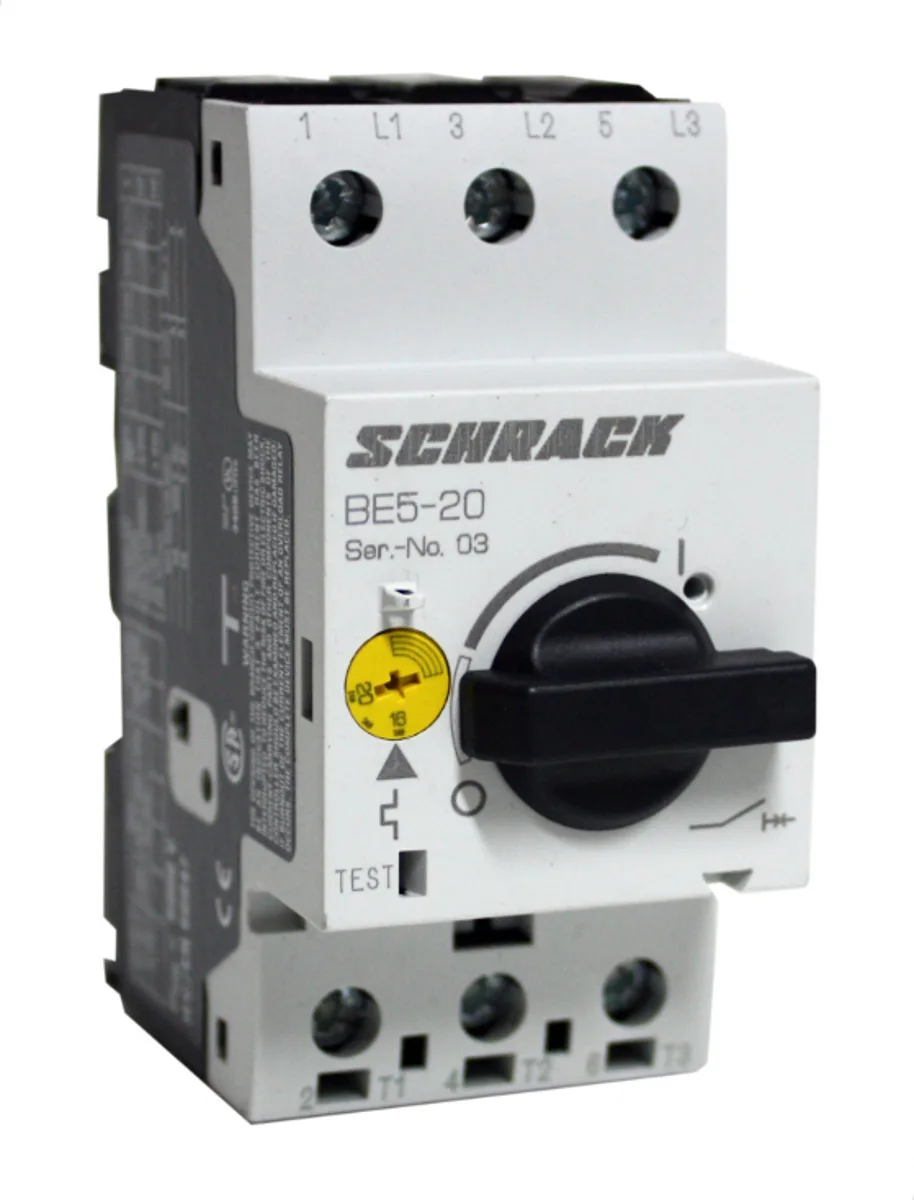

Motor Protection Switch 16-20A/3 BE5
Article: BE520000--
29 840 ₸
To order
Motor protection switch designed to protect electric motors from overload and short circuits. The device ensures reliable disconnection when nominal current is exceeded and activates in emergency situations.
Main characteristics:
- Current adjustment range: 16.0-20.0 A
- Rated short-circuit capacity: 16 kA
- Power loss: 6.00 W
- Size: BE5 (compact DIN-rail mounting)
- Operating temperature range: from -25°C to +55°C
- Weight: 0.30 kg
- Overall dimensions: width 45 mm, height 93 mm, depth 76 mm
Manufacturer: Schrack
The switch provides selective protection with time delay, preventing false trips during motor starting currents. Ideal for use in industrial installations, automation systems and distribution cabinets.
| EAN code | 9004840256253 |
|---|---|
| Net width | 45.00 mm |
| Net height | 93.00 mm |
| Net depth | 76.00 mm |
| Net weight | 0.30 kg |
| Power loss | 6.00 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 55°C |
| Current range | 16.0-20.0 A |
| Rated short-circuit capacity | 16 kA |
| Type | Motor protection switch |
| Size | BE5 |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 70 pcs. |
