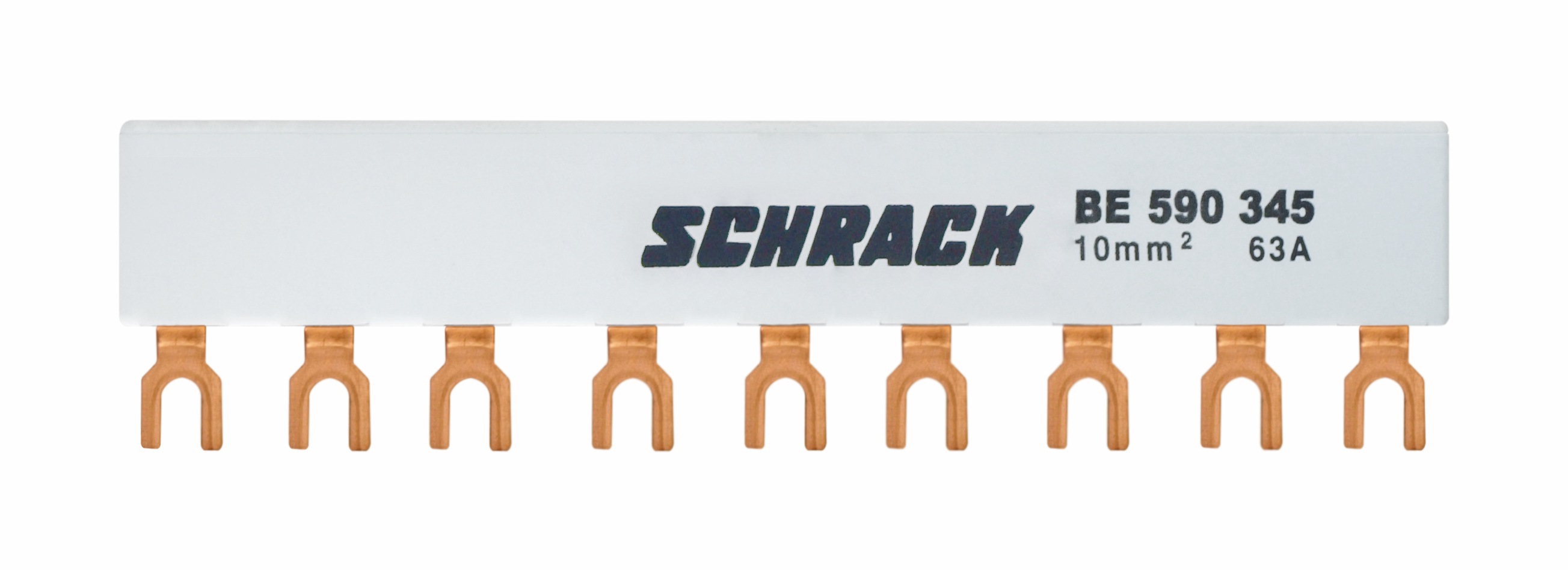

Three-phase Bus Bar for 3xBE5, 45mm, Fork Contact
Article: BE590345--
7 135 ₸
To order
Assembled three-phase bus bar with fork contact for modular distribution systems. Designed for installation in modular distribution units of the 3xBE5 series. The contact part is manufactured from high-conductivity copper. The bus bar provides reliable electrical connection between modular devices and features low power loss during power transmission.
Technical Parameters:
- Operating Voltage: Three-phase (3 phases)
- Compatibility: Distribution units of the 3xBE5 series
- Contact Section Length: 45 mm
- Connection Type: Fork contact (pin-type)
- Copper Content: 112.0 g
- Power Loss: 2.80 W
- Operating Temperature Range: -25°C to +40°C
- Physical Dimensions (net): 131 × 32 × 13 mm
- Housing Material: Insulating plastic
- Classification: Accessories for distribution systems
Application: Used in modular distribution panels and switchboards for distributing three-phase power among automatic circuit breakers, RCDs and other modular electrical devices.
| EAN Code | 9004840264395 |
|---|---|
| Net Width | 131.00 mm |
| Net Height | 32.00 mm |
| Net Depth | 13.00 mm |
| Copper Content | 112.0000 g |
| Power Loss | 2.80 W |
| Min. Ambient Temperature | -25°C |
| Max. Ambient Temperature | 40°C |
| Type | Accessories |
| Size | BE5 |
| Accessories | Assembled bus bar |
| Manufacturer | Schrack |
| Packaging | 1 pcs |
