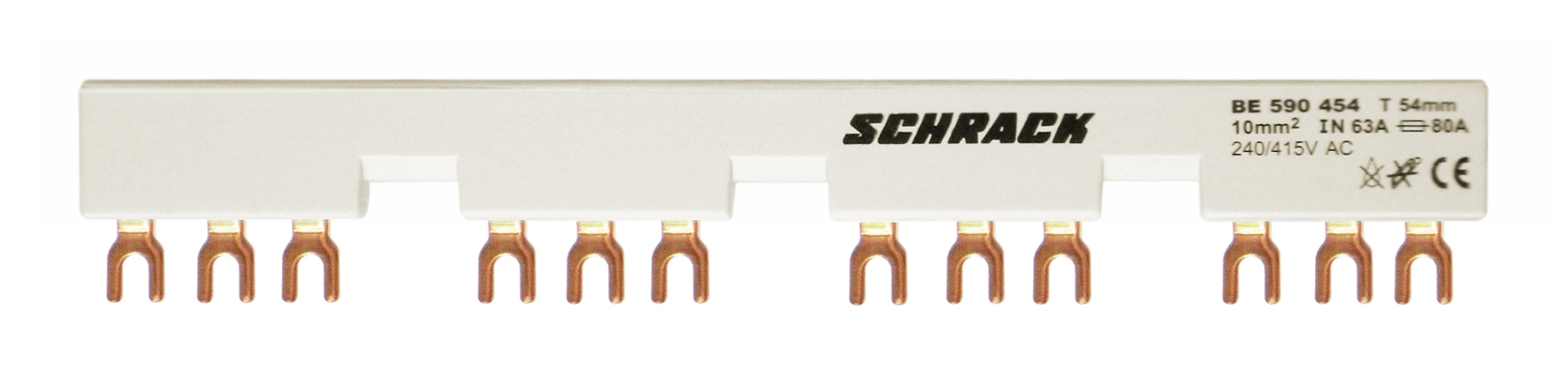

3-phase busbar for 4xBE5, 54mm, fork-type connection
Article: BE590454--
9 395 ₸
To order
Three-phase busbar assembly for 4xBE5 modular system with fork-type connection. Designed for power distribution in electrical panels and control cabinets.
Main characteristics:
- Configuration: 3 phases (L1, L2, L3)
- Compatibility: 4xBE5 system
- Mounting type: Fork-type connection
- Conductor material: Copper
- Copper content: 178.0 g
- Power loss: 4.30 W
- Temperature range: from -25°C to +40°C
Dimensional specifications:
- Width: 203 mm
- Height: 32 mm
- Depth: 13 mm
Application:
The busbar is used for connecting modular devices (disconnectors, circuit breakers, relays) in low-voltage distribution cabinets. Ensures reliable electrical connection and minimal energy losses at rated load.
Packaging: 1 pcs.
Manufacturer: Schrack
| EAN code | 9004840264456 |
|---|---|
| Net width | 203.00 mm |
| Net height | 32.00 mm |
| Net depth | 13.00 mm |
| Copper content | 178.0000 g |
| Power loss | 4.30 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 40°C |
| Type | Accessories |
| Size | BE5 |
| Accessories | Busbar assembly |
| Manufacturer | Schrack |
| Packaging | 1 pcs. |
