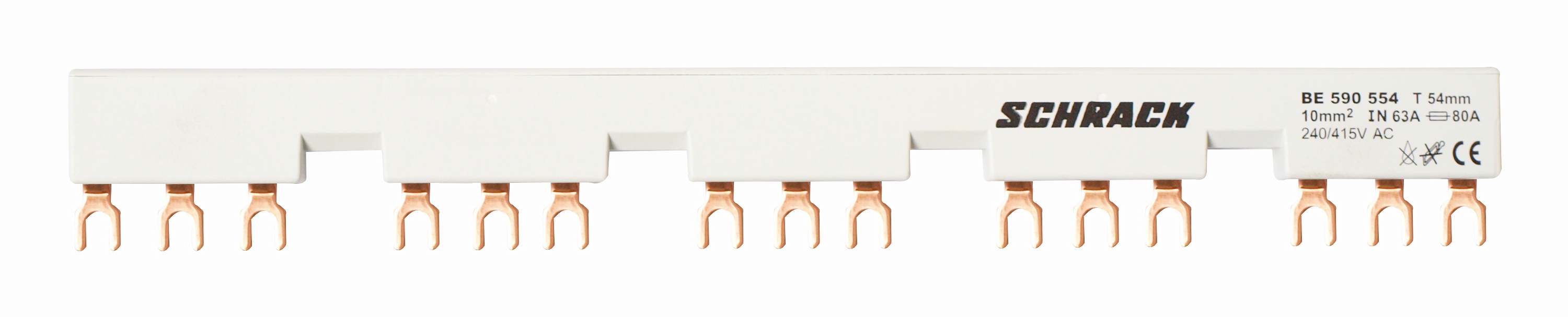

3-phase busbar for 5xBE5, 54mm, fork connection
Article: BE590554--
10 920 ₸
To order
Three-phase assembly busbar designed for power distribution in systems with modular devices of the BE5 series. The busbar features a fork connection design and provides reliable connection between distribution elements.
Main parameters:
- Number of phases: 3
- Compatibility: For BE5 standard devices
- Design type: Fork connection
- Material: Copper with protective coating
- Copper content: 221 g
- Power loss: 5.50 W
- Operating temperature range: from -25°C to +40°C
- Dimensions net: 257 × 32 × 13 mm
- Manufacturer: Schrack
- Packaging: 1 pc.
The busbar ensures efficient distribution of three-phase power and is designed to operate over a wide range of ambient temperatures. Low power losses provide minimal heat generation and high efficiency of the distribution system.
| EAN code | 9004840264463 |
|---|---|
| Net width | 257.00mm |
| Net height | 32.00mm |
| Net depth | 13.00mm |
| Copper content | 221.0000g |
| Power loss | 5.50W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 40°C |
| Type | Accessories |
| Size | BE5 |
| Accessories | Assembly busbar |
| Manufacturer | Schrack |
| Packaging | 1 pc. |
