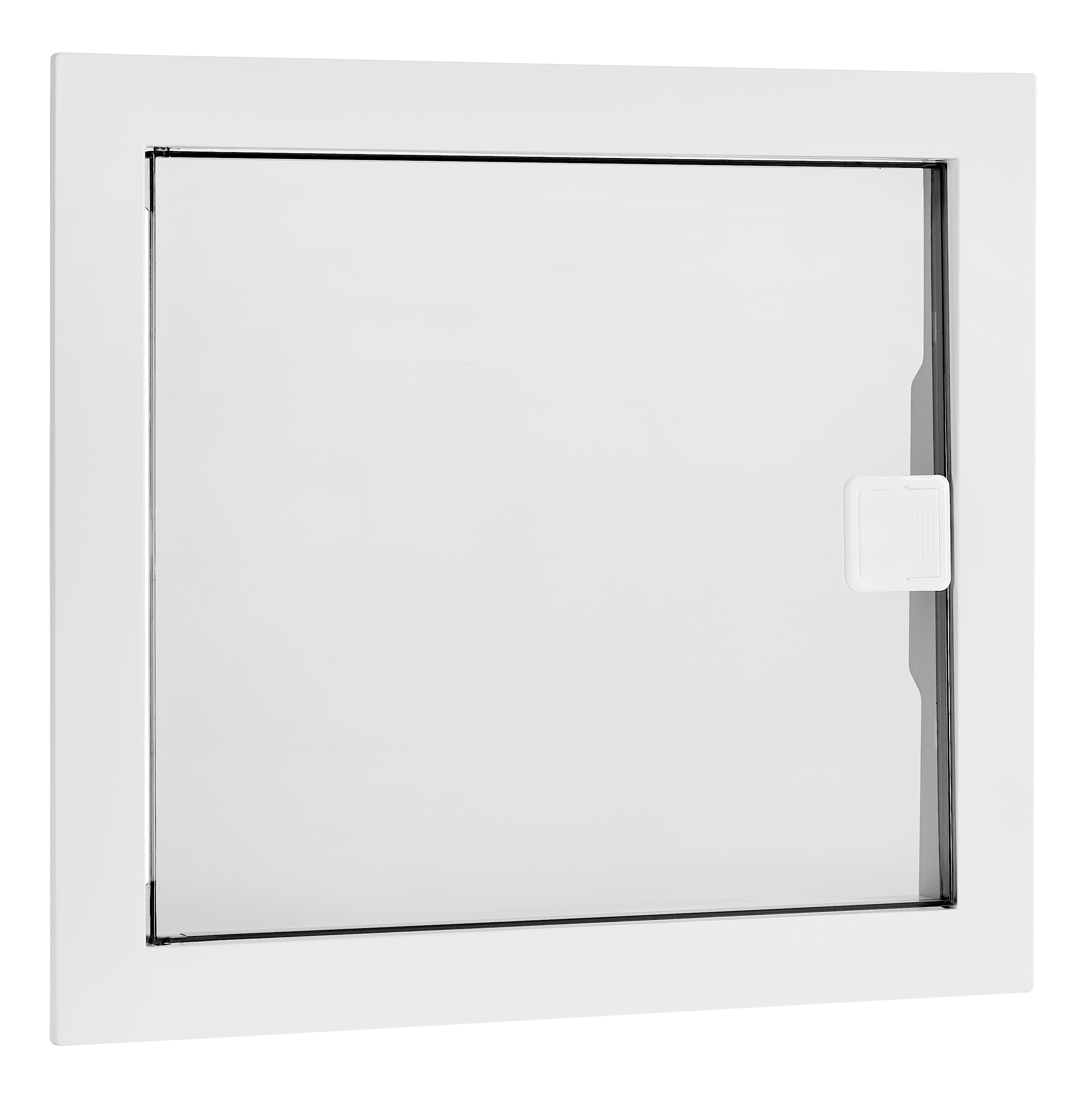

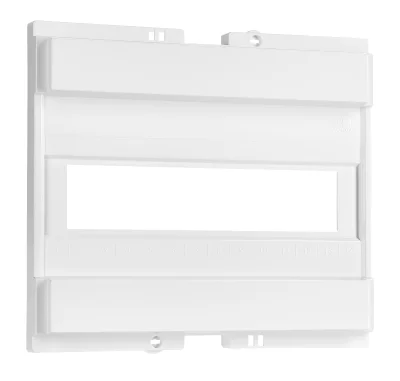

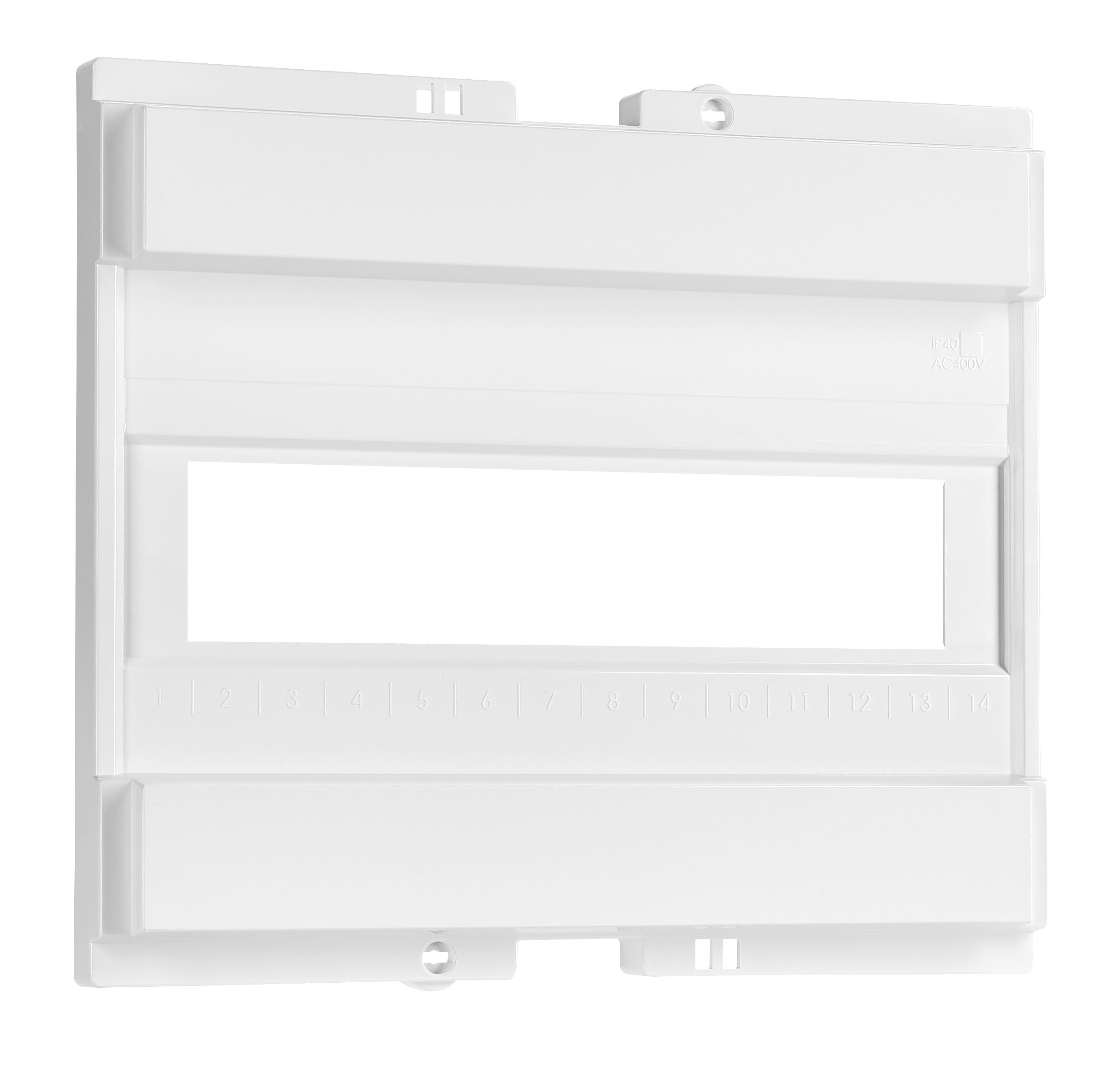

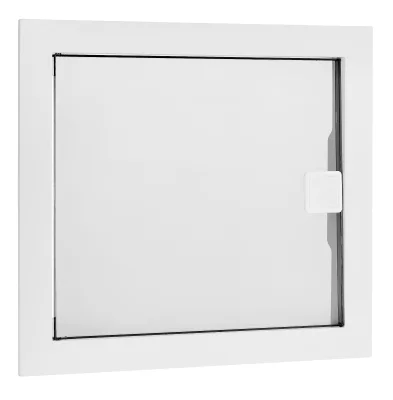

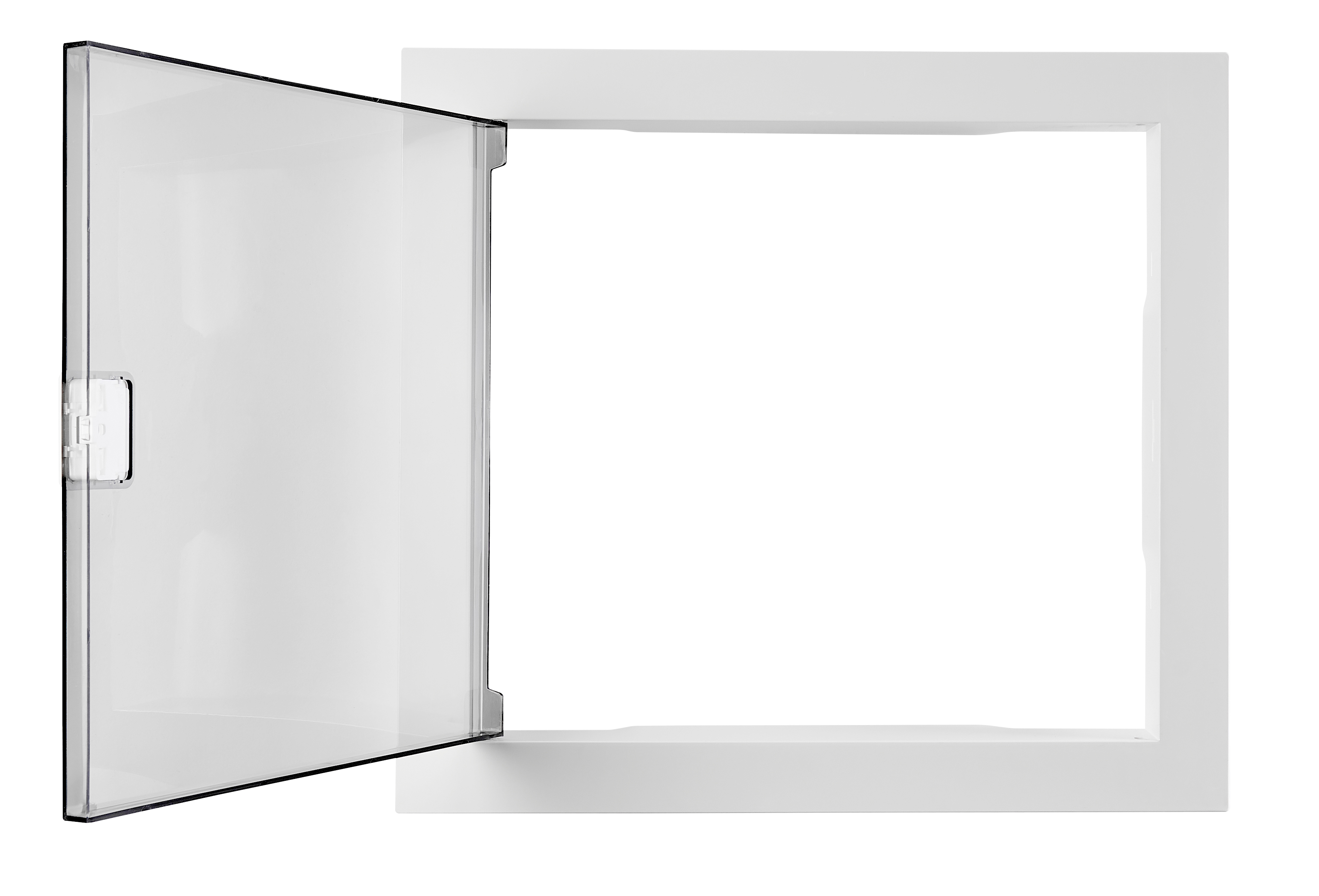

Distribution board door and frame, single-row, 12+2 modules, transparent plastic

Kit of door and frame for a single-row distribution panel configured for 12+2 DIN modules. The door is made of transparent plastic, which provides visual control of the equipment status without opening the panel.

Main characteristics:

• Dimensions: 346 × 317 × 36 mm (W × H × D)
• Mass: 1.50 kg
• Degree of protection: IP40 (protection against direct splashes and dust)
• Protection class: II (double insulation)
• Impact resistance: IK07 (resistance to mechanical stress)
• Installation type: Built-in (into wall or panel structure)
• Manufacturer: Schrack

Operating parameters:

• Temperature range: from −25°C to +60°C
• Power loss: −25 W
• Material: halogen-free plastic
• EAN: 9004840890044

Suitable for use in industrial distribution systems and electrical installations with requirements for safety and visibility of the panel contents.
