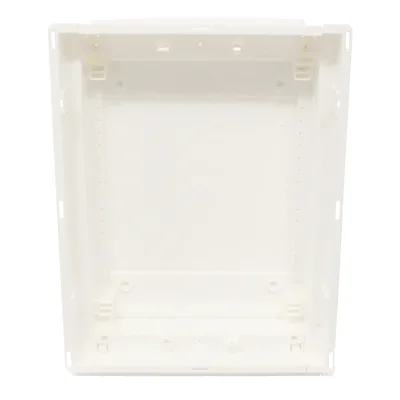

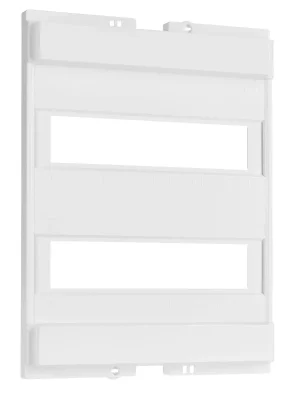

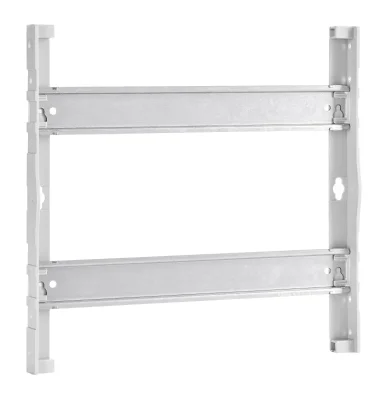

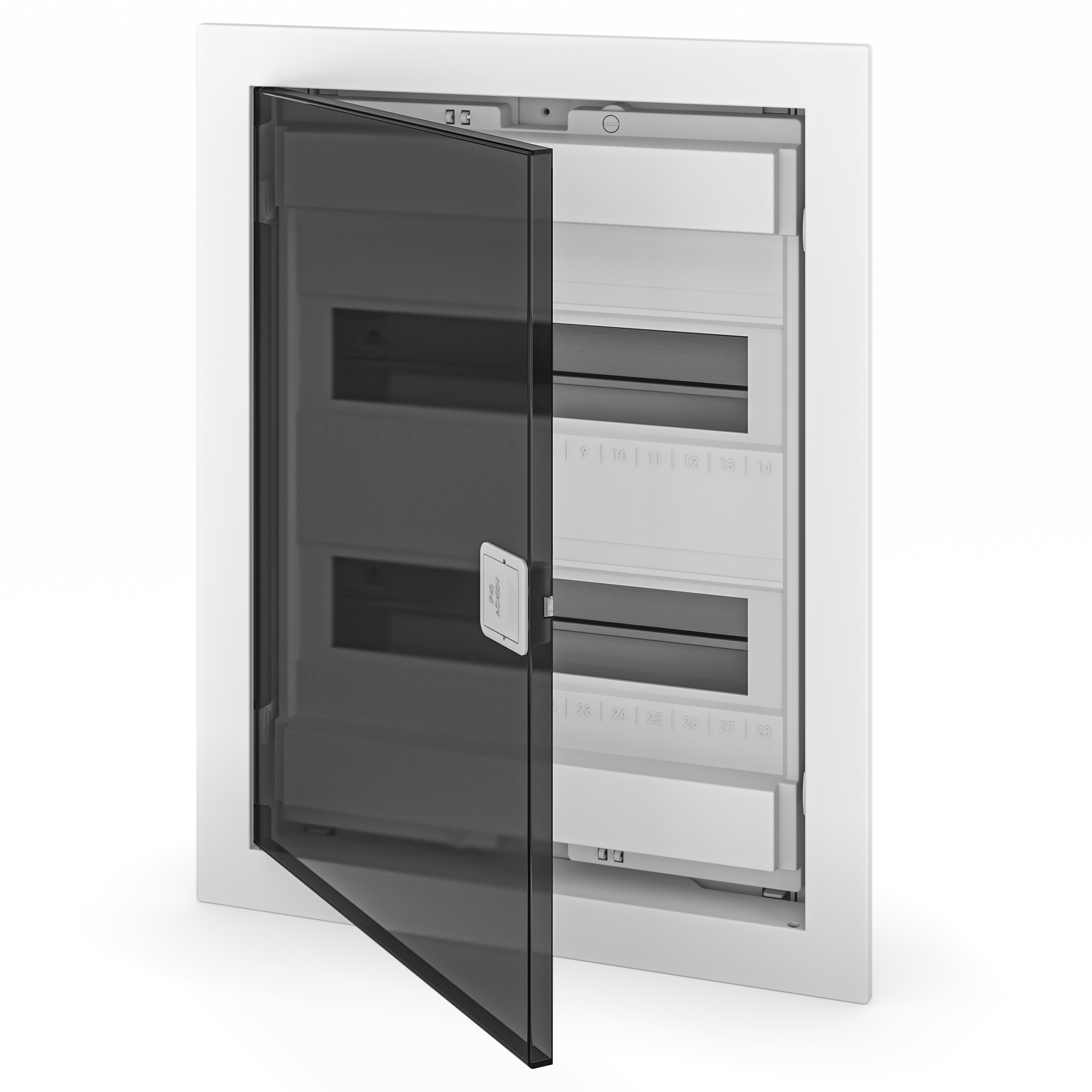

Flush-mounted modular panel, 2-row, 24+4 modules, transparent door

Article: BK0852022K

Щиты встраиваемые AMPARO

34 010 ₸

In stock

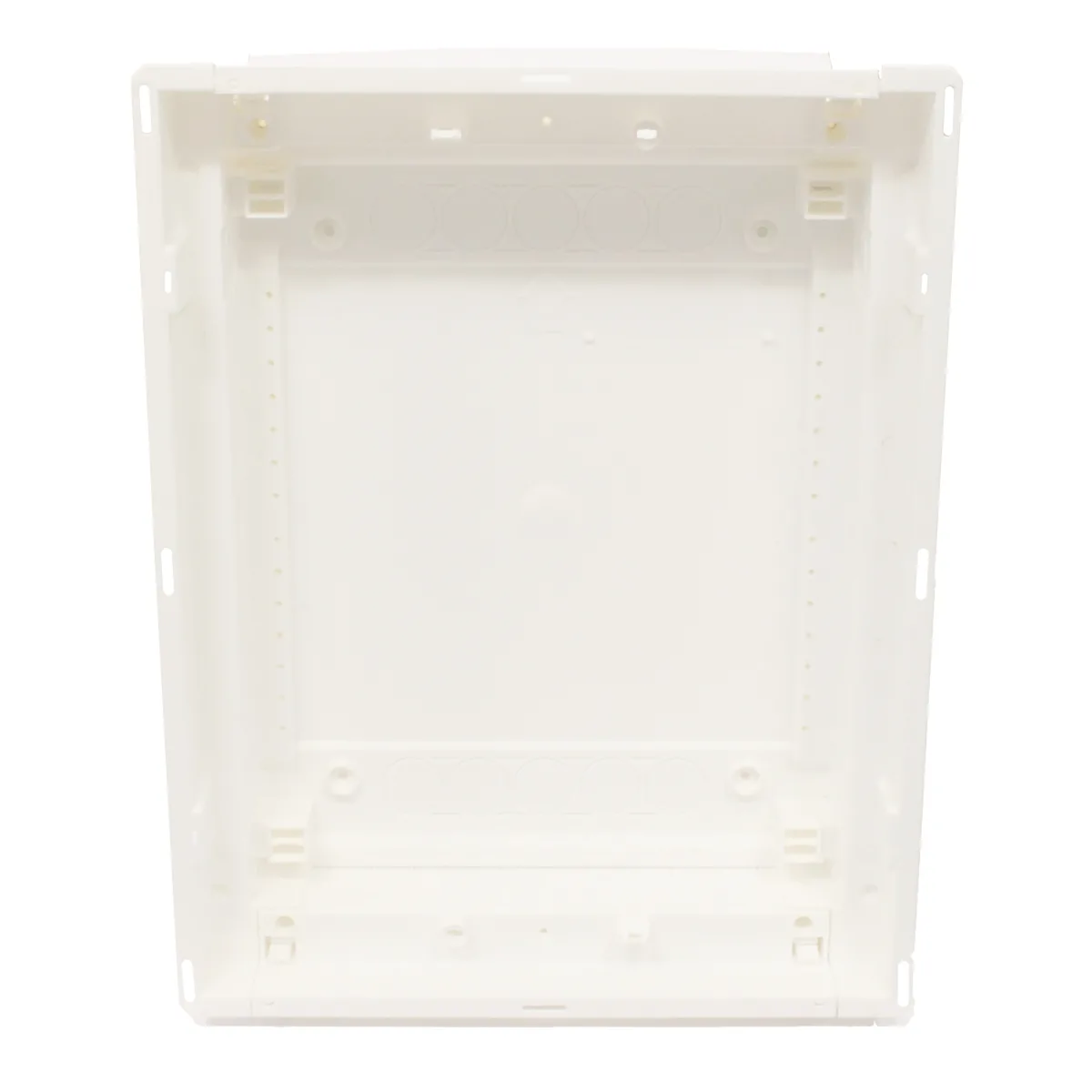

Flush-mounted modular electrical panel designed for installation into a wall recess. The construction is engineered to accommodate automatic circuit breakers, differential automatic switches, surge protection devices, and other modular apparatus complying with the DIN 35 mm standard.

Technical Characteristics:

  • Configuration: 2-row arrangement
  • Capacity: 24 modules in main section + 4 modules in reserve section
  • Total capacity: 28 modular positions DIN
  • Door: transparent (polycarbonate or acrylic), allowing visual control of the position of switching apparatus without opening the panel
  • Installation method: flush-mounted construction into the wall
  • Enclosure material: metal, painted or stainless steel (to be clarified with manufacturer)

Application:

Meter and distribution panels for residential and public buildings, electrical supply networks for private houses, commercial facilities. Suitable for main distribution boards (MDB) and group panels (GP).

Advantages:

The compact flush-mounted design saves wall space, and the transparent door provides convenience for maintenance and control without disassembly.

Configuration2-row
Number of modules24+4
Total capacity28 DIN modular positions
Door typeTransparent (polycarbonate or acrylic)
Installation methodFlush-mounted
Enclosure materialMetal, painted or stainless steel

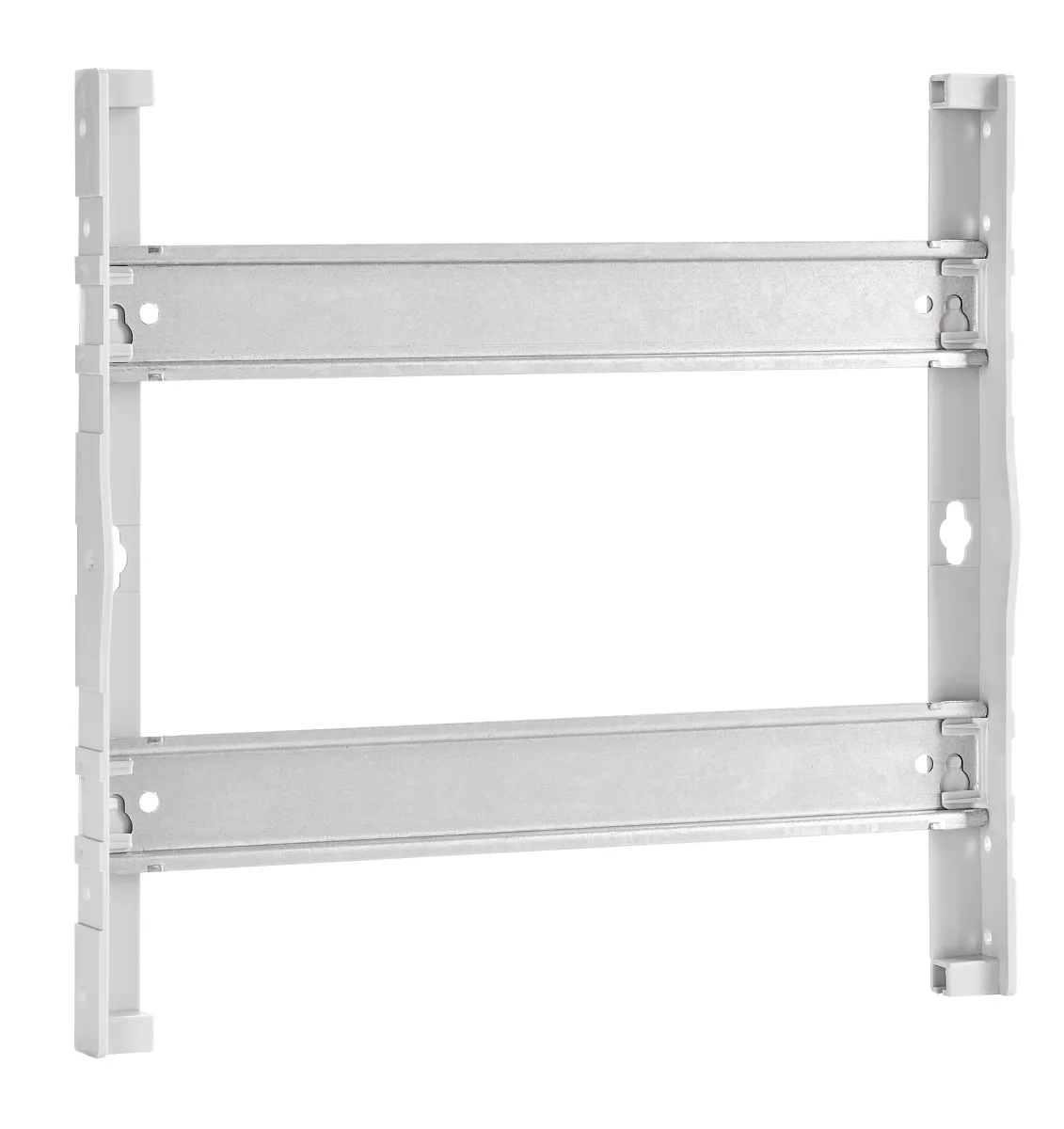

StandardDIN 35 mm
