Auxiliary Contact 1NO+1NC, Quick-Connect Terminals, for BM and BO Series

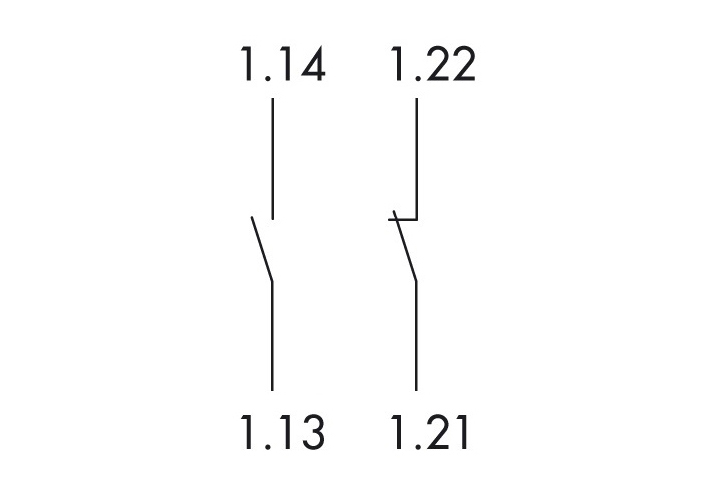

Auxiliary contact designed to expand the functionality of contactors and starters of the BMS0 series. The contact is a combination of 1NO+1NC (one normally open and one normally closed contact) with quick-connect terminals, ensuring reliable connection without tools.

Technical Parameters:

• Rated Current: 4A
• Operating Voltage: in accordance with BMS0 series
• Power Dissipation: 0.50W
• Operating Temperature Range: from -40°C to +75°C

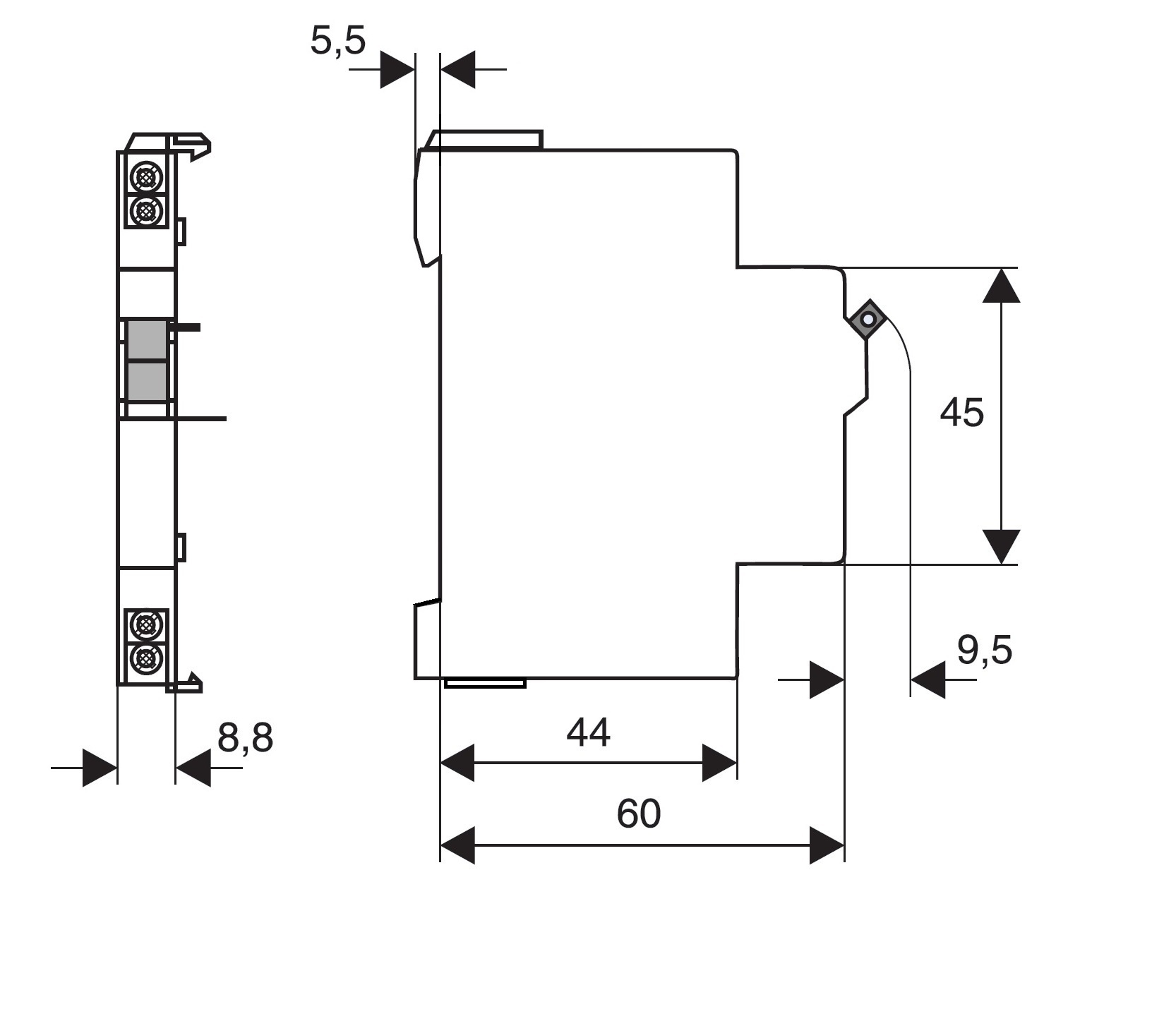

• Dimensions: 69.60 × 9.00 × 80.00 mm
• Weight: 0.06 kg

Application Area:

The contact is compatible with contactors and starters of the BMS0 series (BM and BO) and is used to implement additional control circuits in electrical distribution devices.

Standards Compliance:

• EN 60947-1:2007 + A1:2011 + A1:2014 (low voltage equipment)
• EN 60947-5-1:2004 + A1:2009 (electromechanical relays)
• EN 63000:2018 (hazardous substances)

Manufacturer: Schrack
