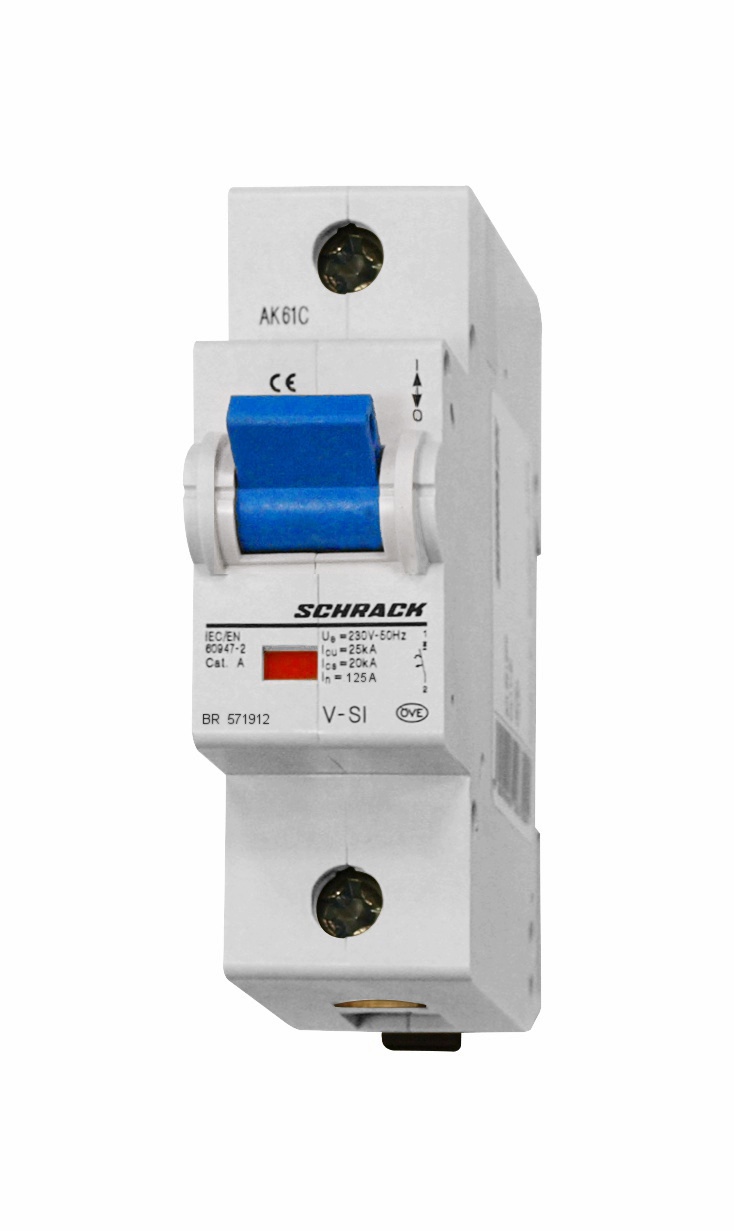

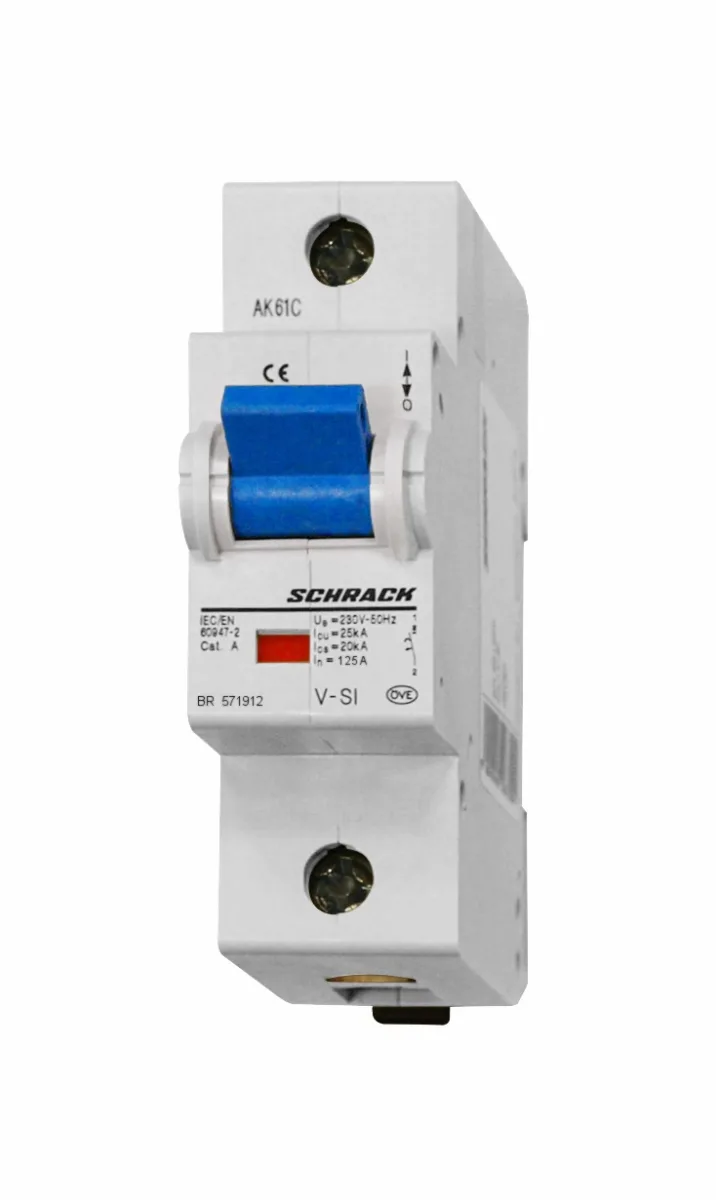

Automatic circuit breaker C125/1, 15kA
Article: BR571912--
Автоматические выключатели BR 80-125A
24 490 ₸
To order
Single-pole automatic circuit breaker of the BR series with rated current 125A and breaking capacity 15kA. Designed to protect electrical circuits against overloads and short-circuit currents.
Main technical parameters:
- Trip characteristic: C (for general purpose circuits and electric motors)
- Number of poles: 1
- Rated current: 125A
- Breaking capacity: 15kA
- Power loss: 11.89W
Operating conditions:
- Ambient temperature range: -30°C to +55°C
- Complies with standards: EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018
Geometric characteristics:
- Width: 27mm
- Height: 91mm
- Depth: 77mm
- Weight: 0.24kg
- EAN code: 9004840266740
Manufacturer: Schrack. Packaging: 1 piece or 12 pieces.
| EAN code | 9004840266740 |
|---|---|
| Width (net) | 27.00mm |
| Height (net) | 91.00mm |
| Depth (net) | 77.00mm |
| Weight (net) | 0.24kg |
| Power loss | 11.89W |
| Min. ambient temperature | -30°C |
| Max. ambient temperature | 55°C |
| Characteristic | C |
| Poles | 1 |
| Rated current | 125A |
| Type | High-voltage automatic circuit breaker |
| Series | BR |
| Breaking capacity | 15kA |
| Design | High-voltage circuit breaker |
| Standard | EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018 |
| Manufacturer | Schrack |
| Packaging | 1 piece, 12 pieces |
