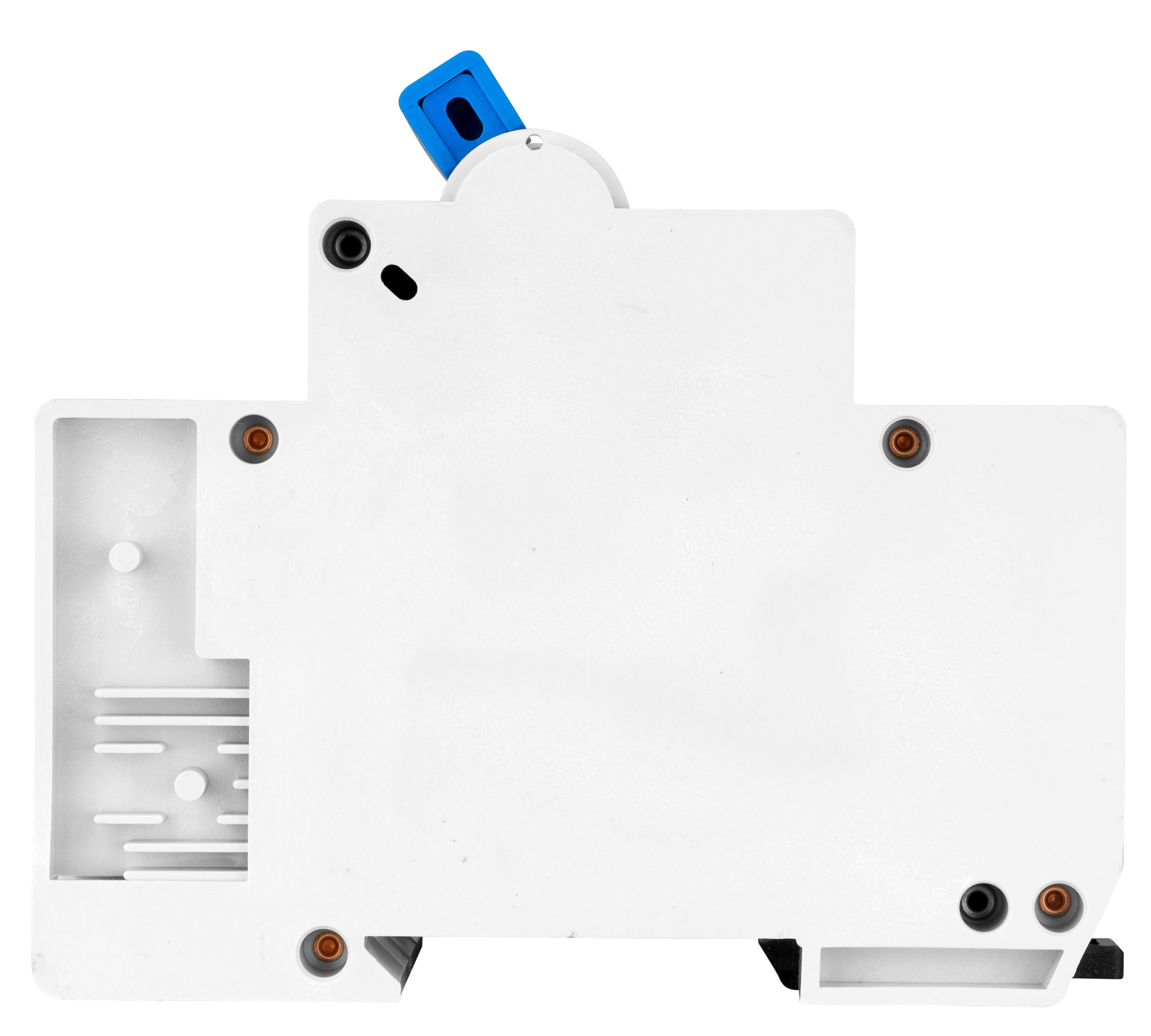

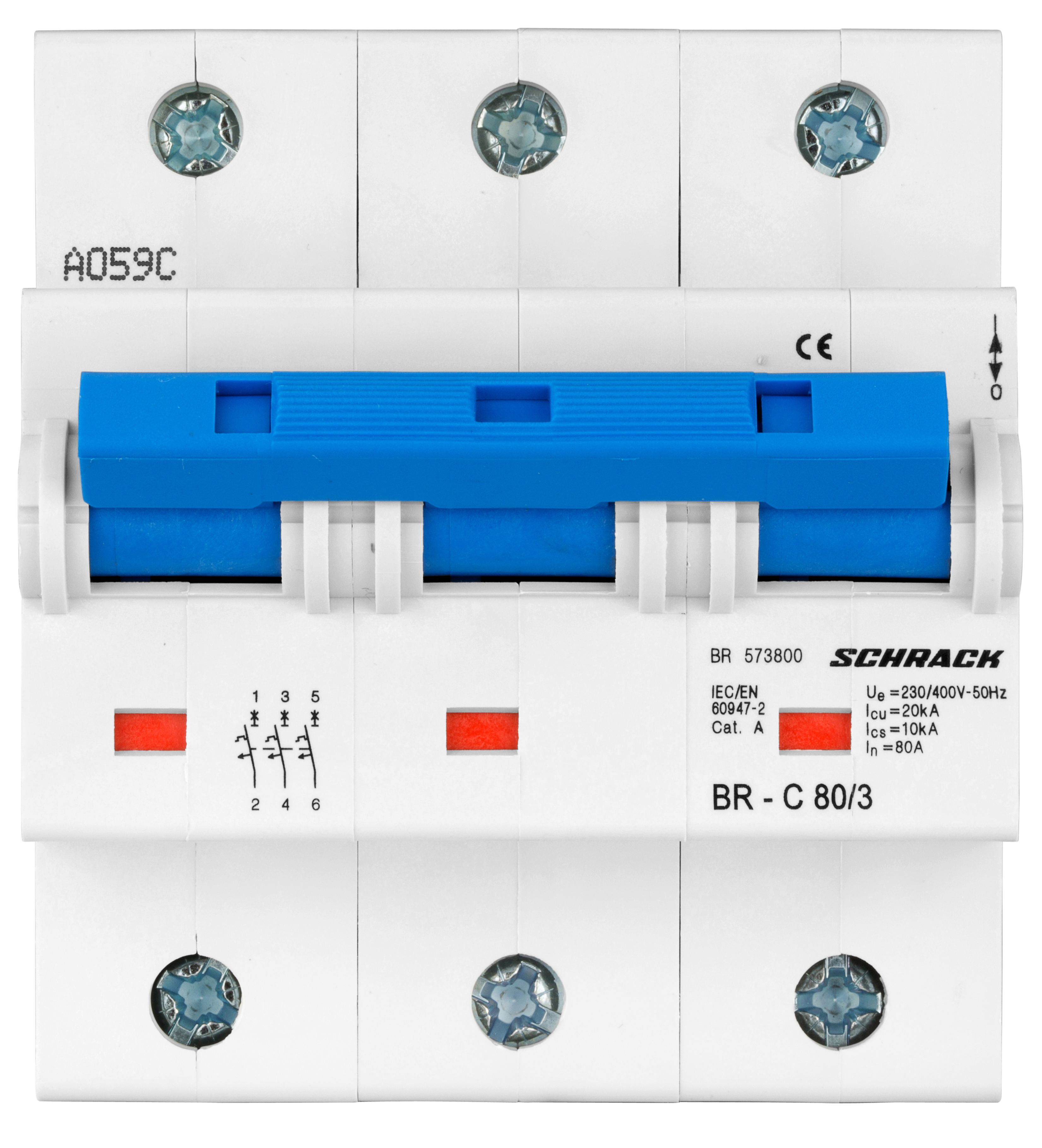

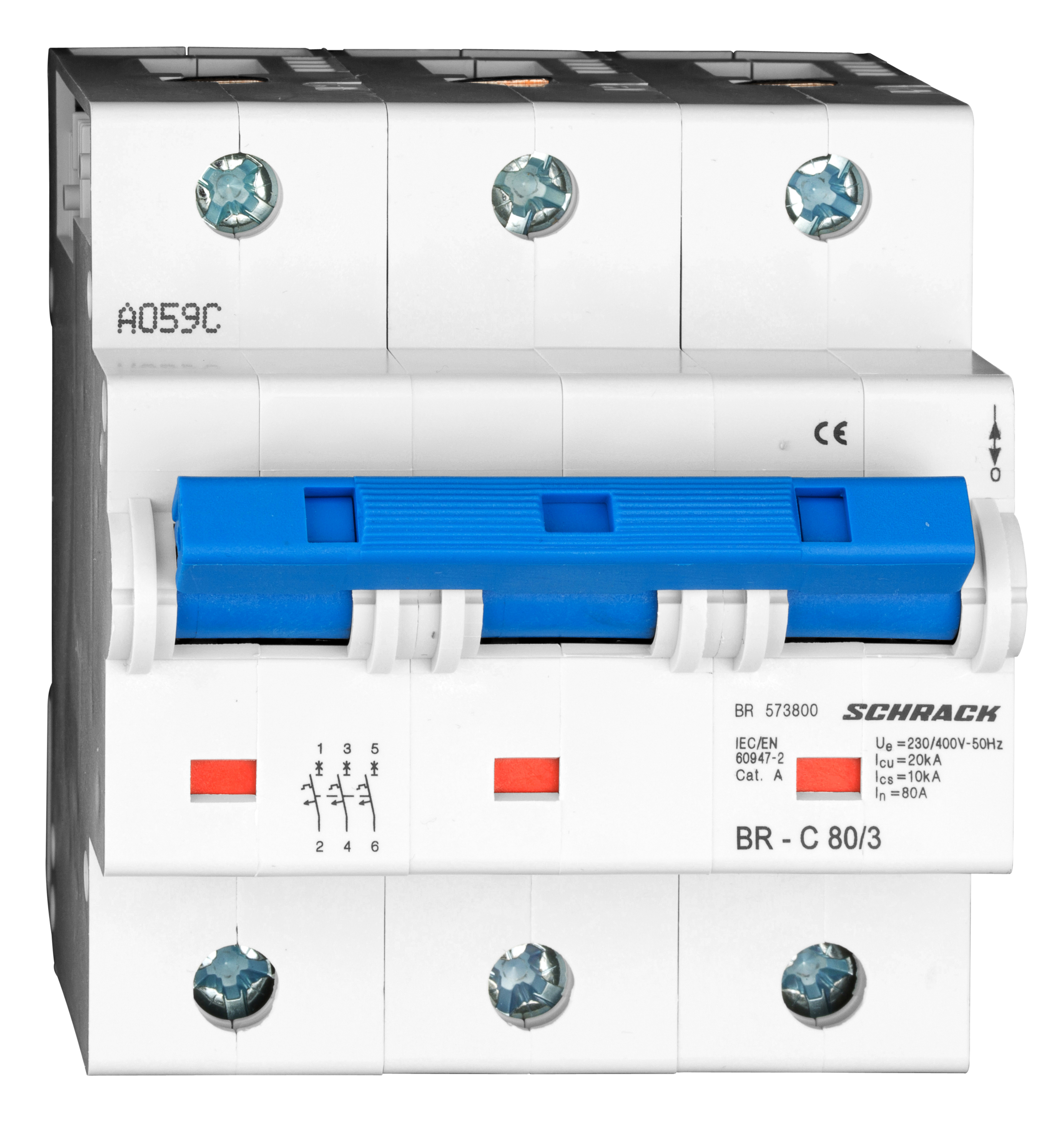

Automatic Circuit Breaker C80/3, 20kA

Automatic Circuit Breaker C80/3 — a three-pole modular protective device designed for protection of electrical networks against overloads and short circuits. Rated current 80 A with breaking capacity 20 kA. Manufactured by Schrack, part of the BR series.

Main Parameters:

• Trip characteristic: C (for circuits with moderate inrush currents)
• Number of poles: 3
• Rated current: 80 A
• Breaking capacity: 20 kA
• Design type: high-voltage automatic circuit breaker, BR series

Technical Specifications:

• Power loss at rated current: 21.40 W
• Operating temperature range: from -30°C to +55°C
• Dimensions (width × height × depth): 81 × 91 × 77 mm
• Weight: 0.72 kg

Standards Compliance: Conforms to EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018.

Supply Options: 1 pc., 4 pcs., 256 pcs.

This device is intended for mounting on a DIN rail and is used in distribution panels, control and protection switchboards of electrical installations.
