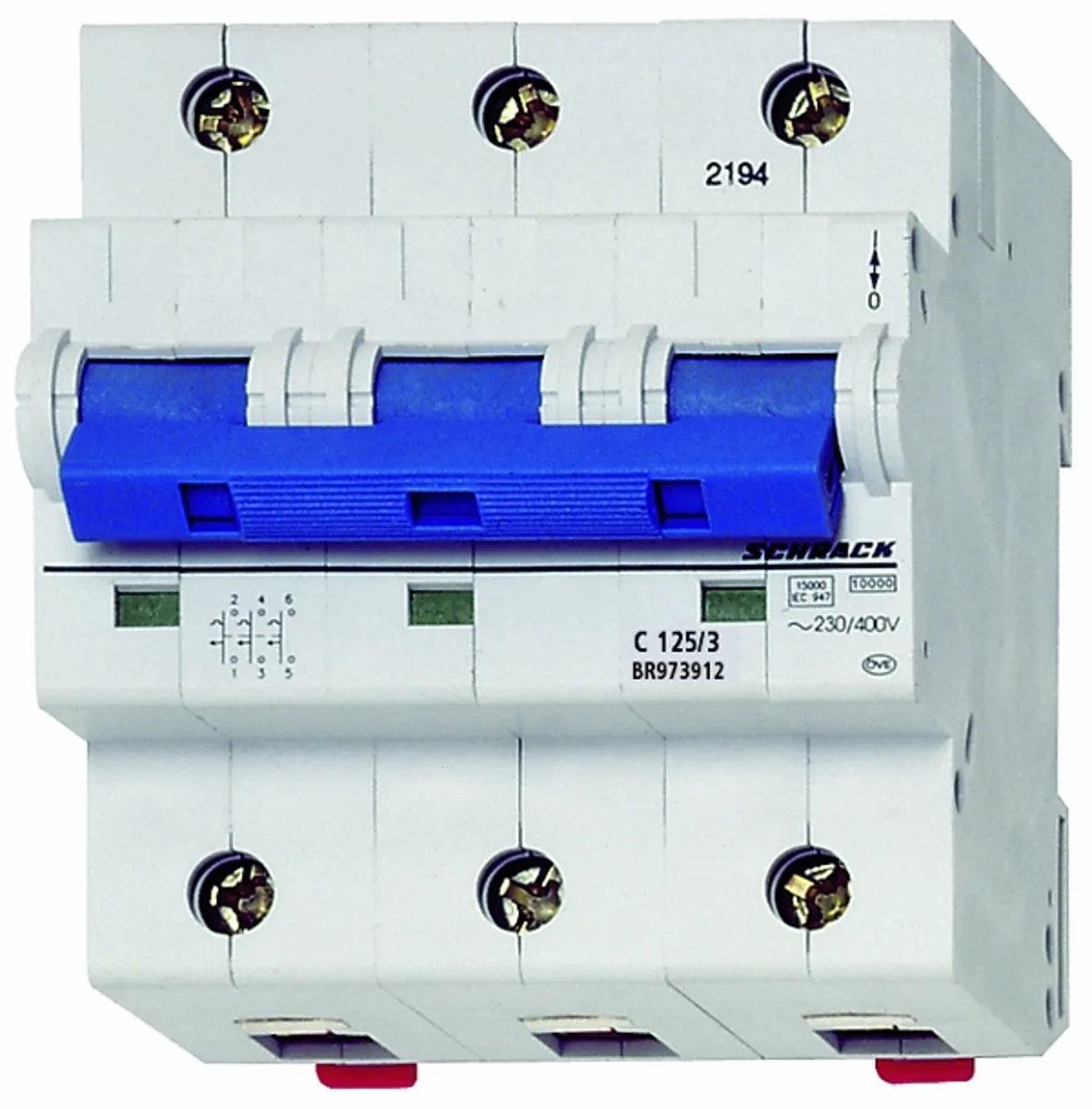

Automatic Circuit Breaker C125/3, 10kA

The automatic circuit breaker of the BR series is designed to protect electrical circuits from overloads and short circuits. The three-pole design with a rated current of 125A and a switching capacity of 10kA ensures reliable operation in industrial and distribution networks.

Technical Parameters:

• Number of poles: 3
• Rated current: 125A
• Trip characteristic: C (universal, for mixed loads)
• Switching capacity: 10kA
• Type: High-voltage automatic circuit breaker
• Power loss: 35.67W
• Operating temperature range: from -30°C to +55°C

Geometric Dimensions:

• Length: 78.00mm
• Width: 81.00mm
• Height: 91.00mm
• Net weight: 0.69kg

Compliance with Standards:

The equipment is designed in accordance with the regulatory documents EN 60947-2:2006 + A1:2009 + A2:2013, EN 60947-2:2017 + A1:2020, EN 63000:2018, which guarantees safety and compatibility with European requirements.

Manufacturer: Schrack

Packaging options: 1 pc., 4 pc., 256 pc.
