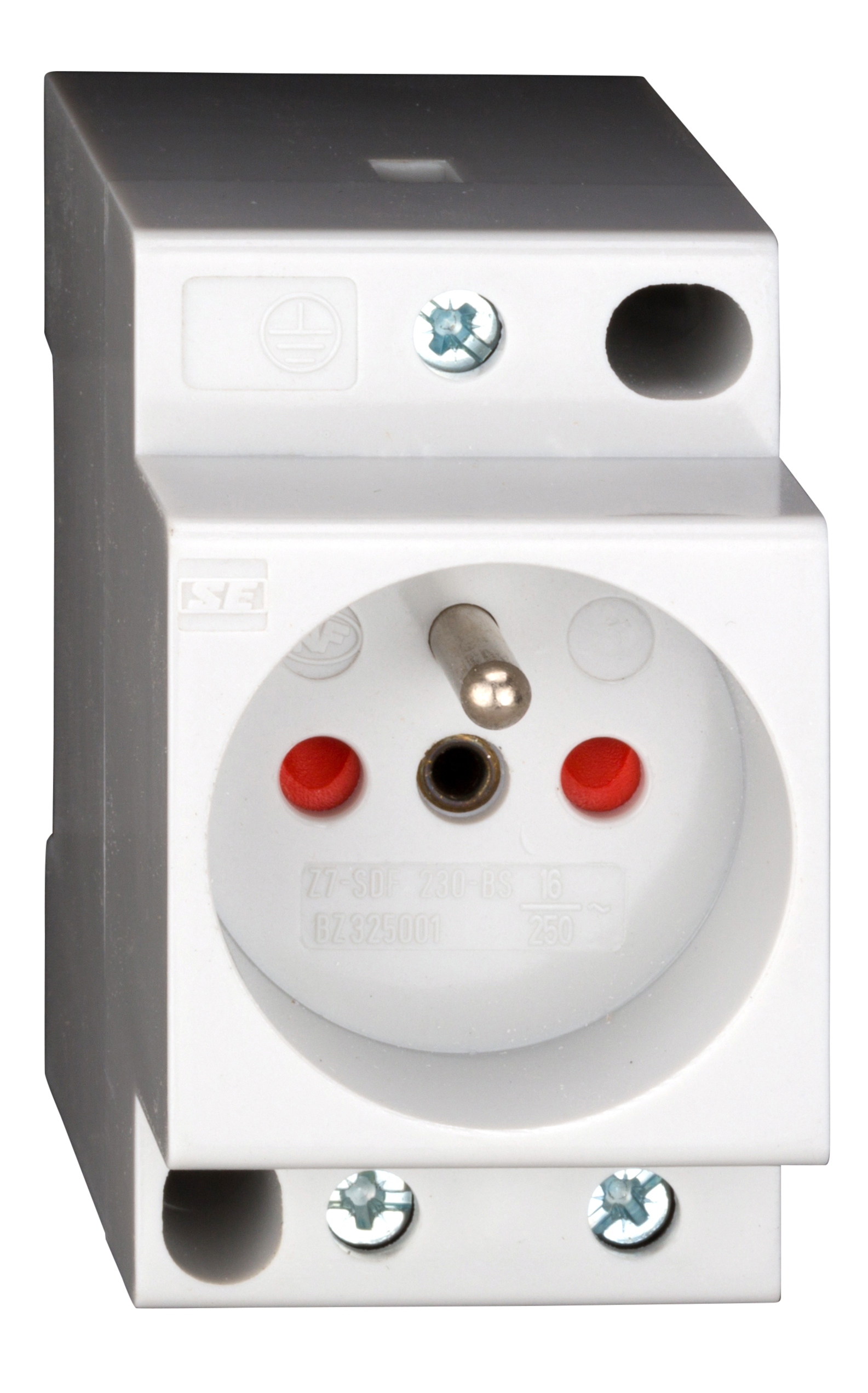

Socket outlet type E for F, CH, CZ
Article: BZ325001-A
9 980 ₸
To order
Built-in socket outlet type E for distribution systems, designed for countries with CH (Switzerland), CZ (Czech Republic), and F (France) standards. The socket is equipped with a pin-type grounding contact and rated for 230 V alternating current.
Key characteristics:
- Rated voltage: 230 V alternating current
- Power loss: 0.50 W
- Operating temperature range: -25°C to +60°C
- Dimensions (net): 44 × 66 × 76 mm
- Weight: 0.12 kg
- Design: built-in socket with pin-type grounding contact
- Manufacturer: Schrack
- EAN code: 9004840198614
The socket is designed for installation in distribution panels and provides reliable connection to the electrical network in compliance with CH, CZ, and F standards requirements. Compact dimensions and low power loss make this device an efficient solution for distribution systems of various configurations.
| EAN code | 9004840198614 |
|---|---|
| Width (net) | 44.00 mm |
| Height (net) | 66.00 mm |
| Depth (net) | 76.00 mm |
| Weight (net) | 0.12 kg |
| Power loss | 0.50 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Device | Built-in socket outlet for distribution panel |
| Design | Socket with pin-type grounding contact (CH, CZ, F) |
| Rated voltage | 230 V alternating current |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 10 pcs. |
