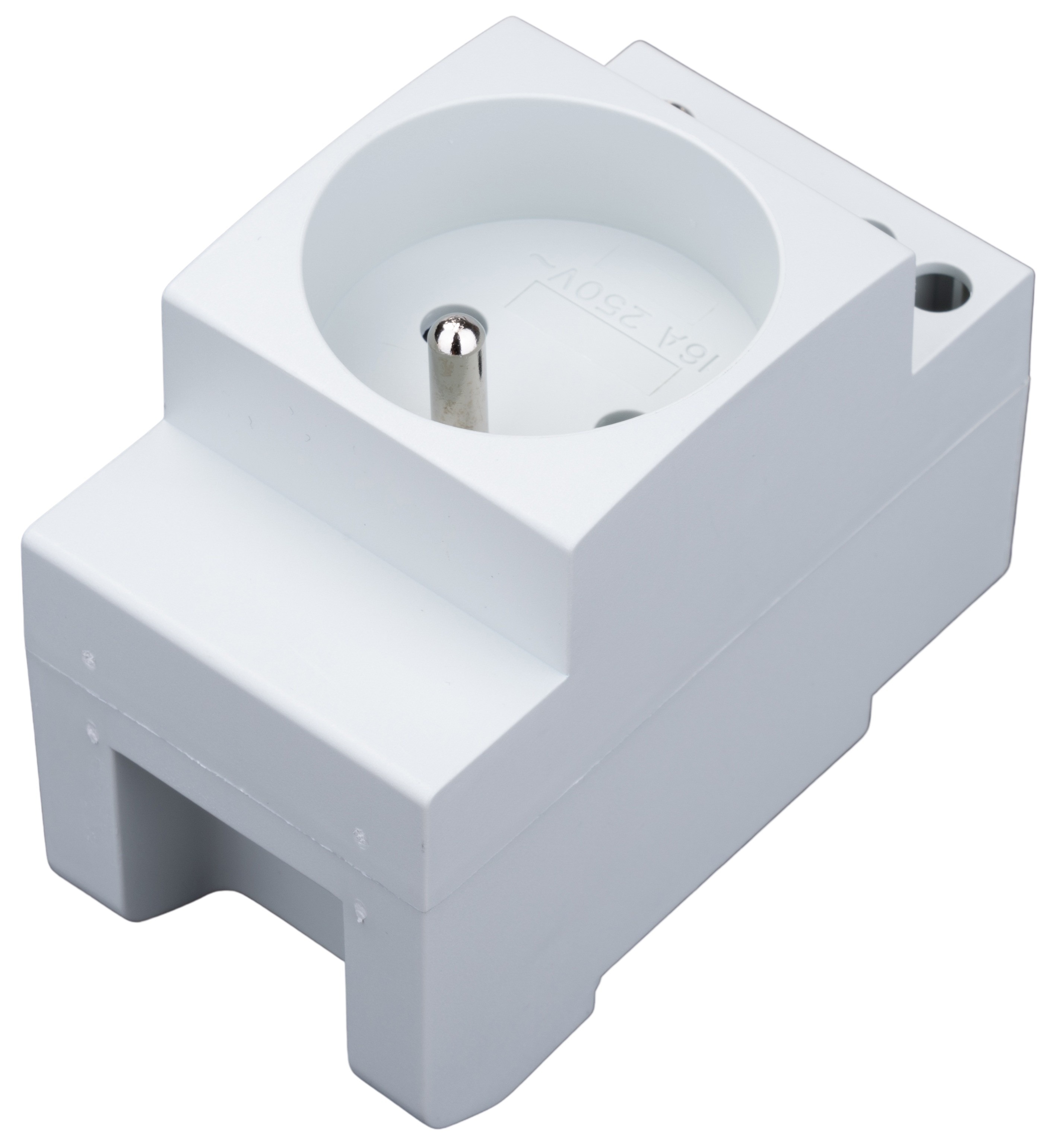

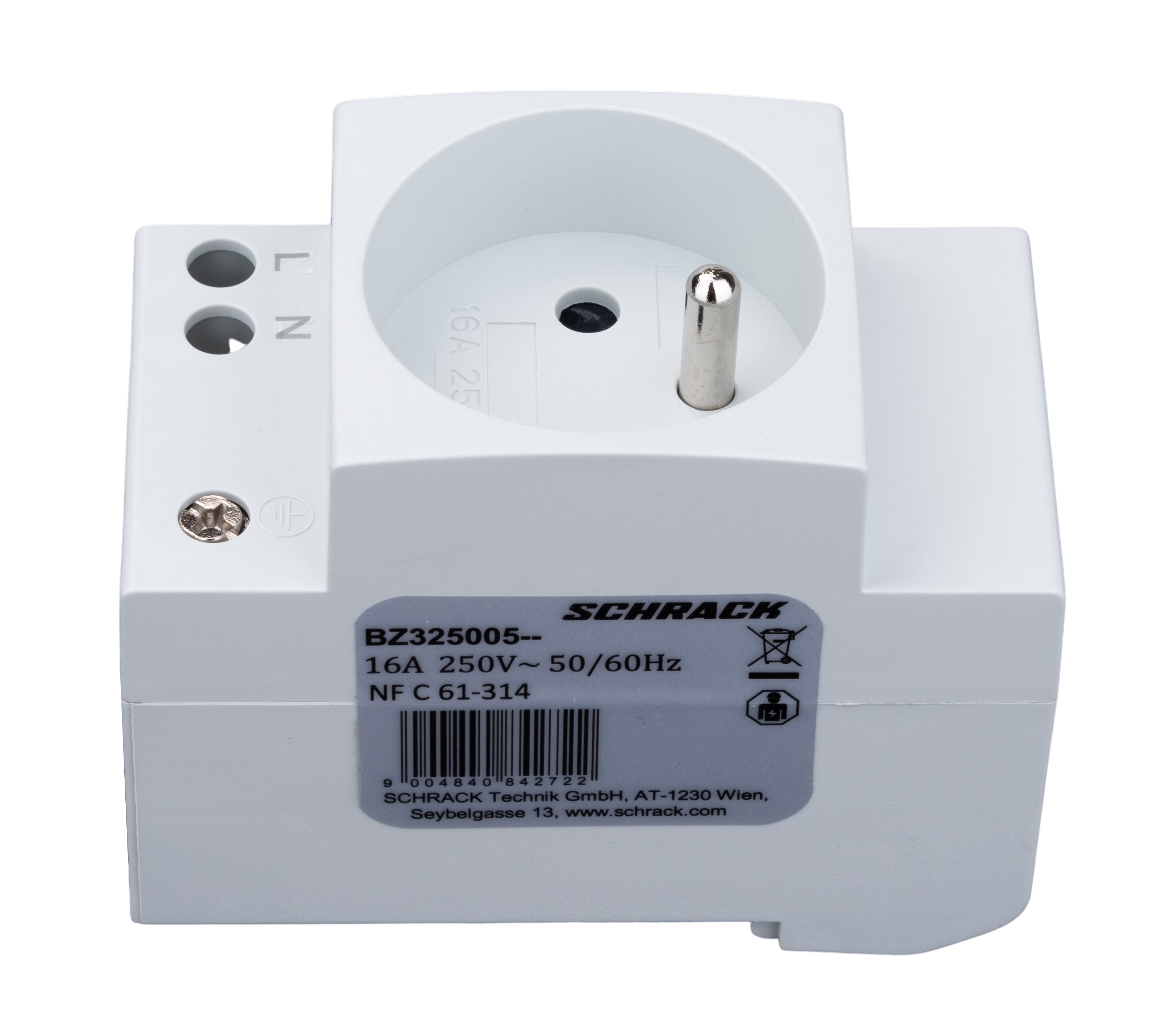

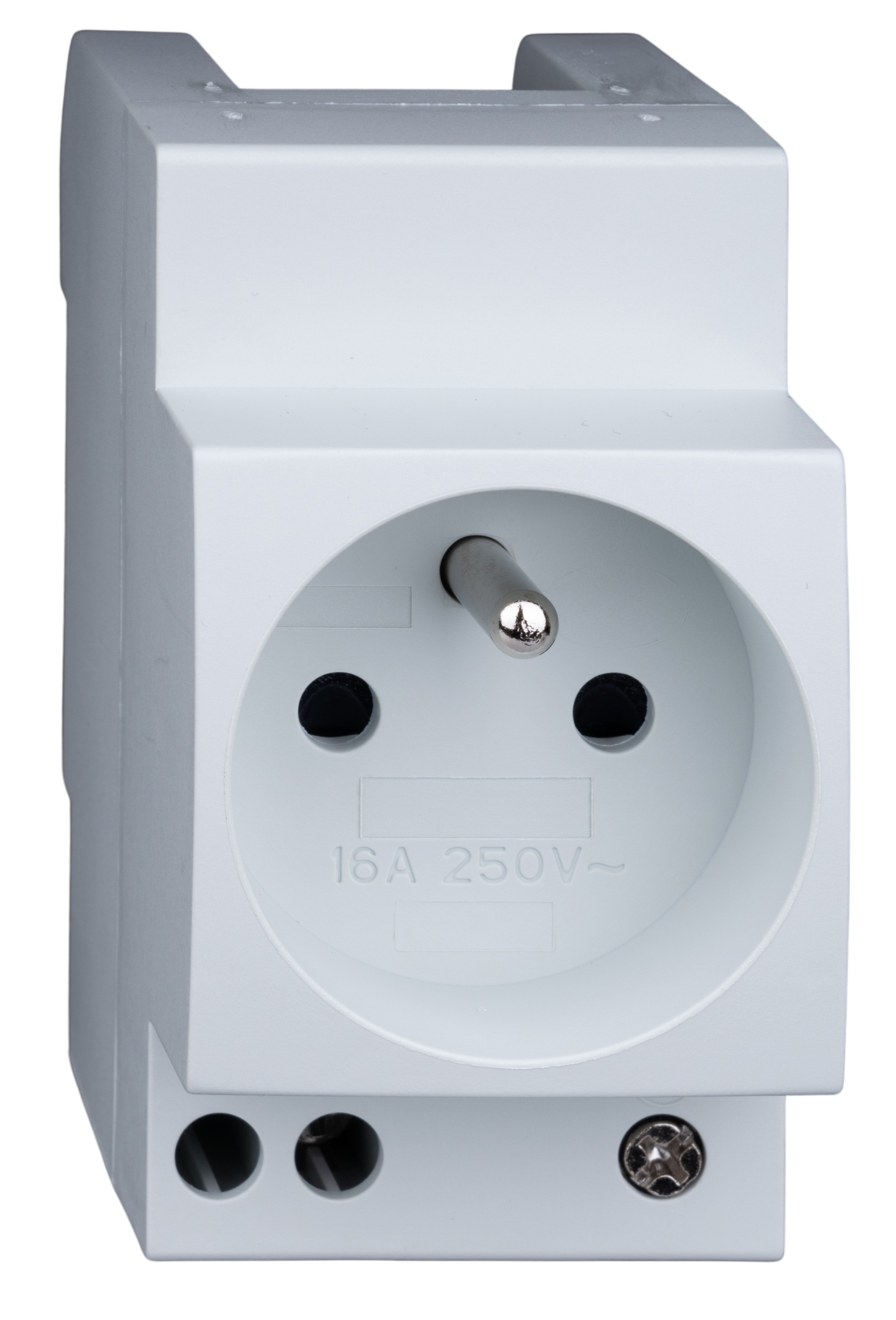

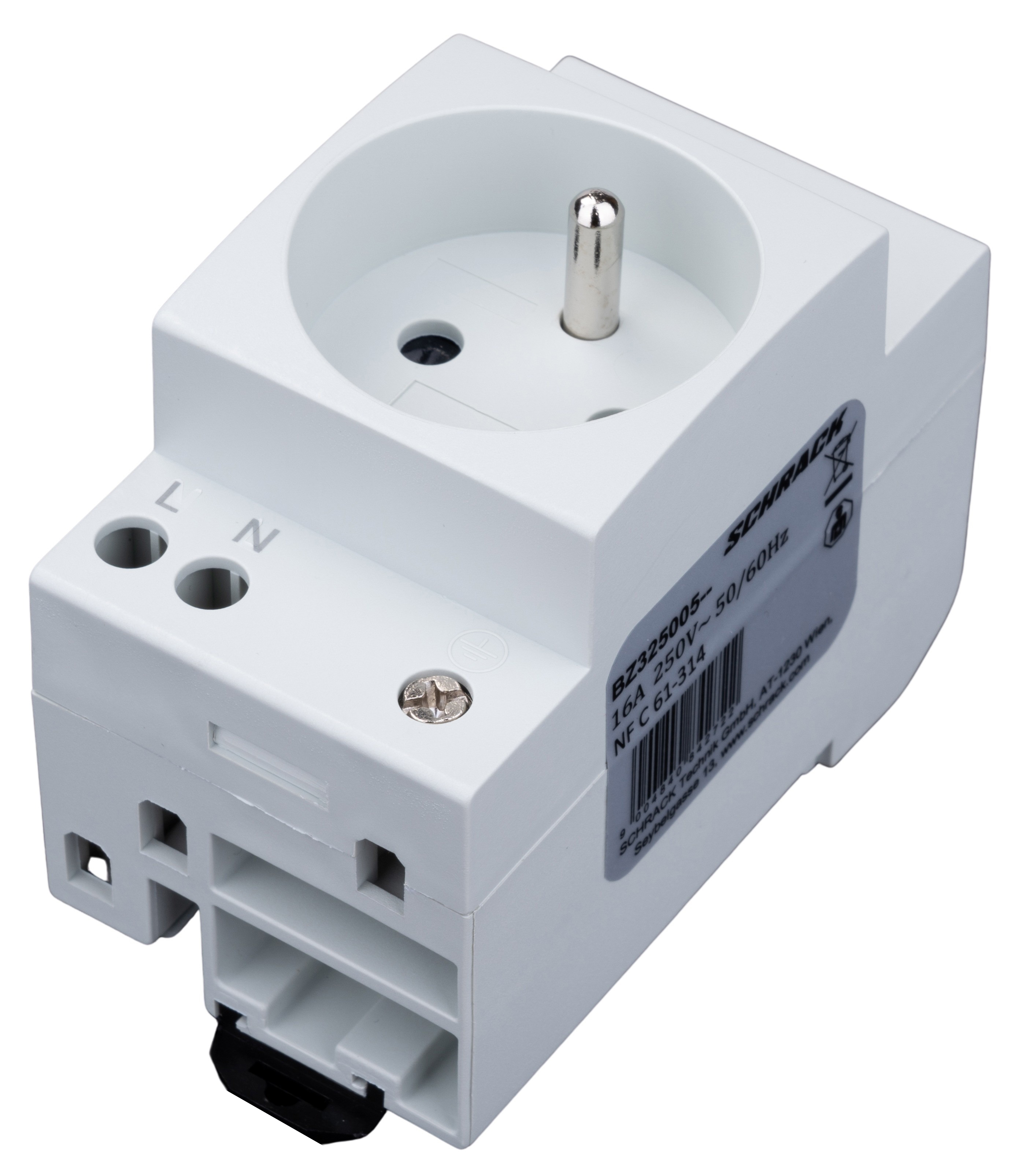

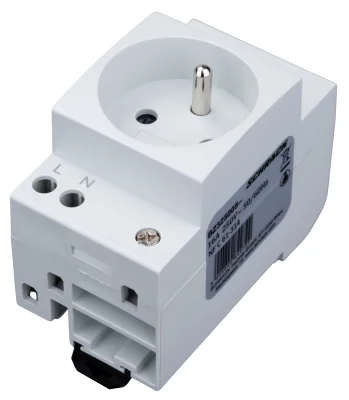

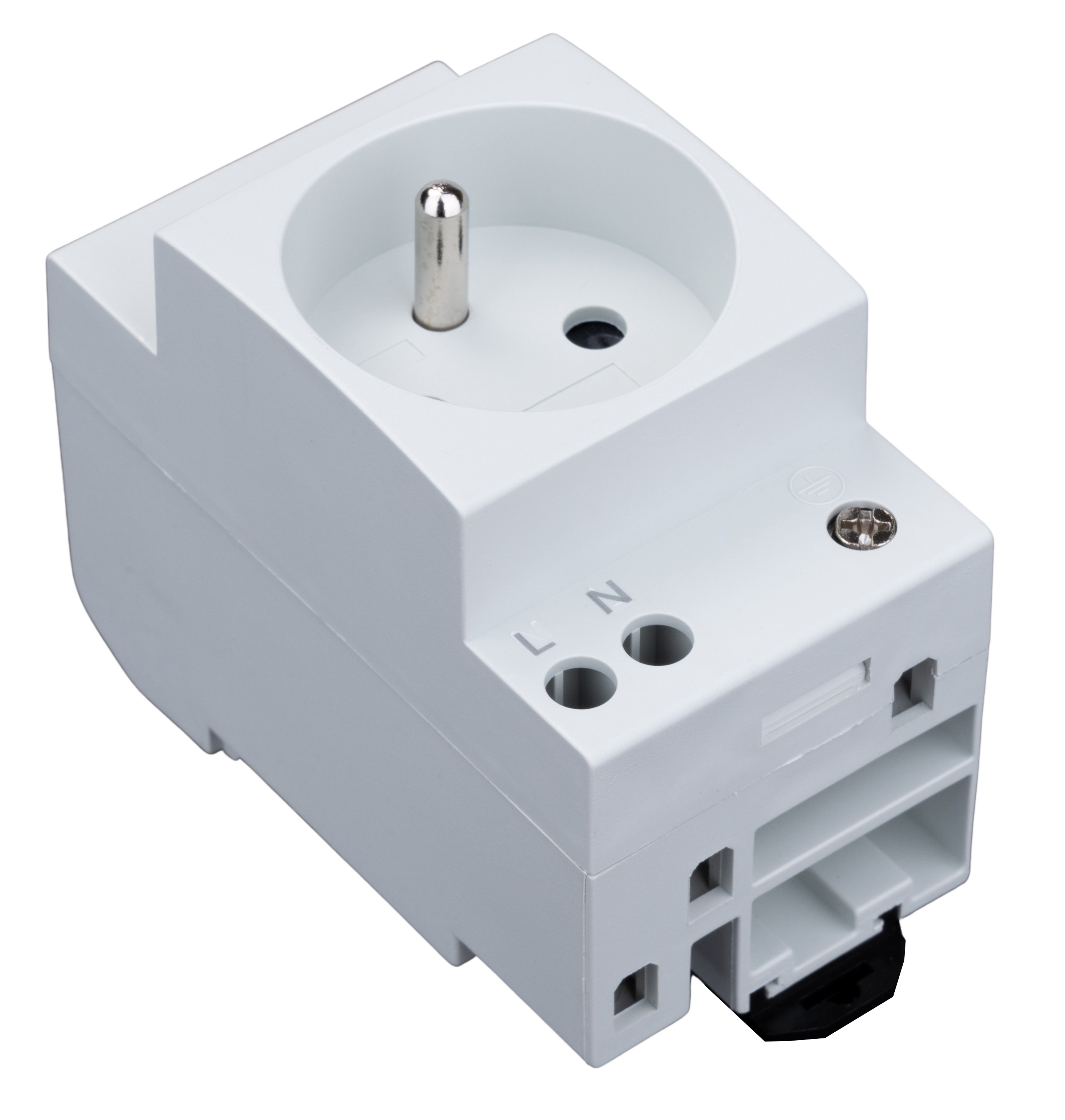

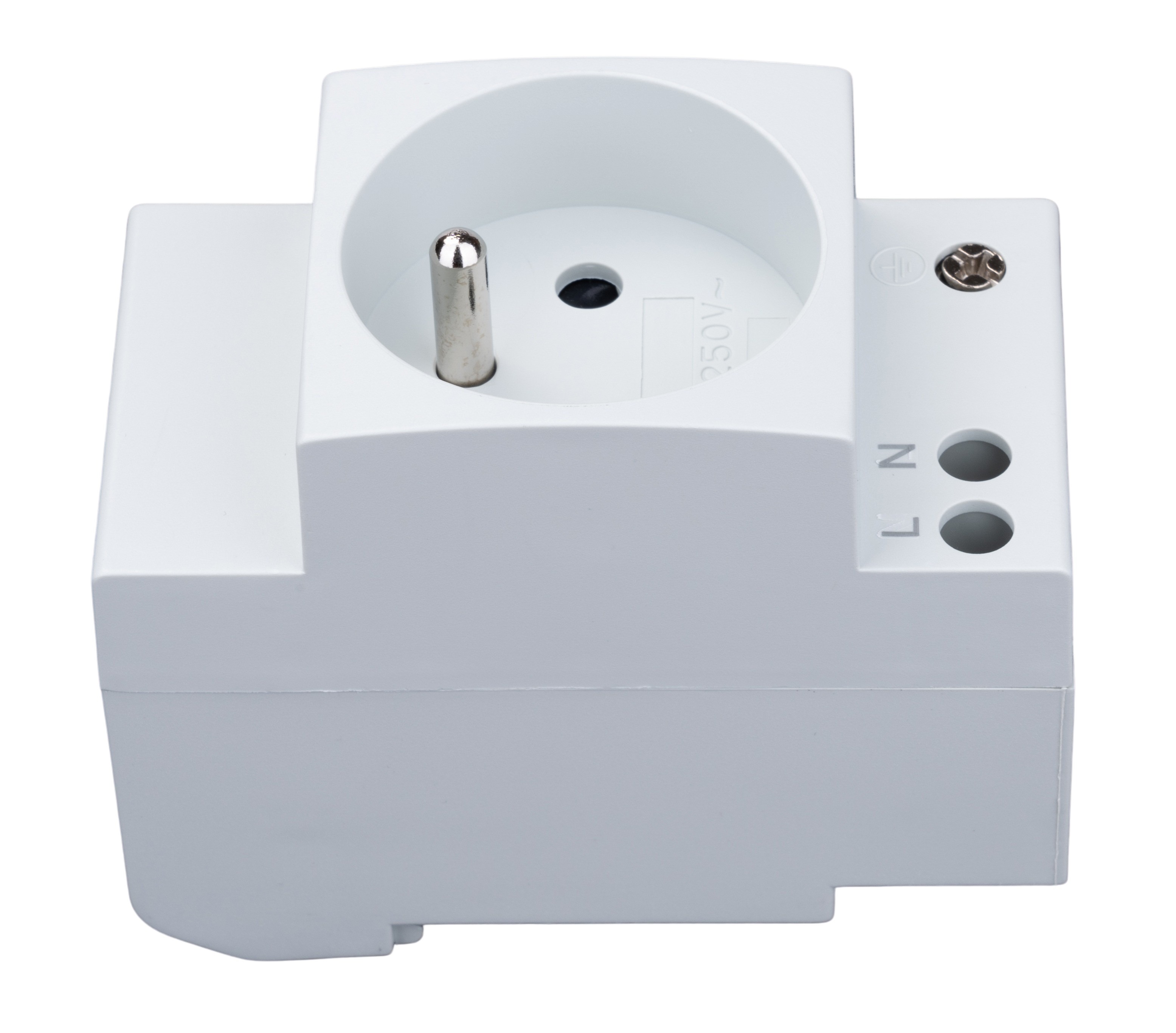

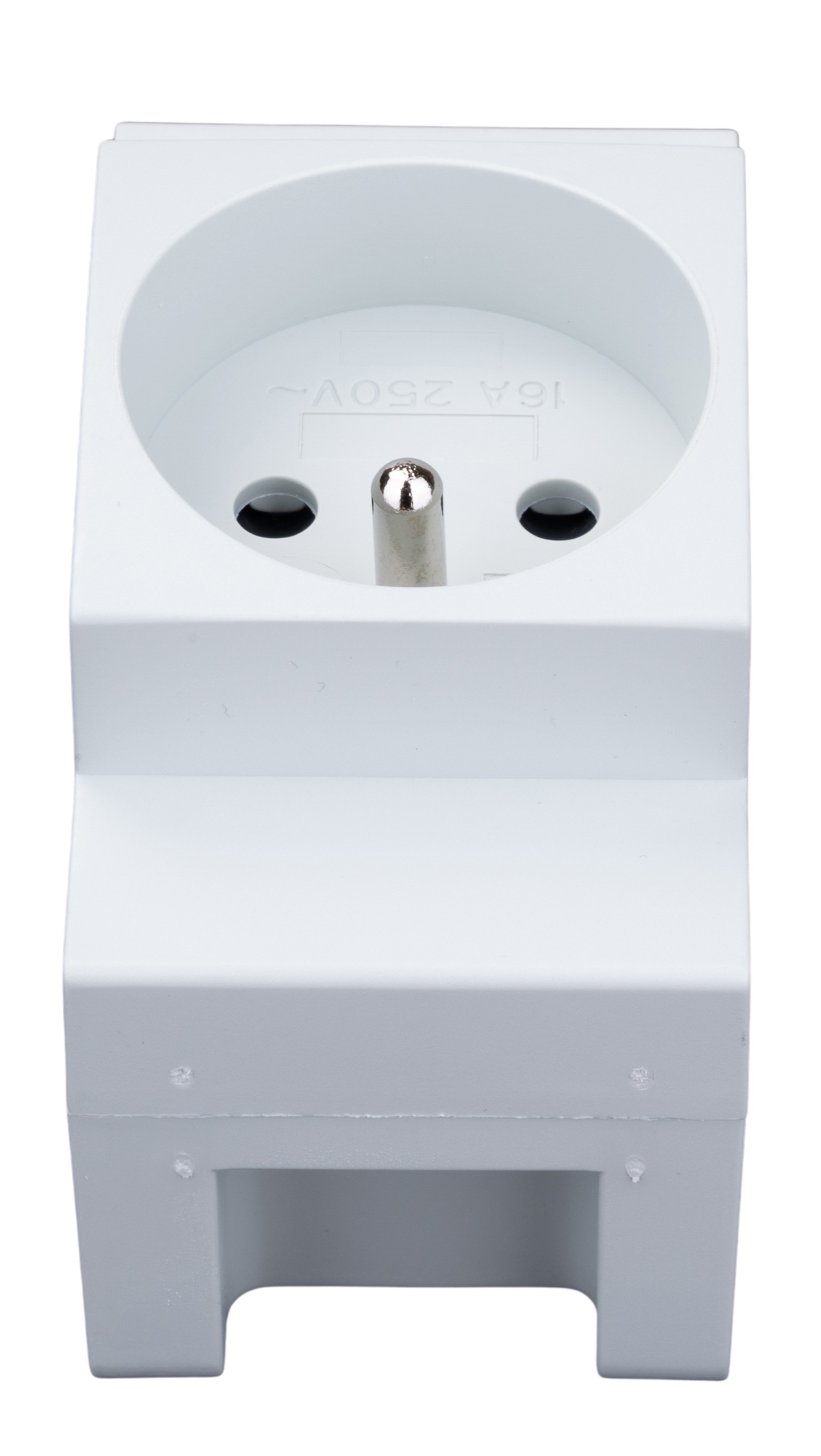

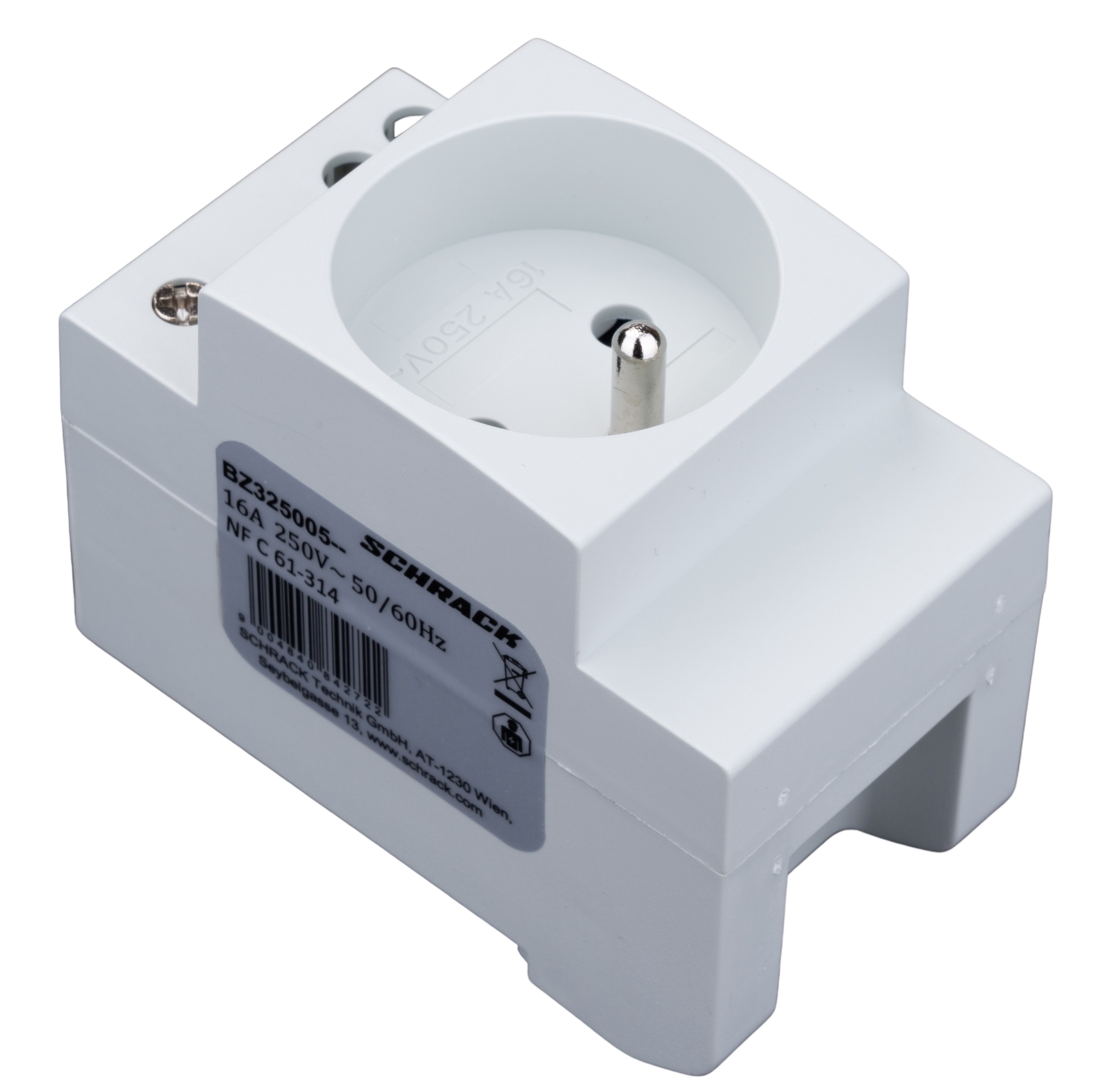

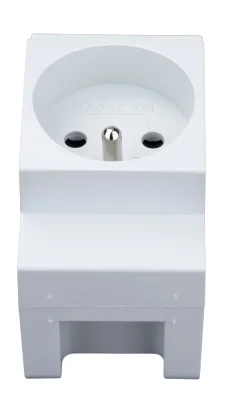

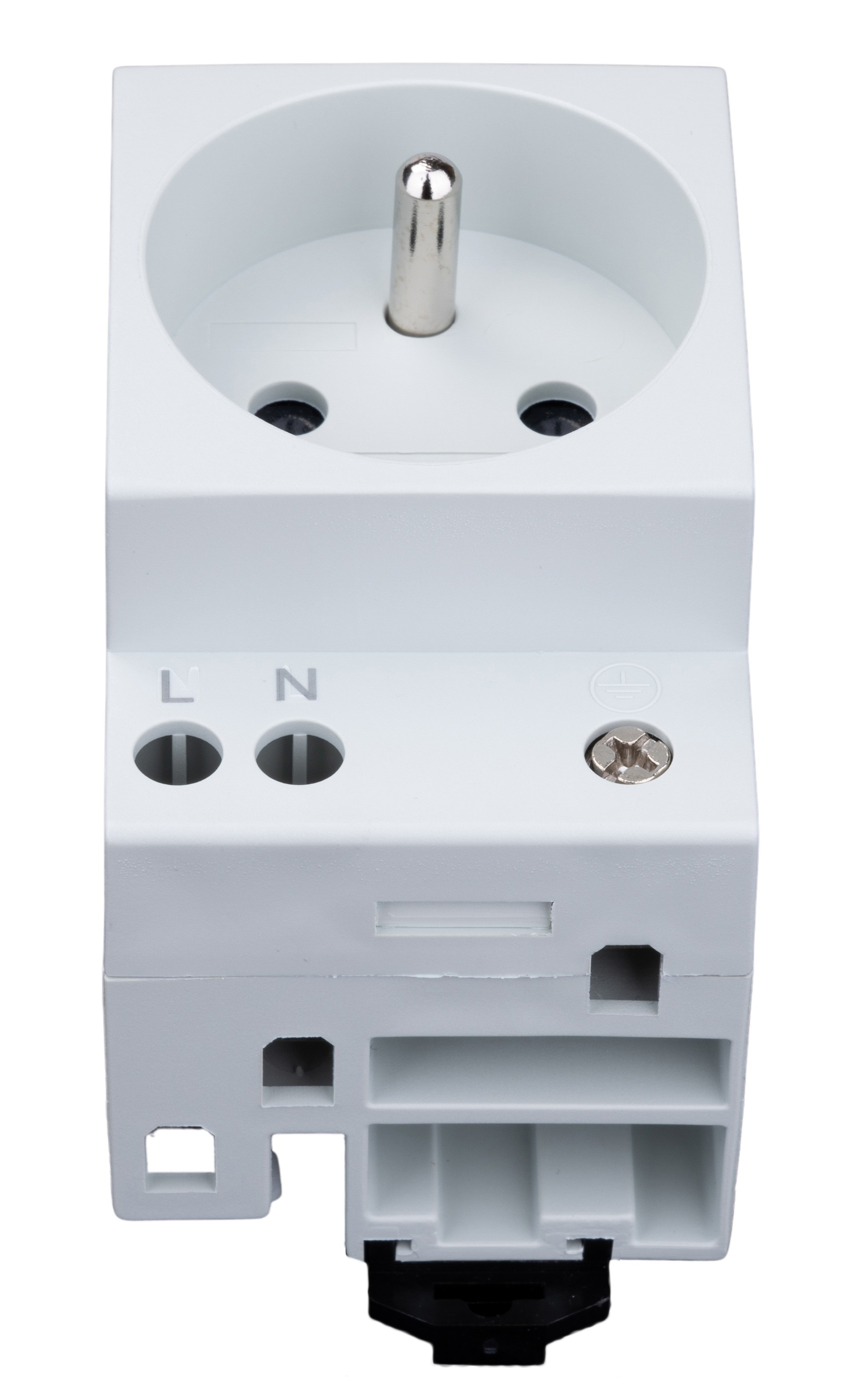

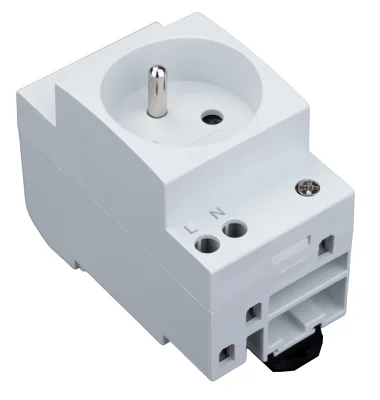

DIN-rail French socket, screw terminals, 16A, 250V, N - left

Name: DIN-rail French socket, screw terminals, 16A, 250V, N - left
Brand: Schrack Technik
SKU: BZ325005--
Price: 4015 KZT
Availability: PreOrder

Article: BZ325005--

Аксессуары для Щитов

4 015 ₸

To order

WhatsApp Telegram

Modular French socket on DIN-rail with screw terminals for wire connection. Designed for electrical distribution boards and control panels.

Main characteristics:

Rated current: 16A at 250V voltage
Contact scheme: 2P+PE (two poles + earth)
Connection type: screw terminals
Wire cross-section: 1.5–2.5 mm² (solid wire)
Stripping length: L/N and PE — 12 mm
Degree of protection: IP20
Mains frequency: 50/60 Hz
Operating temperature range: −25…+60 °C
Max. torque: 1.2 Nm
Power loss: 1.0 W
Compliance standard: NF C 61-314

Geometric dimensions:

Width: 45 mm
Height: 85 mm
Depth: 70 mm
Weight: 0.10 kg

Supply information:

Available packaging options: 1, 10 and 200 pieces. EAN code: 9004840842722. Manufacturer: Schrack.

EAN code	9004840842722
Width	45.00 mm
Height	85.00 mm
Depth	70.00 mm
Weight	0.10 kg
Power loss	1.00 W
Min. ambient temperature	-25°C
Max. ambient temperature	60°C
Rated current	16A
Poles	3
Contact scheme	2P+PE
Degree of protection	IP20
Rated operating voltage	250V
Frequency	50/60Hz
Connection type	Screw terminal
Standard	NF C 61-314
Min. cross section, solid wire	1.50 mm²
Max. cross section, solid wire	2.50 mm²
Stripping length L/N	12 mm
Stripping length PE	12 mm
Max. torque	1.2 Nm
Manufacturer	Schrack
Packaging	1 pcs., 10 pcs., 200 pcs.
