4-pole terminal block 100A, 2×25mm² 5×6mm²
Article: IKBC4016-A
11 820 ₸
In stock
A four-pole terminal block (power distribution unit) designed for distribution and switching of electrical circuits in distribution devices and cabinets. Rated for a working current of 100 A.
Constructive features:
- Input terminals: rated for conductors up to 25 mm² cross-section
- Output terminals: four poles with two outlet variants — 4 outlets with 6 mm² cross-section and 2 outlets with 25 mm² cross-section per pole
- Contact material: copper with high conductivity
- Power dissipation: 2.40 W at rated current
- Housing color: grey
- Overall dimensions: 72 × 97 × 52 mm
- Weight: 0.24 kg
The block is intended for use in electrical power distribution systems, allowing efficient organization of power distribution across multiple circuits with minimal voltage drop.
| EAN code | 9007985008275 |
|---|---|
| Net depth | 97.00 mm |
| Net width | 72.00 mm |
| Net height | 52.00 mm |
| Net weight | 0.24 kg |
| Power loss | 2.40 W |
| Type | Power distribution unit |
| Poles | 4 |
| Maximum inlet | 25 mm² |
| 6 mm² outlets | 4p.5 out. |
| 25 mm² outlets | 4p.2 out. |
| Color | grey |
| Connection material | Copper |
| Manufacturer | Schrack |
| Packaging | 1 pc., 2 pc., 26 pc. |
- Photo 1: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 3.2 MB)

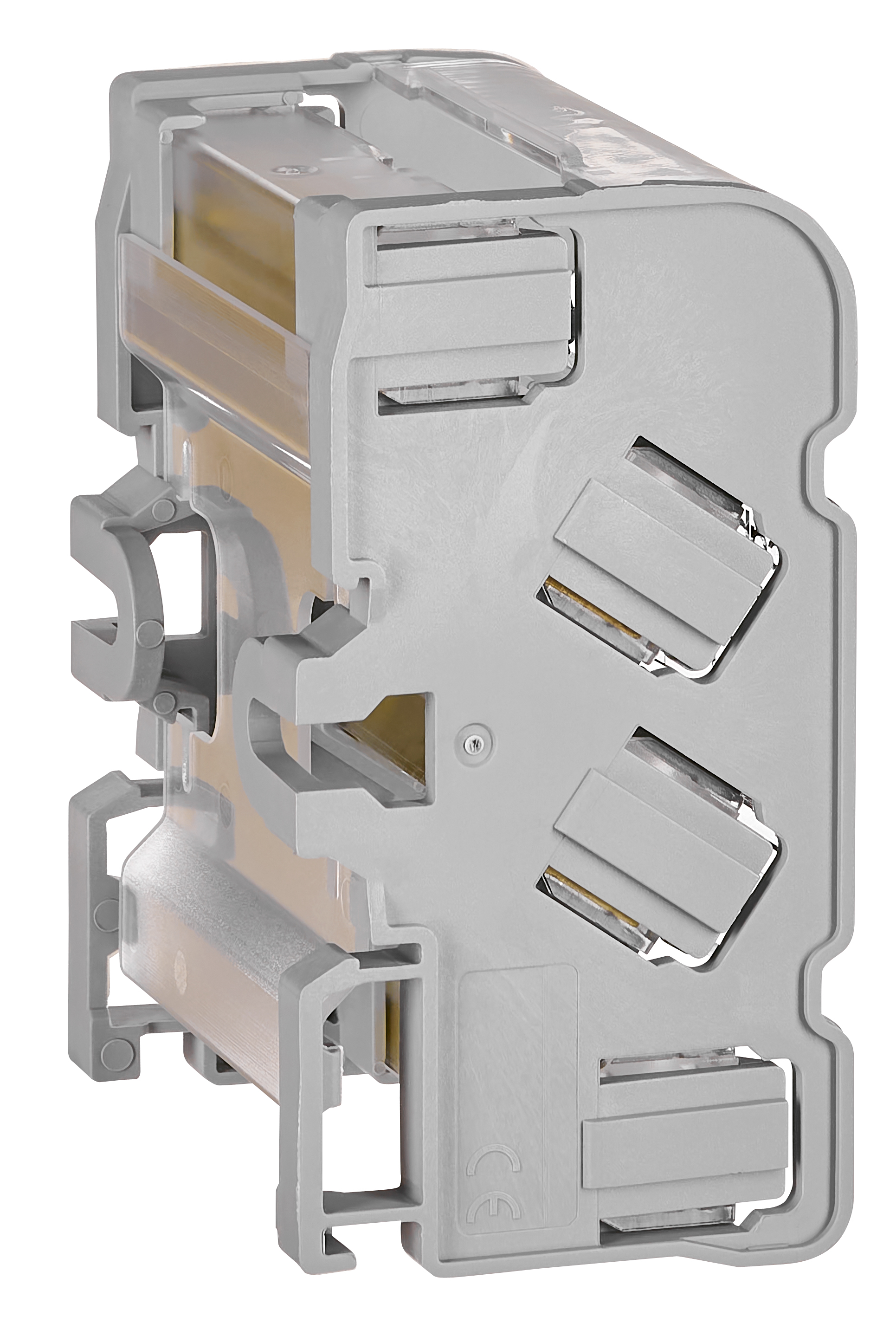

- Photo 2: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 1.8 MB)

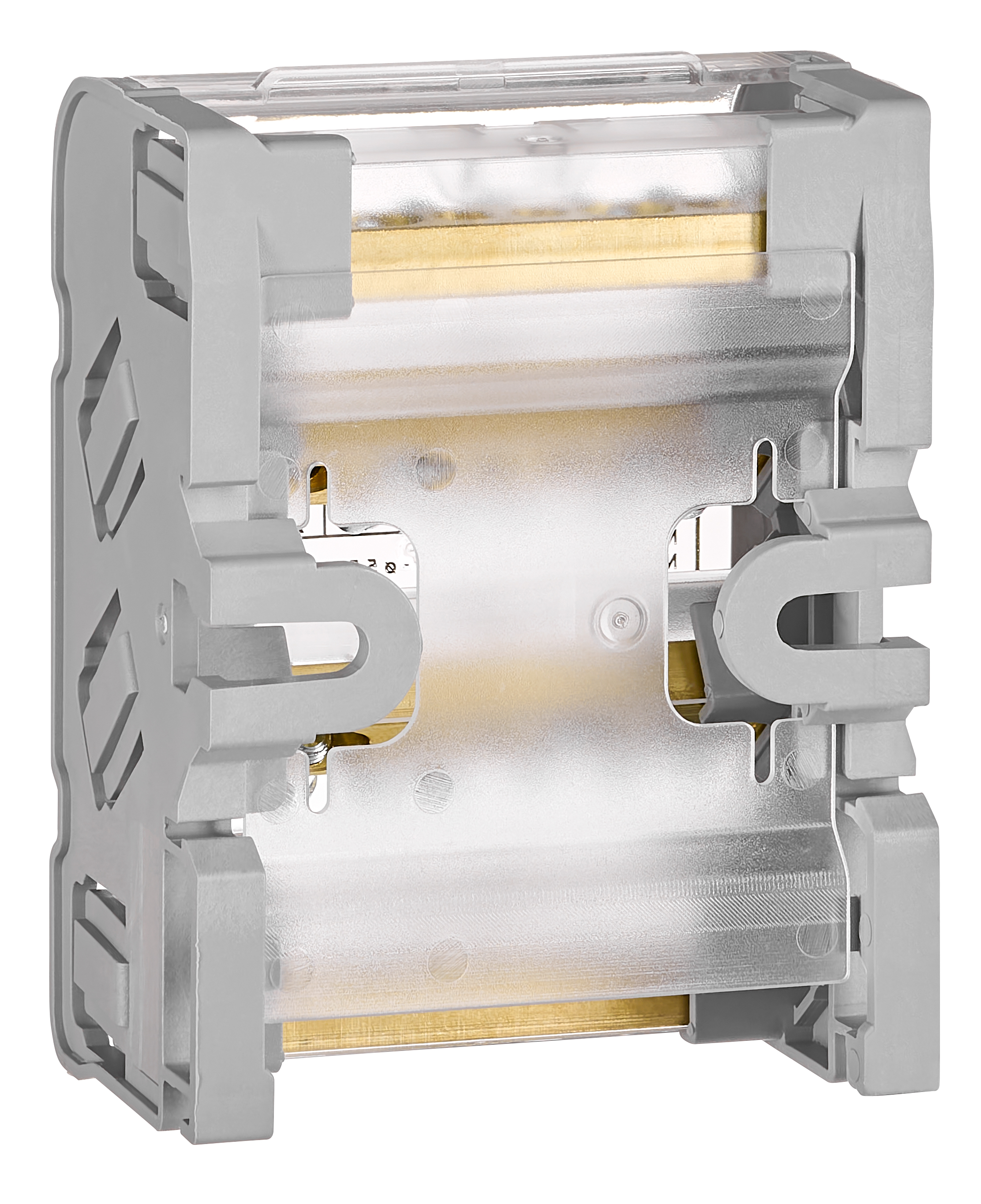

- Photo 3: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 2.4 MB)
- Photo 4: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 2.8 MB)

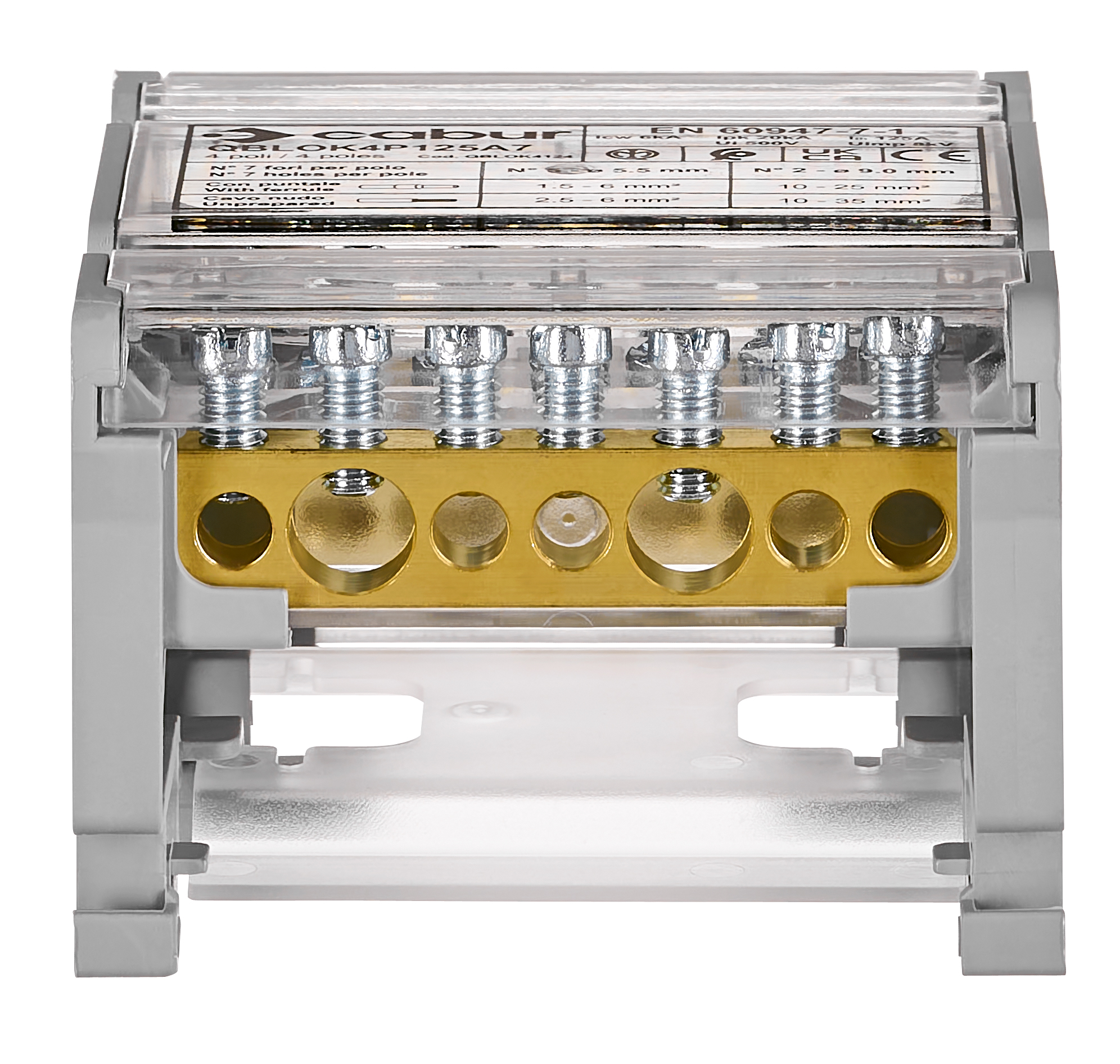

- Photo 5: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 1.7 MB)

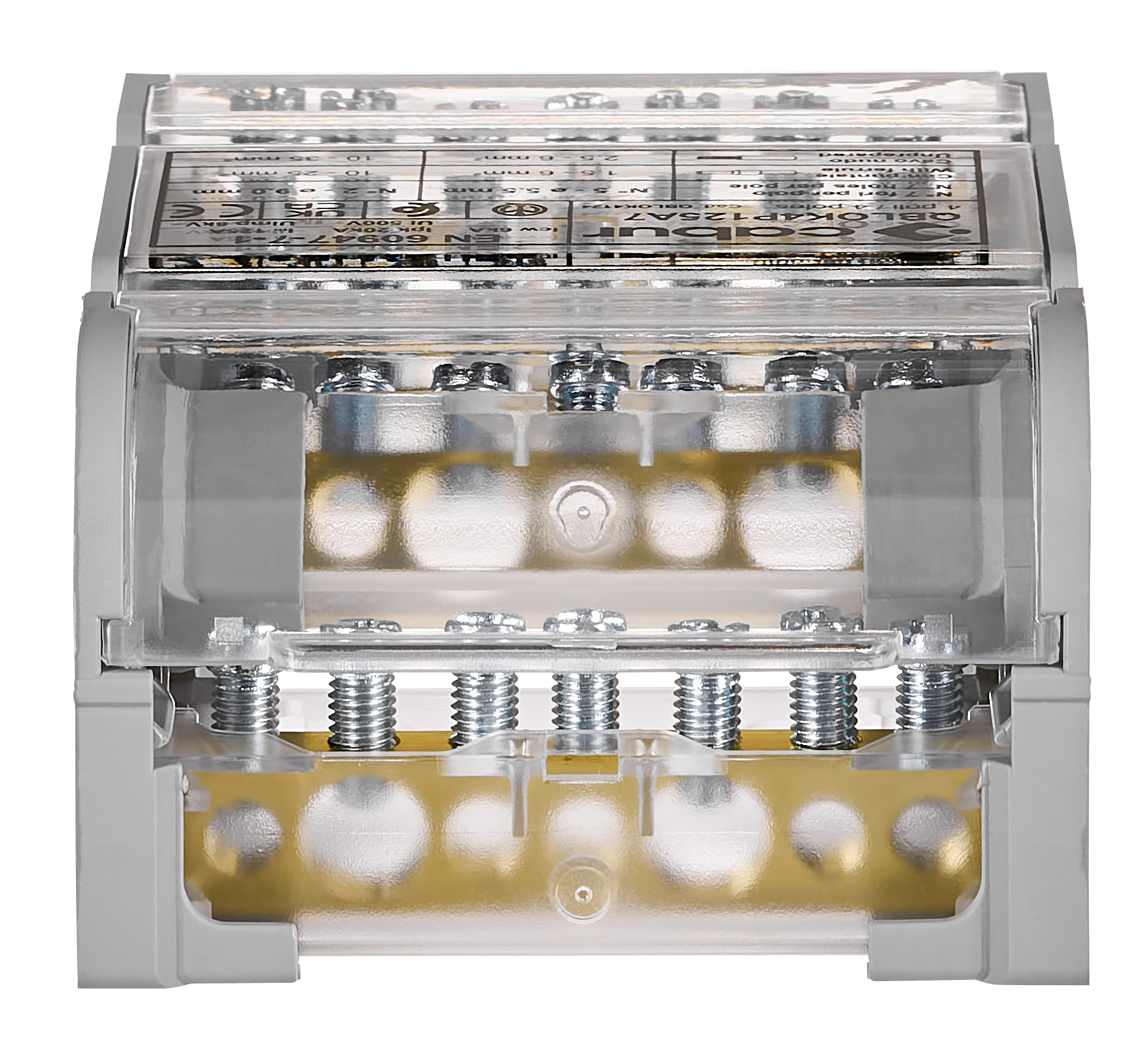

- Photo 6: 4-pole terminal block 100A, 2×25mm² 5×6mm² (JPG, 1.7 MB)
