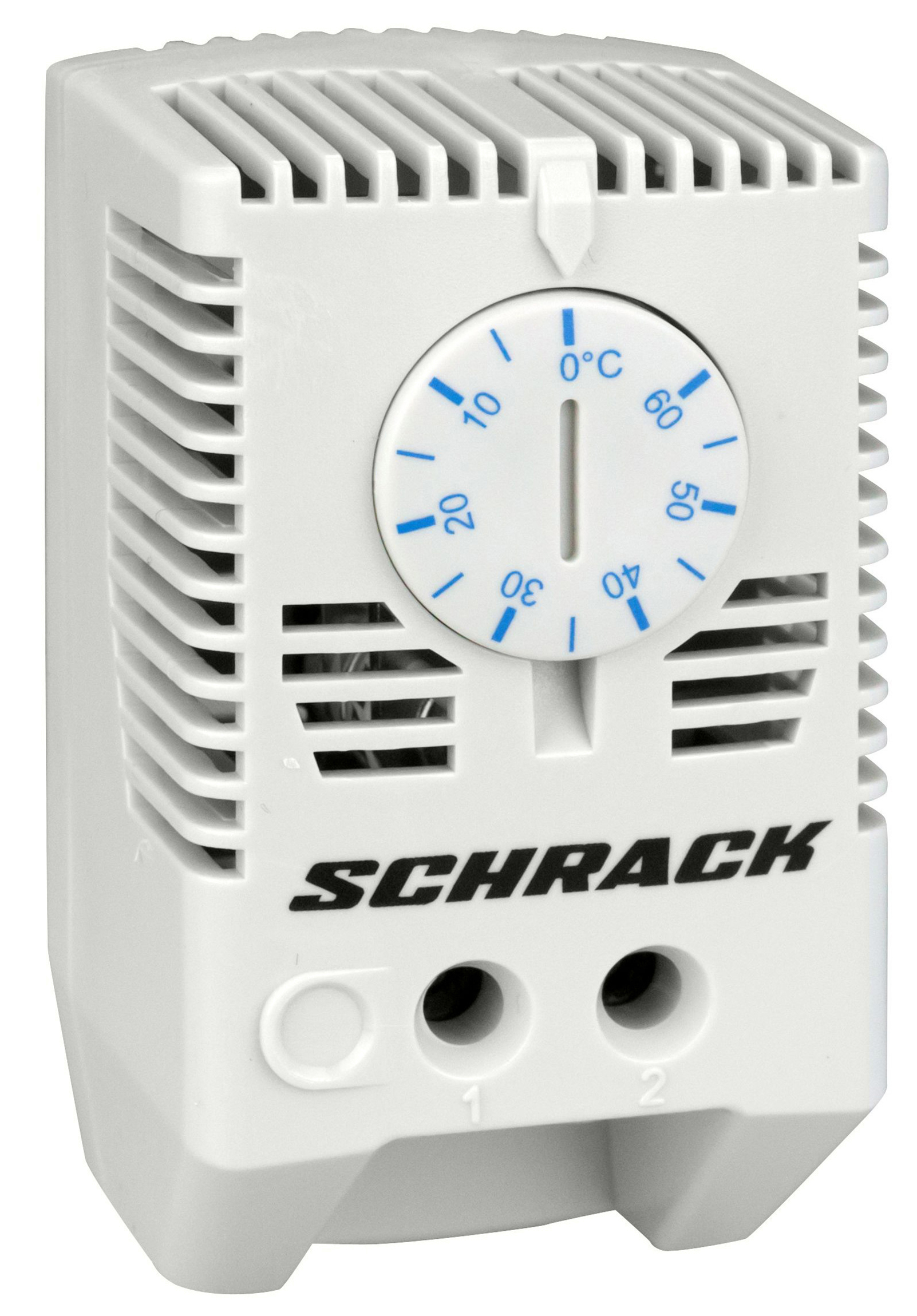

Ventilation Thermostat, 1NO, Blue
Article: IUK08566--
10 940 ₸
In stock
Ventilation Thermostat is designed for automatic control of ventilation systems with a single-pole normally open contact (1NO). The device provides precise temperature regulation in the range of 0°C — 60°C and is suitable for operation in environments with extreme ambient conditions.
Key Parameters:
- Contact Type: 1NO (single-pole normally open)
- Temperature Control Range: 0° — 60°C
- Rated Voltage: 230V AC
- Degree of Protection: IP20
- Ambient Temperature Operating Range: -40°C to +80°C
- Gross Dimensions: 40 mm (width) × 72 mm (height) × 36 mm (depth)
- Net Weight: 0.05 kg
- Color: RAL 7035 (light gray)
- Manufacturer: Schrack
- EAN Code: 9004840461619
- Kit Contents: 1 pcs.
Application Areas: Control of ventilation systems in industrial, commercial, and residential premises where stable operation is required when ambient temperature fluctuations occur.
| EAN Code | 9004840461619 |
|---|---|
| Net Width | 40.00 mm |
| Net Height | 72.00 mm |
| Net Depth | 36.00 mm |
| Net Weight | 0.05 kg |
| Min. Ambient Temperature | -40°C |
| Max. Ambient Temperature | 80°C |
| Type | Position |
| Control Range - Temperature | 0° - 60° C |
| Degree of Protection | IP20 |
| Color | RAL 7035 (light gray) |
| Manufacturer | Schrack |
| Rated Voltage | 230V AC |
| Packaging | 1 pcs. |
