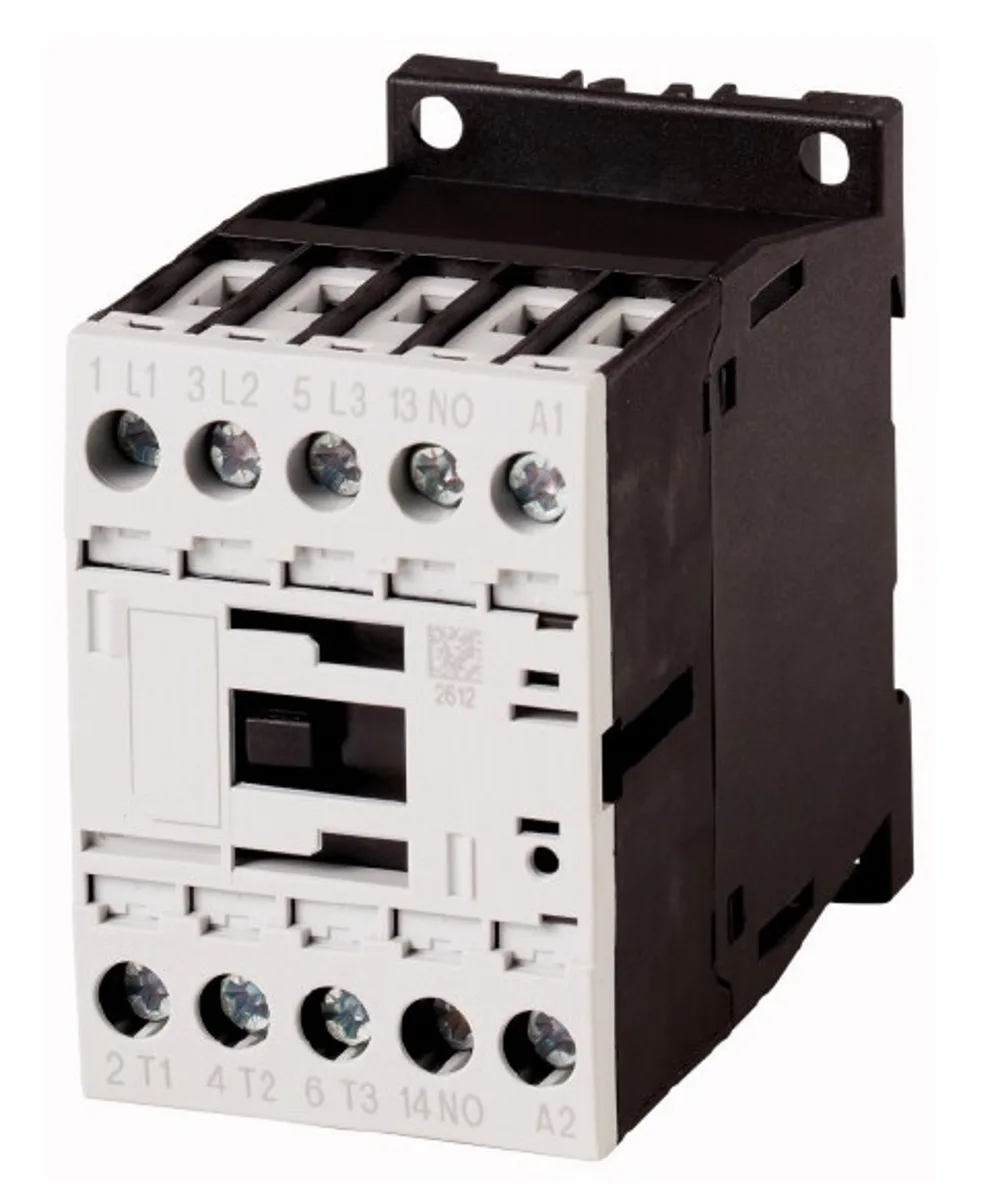

Contactor 4kW/400V/9A/1NO, coil 24VAC
Article: LTD00910--
15 620 ₸
To order
Three-phase AC power switching contactor manufactured by Schrack. Designed for controlling electric motors and other industrial equipment with a capacity of up to 4 kW at a voltage of 400 V AC.
Main specifications:

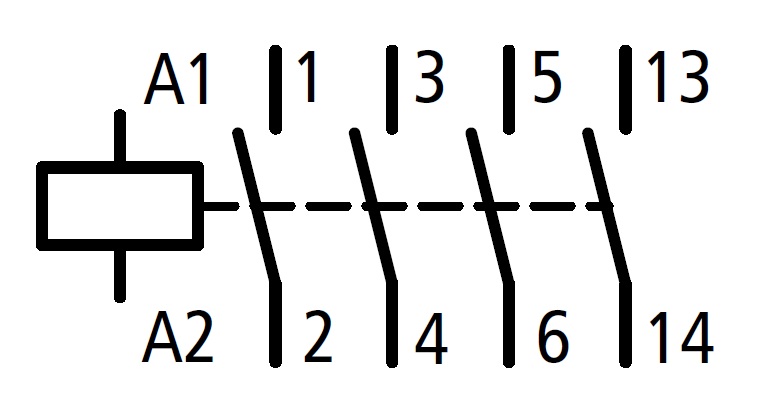

- Main contacts: 3 closing contacts (3NO)
- Rated current: 9 A
- Control coil voltage: 24 V alternating current (24VAC)
- Auxiliary contacts: 1 closing contact (1NO)
- AC-3 application category: 4 kW at 380–400 V
- Power loss: 3.0 W

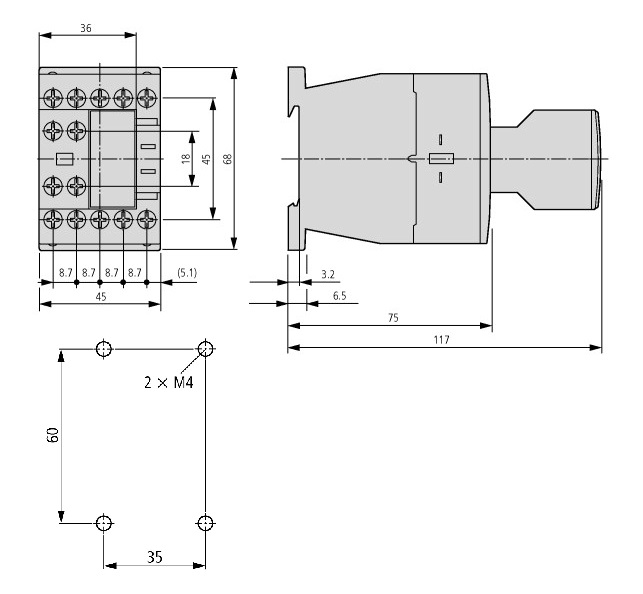

- Dimensions (W×H×D): 45 × 68 × 75 mm
- Net weight: 0.24 kg
Application: Standard industrial equipment, motor control systems, switchboard assembly, production automation.
Packaging: 1 piece or multiples of 102 pieces for bulk deliveries.
EAN code: 9004840841107
| EAN code | 9004840841107 |
|---|---|
| Net width | 45.00 mm |
| Net height | 68.00 mm |
| Net depth | 75.00 mm |
| Net weight | 0.24 kg |
| Power loss | 3.00 W |
| Size | 0 |
| Type | Power contactor |
| Auxiliary contacts included | 1 closing contact |
| AC coil voltage | 24 V alternating current |
| Rated current | 9 A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 4 kW |
| Packaging | 1 piece, 102 pieces |
