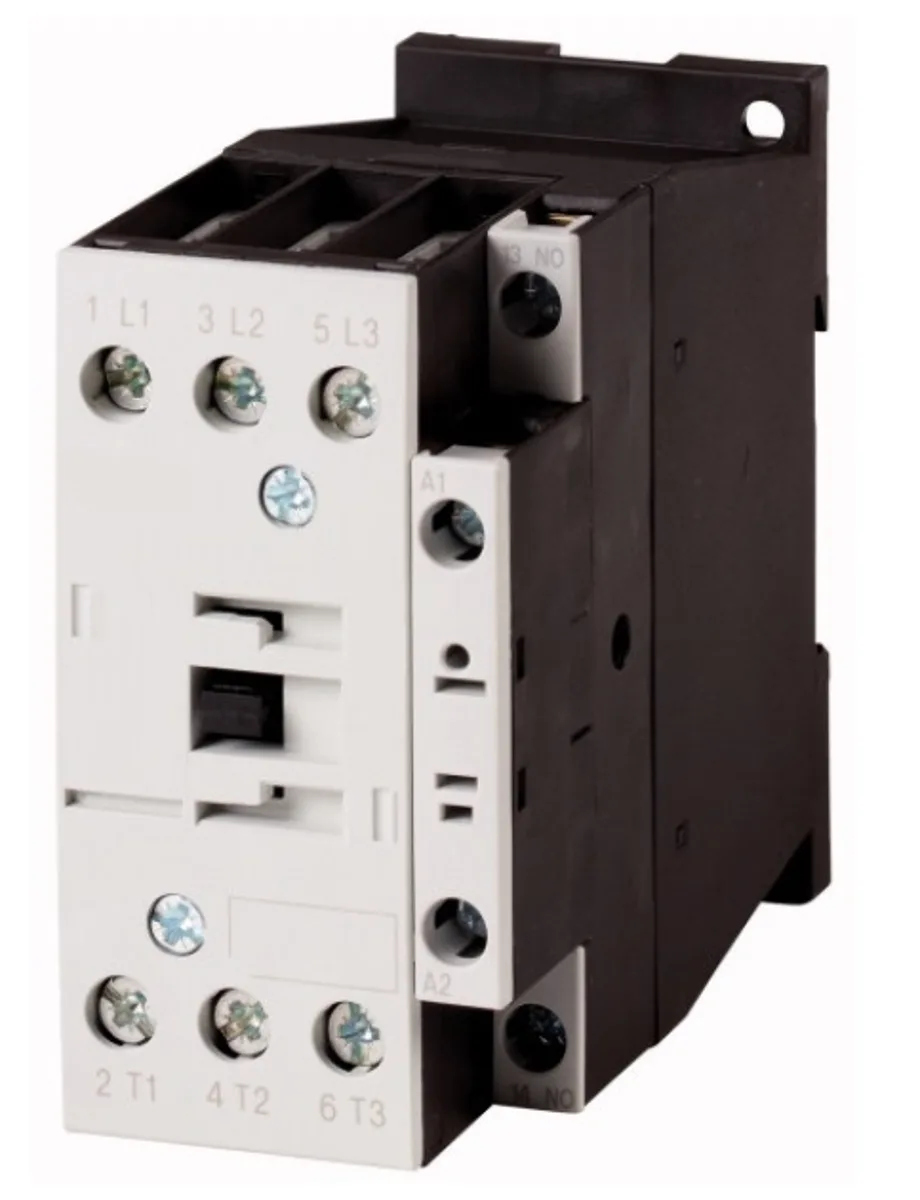

Contactor 11kW/400V/25A/1NO, coil 24VDC
Article: LTD12525--
56 050 ₸
To order
Power contactor designed for switching three-phase alternating current circuits in industrial distribution systems. The contactor is rated for a nominal current of 25A at a network voltage of 400V and provides switching of loads up to 11kW in the AC-3 category (asynchronous motors, switching off during operation).
Main parameters:
- Main contacts: 3 closing contacts for switching three-phase network
- Auxiliary contacts: 1 opening contact (1NO) for control and signalling
- Control coil: 24V DC, which ensures safety and compatibility with modern control systems
- Coil power consumption: 11.70W
- Compact dimensions: width 45mm, height 85mm, depth 97.40mm
- Weight: 0.53kg
- Manufacturer: Schrack (reliable European manufacturer)
The contactor is suitable for use in automation systems, electric motor control systems, and starting and protection systems. Standard packaging is provided for single units or a cardboard block of 64 pieces for bulk orders.
| EAN code | 9004840840407 |
|---|---|
| Width (net) | 45.00mm |
| Height (net) | 85.00mm |
| Depth (net) | 97.40mm |
| Weight (net) | 0.53kg |
| Power loss | 11.70W |
| Size | 1 |
| Type | Power contactor |
| Auxiliary contacts included | 1 opening contact |
| DC coil voltage | 24V |
| Nominal current | 25A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 11kW |
| Packaging | 1 pc., 64 pc. |
