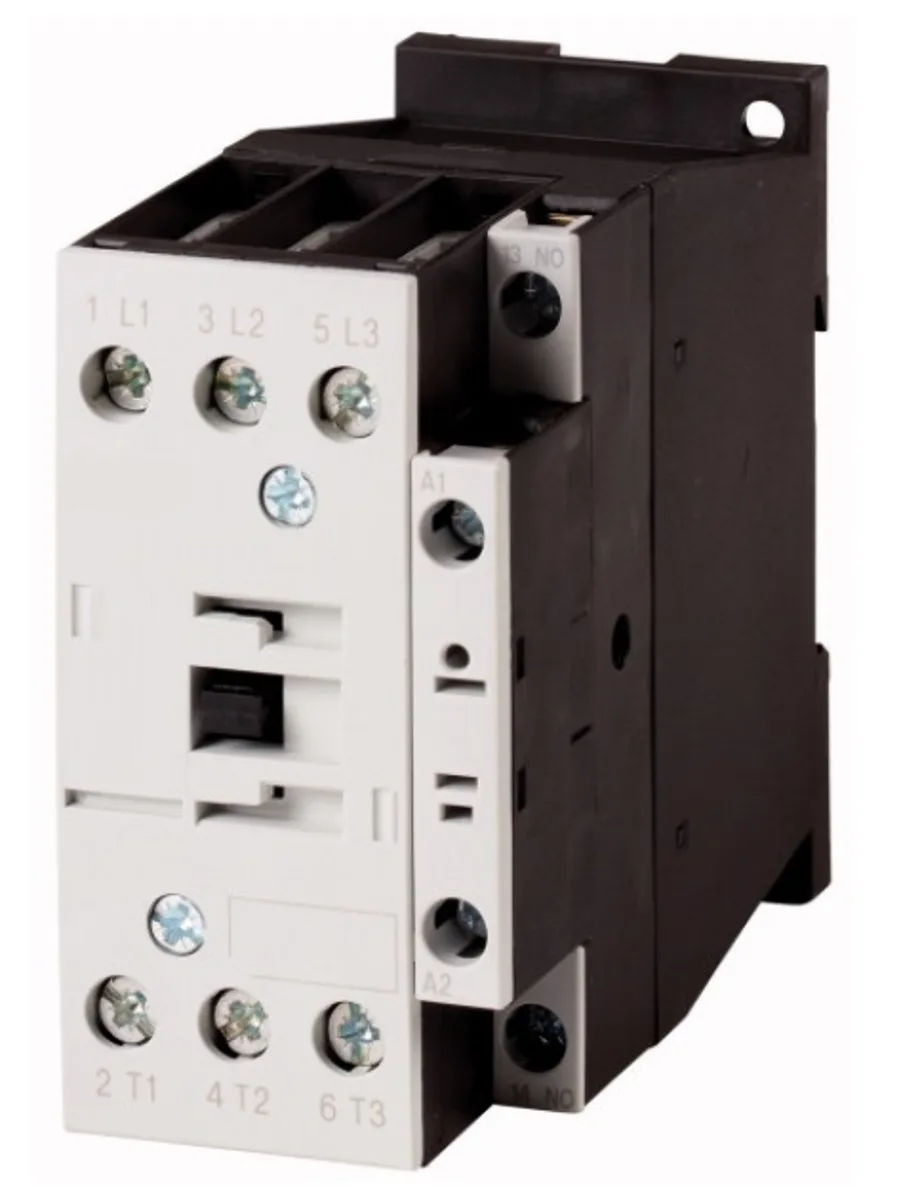

Contactor 15kW/400V/32A/1NO, coil 24VDC
Article: LTD13215--
75 720 ₸
To order
Industrial contactor designed for switching three-phase AC circuits in industrial equipment. The contactor ensures reliable on/off control of asynchronous motors and other electrical loads.
Main characteristics:
- Rated power: 15 kW at 380/400 V supply (AC-3 category)
- Rated current: 32 A
- Main contacts: 3 closing contacts (3NO)
- Auxiliary contacts: 1 closing contact
- Coil voltage: 24 V DC
- Power loss: 11.20 W
Physical dimensions:
- Width: 45.00 mm
- Height: 85.00 mm
- Depth: 97.40 mm
- Weight: 0.53 kg
Manufacturer: Schrack
Package and supply: supplied in packages of 1 unit and 64 units.
The contactor complies with electrical equipment standards and is designed for mounting on DIN rail.
| EAN code | 9004840840414 |
|---|---|
| Width net | 45.00 mm |
| Height net | 85.00 mm |
| Depth net | 97.40 mm |
| Weight net | 0.53 kg |
| Power loss | 11.20 W |
| Size | 1 |
| Type | Industrial contactor |
| Auxiliary contacts | 1 closing contact |
| Coil voltage DC | 24 V |
| Rated current | 32 A |
| Main contacts | 3 closing contacts |
| Manufacturer | Schrack |
| AC-3 380 V 400 V [P] | 15 kW |
| Packaging | 1 unit, 64 units |
