Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A
Article: AK617610--
22 980 ₸
In stock
Combined automatic circuit breaker with integrated residual current device (RCD) protection. Designed to protect electrical circuits in residential and commercial premises from overcurrents and earth leakage currents.
Main parameters:
- Nominal current: 10 A
- Configuration: 1 pole + neutral (1+N)
- Nominal sensitivity: 30 mA
- Breaking capacity: 10 kA
- Characteristic type: C (for circuits with moderate inrush currents)
- RCD type: A (sensitive to sinusoidal and pulsating direct current)
- Trip time: instantaneous
Operating conditions:
- Ambient temperature range: from -25°C to +60°C
- Power loss: 2.47 W
Design characteristics:
- Dimensions (HxWxD): 85 × 36 × 77 mm
- Weight: 0.21 kg
- Mounting type: DIN rail (modular)
Normative and technical base:
The device complies with standards EN 61009-1:2012 (with amendments A1:2014, A2:2014, A11:2015, A12:2016), EN 61009-2-1:1994 (with amendment A11:1998), IEC 61009-1, IEC 61009-2-1.
Manufacturer: Schrack (AMPARO series)
Packaging: supplied in quantities of 1 piece or in packaging of 90 pieces.
| EAN code | 9004840862485 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 2.47 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| RCD type | A (sensitive to pulsating current) |
| Trip type | instantaneous |
| Nominal sensitivity IΔn | 30 mA |
| Characteristic | C |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 piece, 90 pieces |

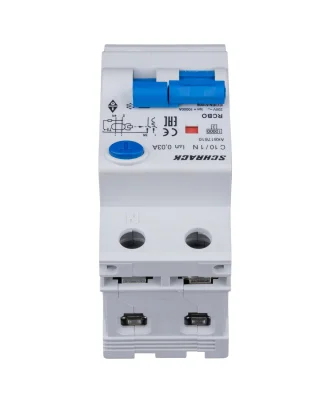

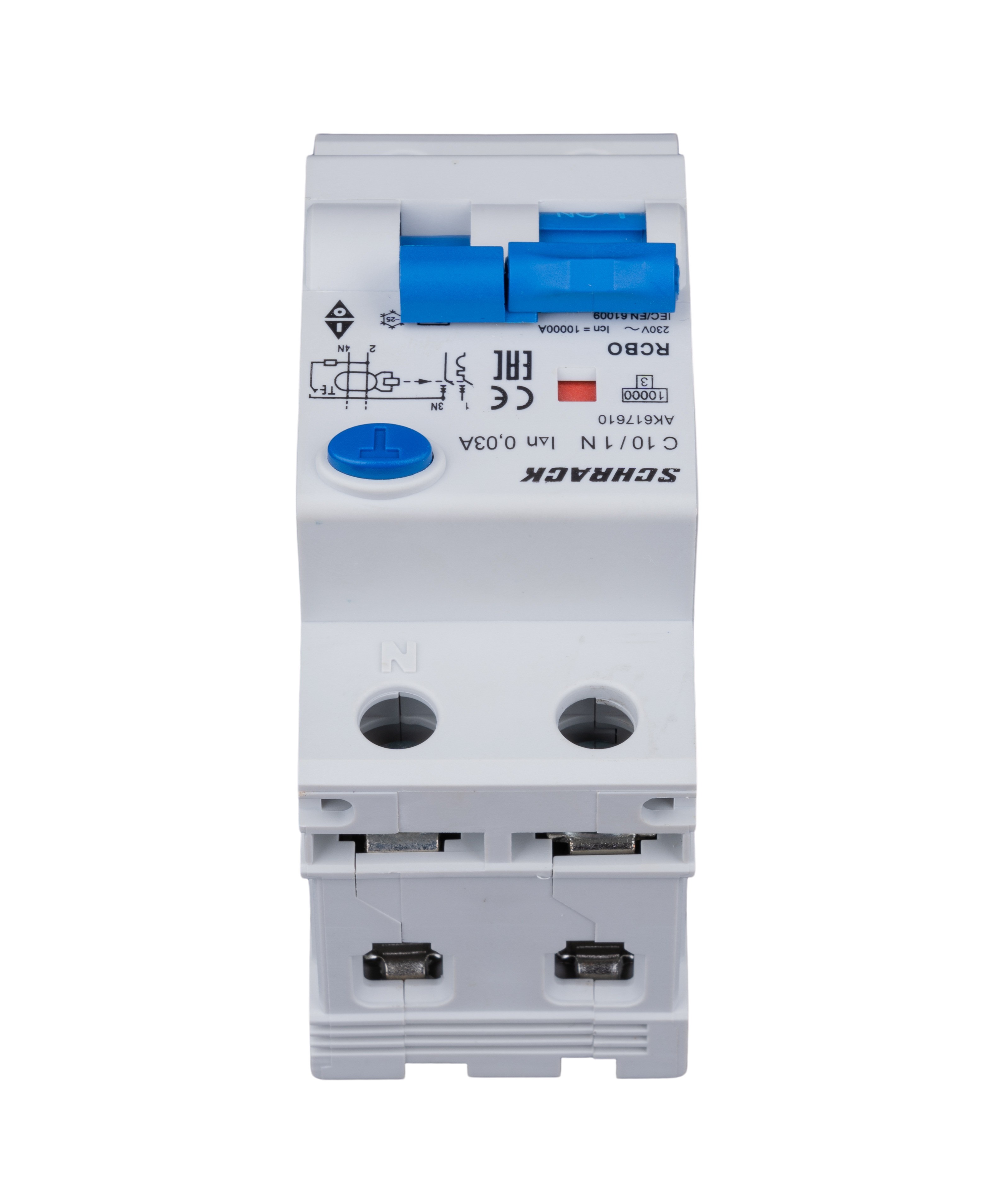

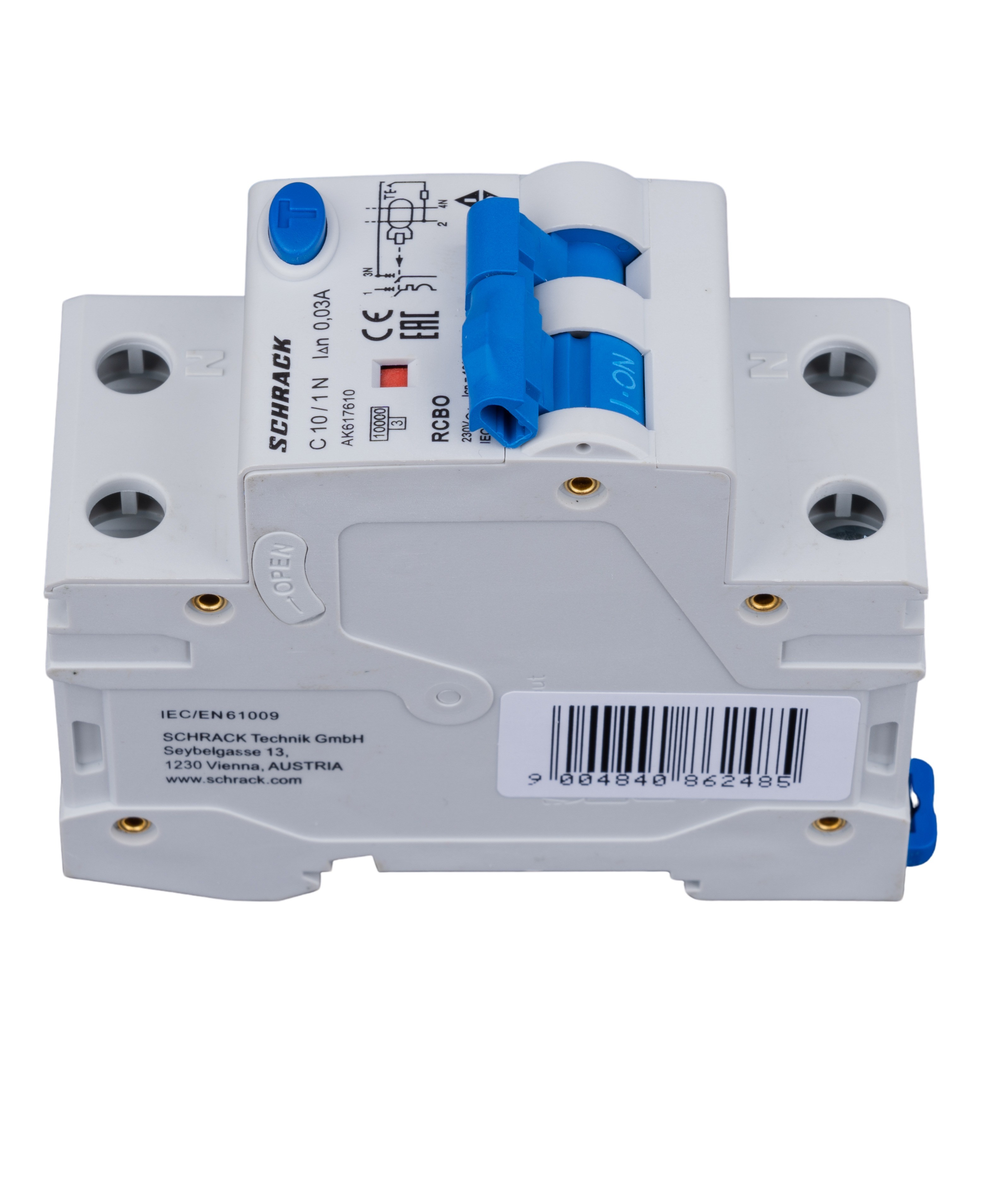

- Photo 1: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

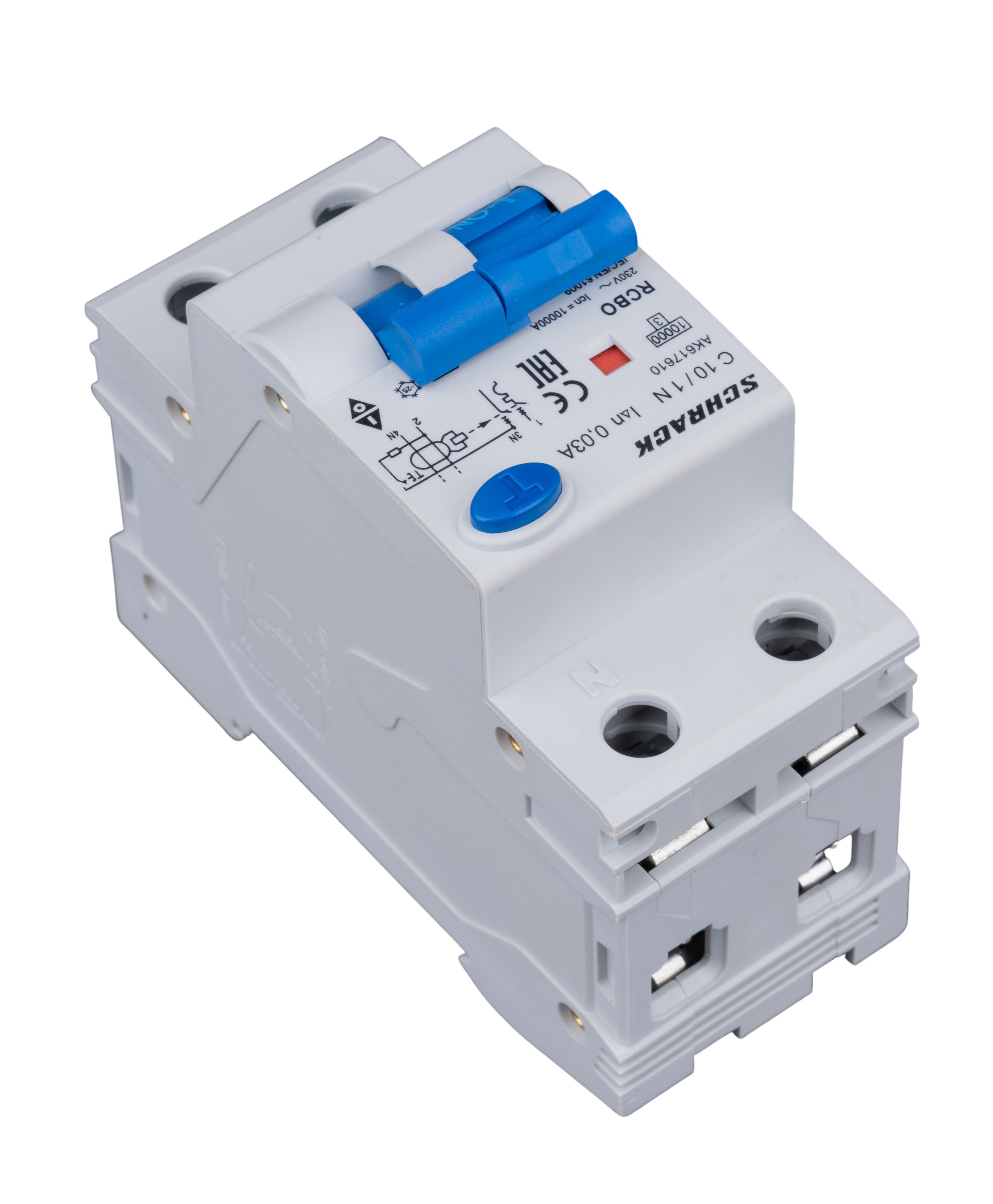

- Photo 2: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 482 KB)

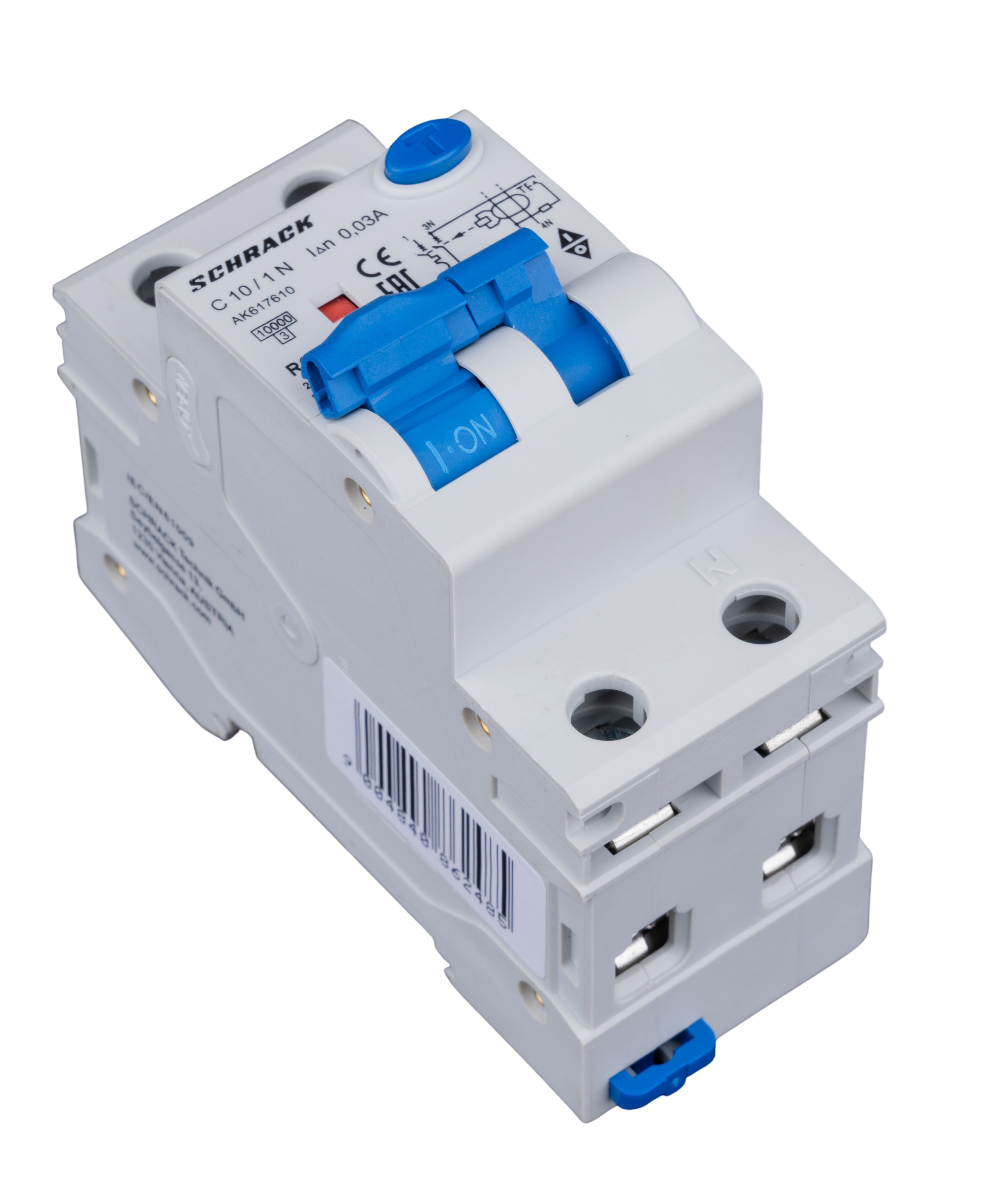

- Photo 3: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 625 KB)

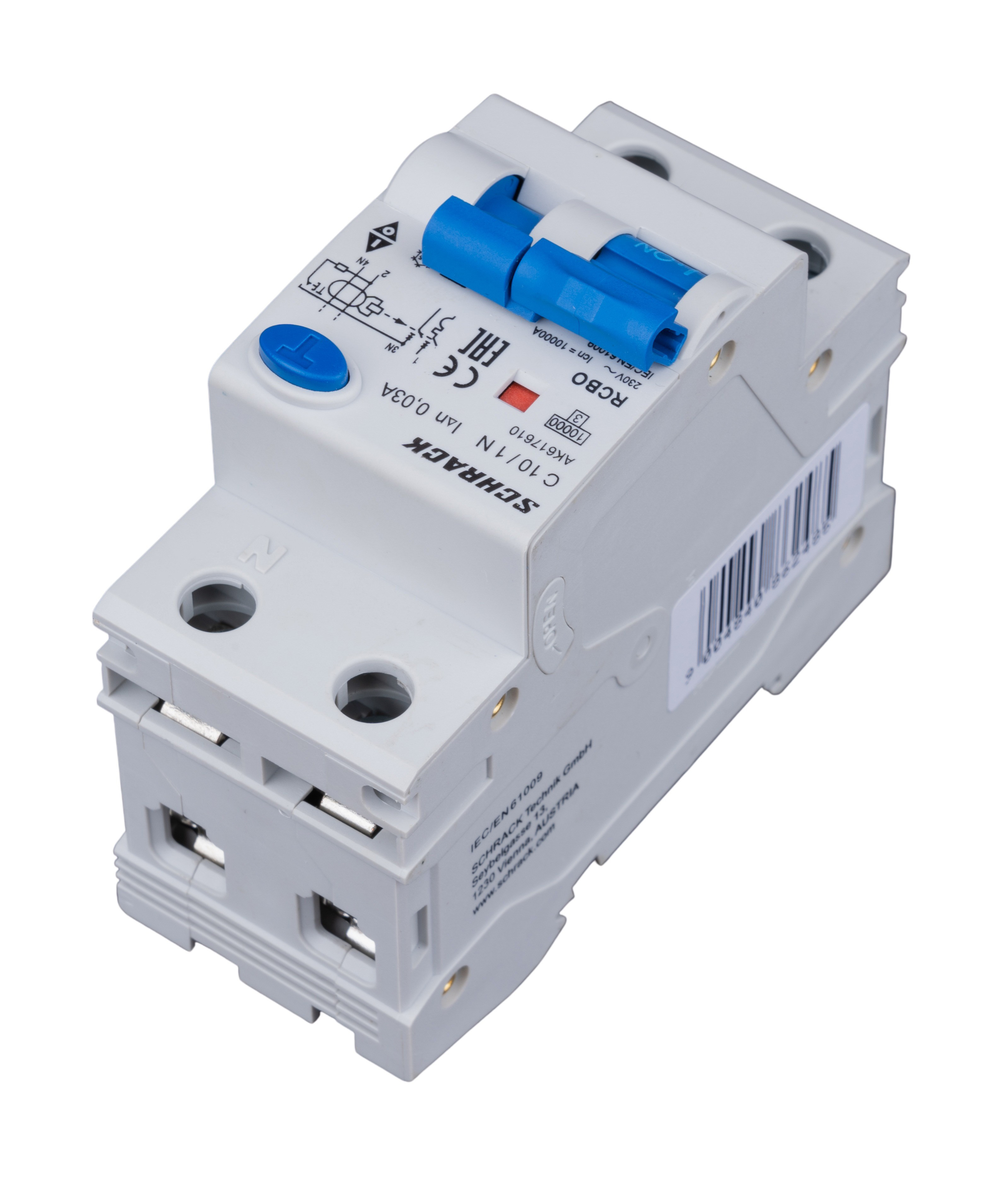

- Photo 4: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 699 KB)

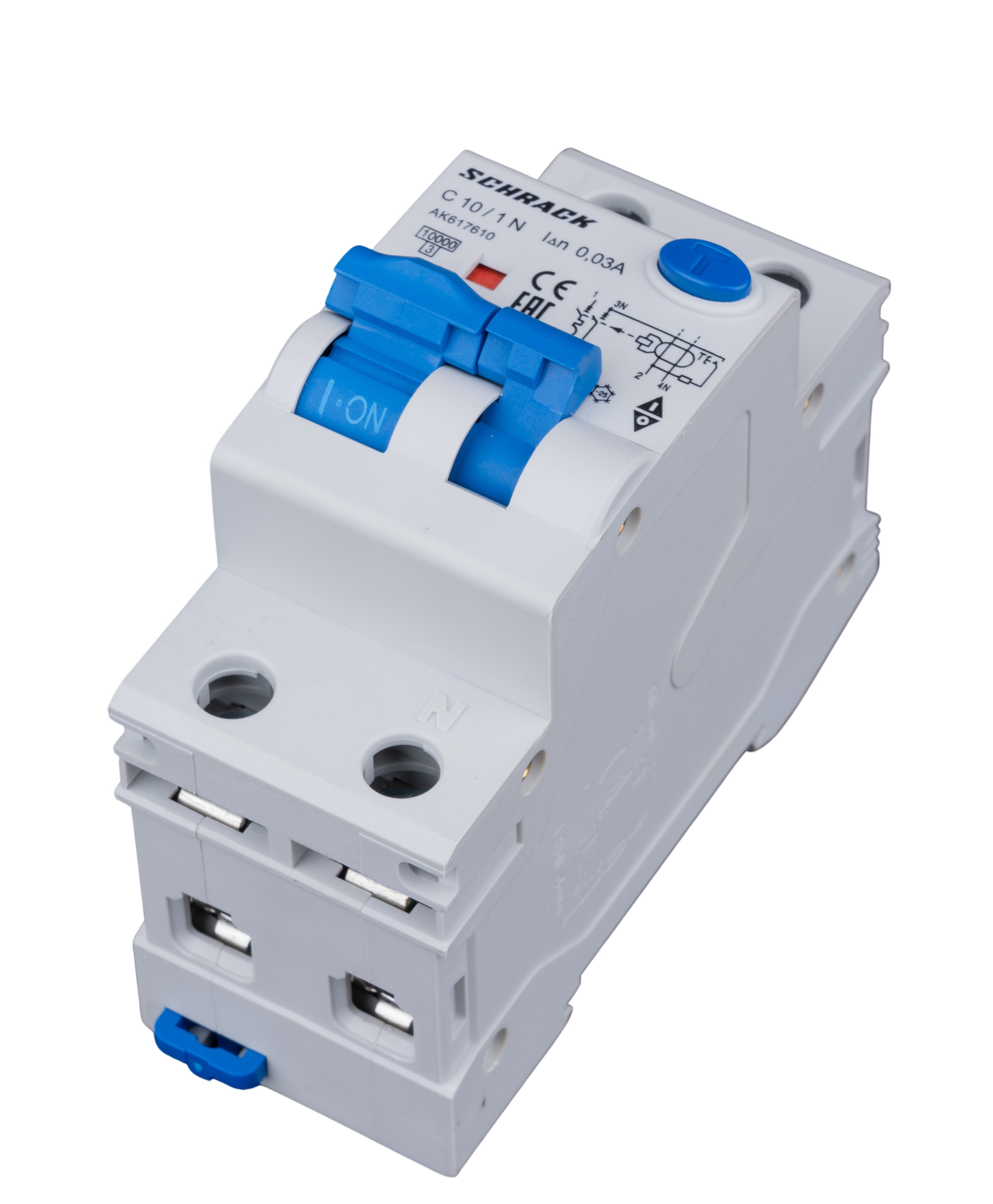

- Photo 5: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)

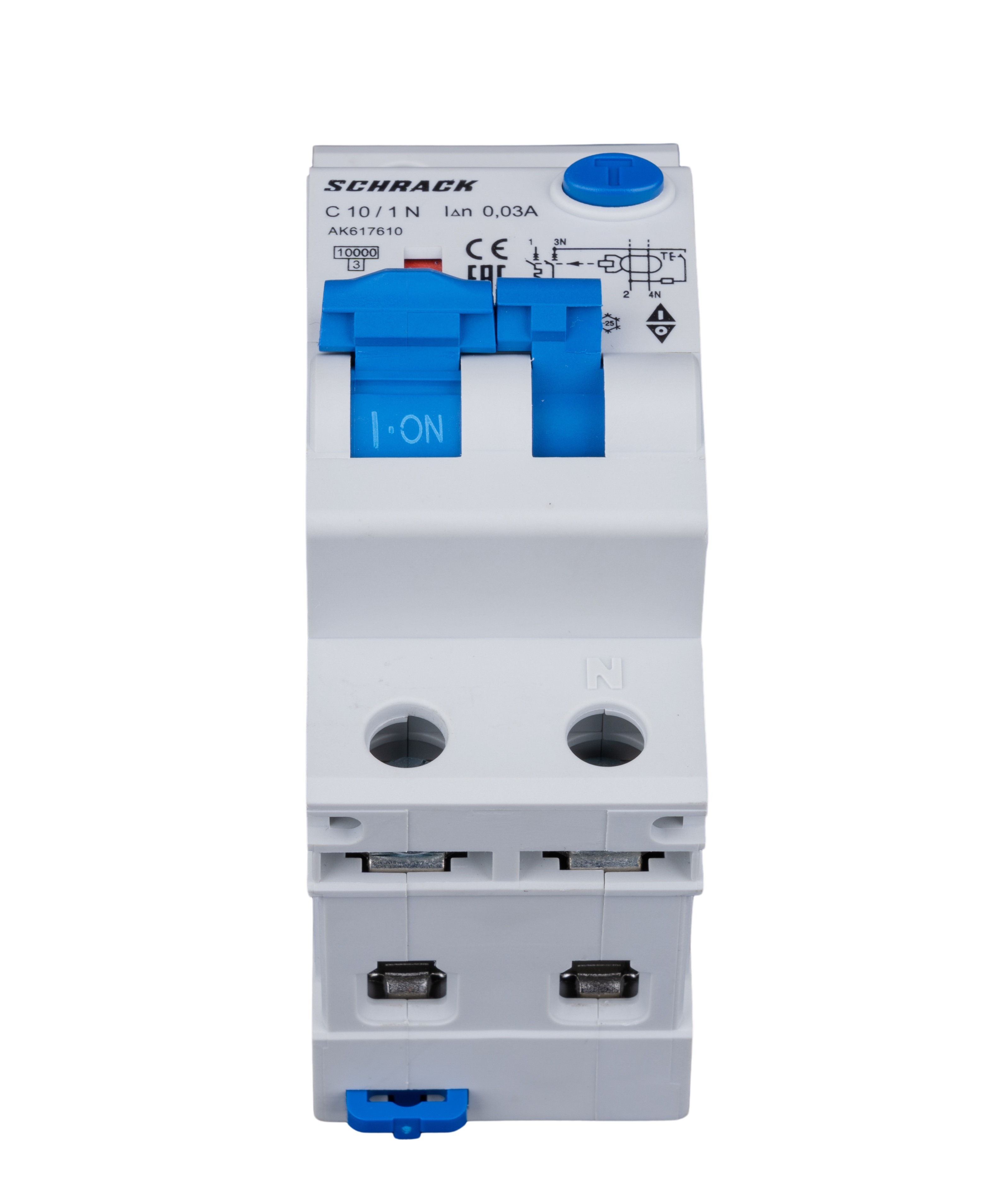

- Photo 6: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 469 KB)

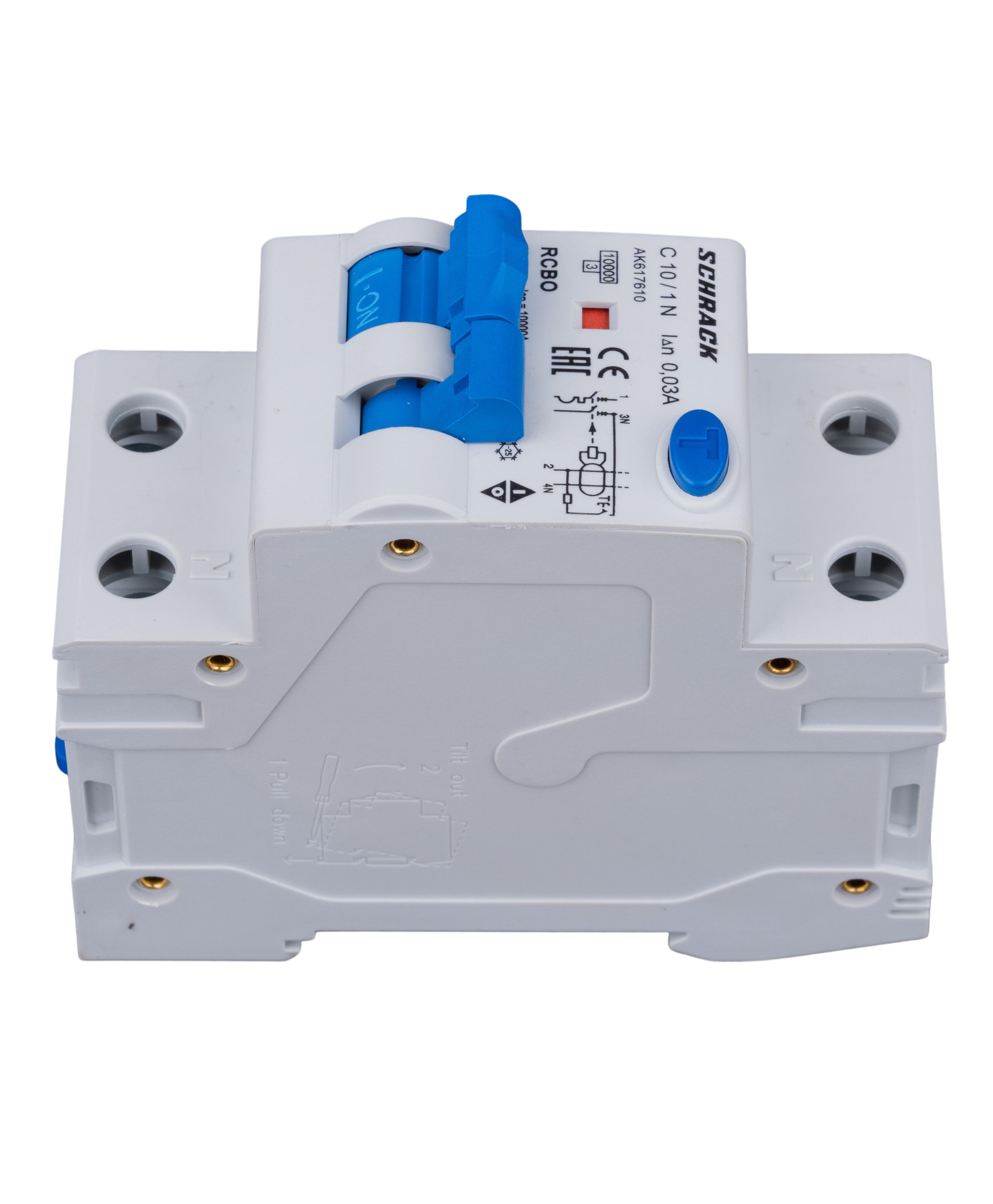

- Photo 7: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)

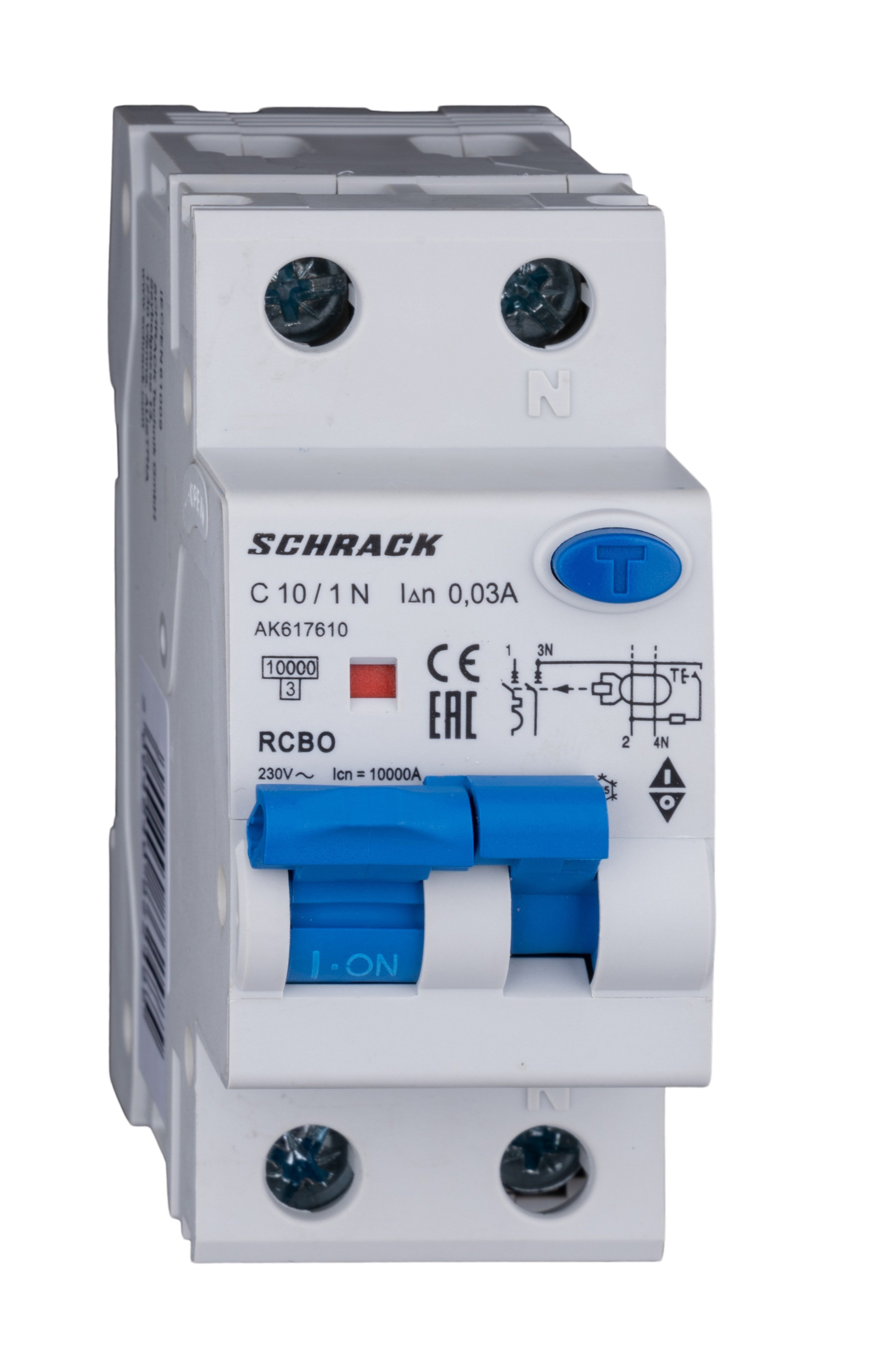

- Photo 8: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 646 KB)
- Photo 9: Automatic circuit breaker with RCD C10А/1+N, 10kA, 30mA, type A (JPG, 592 KB)
