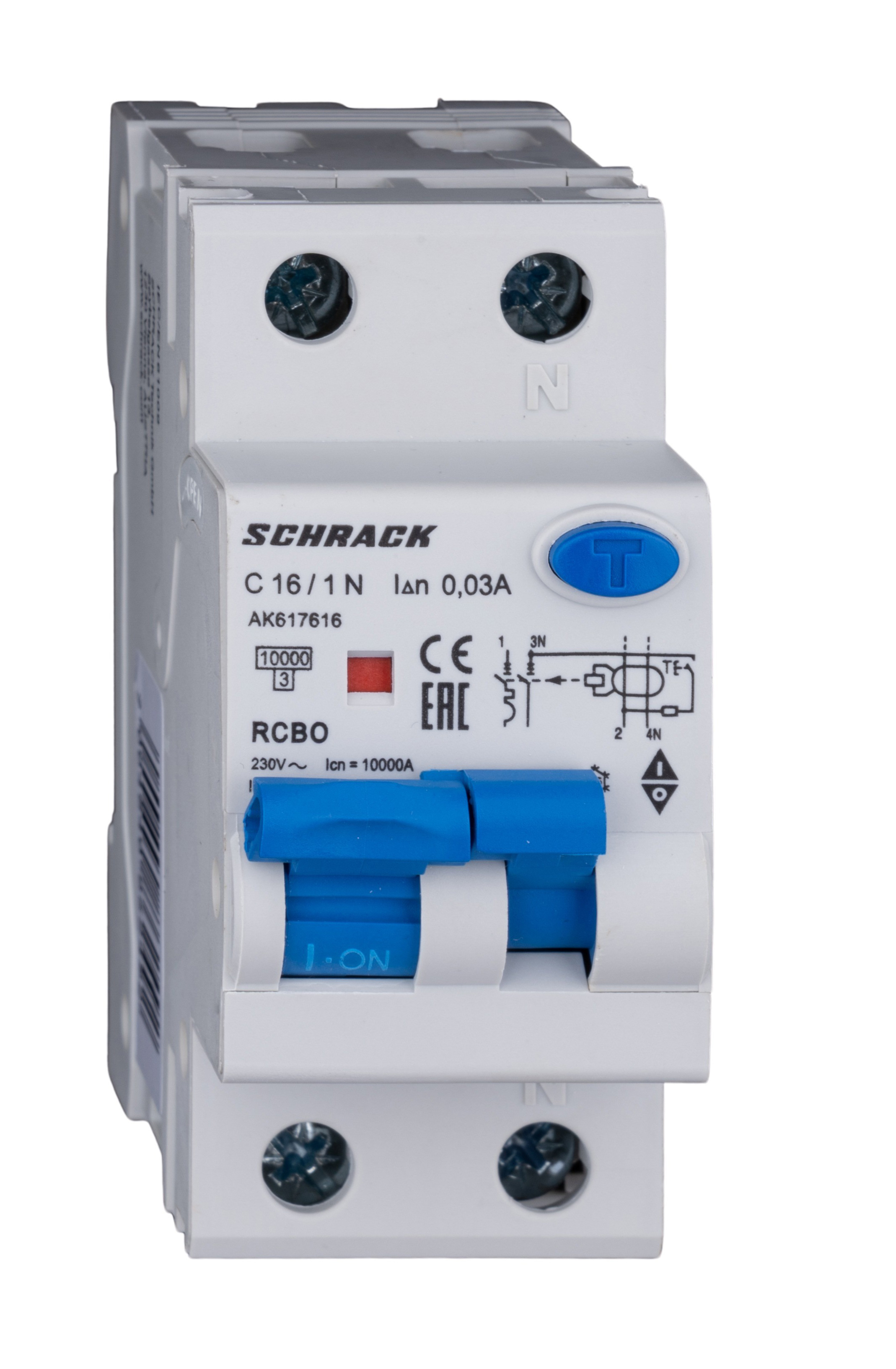

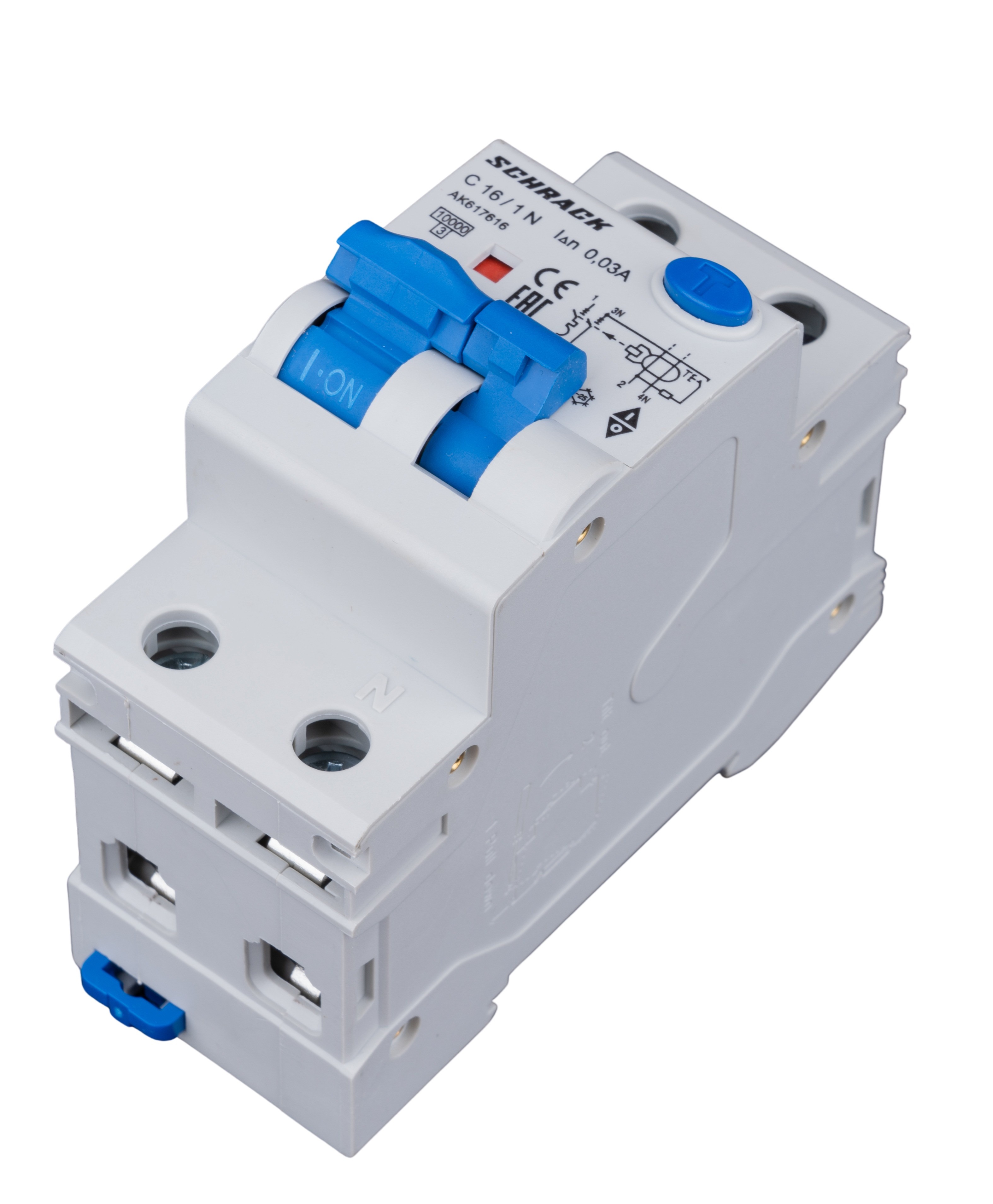

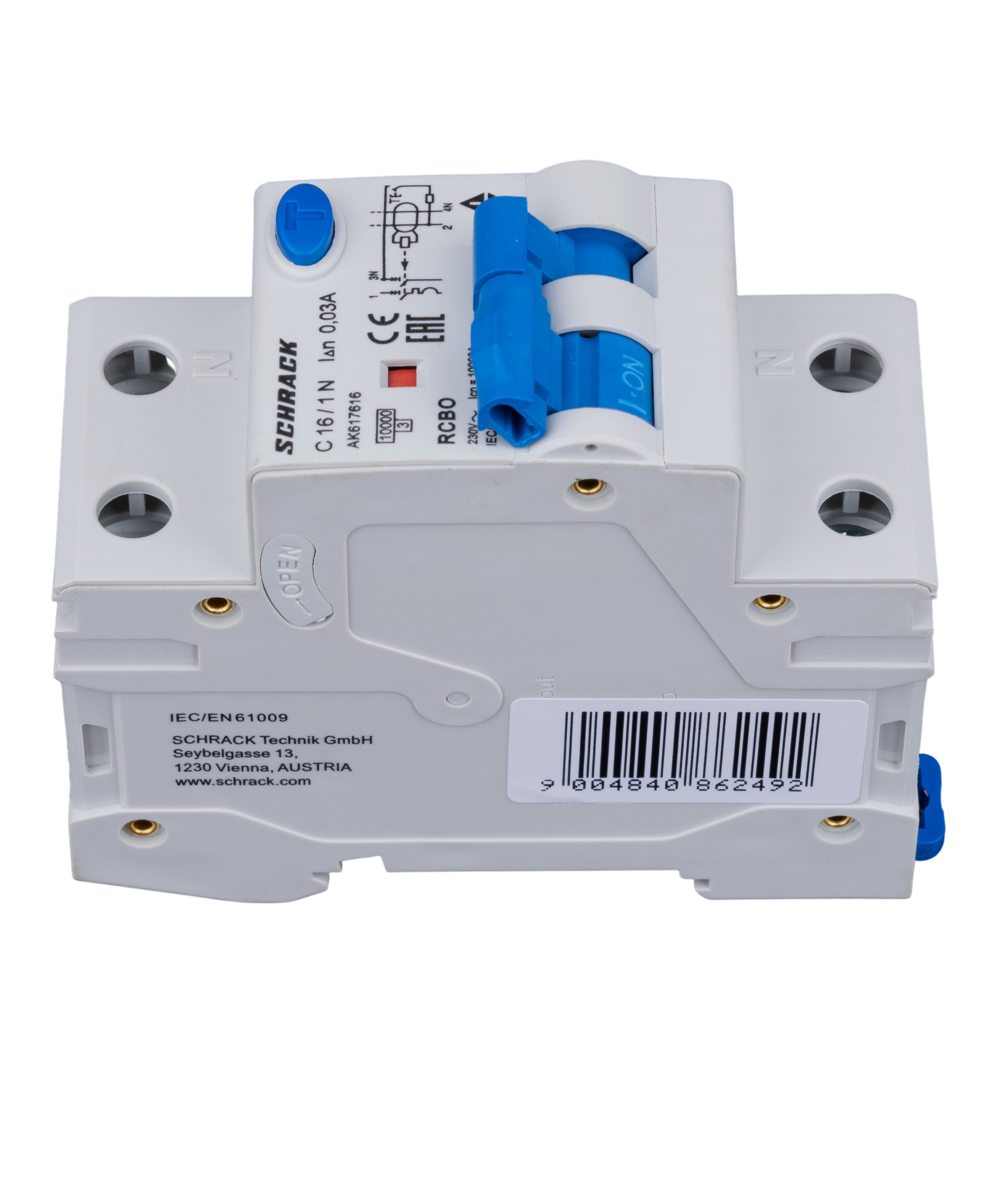

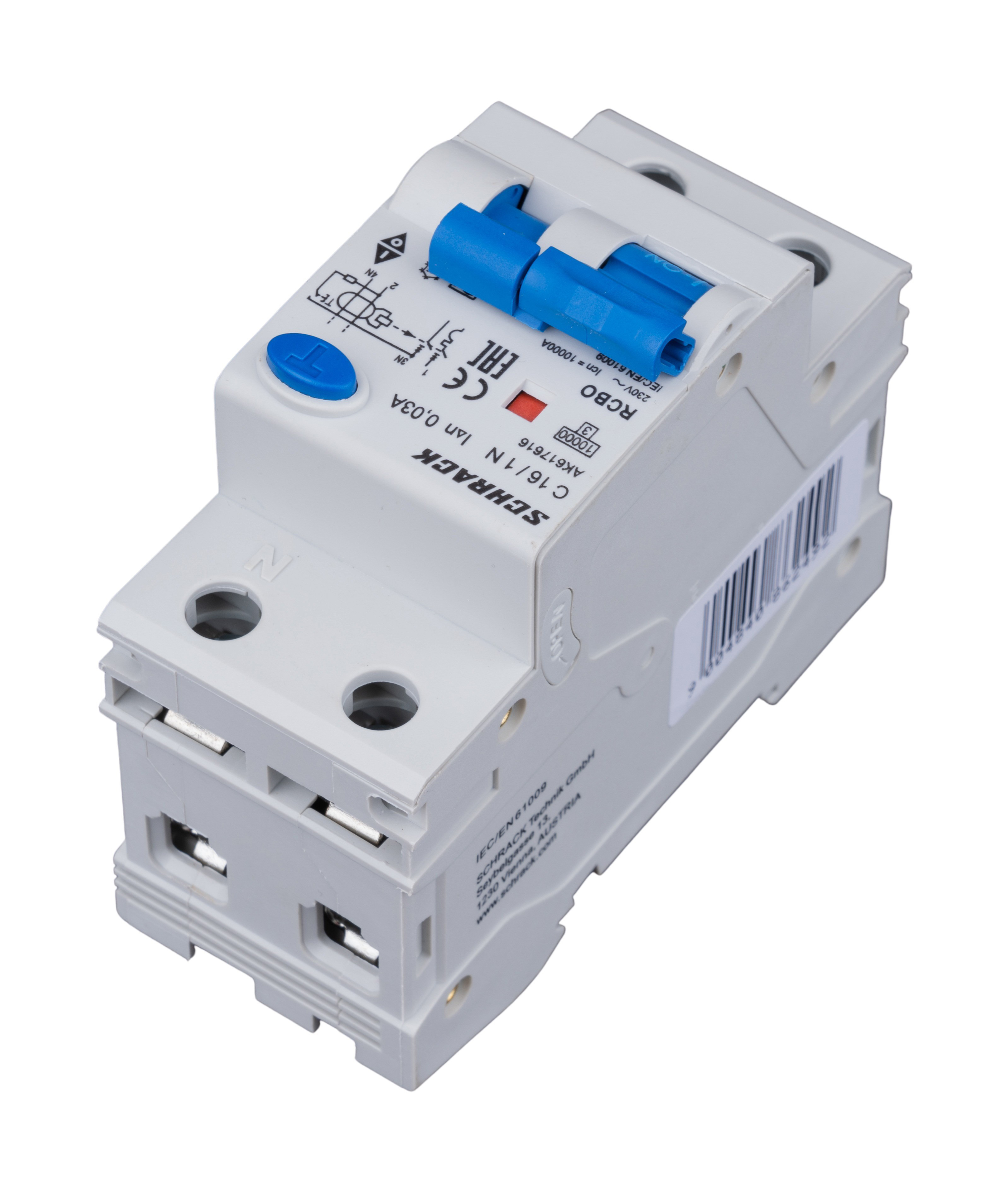

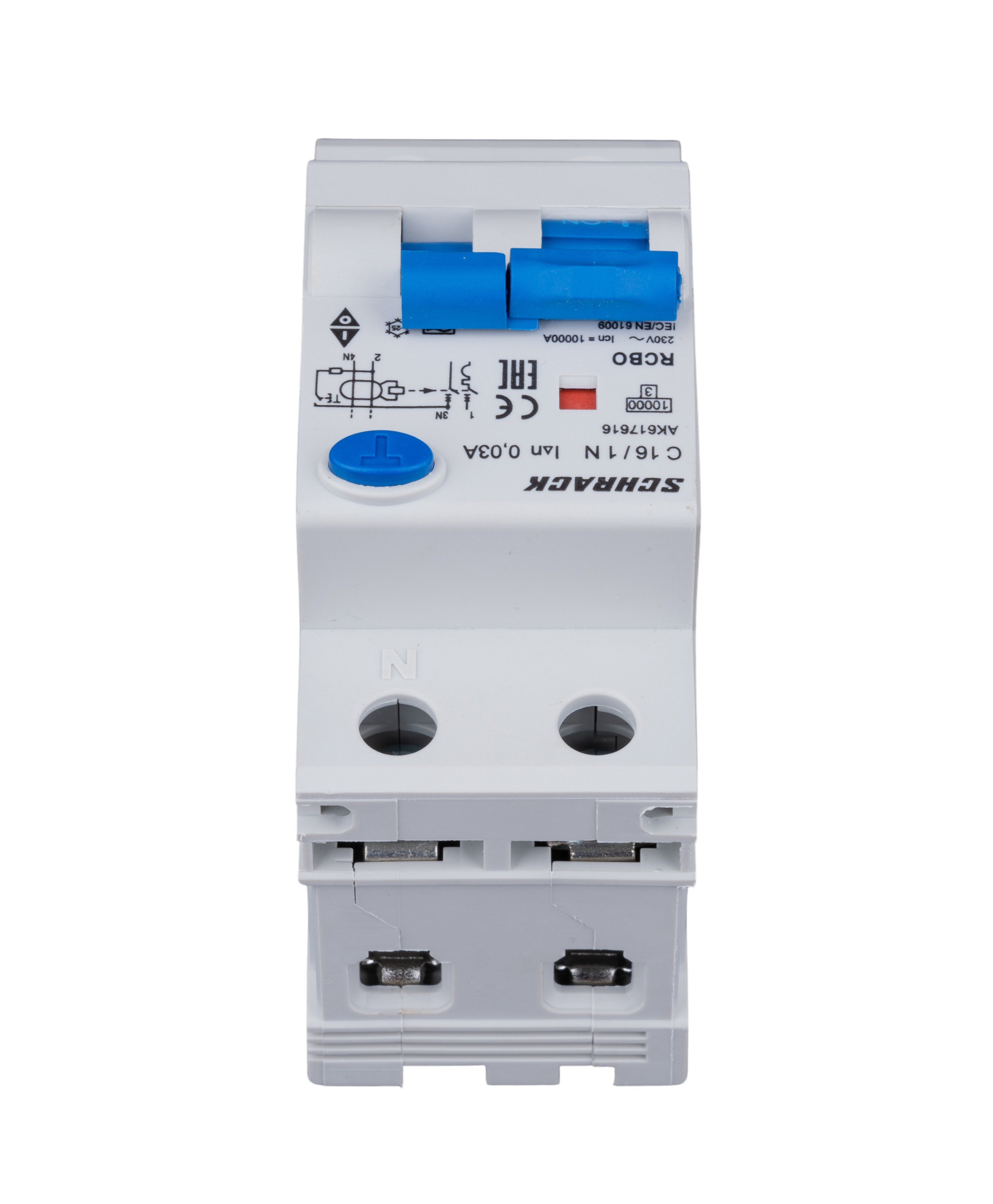

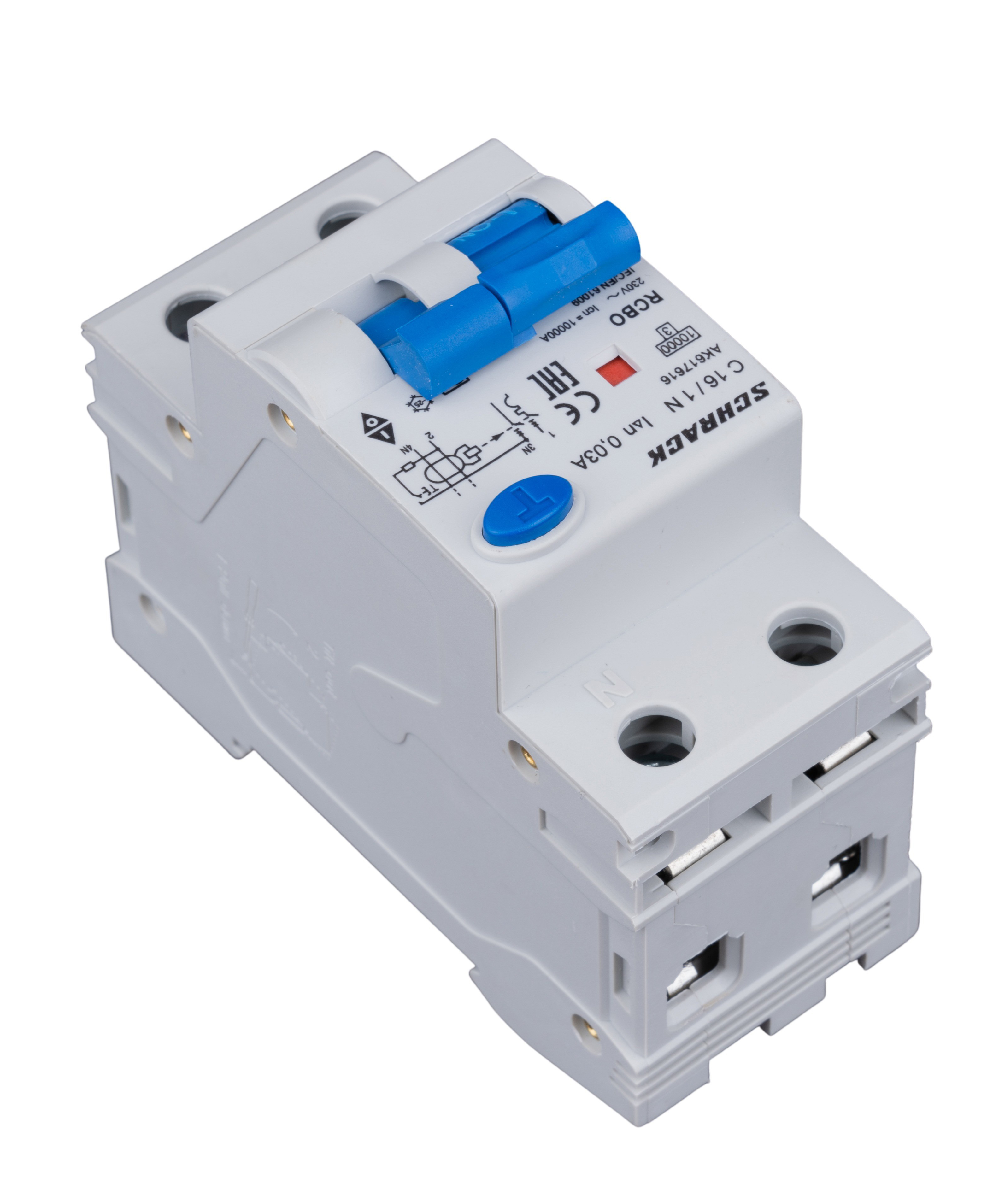

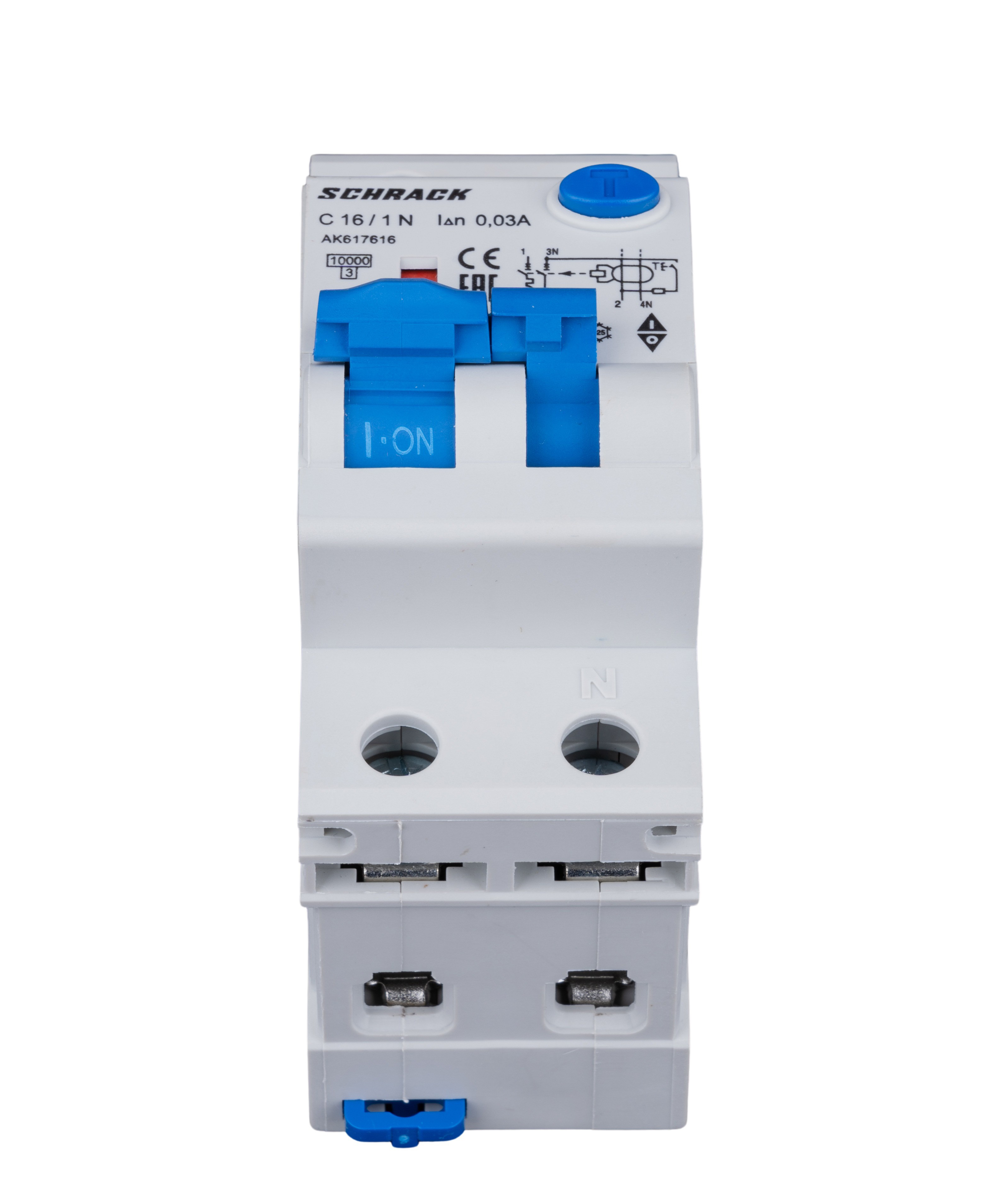

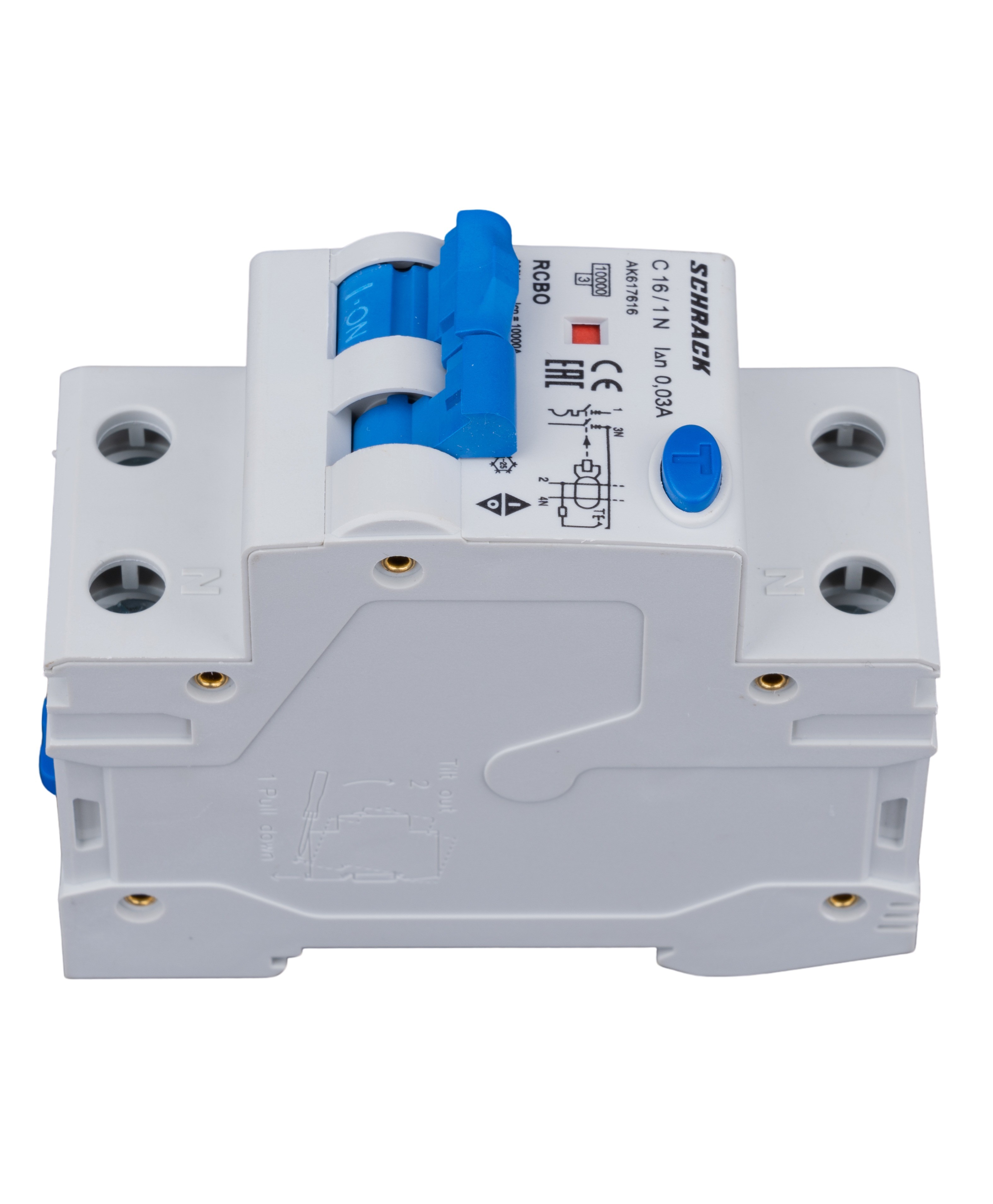

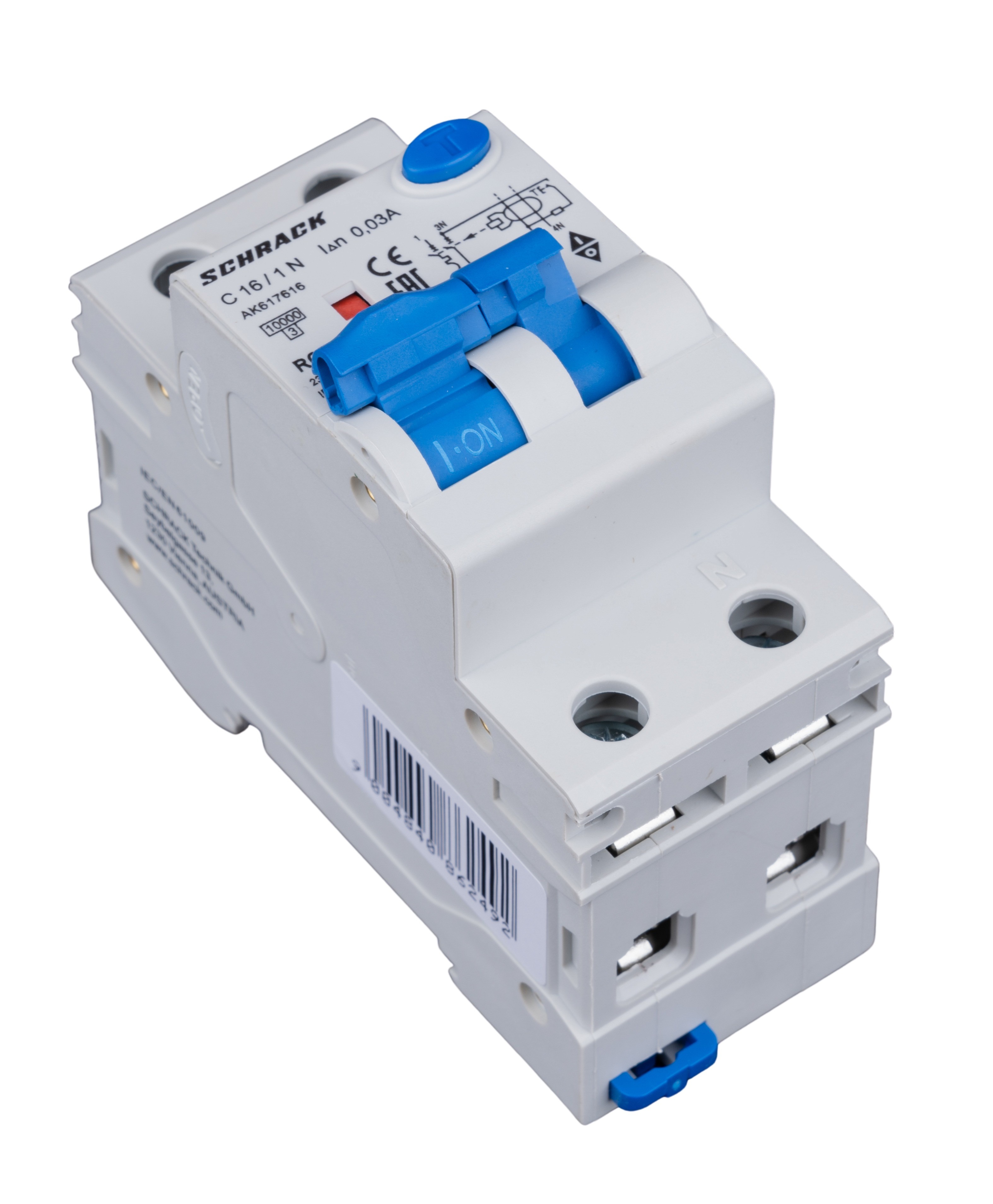

Automatic Circuit Breaker with RCD C16A/1+N, 10kA, 30mA, Type A

Combined automatic circuit breaker with integrated residual current device (RCD). Designed to protect electrical circuits from overloads, short circuits, and hazardous earth leakage currents.

Key Characteristics:

• Nominal Current: 16 A
• Pole Configuration: 1+N (single pole with neutral)
• Switching Capacity: 10 kA
• Tripping Characteristic: C (for circuits with moderate inrush currents)
• Rated Sensitivity of Leakage Current: 30 mA
• Sensitivity Type: A (responds to pulsating and alternating leakage currents)
• Operating Speed: instantaneous

Operating Conditions:

• Ambient temperature range: -25°C to +60°C
• Power loss: 4.12 W

Standards Compliance:

The device is designed in accordance with European and international standards EN 61009-1:2012 and EN 61009-2-1:1994 with subsequent amendments, as well as IEC 61009-1 and IEC 61009-2-1.

Construction:

Modular design, suitable for installation in standard distribution boxes on DIN rails. Part of the AMPARO series manufactured by Schrack, a reliable European electrical equipment manufacturer.

Dimensions and Weight:

• Length: 77 mm
• Width: 36 mm
• Height: 85 mm
• Net Weight: 0.21 kg
