Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A
Article: AK617625--
22 980 ₸
In stock
Automatic circuit breaker with integrated residual current protective device (RCD), designed to protect electrical circuits from overloads, short circuits, and leakage currents to earth.
Main technical parameters:
- Rated current: 25 A
- Configuration: 1 pole + neutral (1+N)
- Rated sensitivity of RCD: 30 mA
- Tripping type: A (sensitive to alternating and pulsating direct current)
- Disconnection characteristic: C (for general purpose circuits and mixed loads)
- Switching capacity: 10 kA
- Disconnection time: instantaneous
Operating conditions:
- Temperature range: from -25°C to +60°C
- Power consumption: 7.98 W
Physical dimensions and weight:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Net weight: 0.21 kg
Compliance with standards:
The device complies with European and international standards: EN 61009-1:2012 + amendments A1:2014, A2:2014, A11:2015, A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Manufacturer: Schrack (AMPARO series)
Packaging: 1 pc., 90 pcs.
| EAN code | 9004840862515 |
|---|---|
| Net length | 77.00 mm |
| Net width | 36.00 mm |
| Net height | 85.00 mm |
| Net weight | 0.21 kg |
| Power loss | 7.98 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (sensitivity) | A (sensitive to pulsating current) |
| Type (time) | instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | C |
| Pole | 1+N |
| Switching capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pc., 90 pcs. |

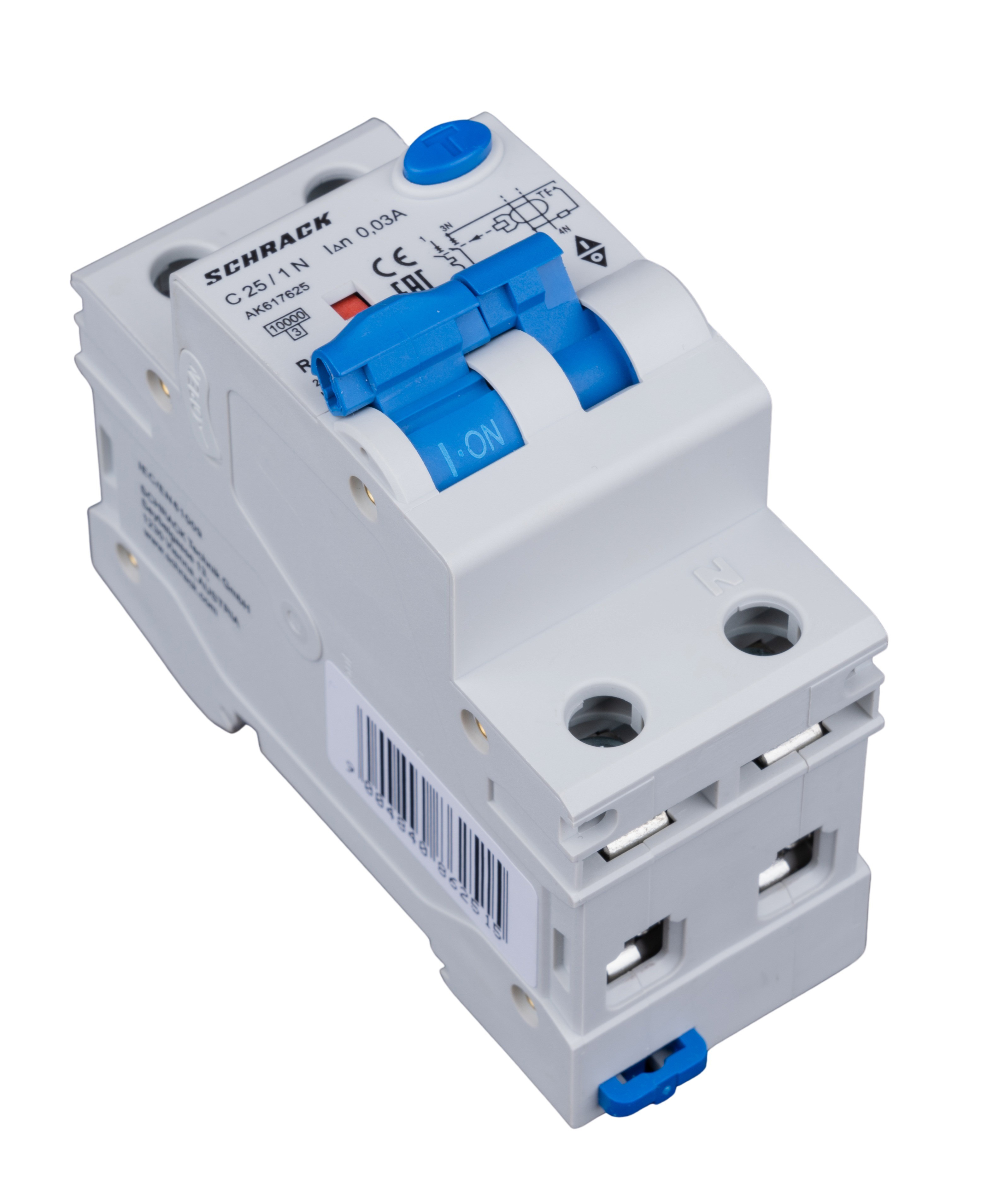

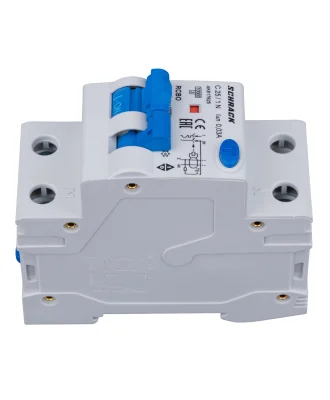

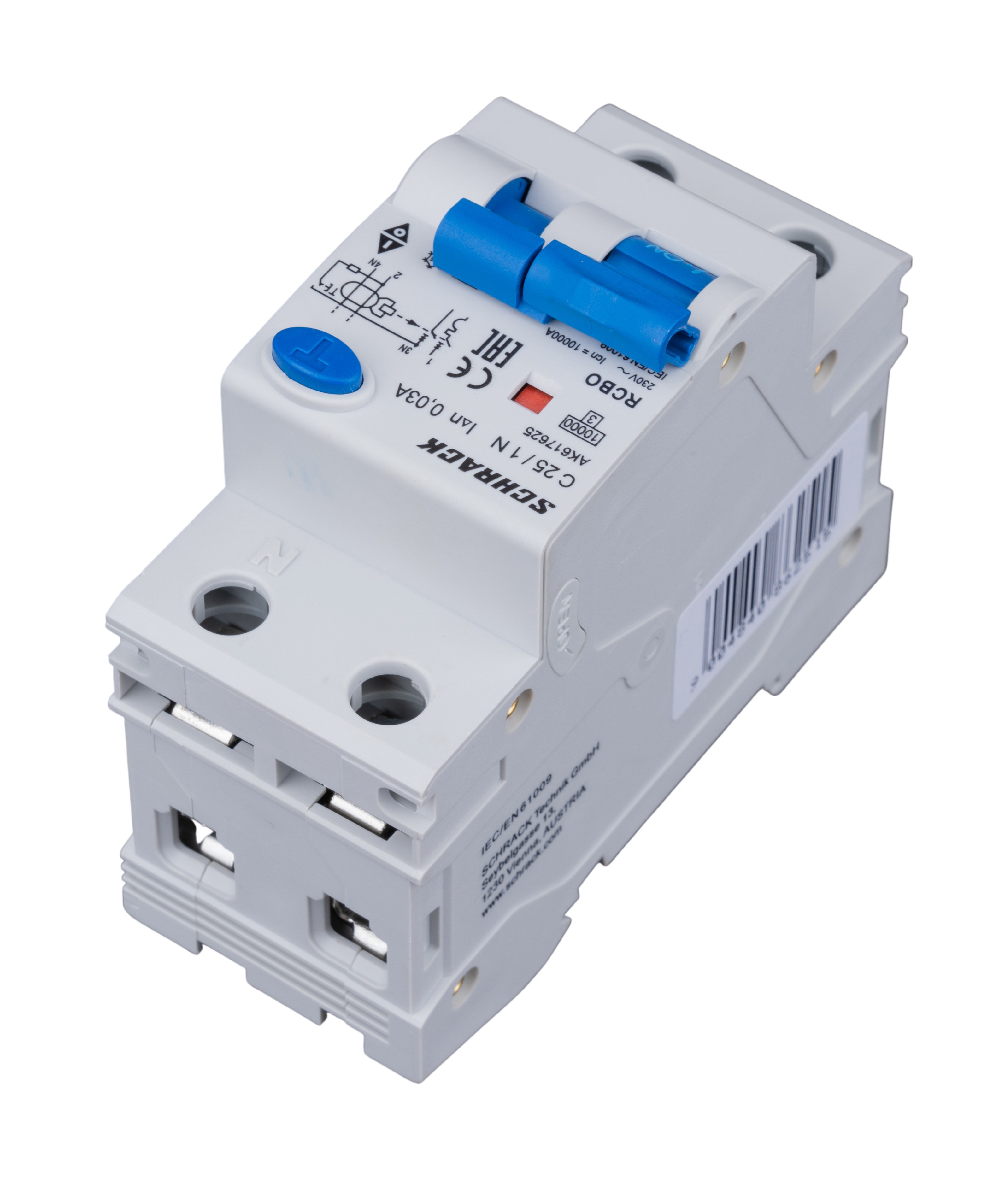

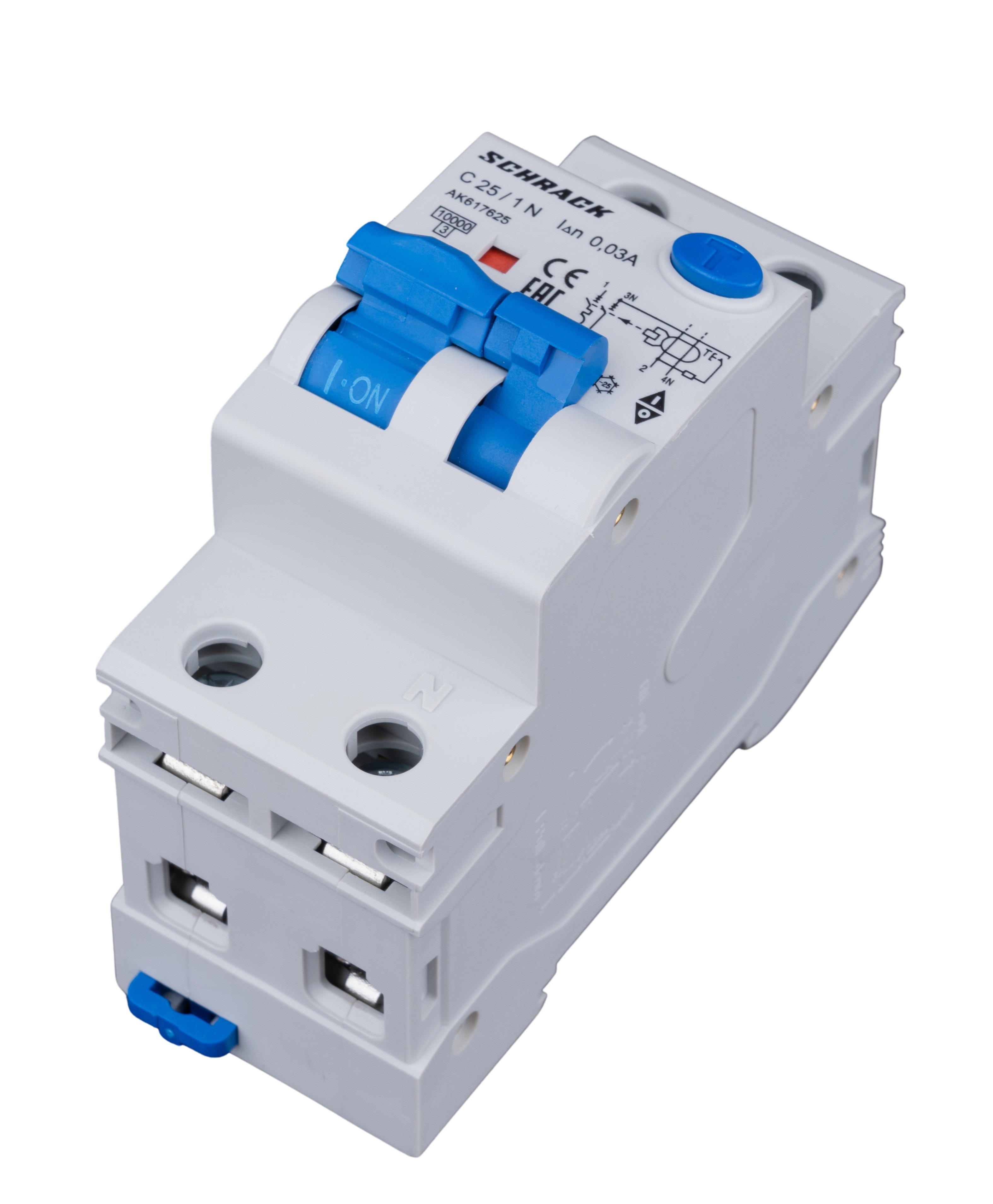

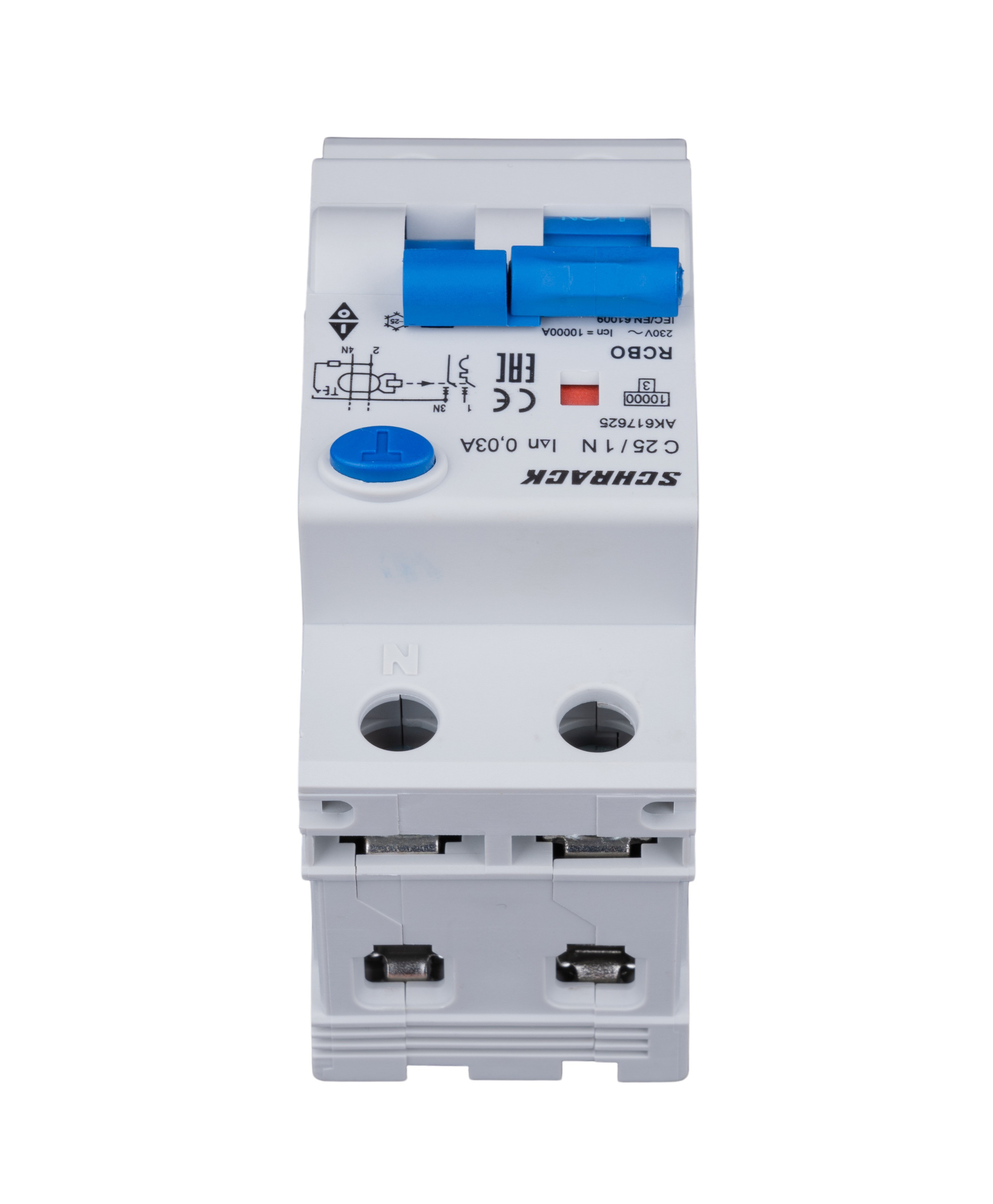

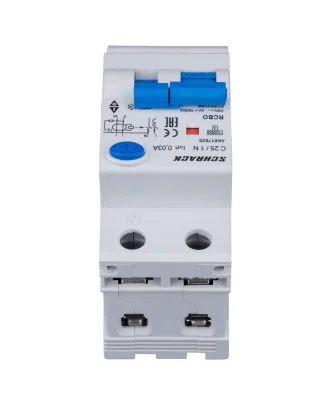

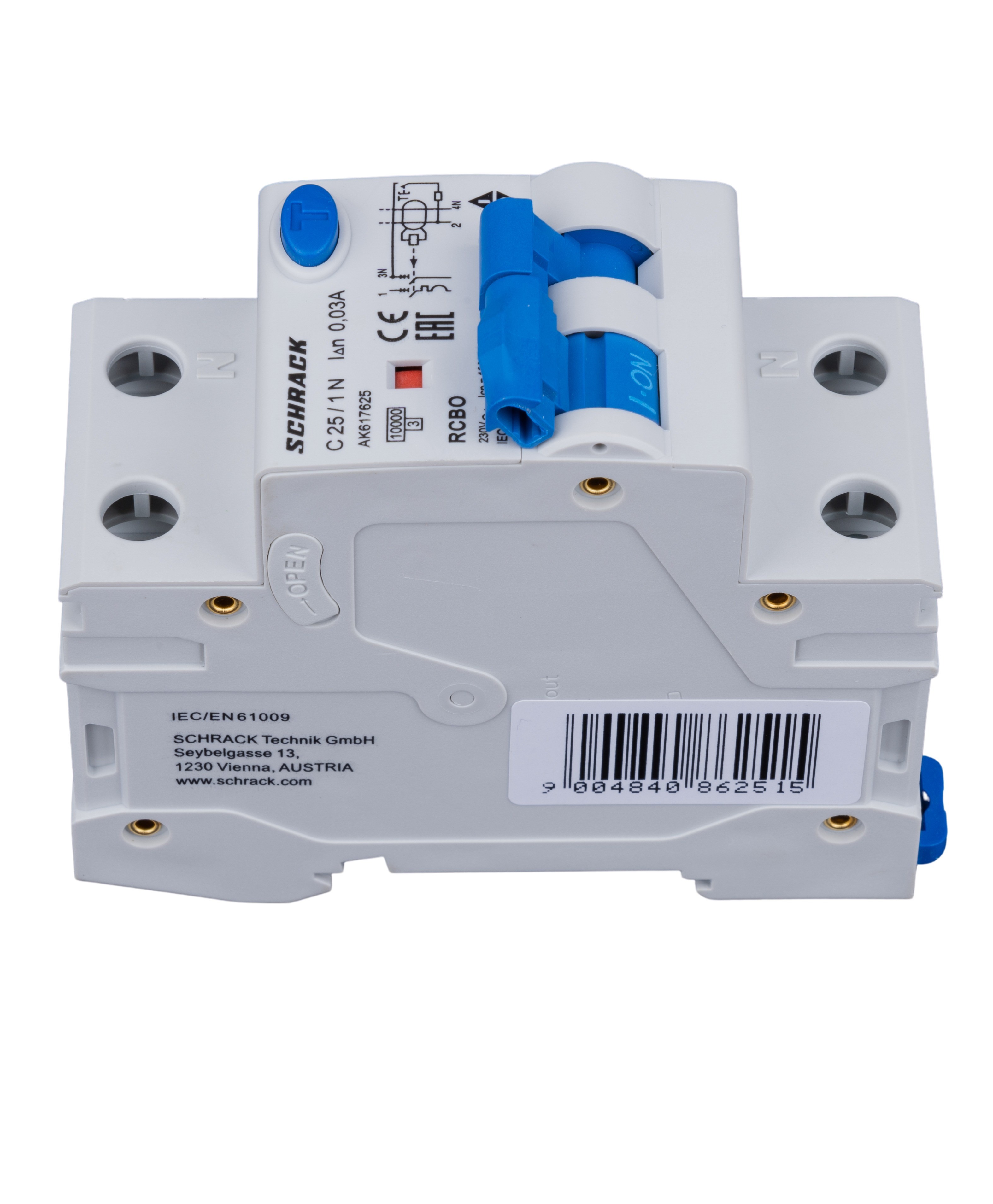

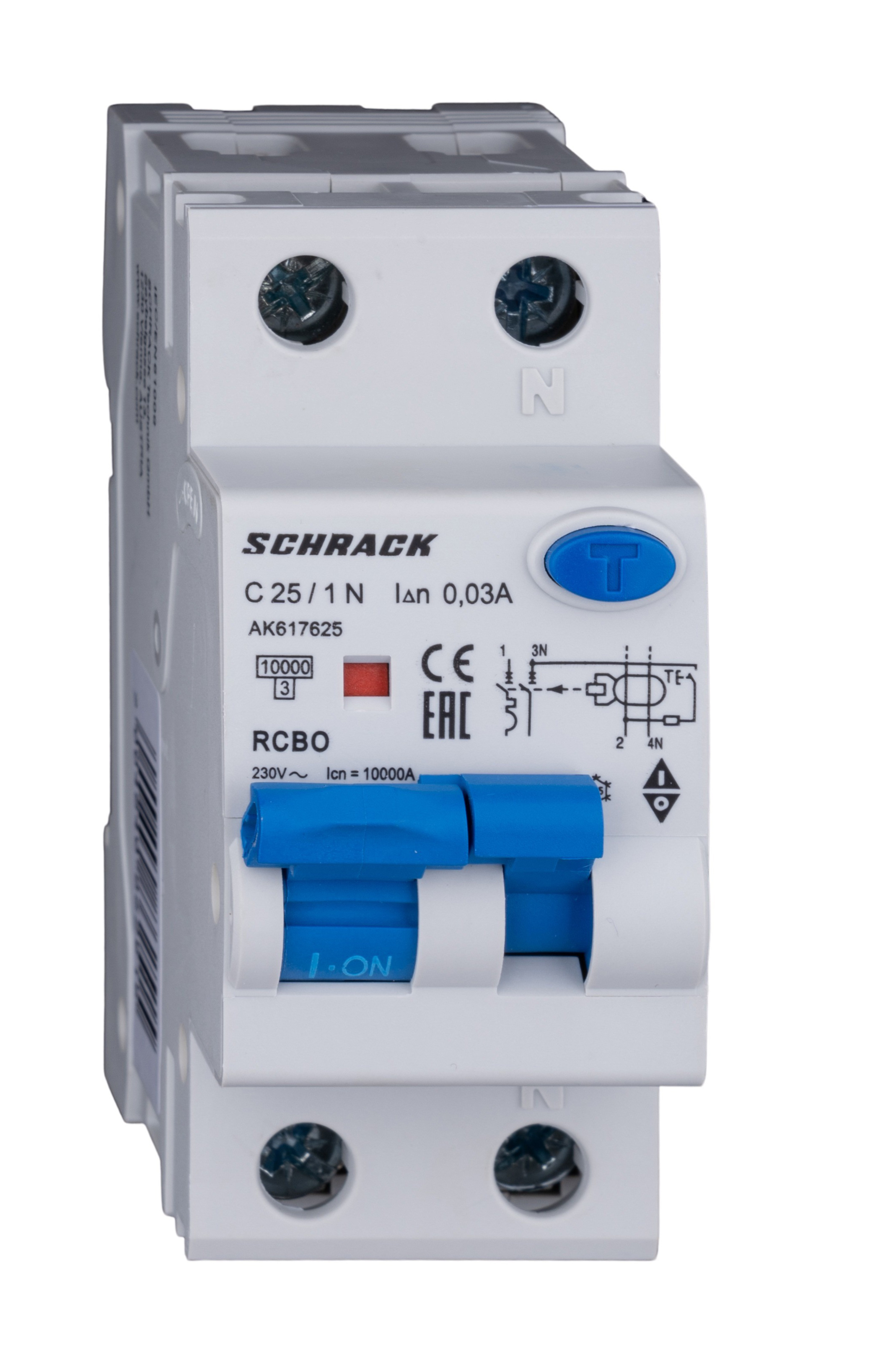

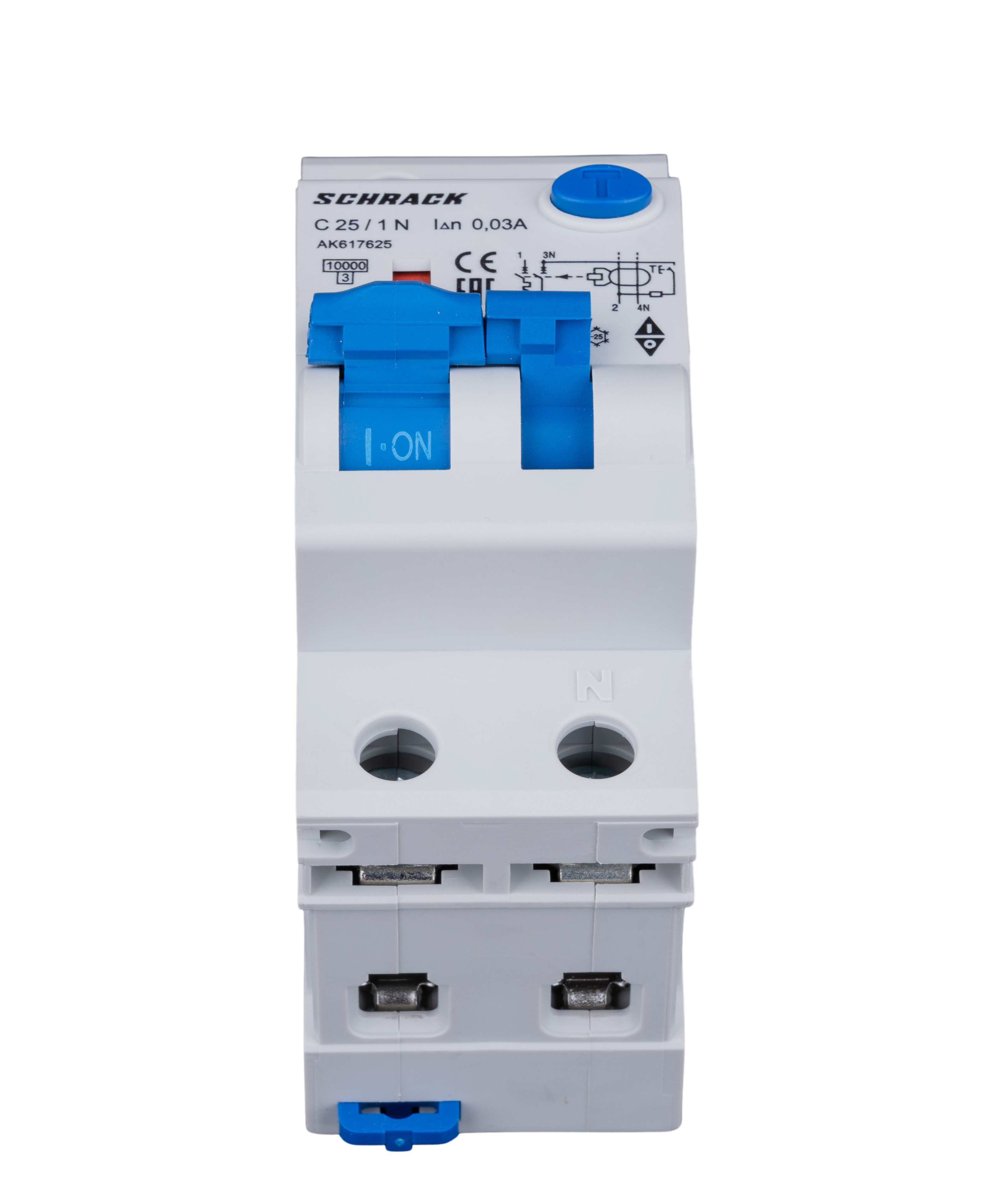

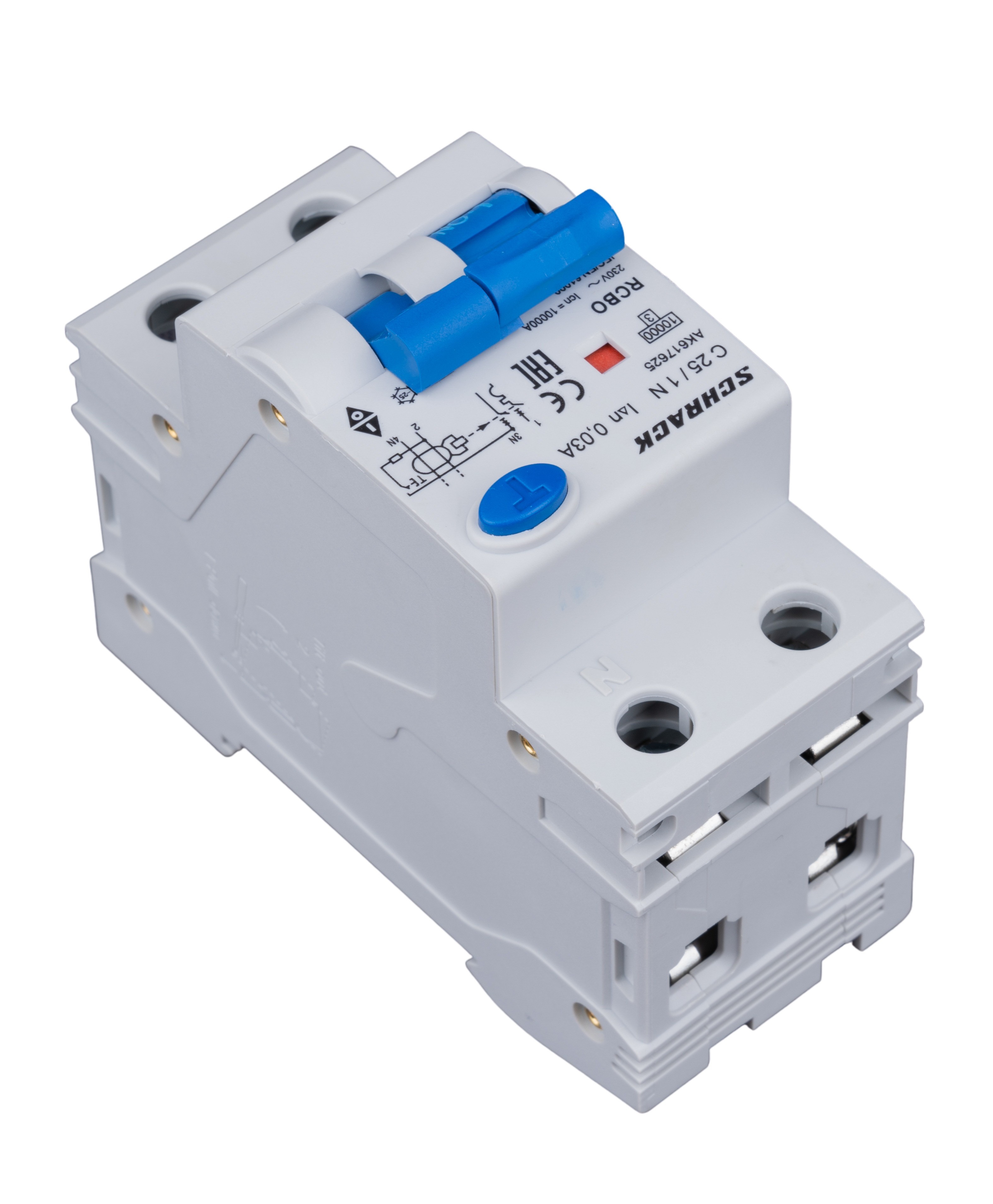

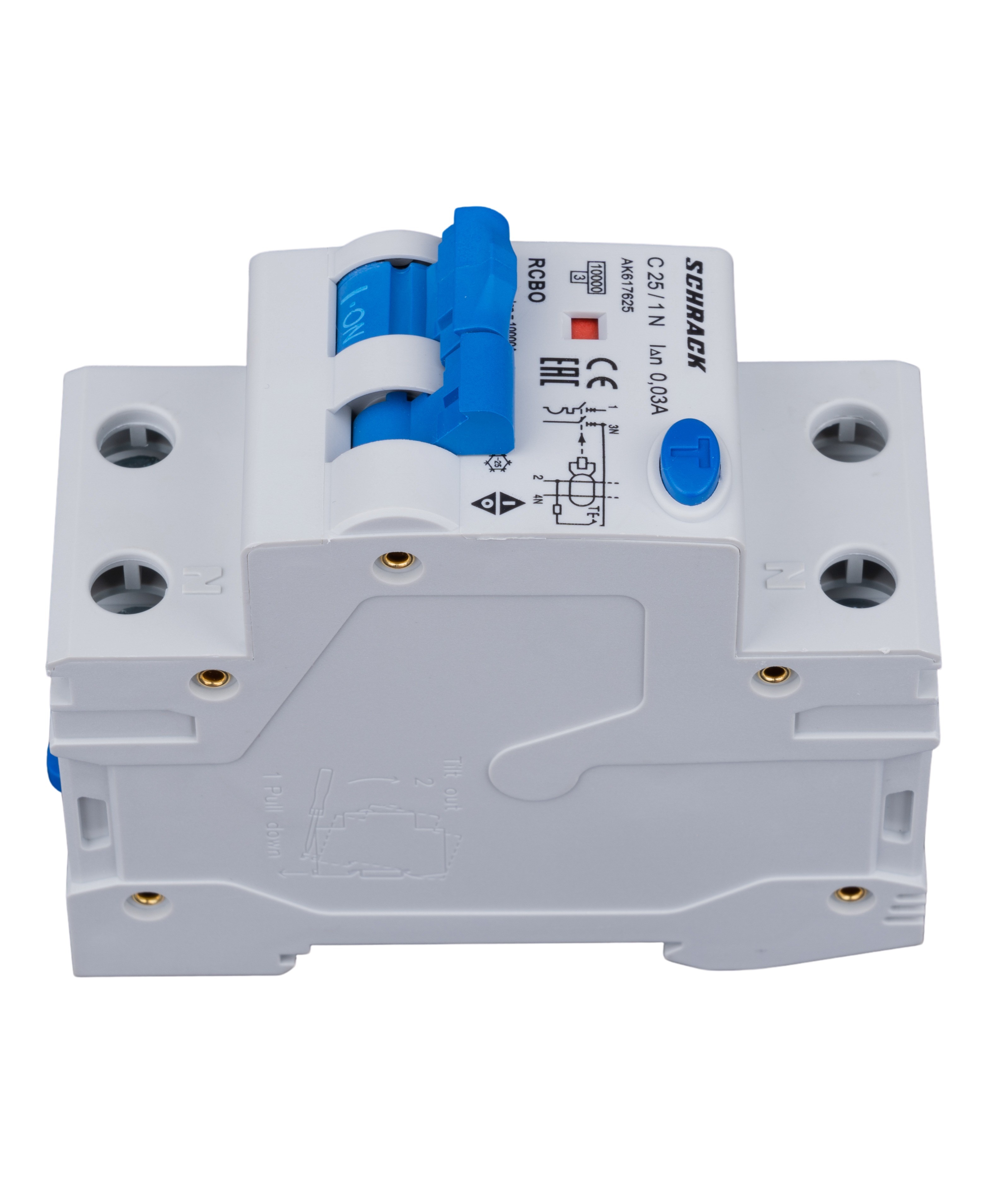

- Photo 1: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)
- Photo 2: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 864 KB)
- Photo 3: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)
- Photo 4: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 744 KB)
- Photo 5: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 1.1 MB)
- Photo 6: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 814 KB)
- Photo 7: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 612 KB)
- Photo 8: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 649 KB)
- Photo 9: Automatic circuit breaker with RCD C25A/1+N, 10kA, 30mA, type A (JPG, 601 KB)
