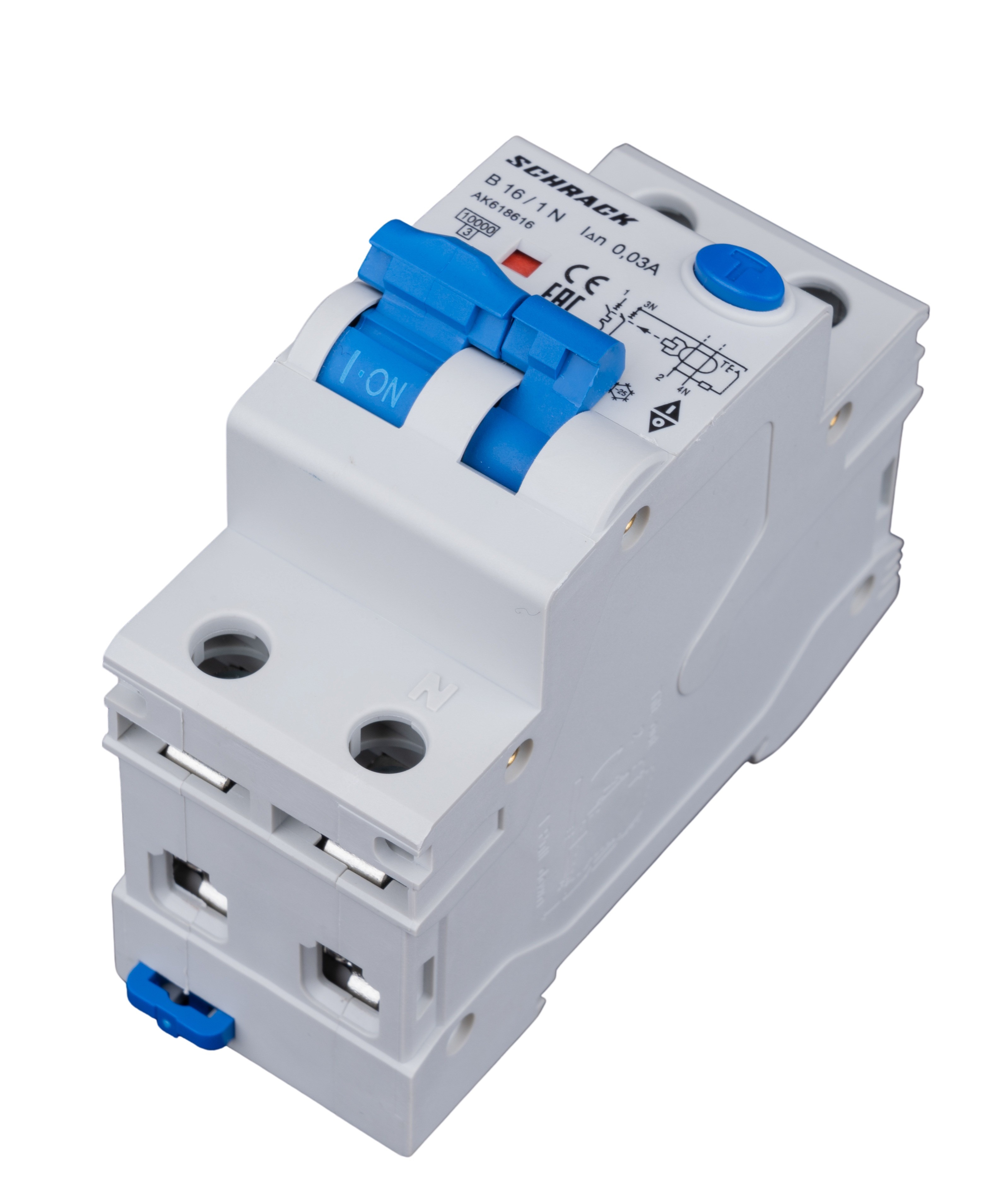

Automatic circuit breaker with RCD B16A/1+N, 10kA, 30mA, type A
Article: AK618616--
22 980 ₸
In stock
Automatic circuit breaker with integrated RCD (Residual Current Device) from the AMPARO series by Schrack is designed to protect electrical circuits from overloads, short circuits, and leakage currents.
Key characteristics:
- Nominal current: B16A
- Pole configuration: 1+N (single-phase network with neutral conductor)
- Breaking capacity: 10 kA
- Nominal sensitivity of RCD: 30 mA
- RCD type: A (responds to both direct and pulsating sinusoidal current)
- Trip characteristic: B (immediate protection against short circuits)
- Operating temperature range: -25°C to +60°C
Technical parameters:
- Power loss: 4.12 W
- Dimensions (LxWxH): 77 × 36 × 85 mm
- Net weight: 0.21 kg
- EAN code: 9004840862546
Standards compliance:
The device is designed and certified in accordance with the requirements of:
- EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016
- EN 61009-2-1:1994 + A11:1998
- IEC 61009-1 and IEC 61009-2-1
Composition and packaging:
Packaging options available: 1 unit or 90 units.
| EAN code | 9004840862546 |
|---|---|
| Length net | 77.00 mm |
| Width net | 36.00 mm |
| Height net | 85.00 mm |
| Weight net | 0.21 kg |
| Power loss | 4.12 W |
| Min ambient temperature | -25°C |
| Max ambient temperature | 60°C |
| Standards | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type (RCD) | A (sensitive to pulsating current) |
| Trip type | immediate |
| Nominal sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 unit, 90 units |

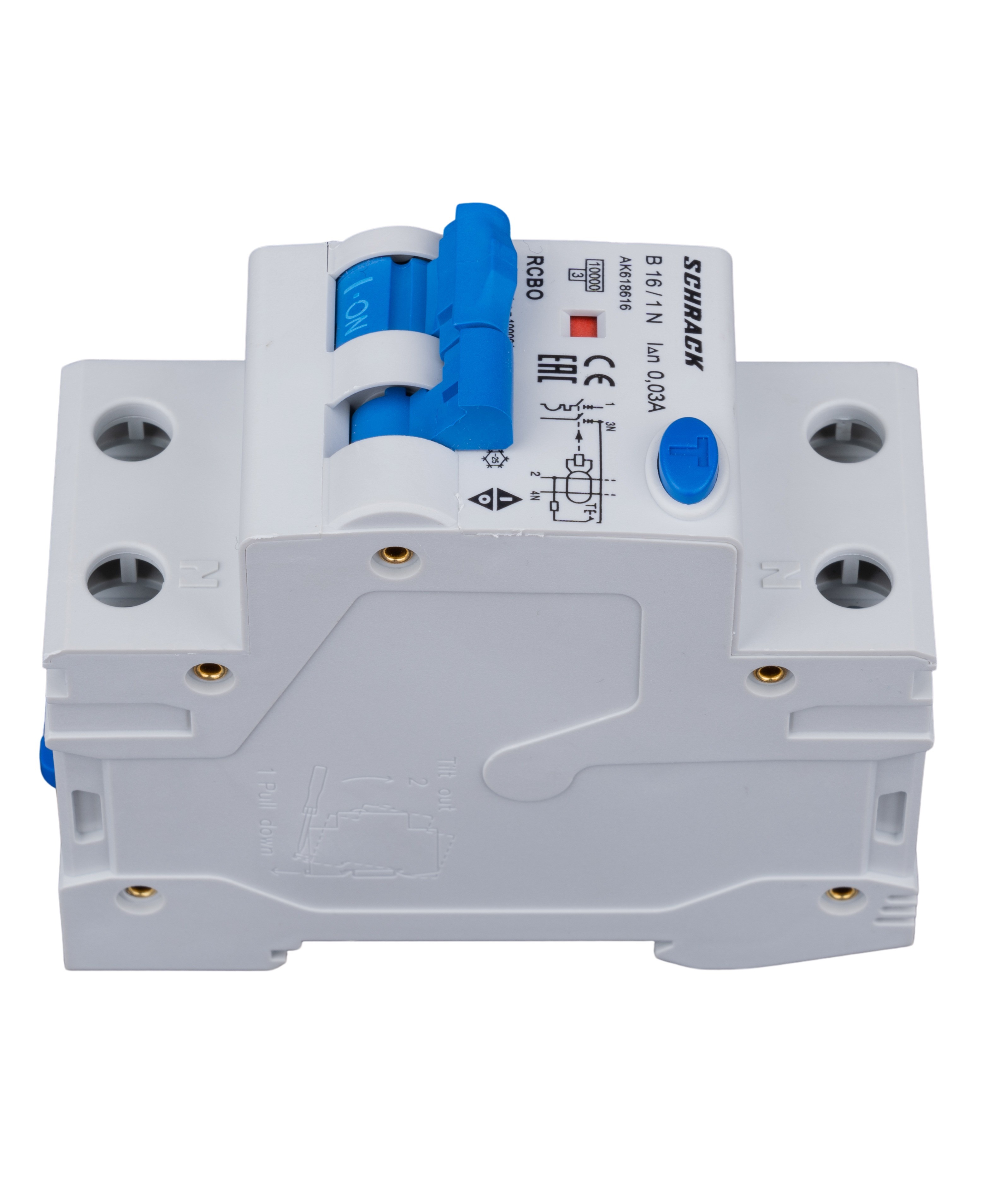

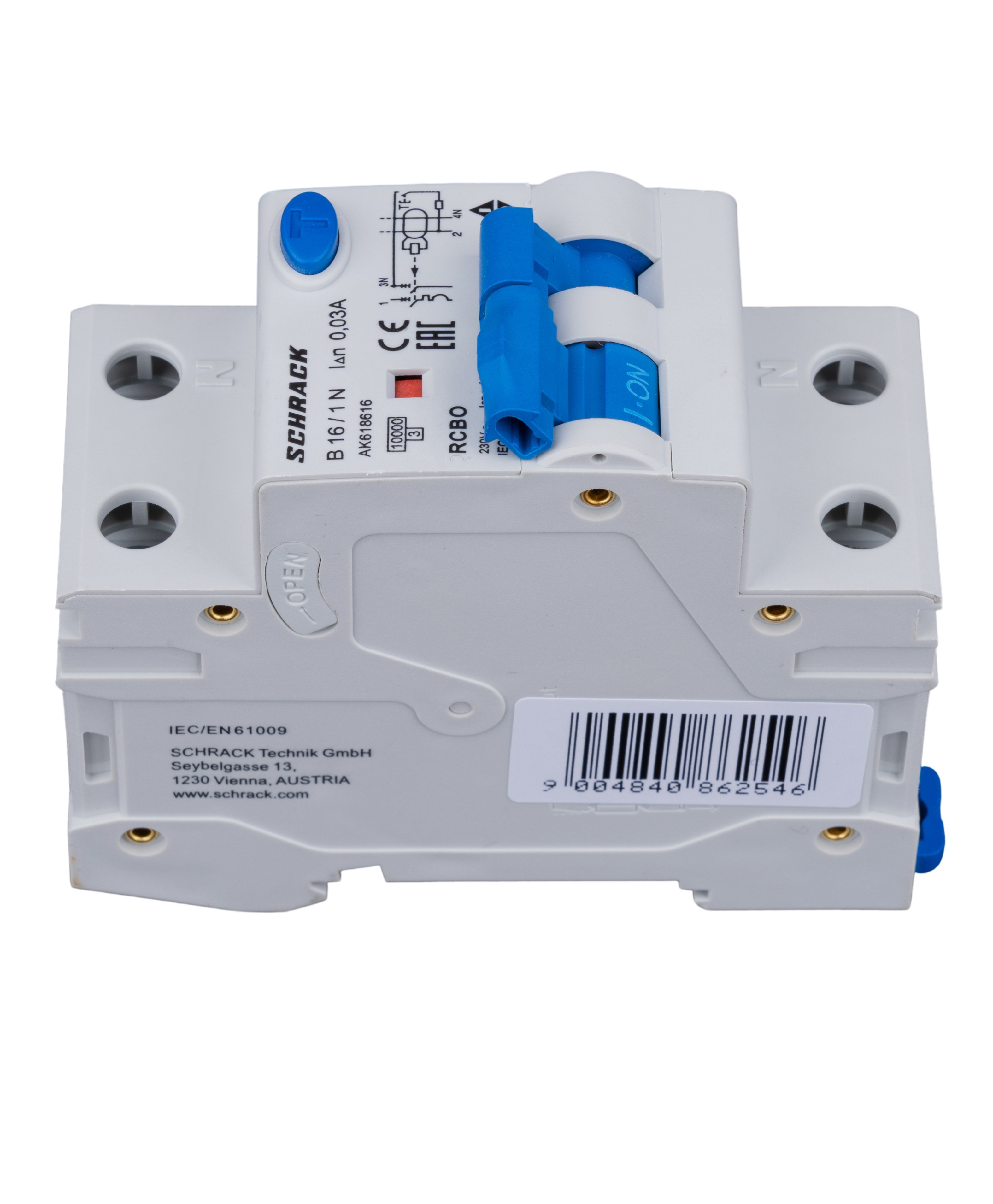

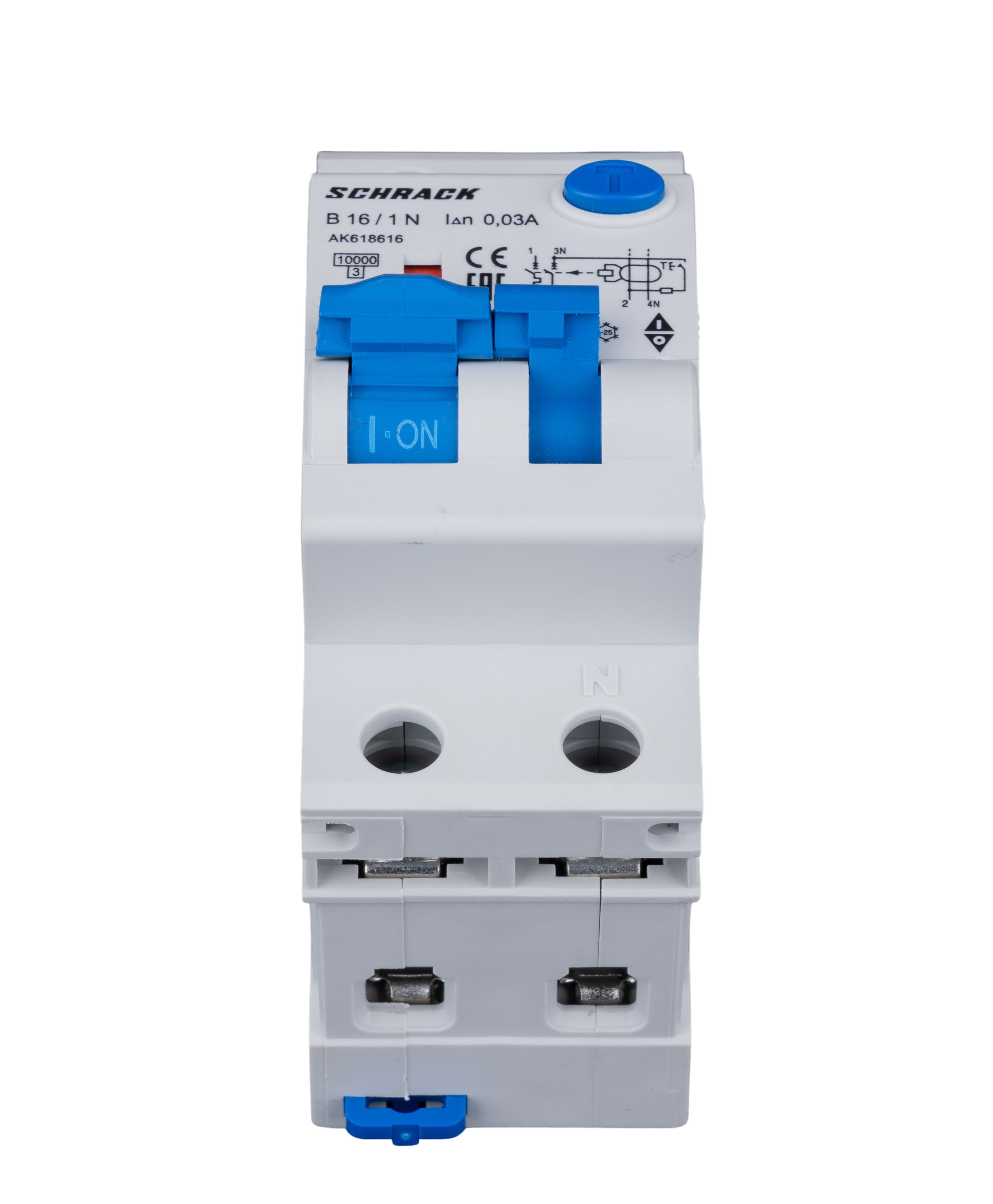

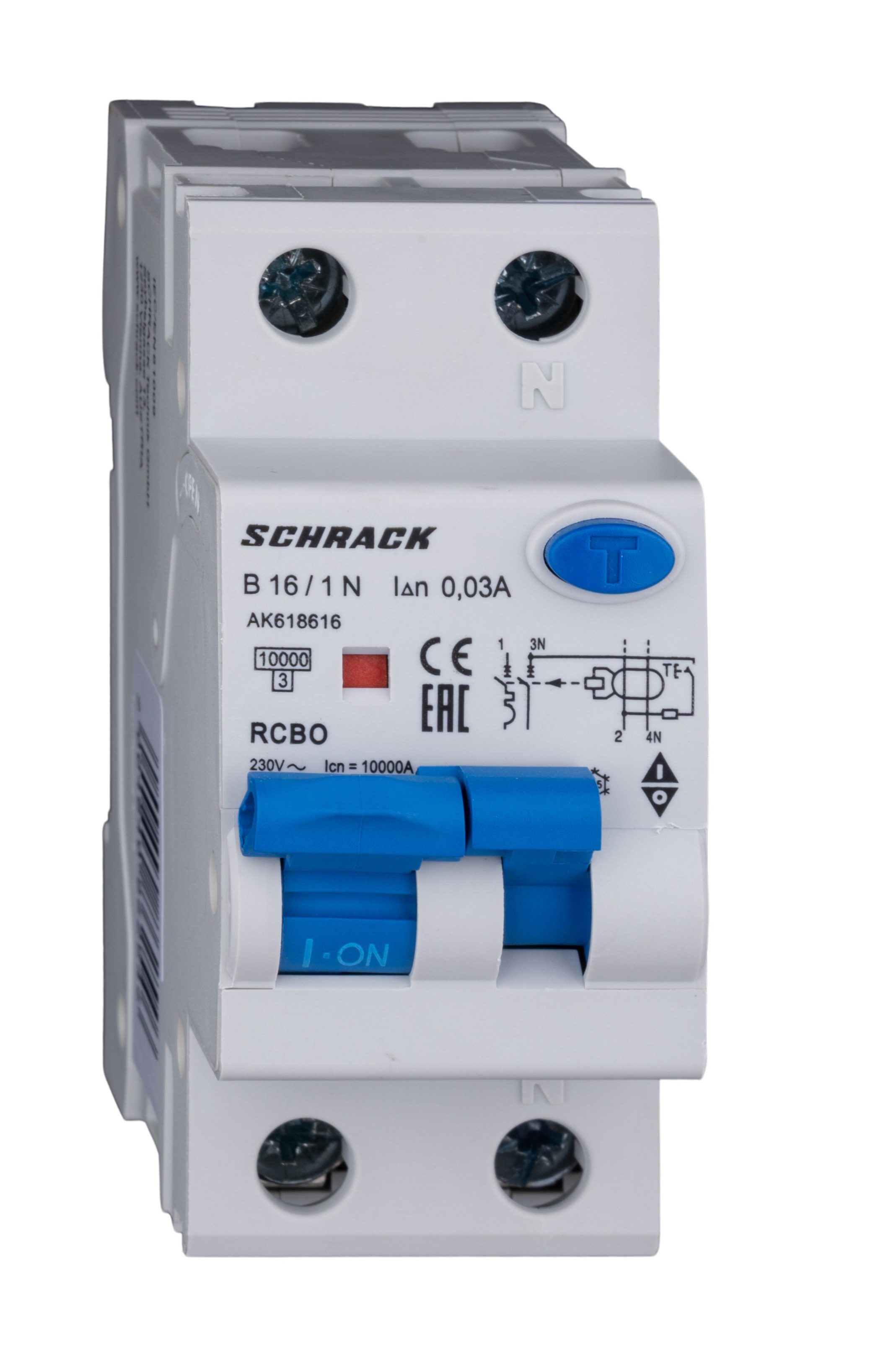

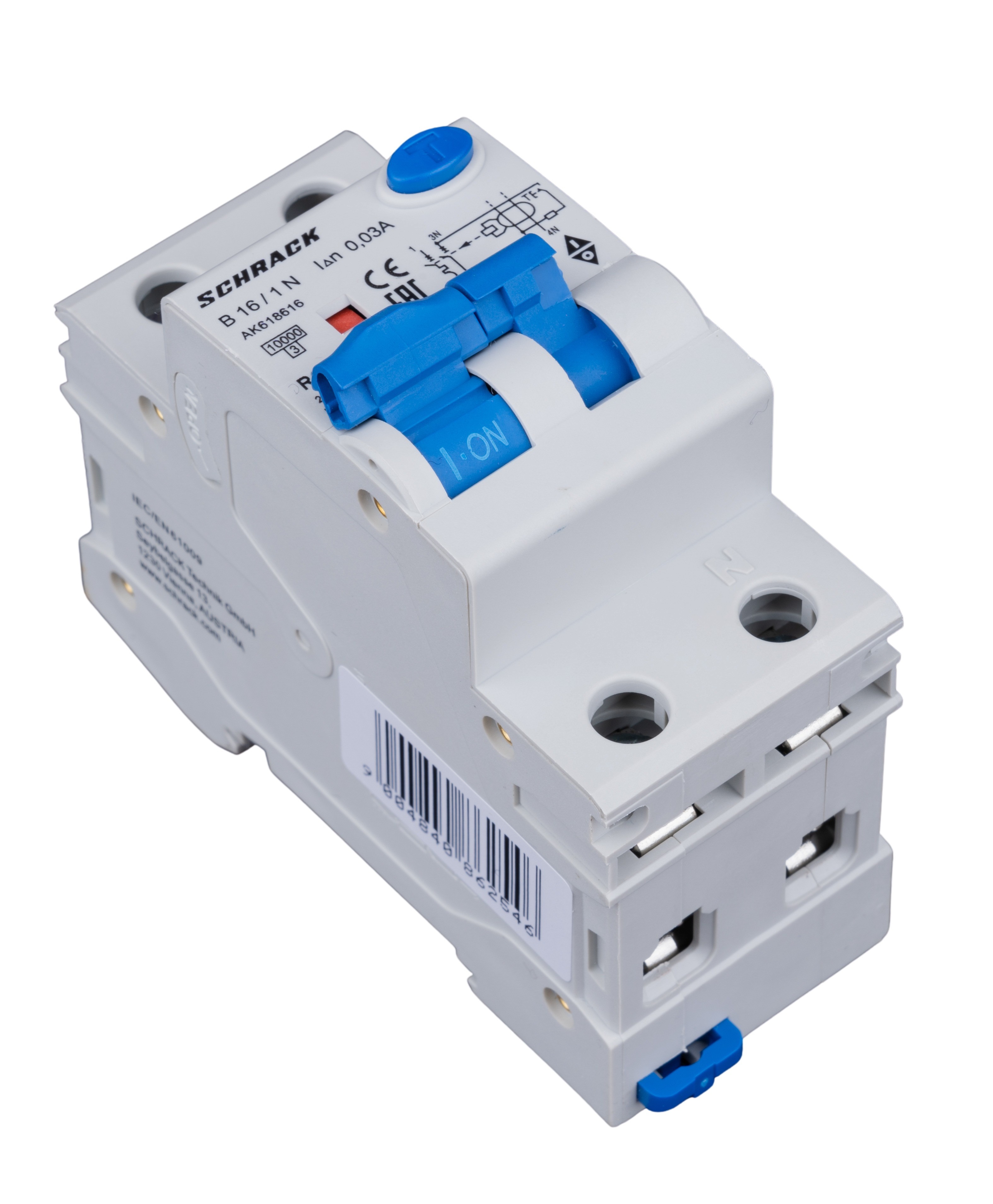

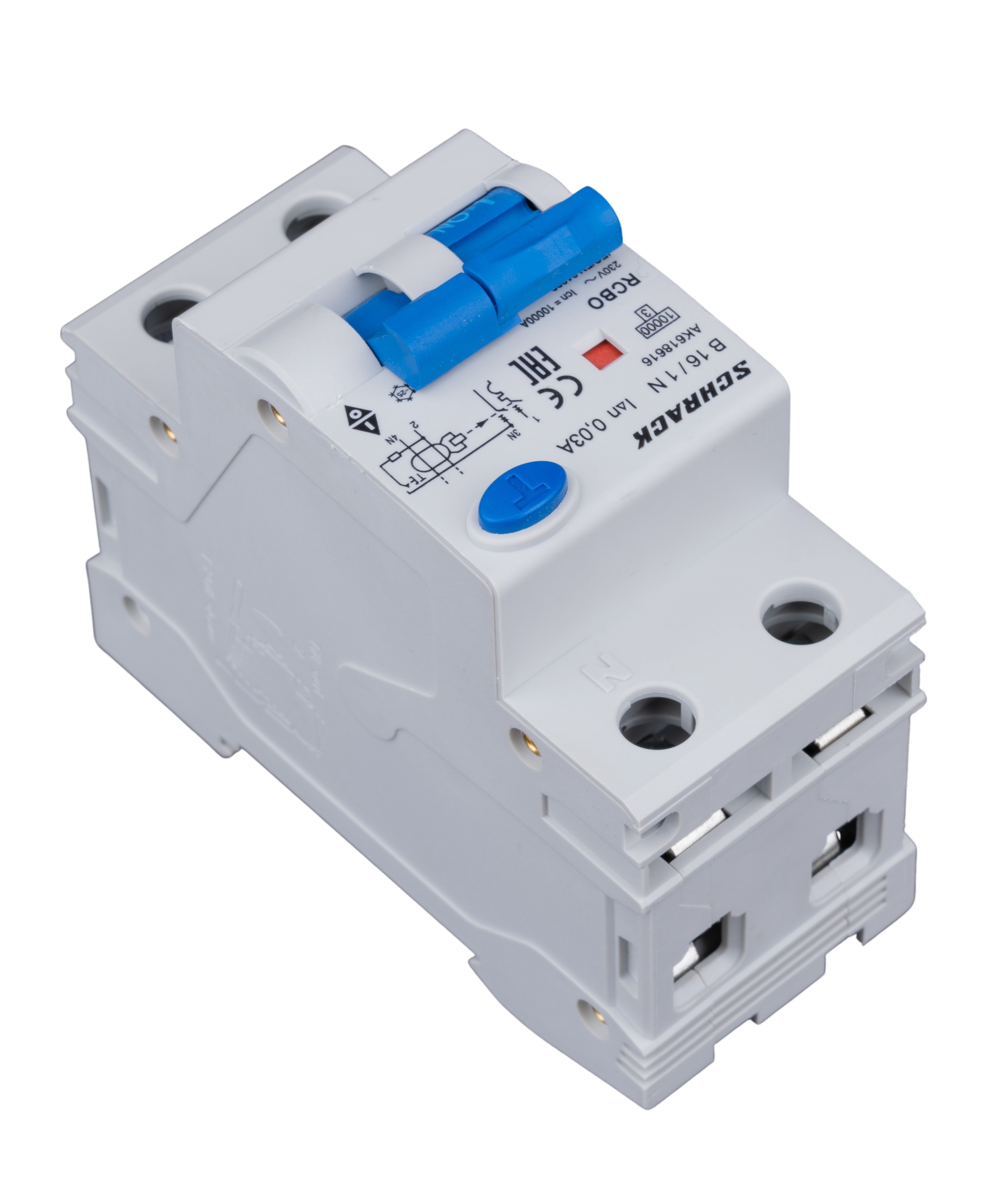

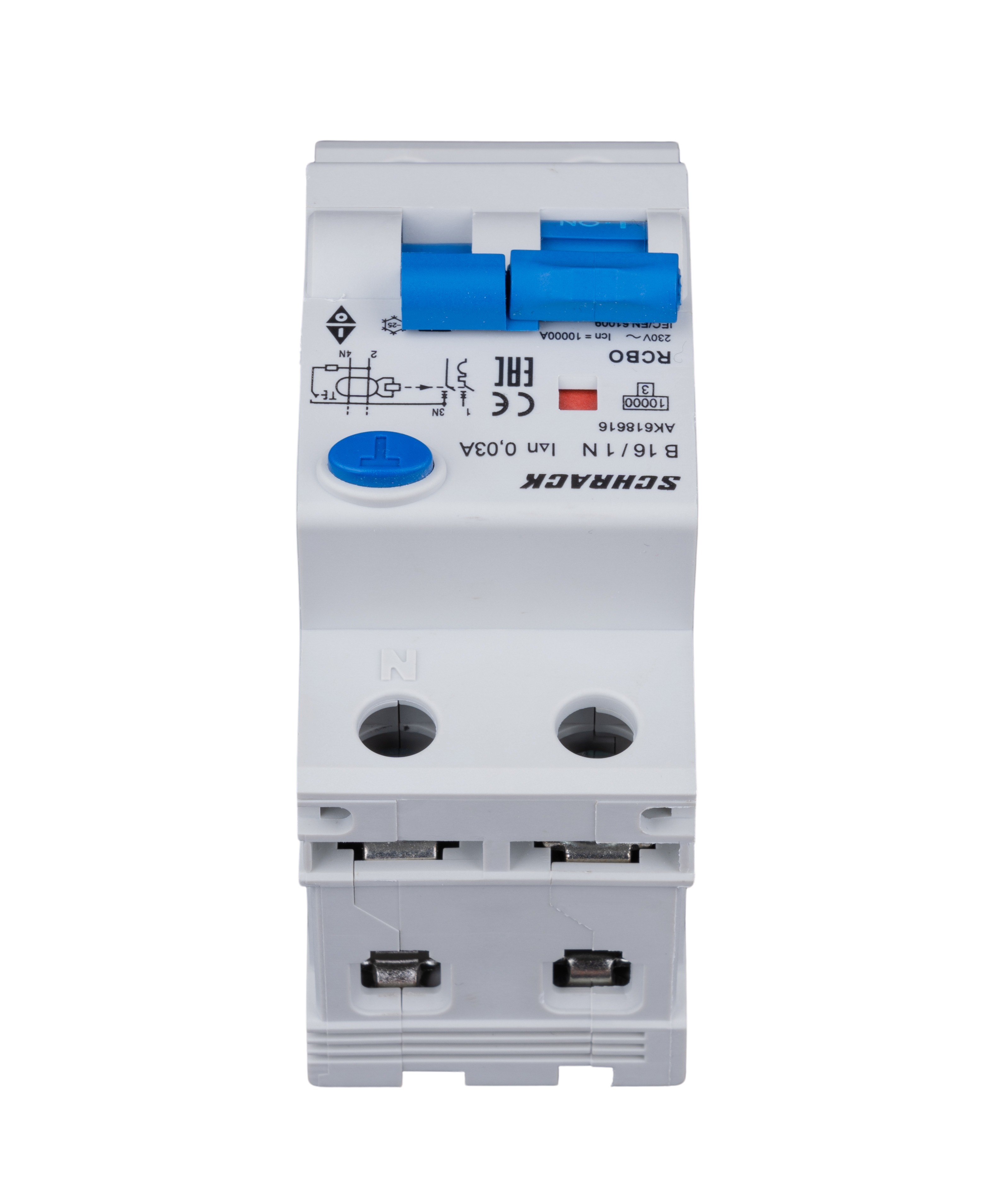

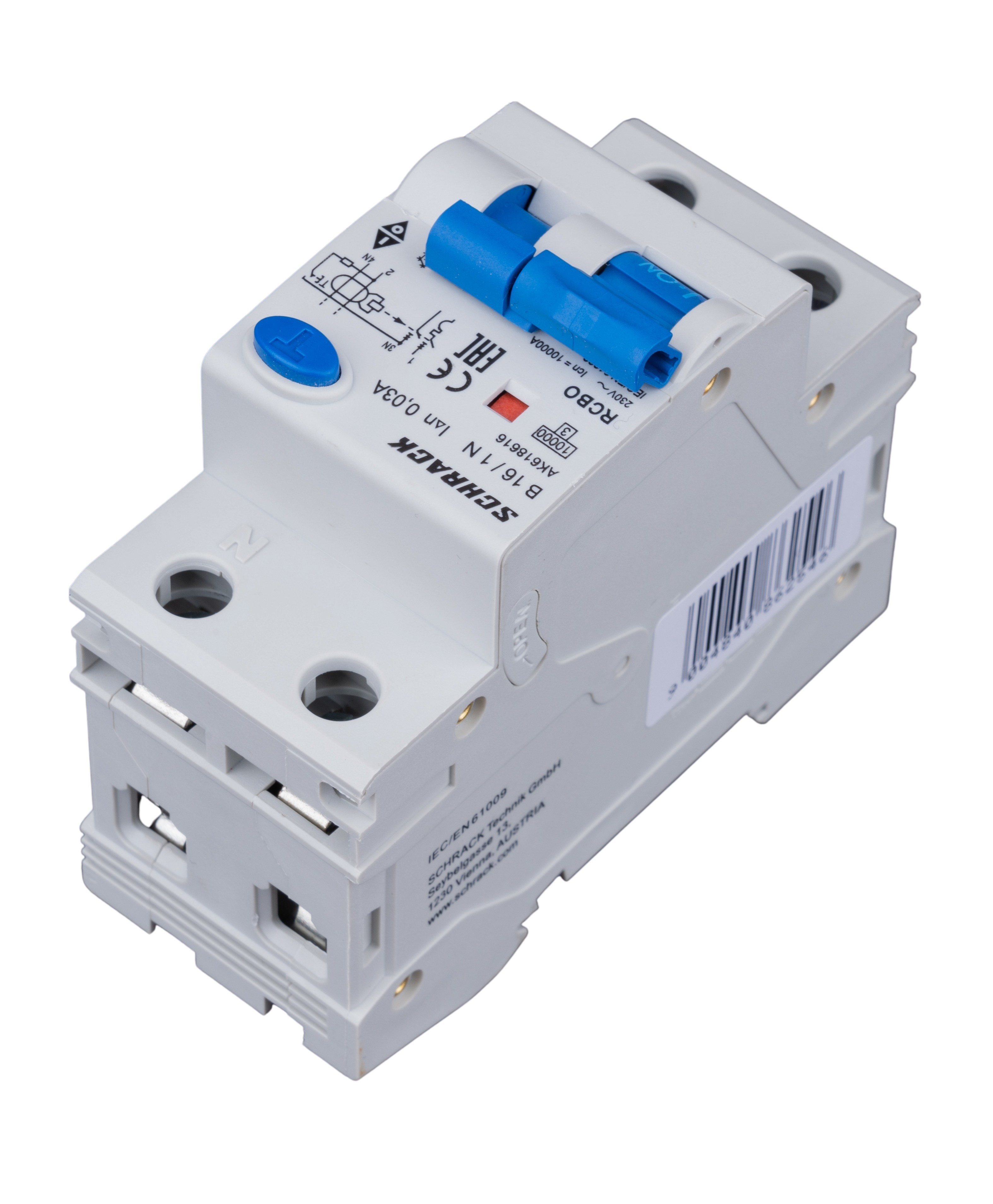

- Photo 1: Automatic circuit breaker with RCD B16A/1+N, 10kA, 30mA, type A (JPG, 1.2 MB)
