Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A
Article: AK618632--
22 980 ₸
In stock
An automatic circuit breaker with integrated RCD (residual current device) designed to protect electrical circuits from overloads, short circuits, and earth leakage currents.
Key characteristics:
- Rated current: B32A
- Configuration: 1+N (1 phase + neutral)
- Breaking capacity: 10 kA
- Rated sensitivity: 30 mA
- Trip type: Type A (sensitive to pulsating DC and AC sinusoidal differential currents)
- Trip characteristic: B (instantaneous tripping)
- Operating temperature range: from -25°C to +60°C
Technical parameters:
- Power loss: 6.26 W
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Normative and technical basis:
The device is designed and certified in accordance with international standards: EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1.
Series: AMPARO Manufacturer: Schrack EAN code: 9004840594461
| EAN code | 9004840594461 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 6.26 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| Type | A (sensitive to pulsating current) |
| Trip type | Instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pc., 90 pc. |

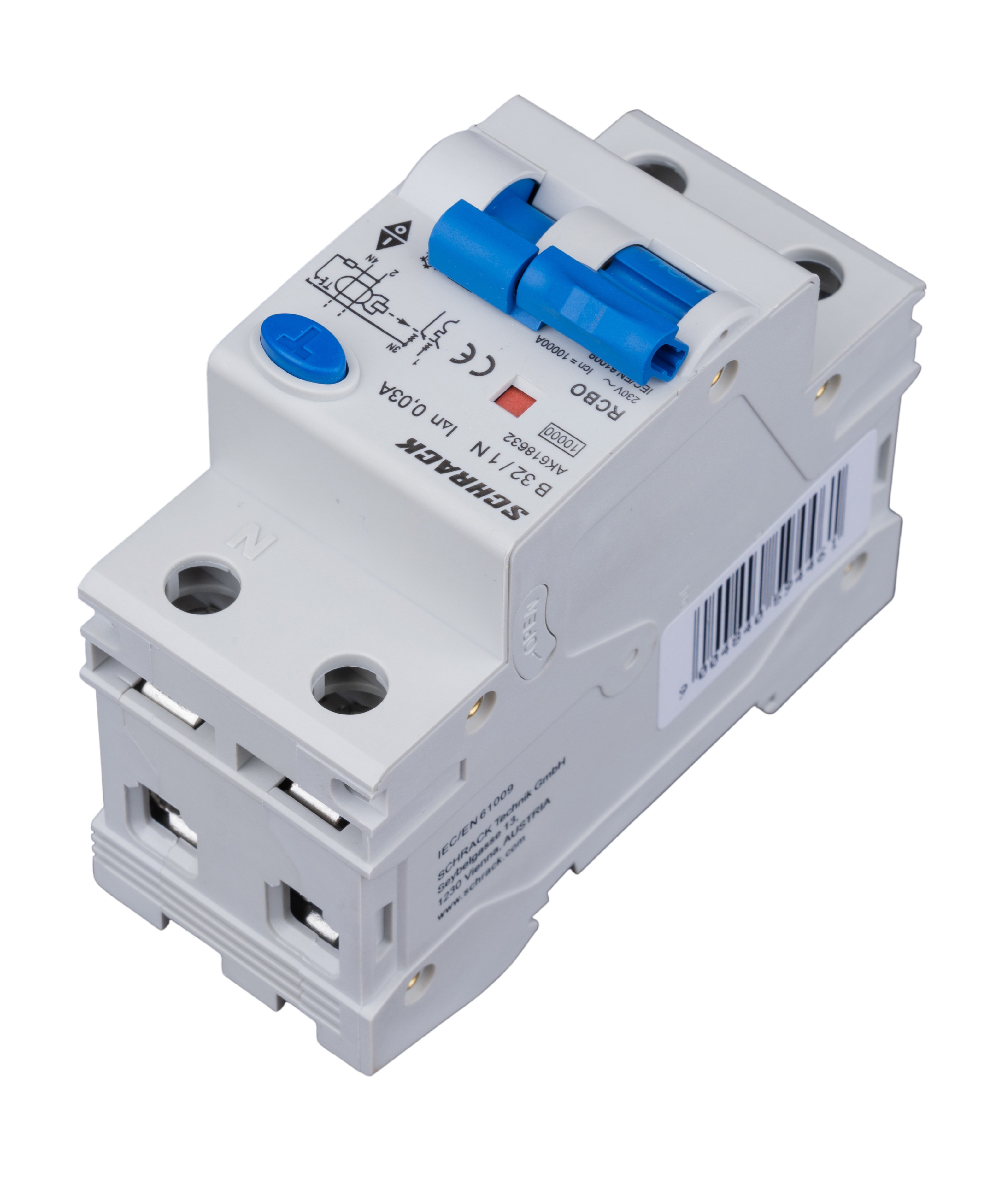

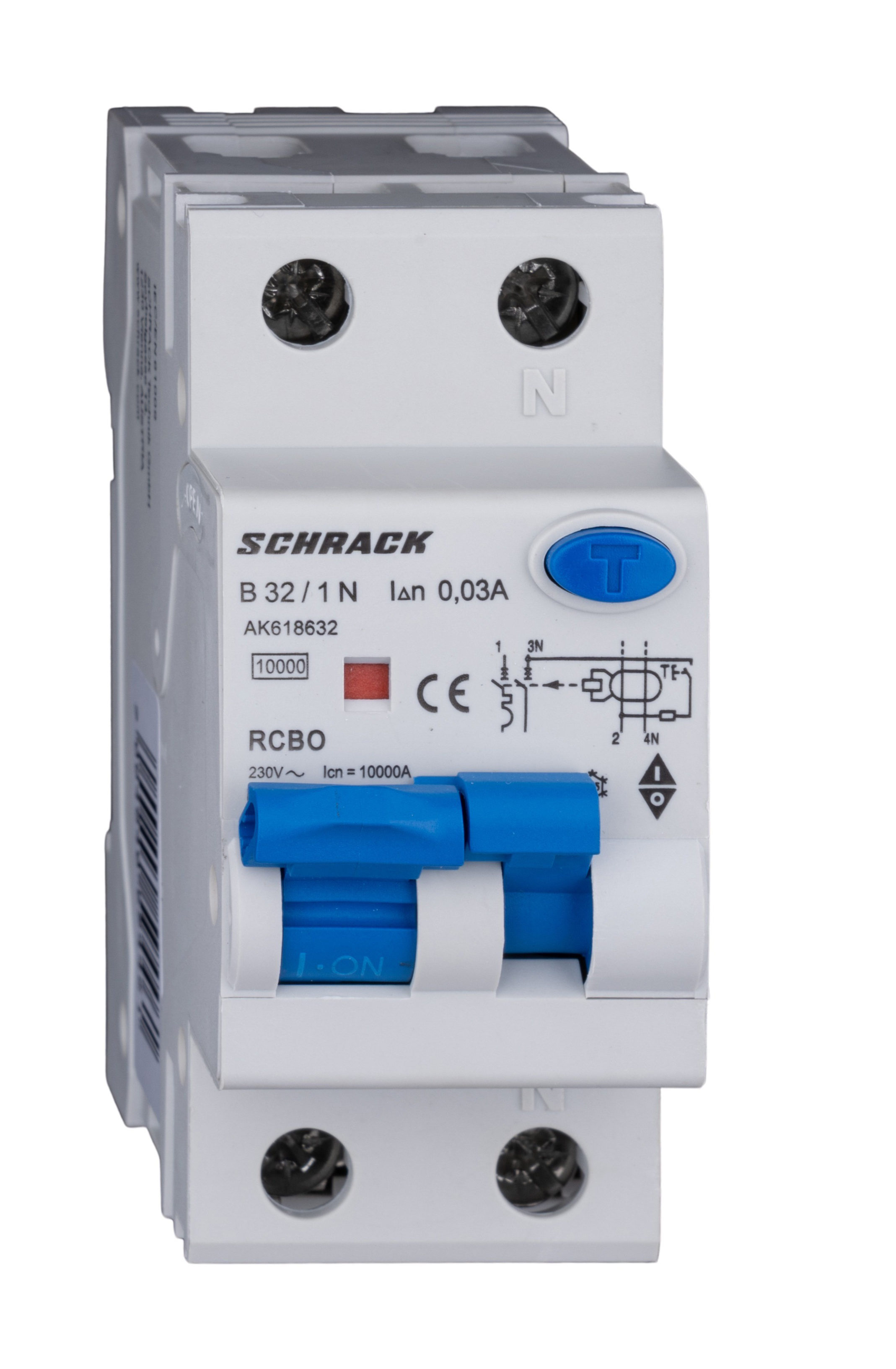

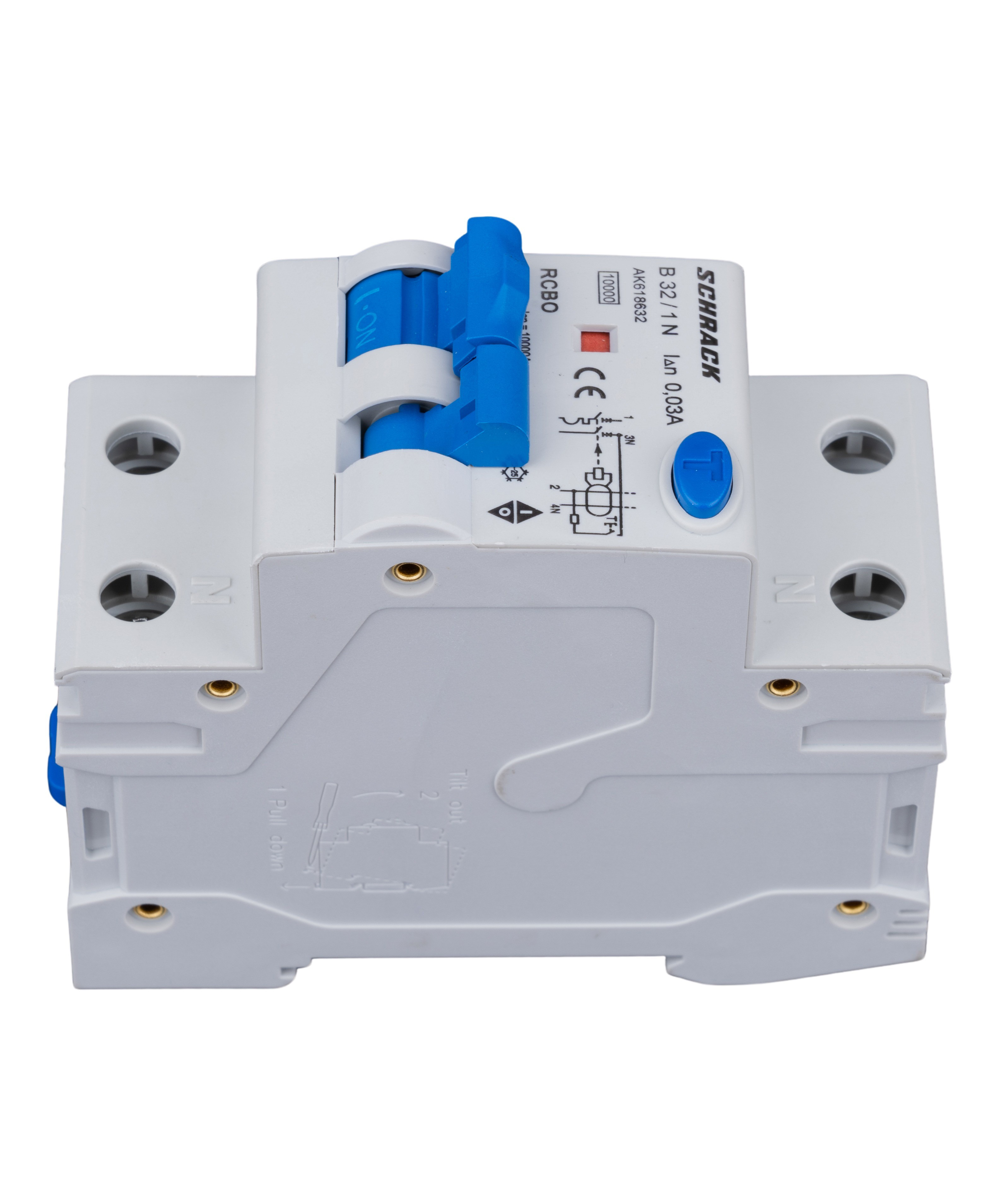

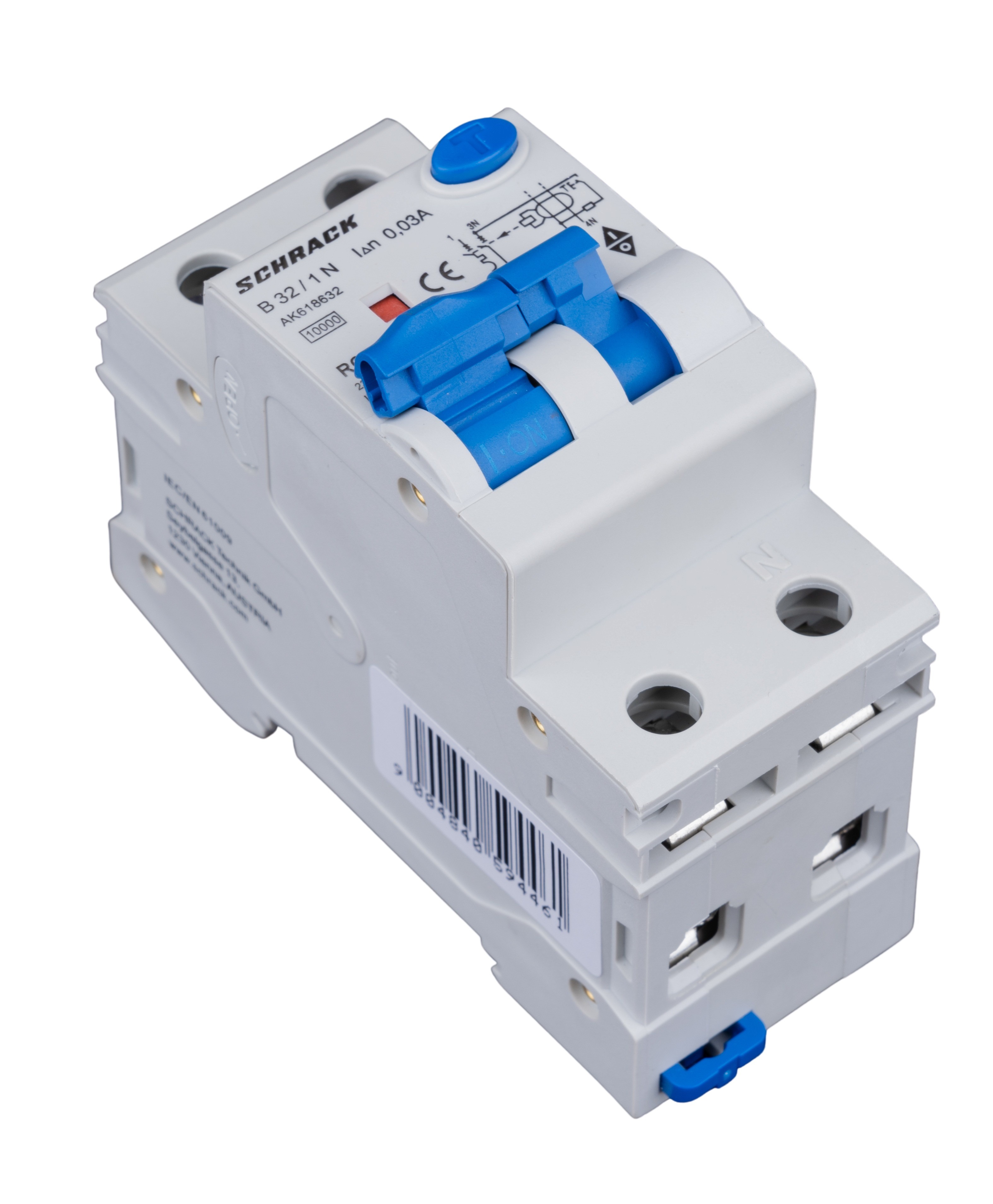

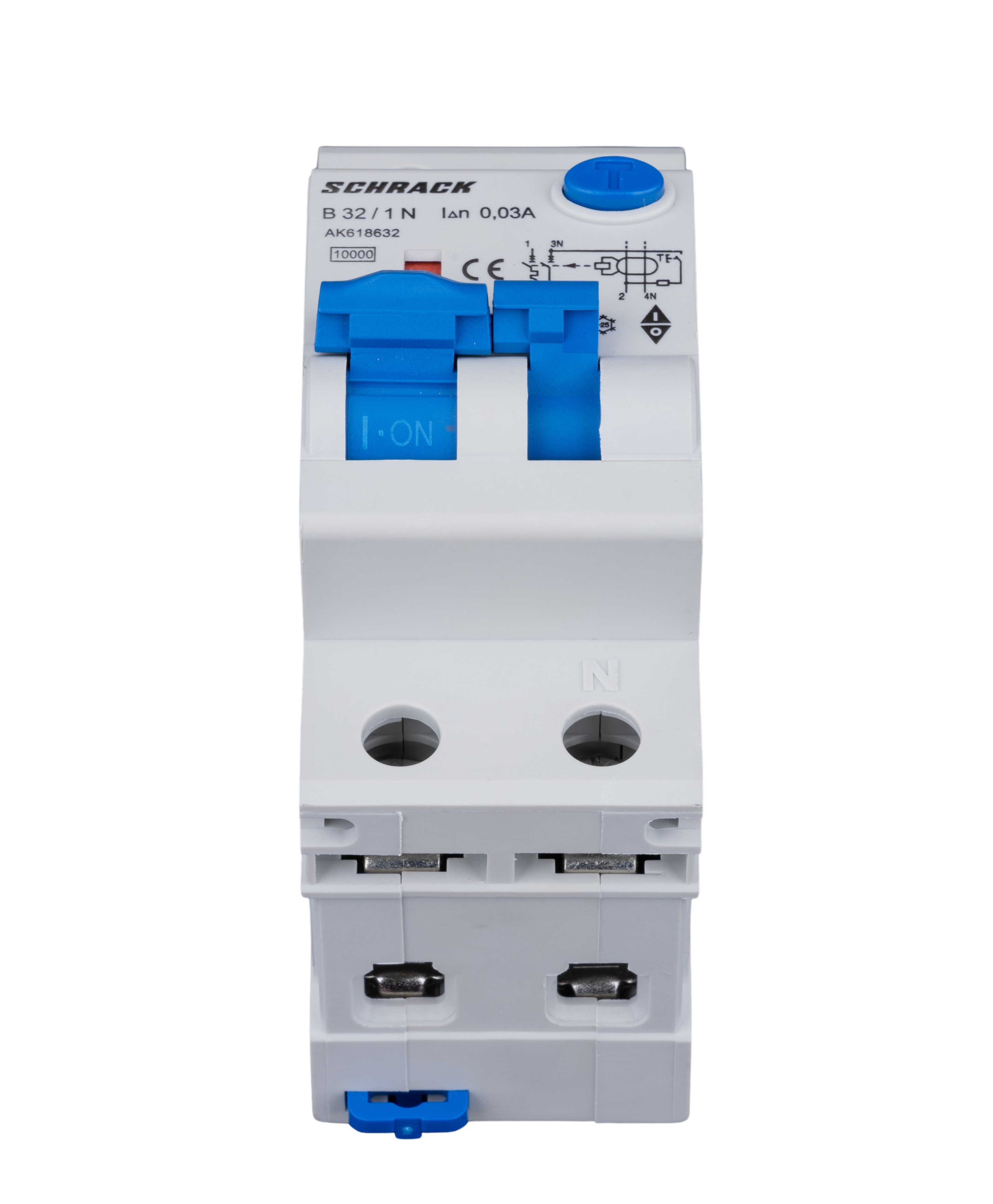

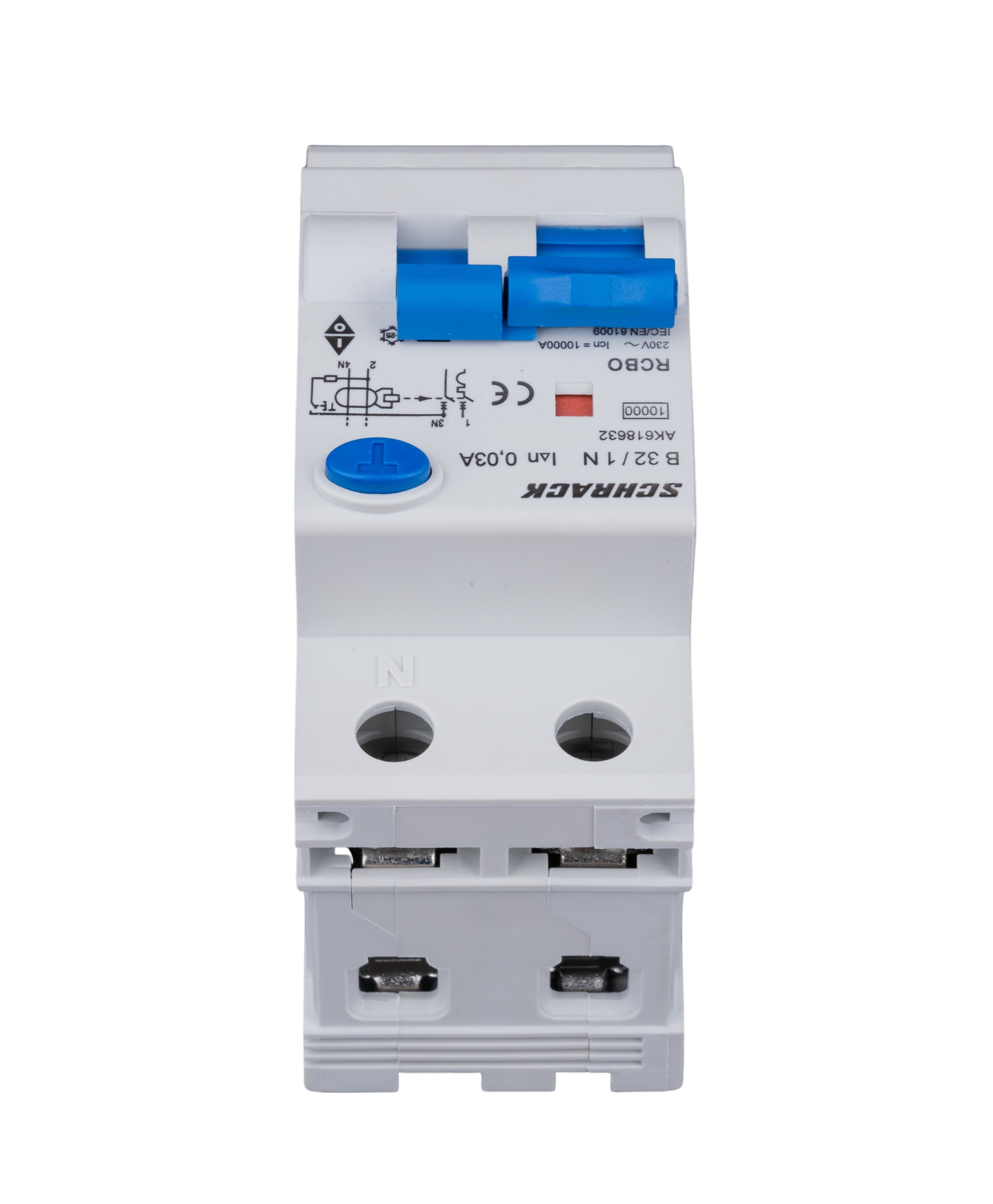

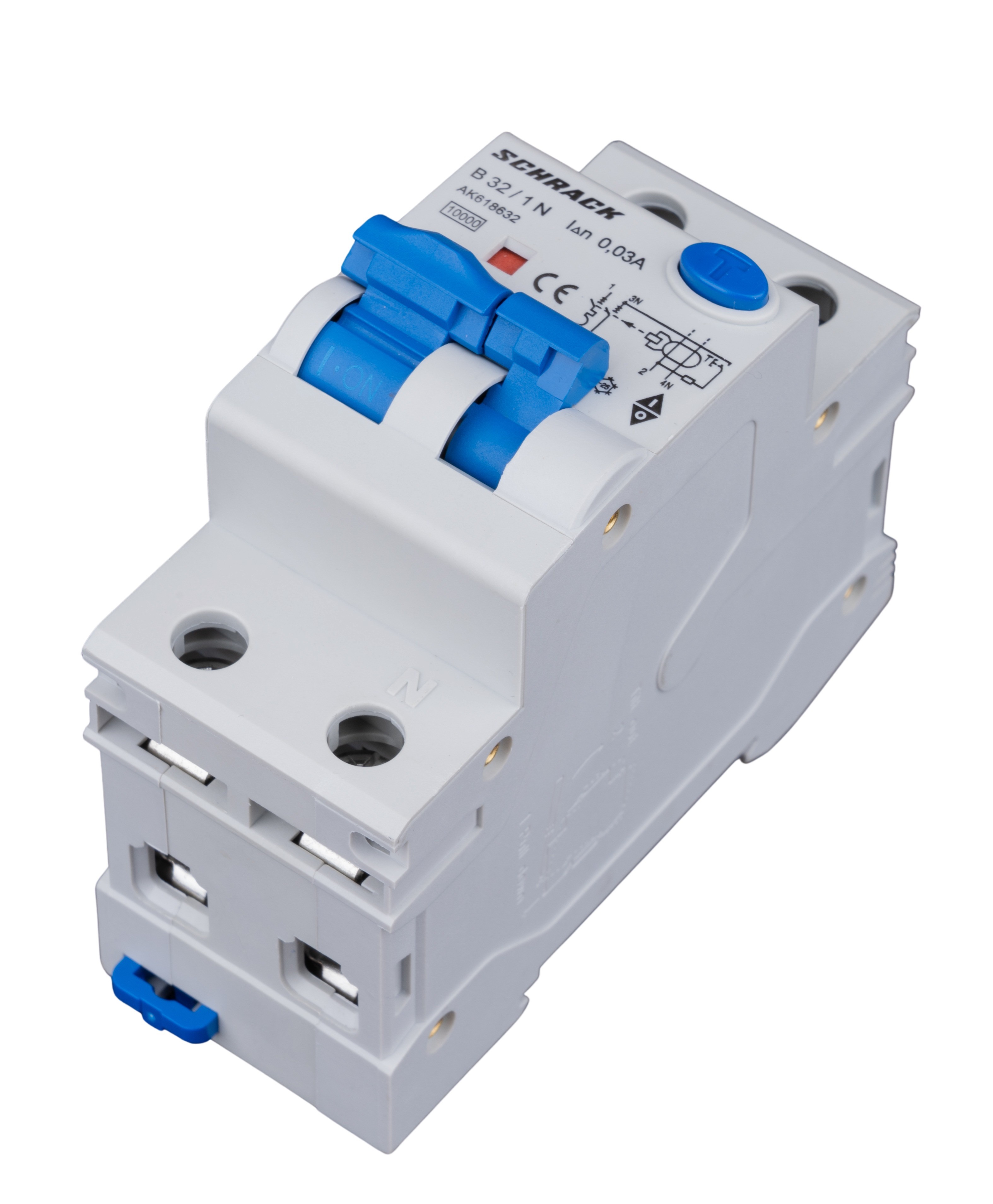

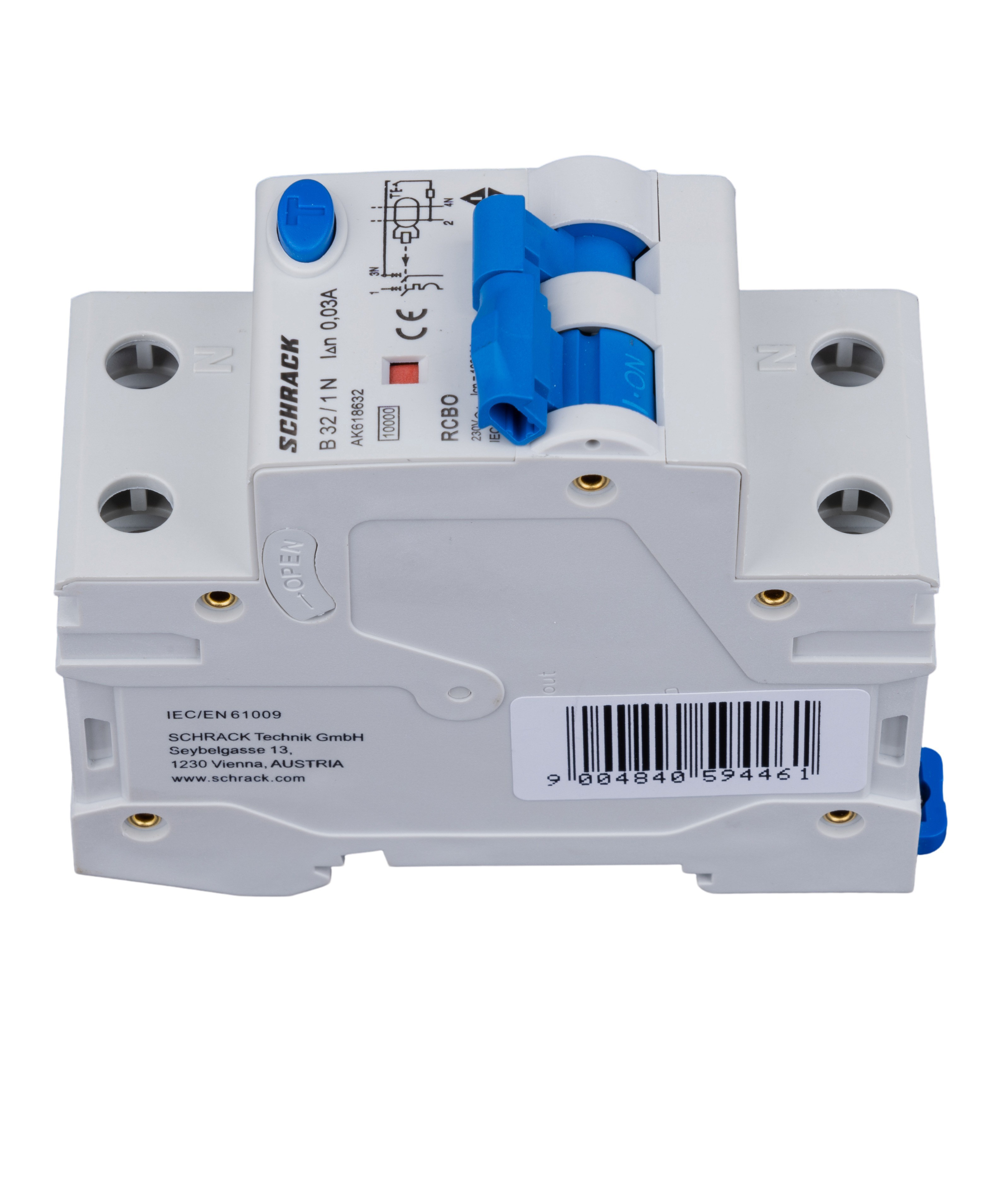

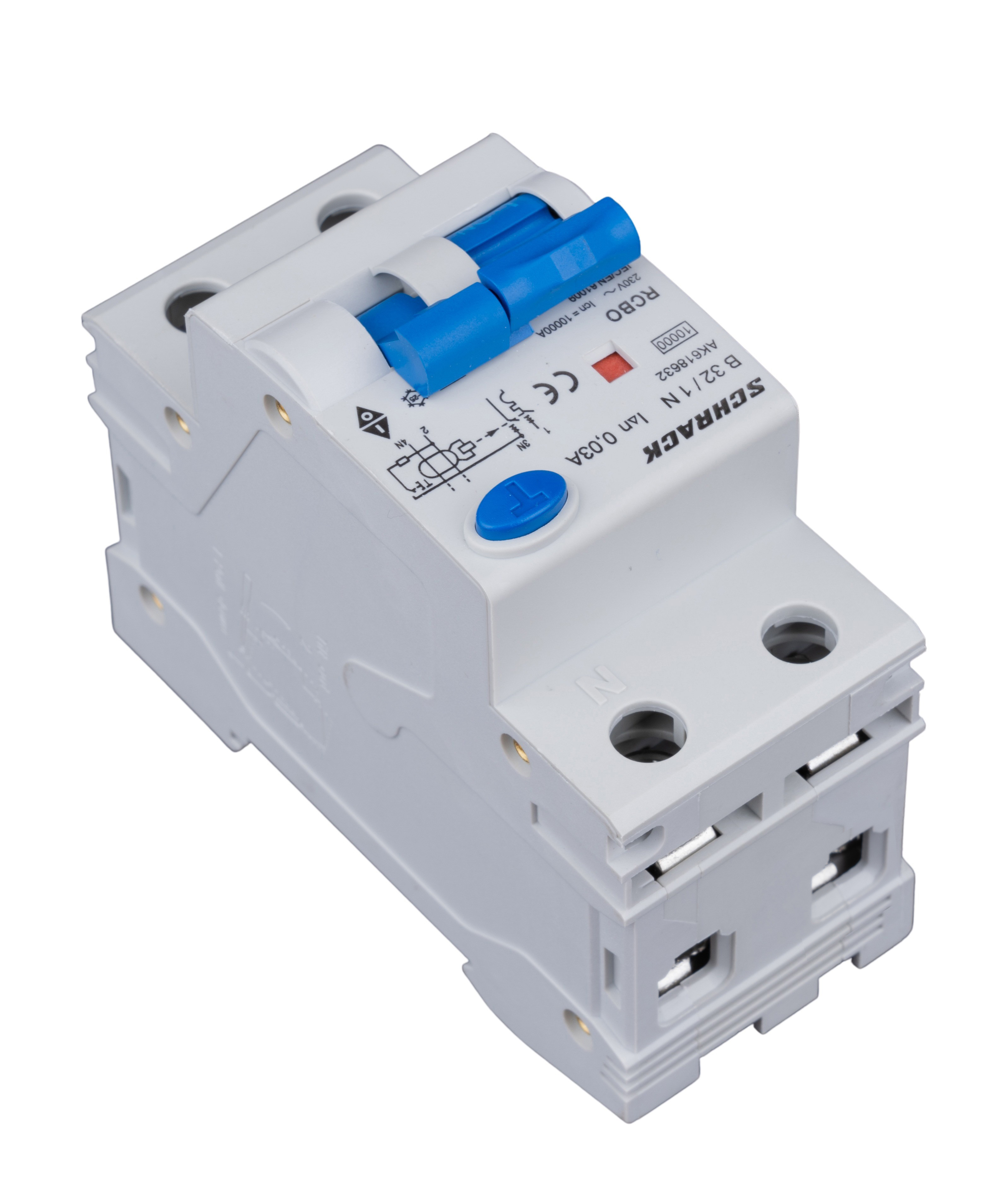

- Photo 1: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 1.2 MB)
- Photo 2: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 486 KB)
- Photo 3: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 628 KB)
- Photo 4: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 1.3 MB)
- Photo 5: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 1.2 MB)
- Photo 6: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 467 KB)
- Photo 7: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 1.1 MB)
- Photo 8: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 1.1 MB)
- Photo 9: Automatic circuit breaker with RCD B32A/1+N, 10kA, 30mA, Type A (JPG, 610 KB)
