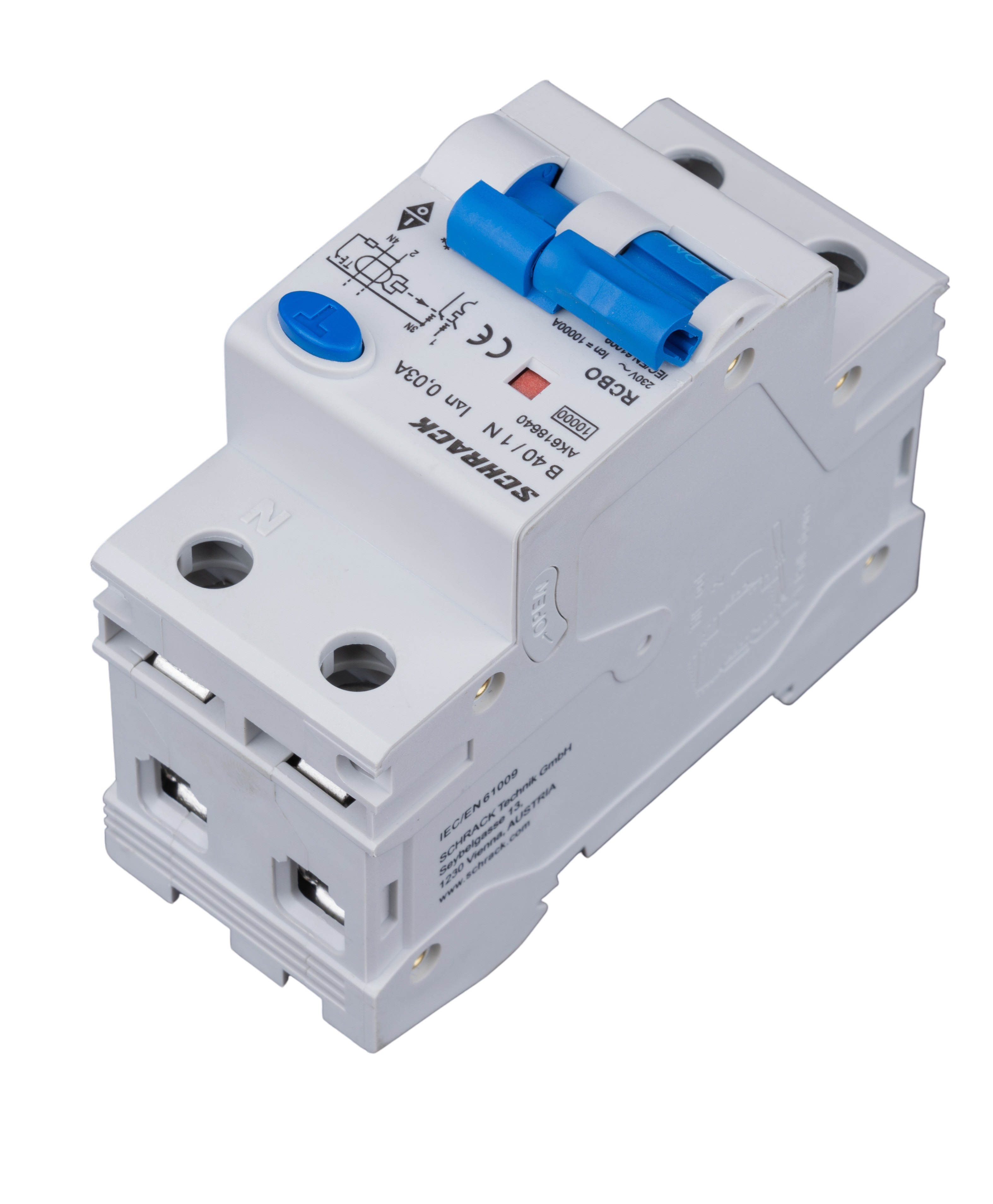

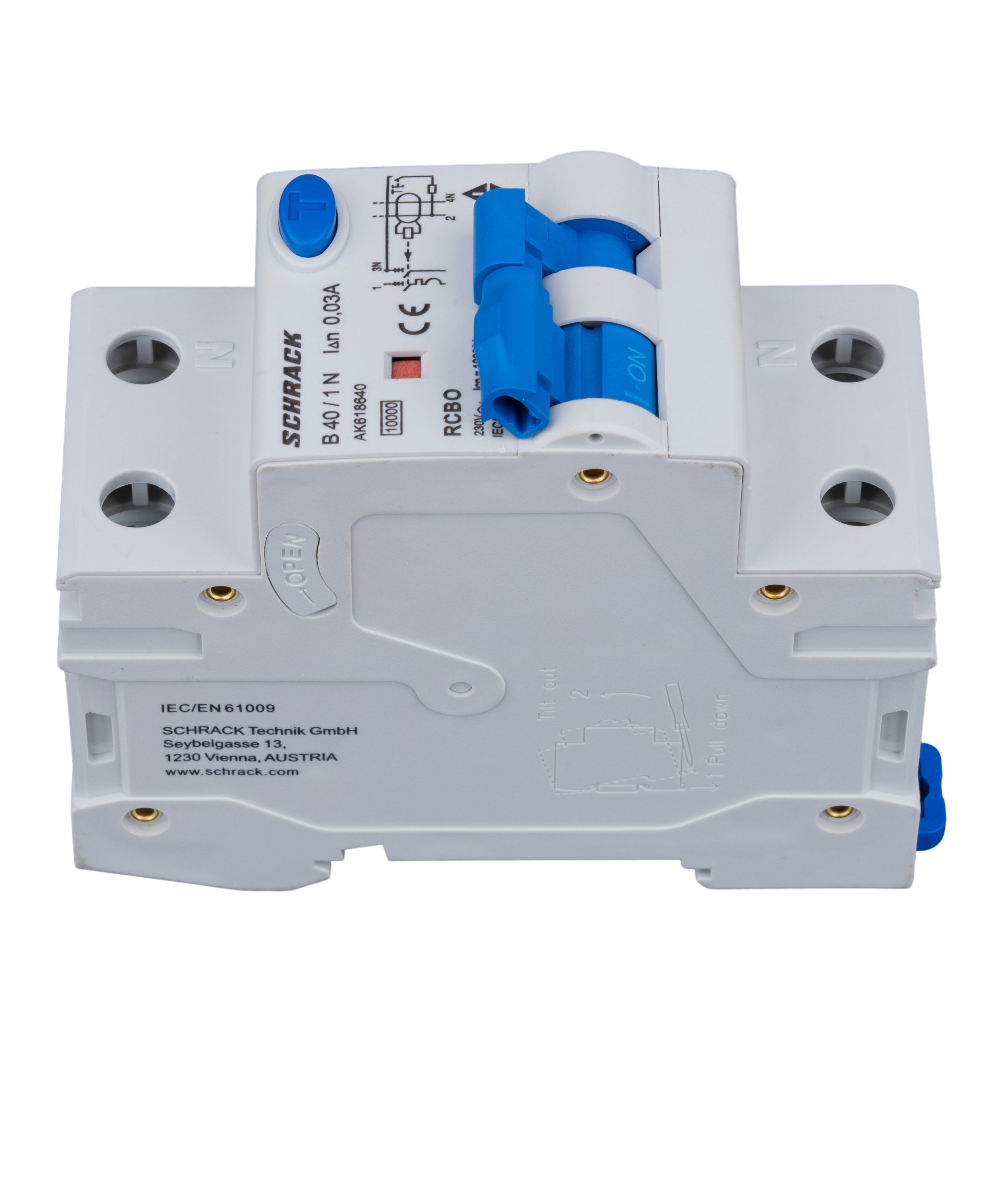

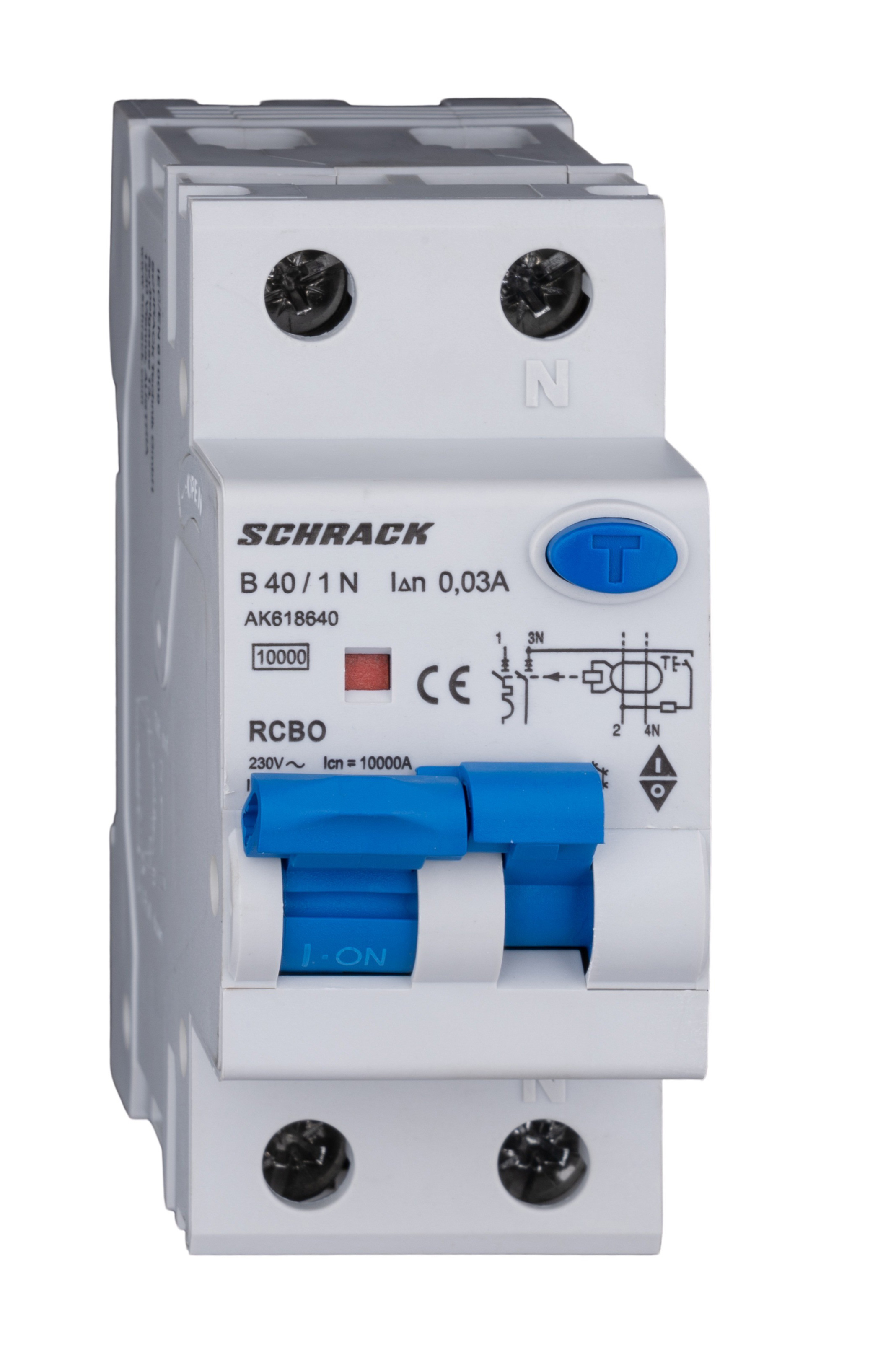

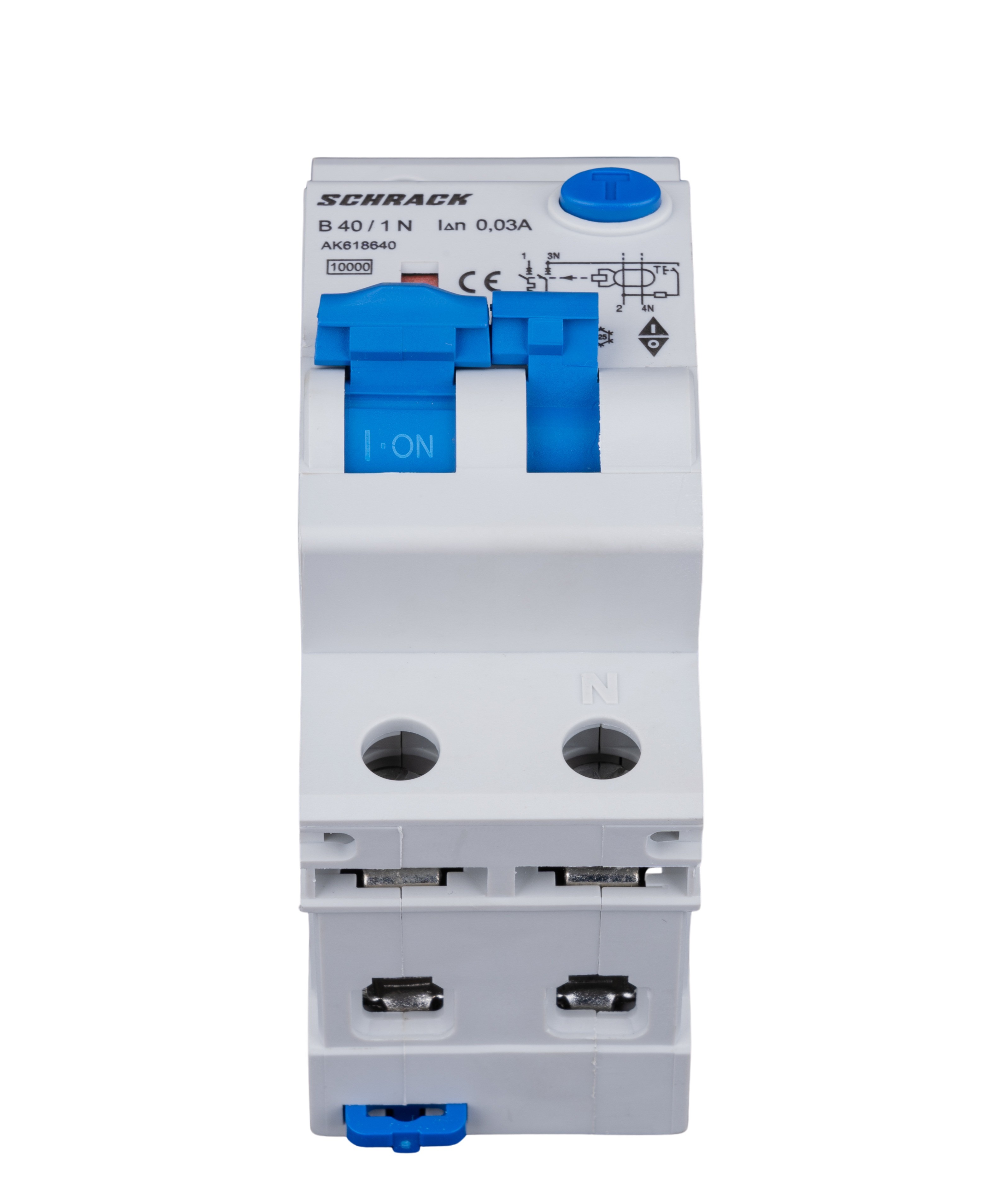

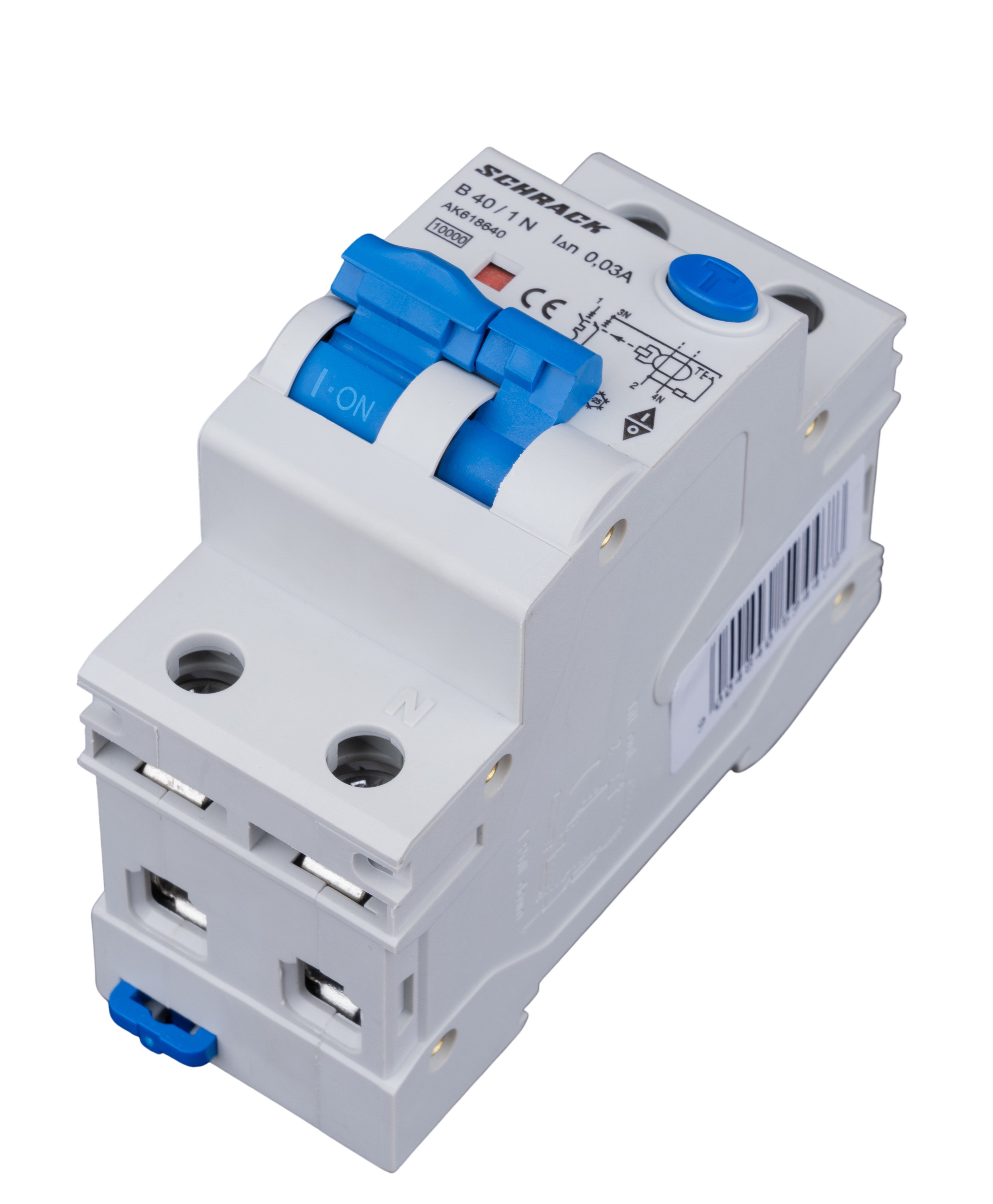

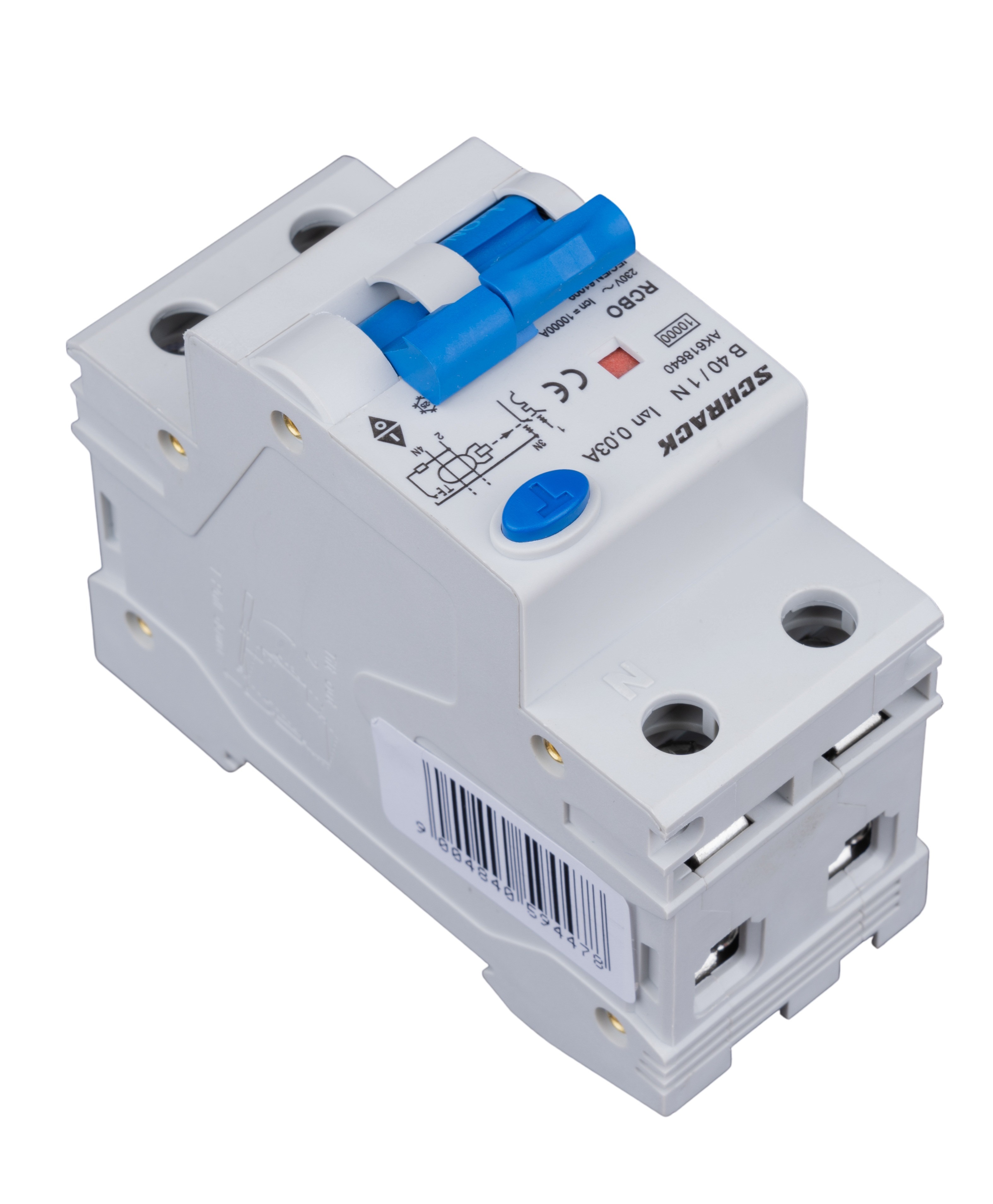

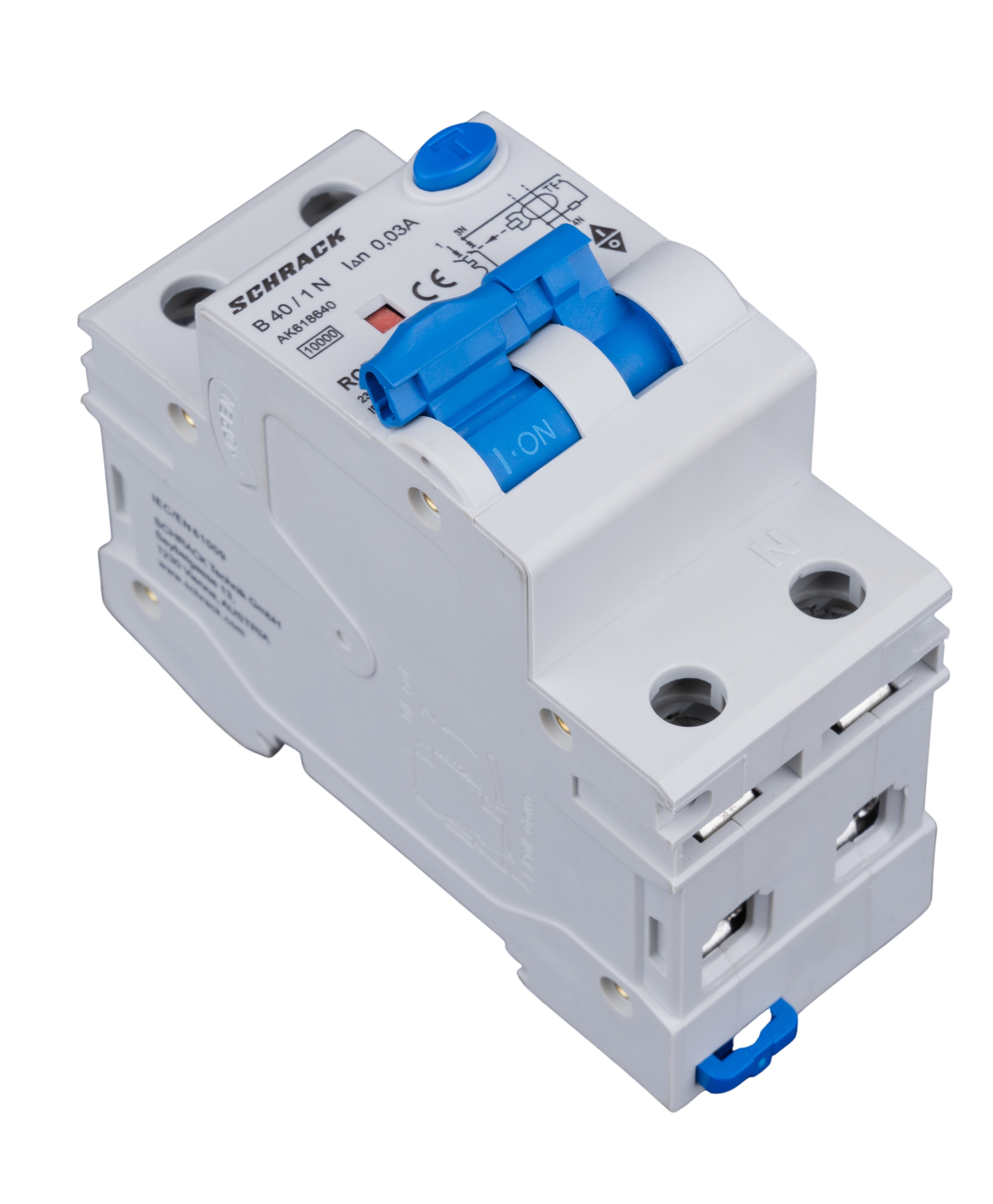

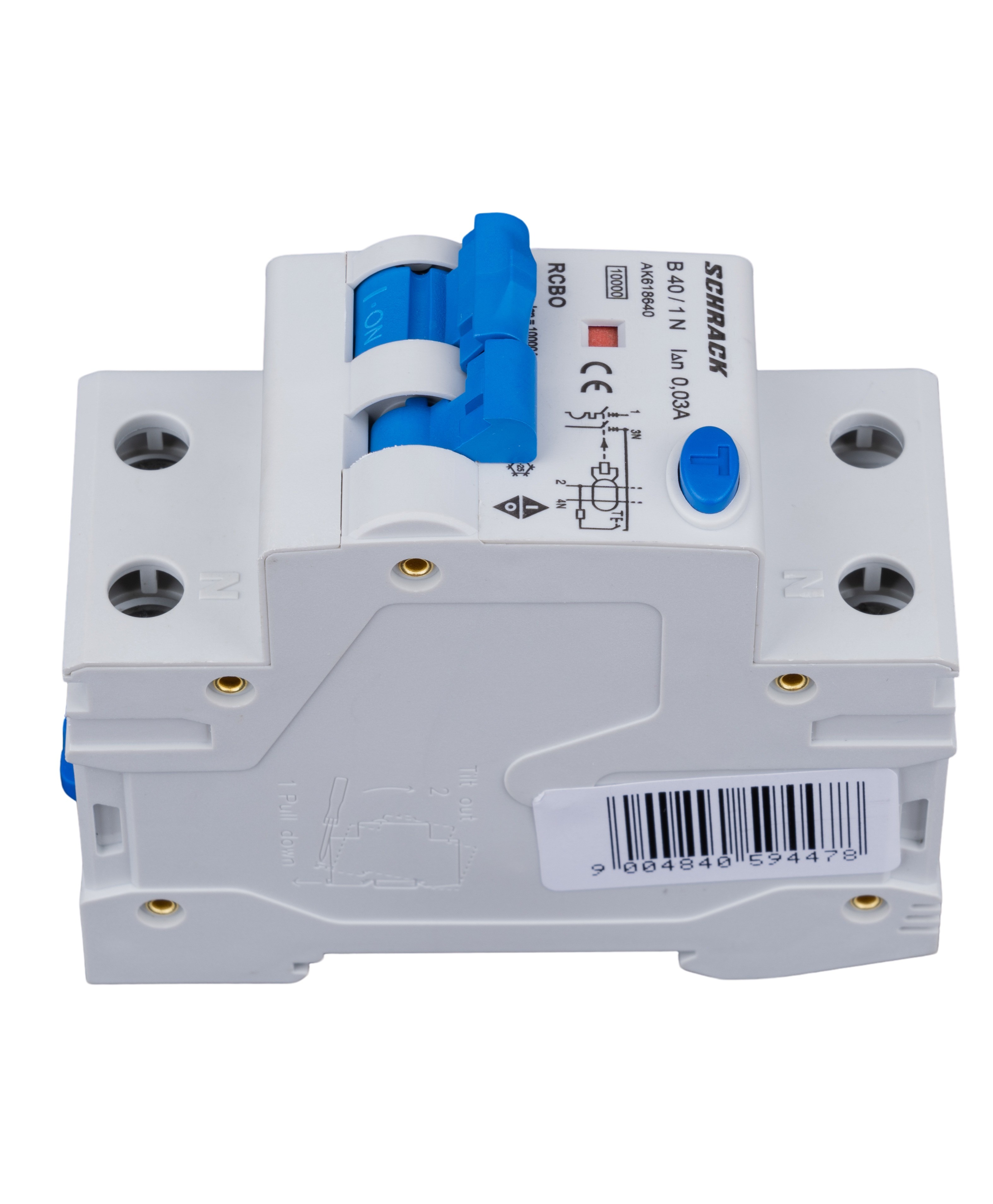

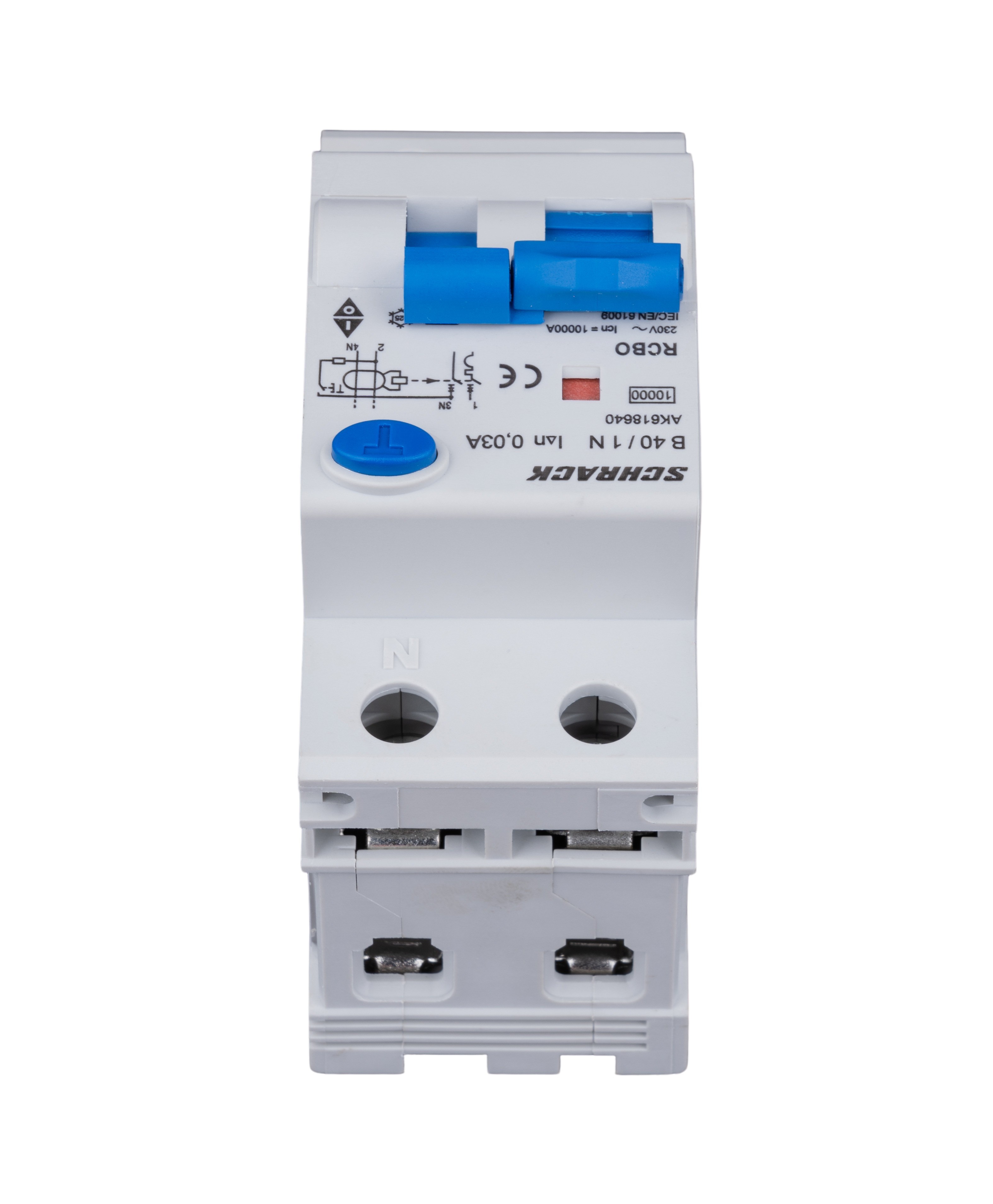

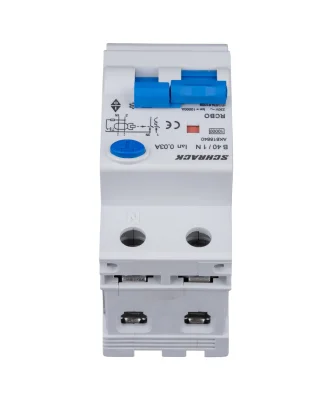

Automatic circuit breaker with RCCB B40A/1+N, 10kA, 30mA, Type A
Article: AK618640--
22 980 ₸
In stock
Automatic circuit breaker with integrated RCCB protection for single-phase networks with neutral conductor. The device is designed to protect electrical circuits from overloads, short circuits, and earth leakage currents.
Main parameters:
- Rated current: B40A
- Configuration: 1 pole + neutral (1+N)
- Breaking capacity: 10 kA
- RCCB sensitivity: 30 mA
- RCCB trip type: A (sensitive to pulsating and sinusoidal AC differential current)
- Time-current characteristic: B (for cable and distribution network protection)
Technical characteristics:
The device complies with international standards EN 61009-1:2012 and IEC 61009-1, providing selective protection of electrical circuits from hazardous leakage currents. The instantaneous trip characteristic ensures reliable disconnection when the rated differential current is exceeded.
Operating conditions:
- Operating temperature range: -25°C to +60°C
- Power consumption: 9.61 W
Physical dimensions:
- Length: 77 mm
- Width: 36 mm
- Height: 85 mm
- Weight: 0.21 kg
Manufacturer: Schrack, AMPARO series. Supplied in packages of 1 and 90 units.
| EAN code | 9004840594478 |
|---|---|
| Length (net) | 77.00 mm |
| Width (net) | 36.00 mm |
| Height (net) | 85.00 mm |
| Weight (net) | 0.21 kg |
| Power loss | 9.61 W |
| Min. ambient temperature | -25°C |
| Max. ambient temperature | 60°C |
| Standard | EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016, EN 61009-2-1:1994 + A11:1998, IEC 61009-1, IEC 61009-2-1 |
| RCCB type | A (sensitive to pulsating current) |
| Trip type | Instantaneous |
| Rated sensitivity IΔn | 30 mA |
| Characteristic | B |
| Poles | 1+N |
| Breaking capacity | 10 kA |
| Series | AMPARO |
| Manufacturer | Schrack |
| Packaging | 1 pcs., 90 pcs. |
