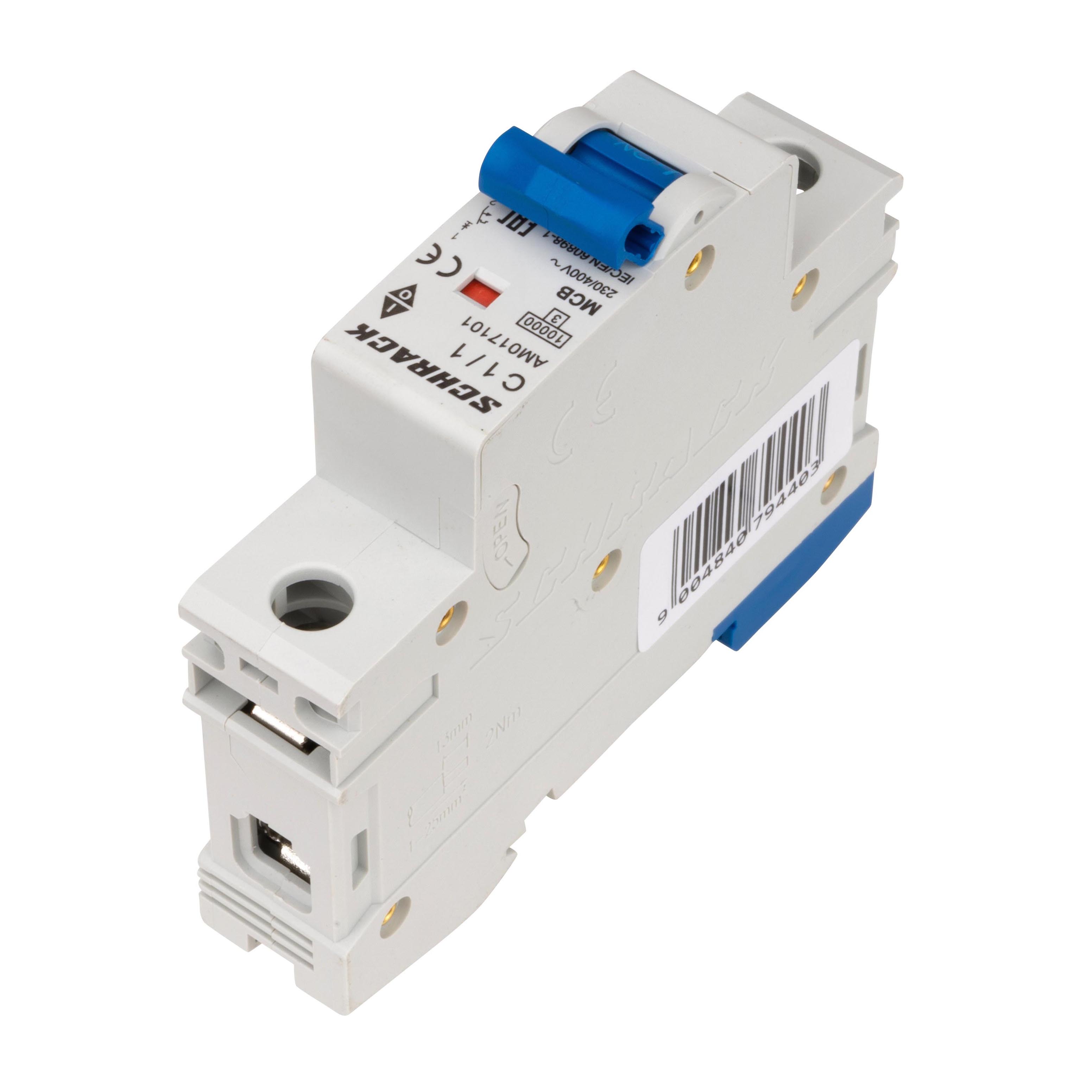

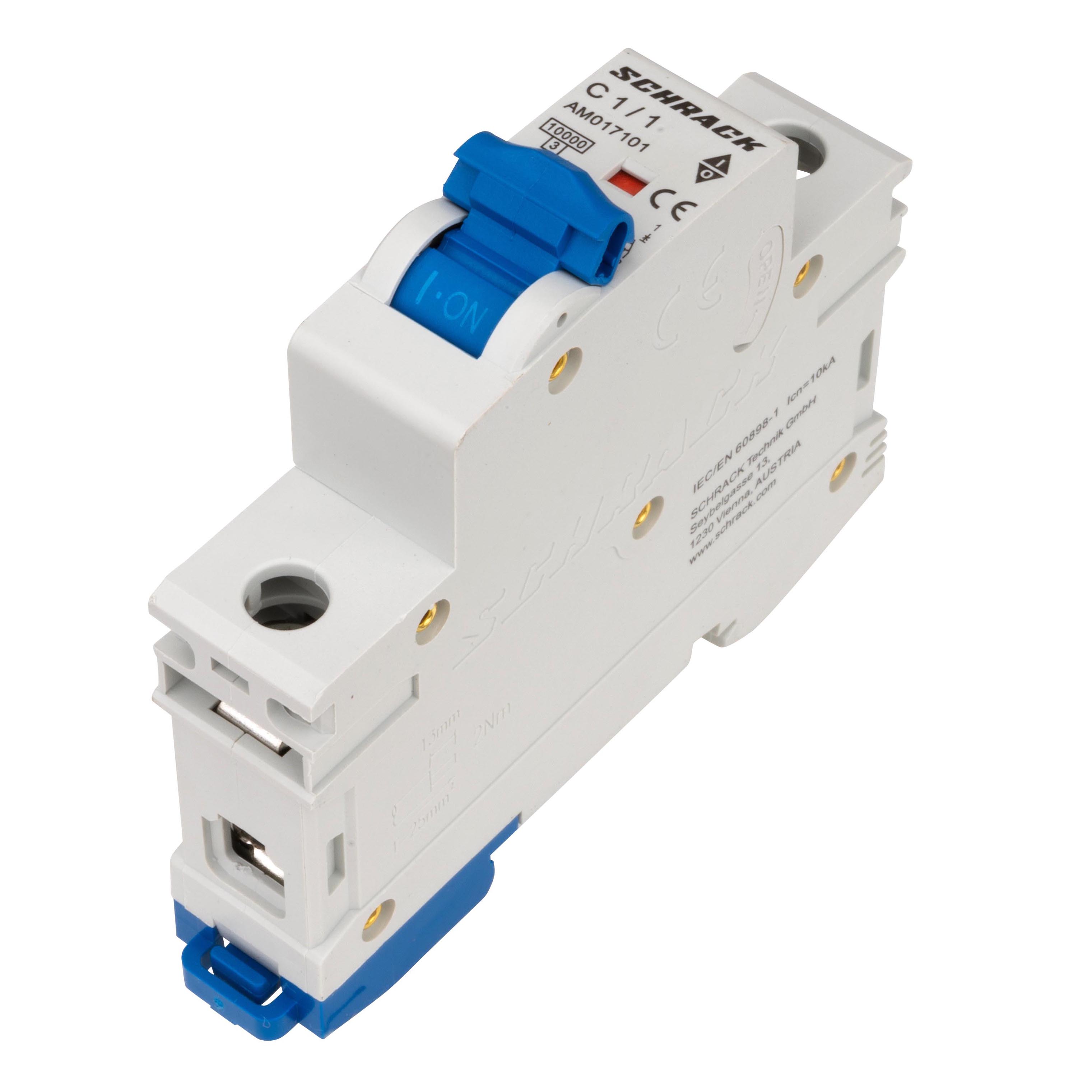

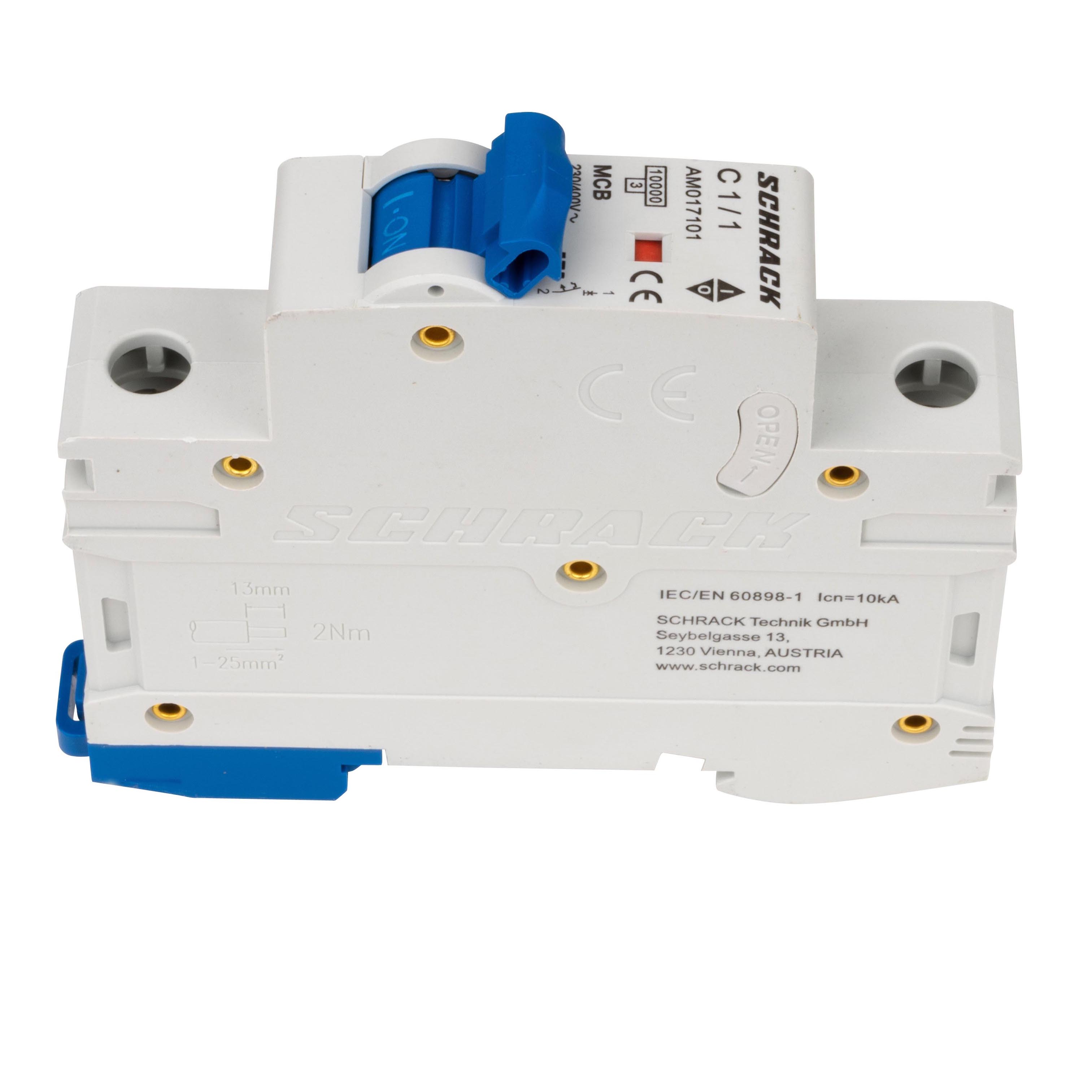

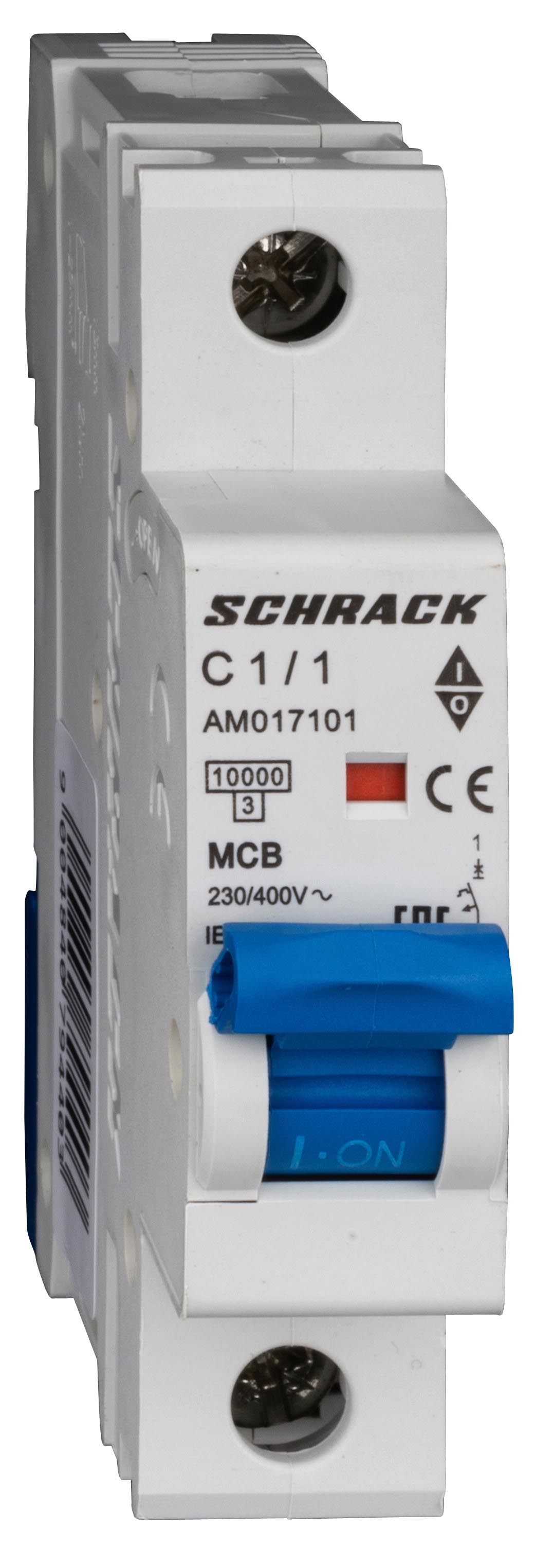

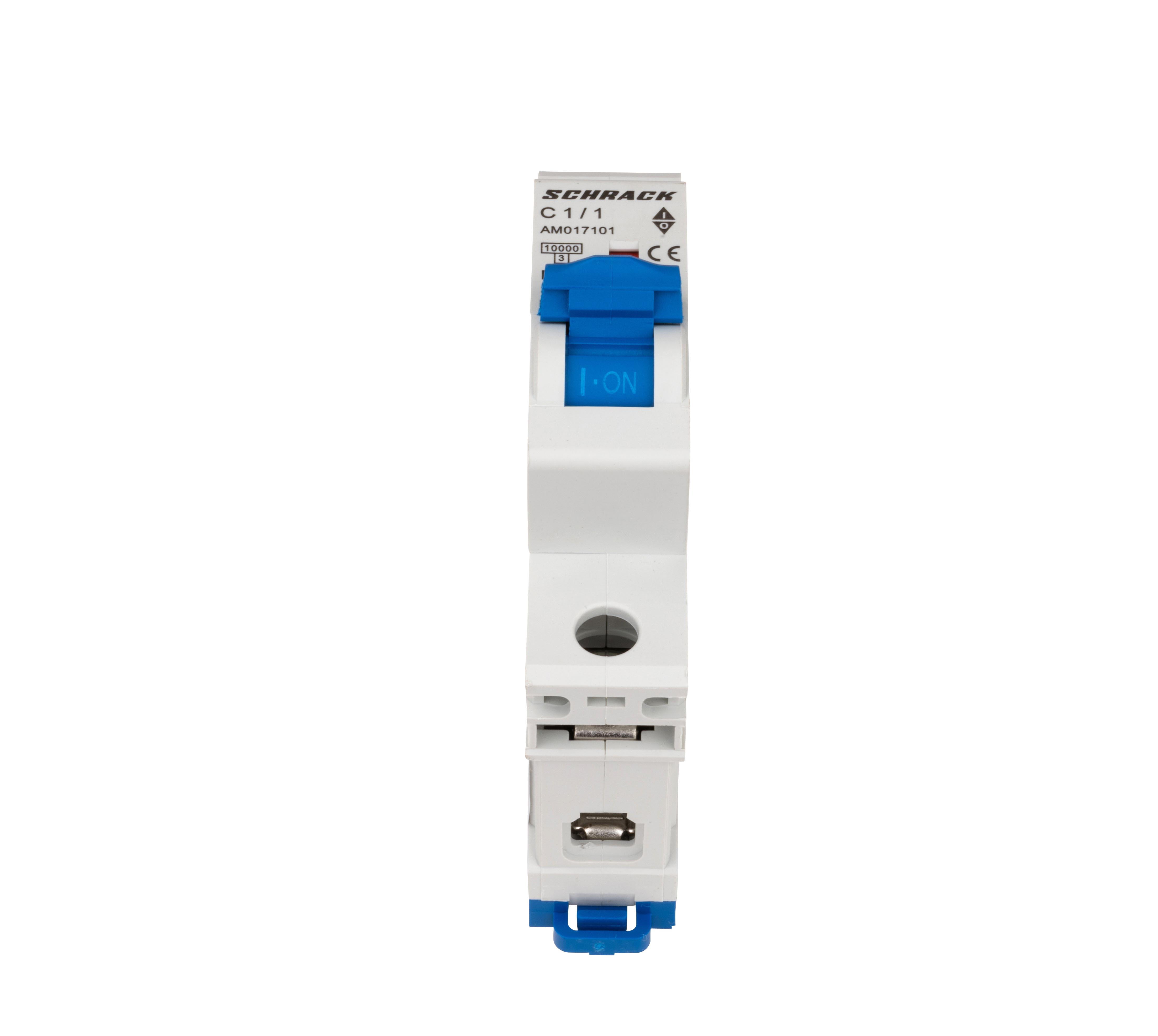

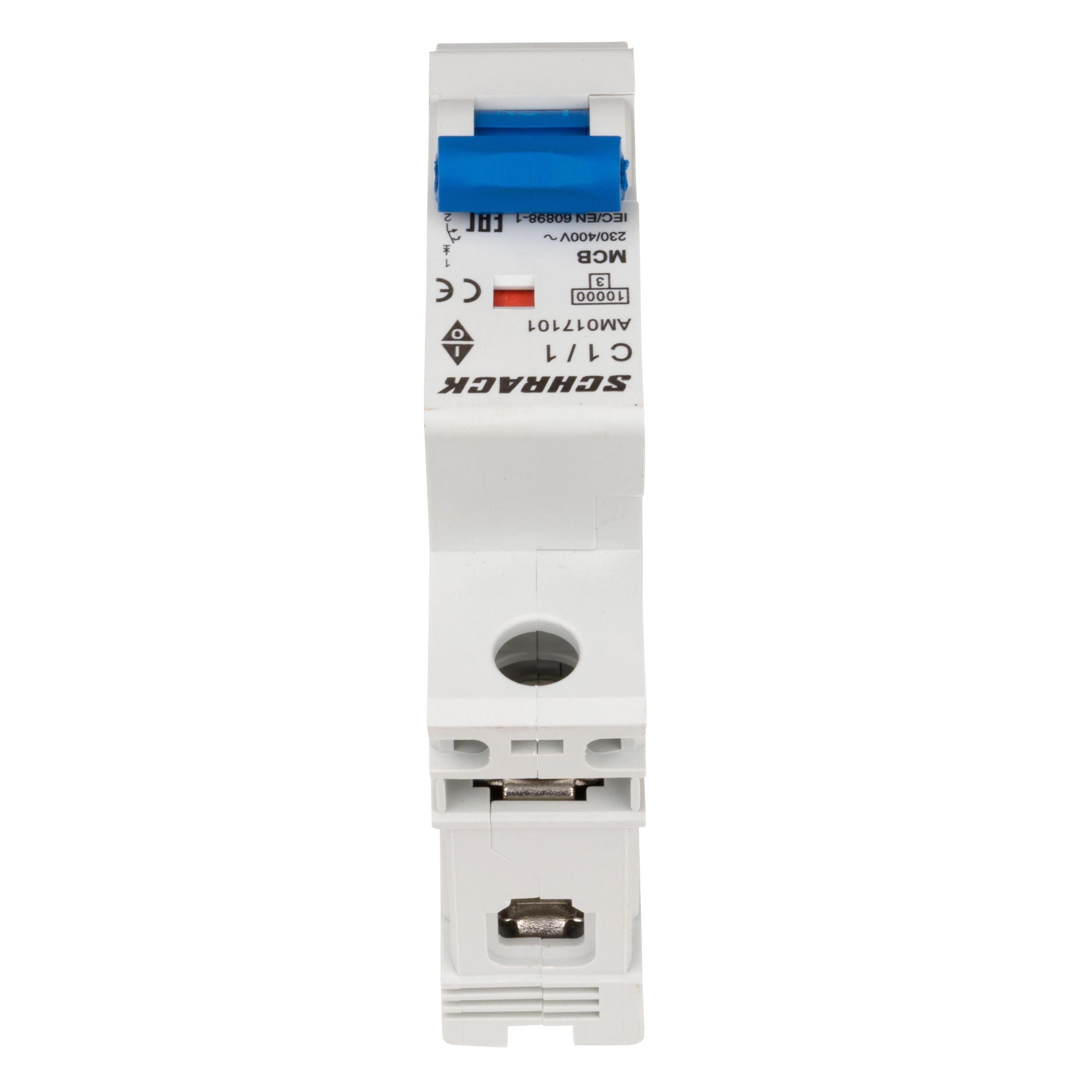

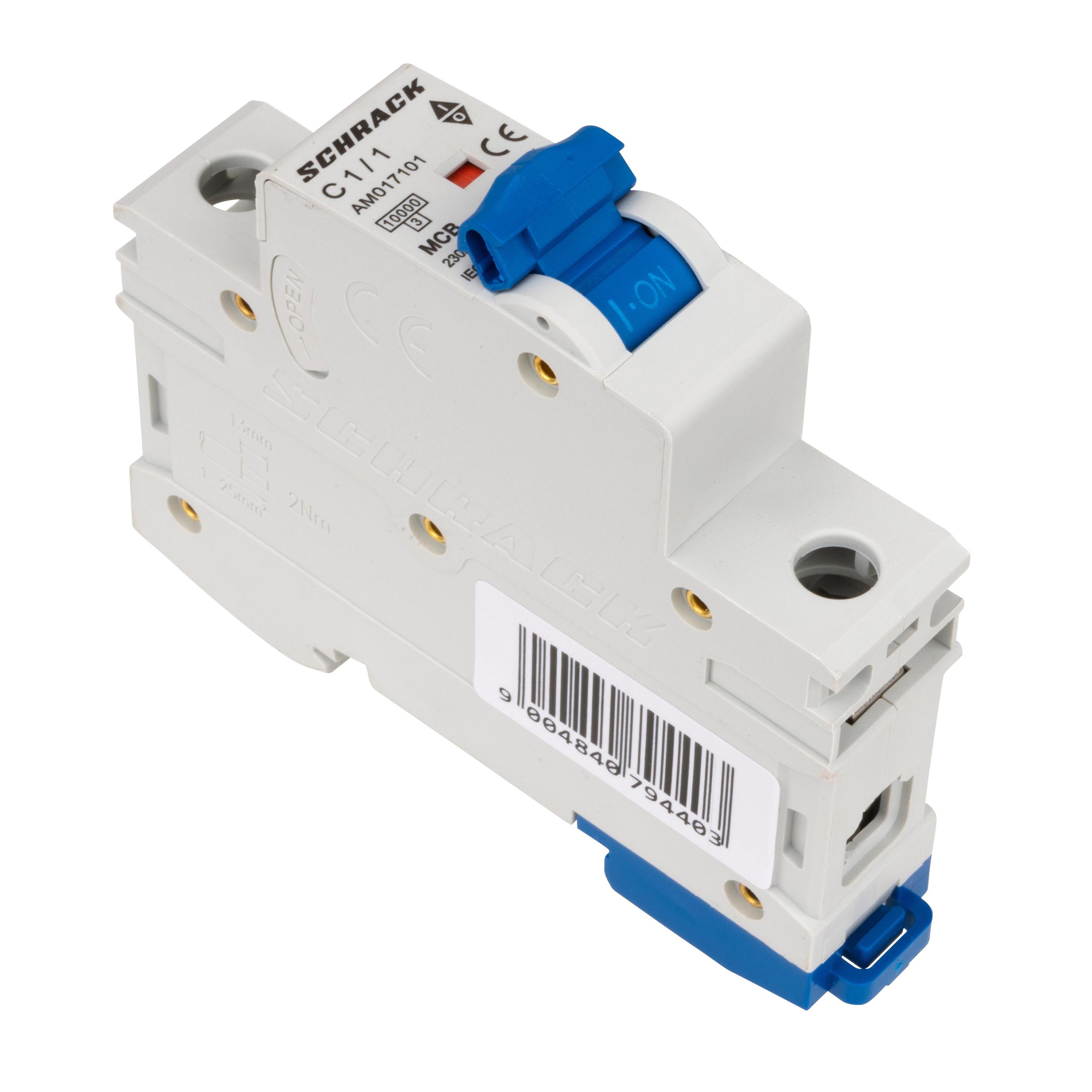

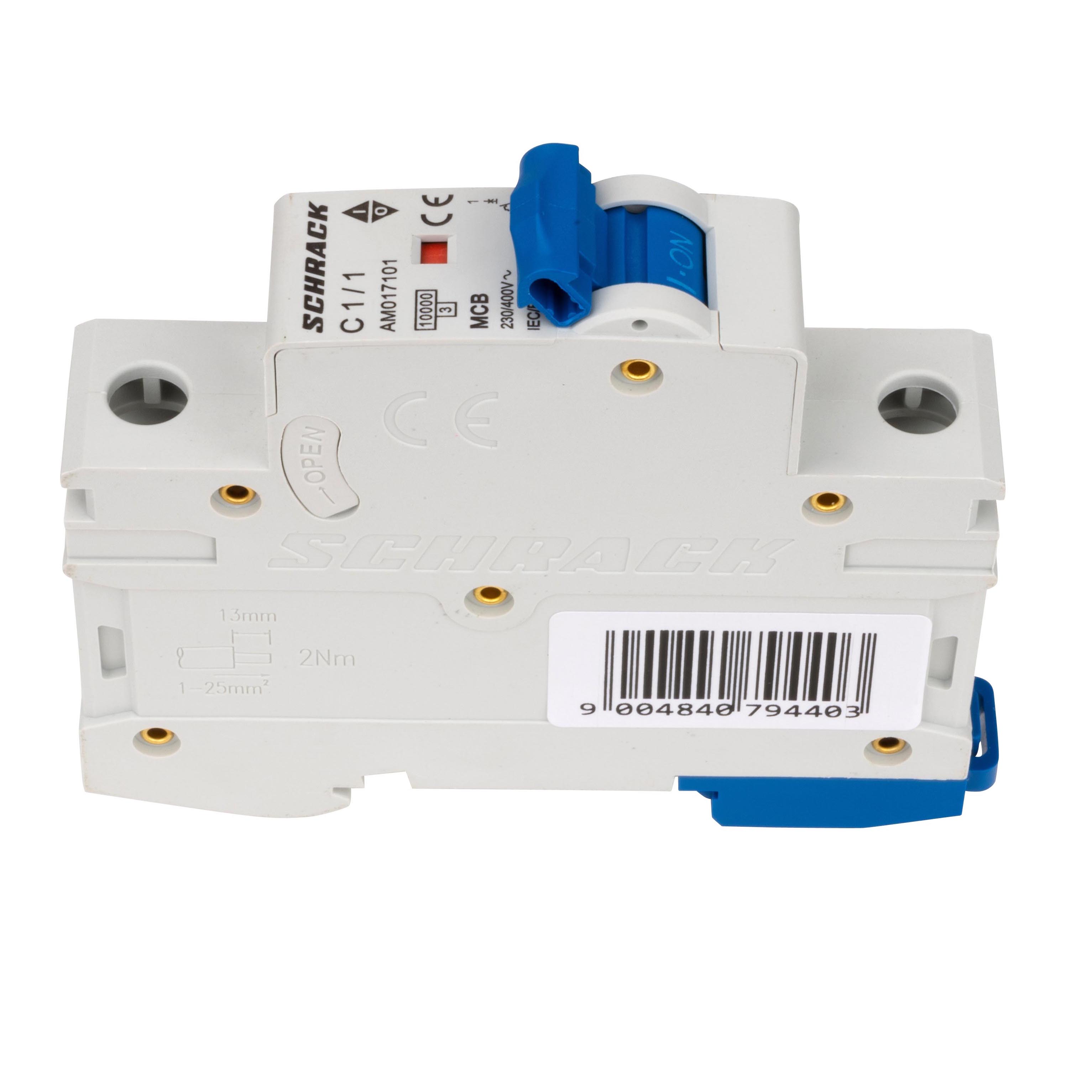

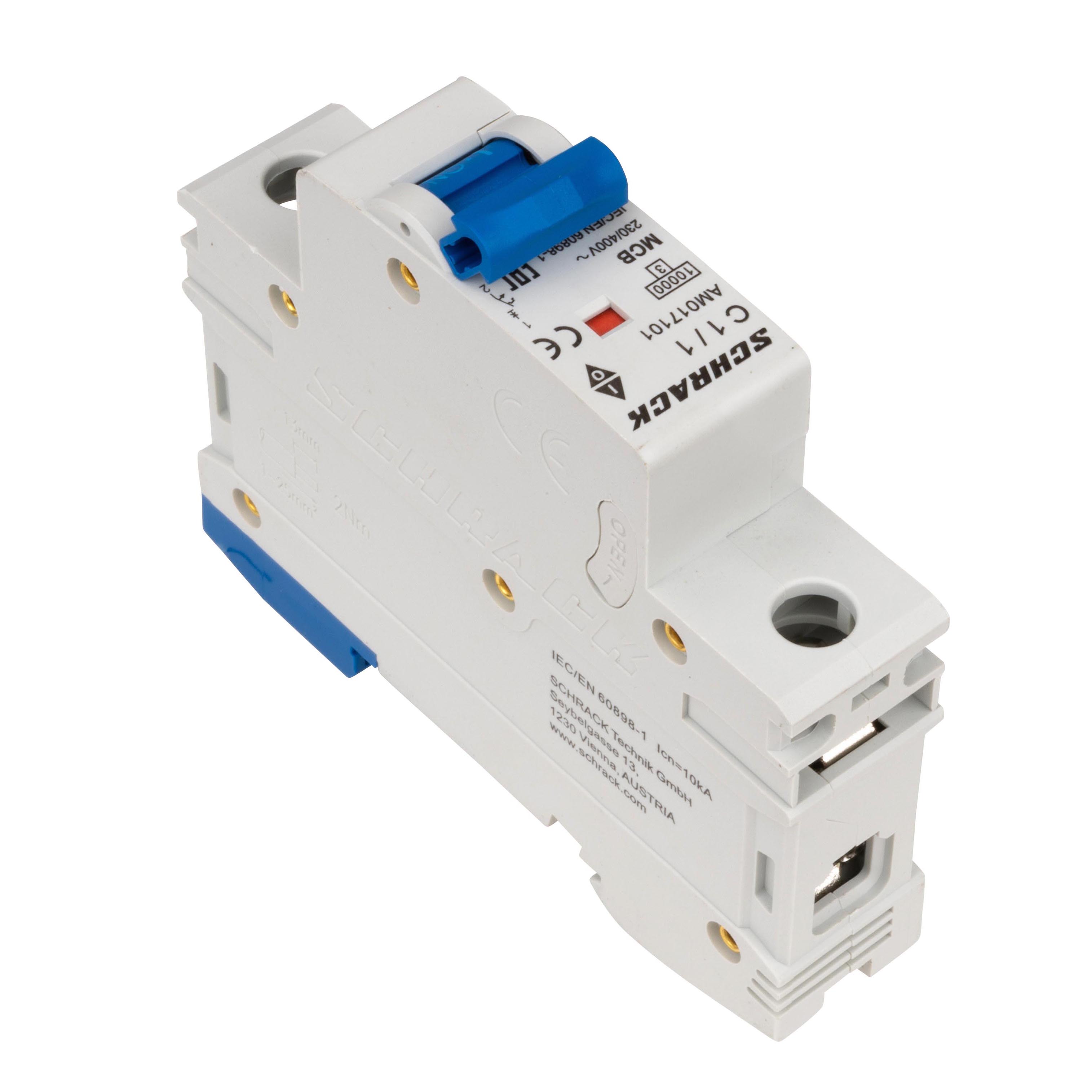

Automatic Circuit Breaker C1A/1, 10kA

Single-pole Automatic Circuit Breaker C1A/1, 10kA from Schrack's AMPARO series.

Main Parameters:

• Rated Current: 1 A
• Number of Poles: 1
• Tripping Characteristic: C (instantaneous tripping at 5-10 In)
• Breaking Capacity: 10 kA
• Type: AC-MCB (single-phase modular circuit breaker)
• Model: AM10

Technical Characteristics:

• Power Loss: 2.30 W
• Operating Temperature Range: -25 °C to +70 °C
• Dimensions: 86 × 18 × 77 mm
• Weight: 0.11 kg

Standards and Certification: Complies with EN 60898-1:2019 and IEC 60898-1 — international safety standards for automatic circuit breakers for household and similar purposes.

Packaging Options: 1 pcs., 12 pcs., 180 pcs.

Designed to protect electrical circuits from overloads and short circuits in low-voltage distribution panels.
