Automatic Circuit Breaker C10A/1, 10kA
1 / 9
Automatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kAAutomatic Circuit Breaker C10A/1, 10kA

Automatic Circuit Breaker C10A/1, 10kA

Article: AM017110--

Автоматические выключатели AMPARO

2 633 ₸

In stock
WhatsAppTelegram

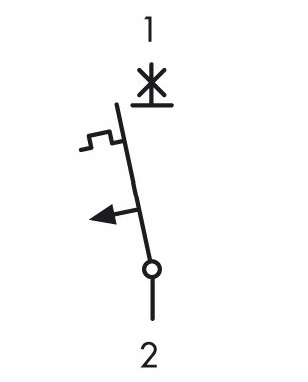

Single-pole automatic circuit breaker of the AMPARO series, type AM10, with rated current 10 A and breaking capacity 10 kA. Designed to protect alternating current electrical circuits from overloads and short circuits.

Technical Characteristics:

  • Rated Current: 10 A
  • Breaking Capacity: 10 kA
  • Trip Characteristic: C (time-current characteristic for circuits with moderate inrush currents)
  • Number of Poles: 1
  • Design: AC-MCB (automatic circuit breaker for alternating current)
  • Standards: EN 60898-1:2019, IEC 60898-1
  • Ambient Temperature Range: -25°C to +70°C
  • Power Loss: 2.30 W

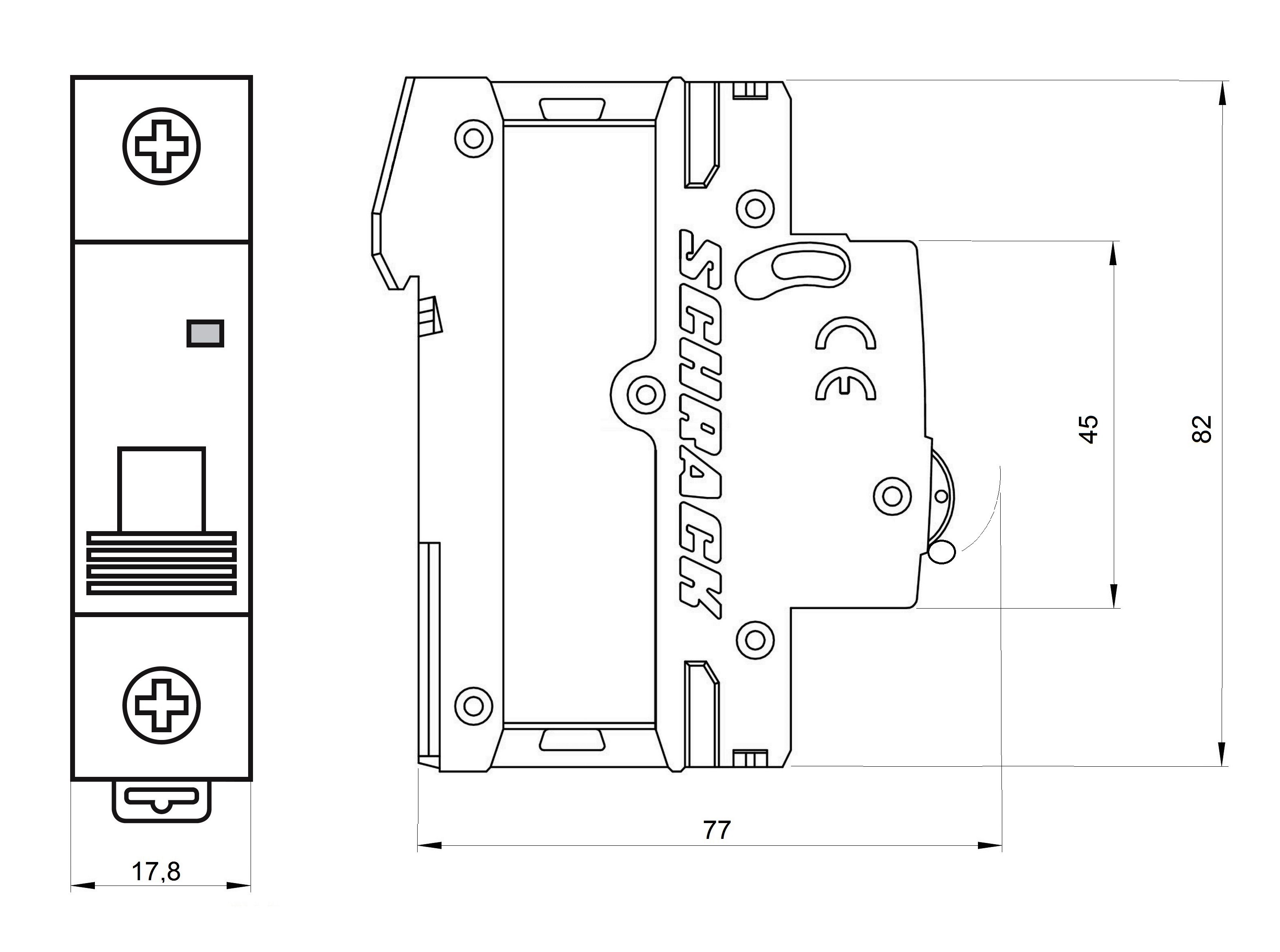

Overall Dimensions:

  • Length: 86 mm
  • Width: 18 mm
  • Height: 77 mm
  • Net Weight: 0.11 kg

Manufacturer: Schrack

EAN Code: 9004840794458

The circuit breaker complies with the requirements of European standards and can be supplied in packaging of 1, 12, or 180 units.

EAN Code9004840794458
Length Net86.00 mm
Width Net18.00 mm
Height Net77.00 mm
Weight Net0.11 kg
Power Loss2.30 W
Min. Ambient Temperature-25°C
Max. Ambient Temperature70°C
CharacteristicC
Poles1
Current Rating10 A
TypeAM10
SeriesAMPARO
Breaking Capacity10 kA
DesignAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pcs, 12 pcs, 180 pcs
