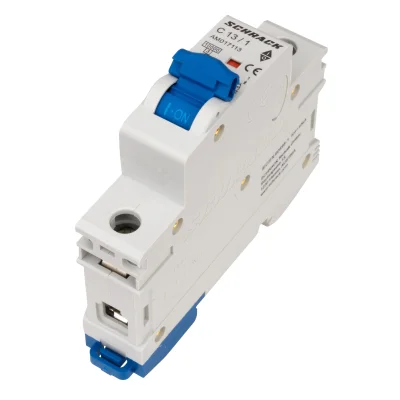

Automatic Circuit Breaker C13А/1, 10kA

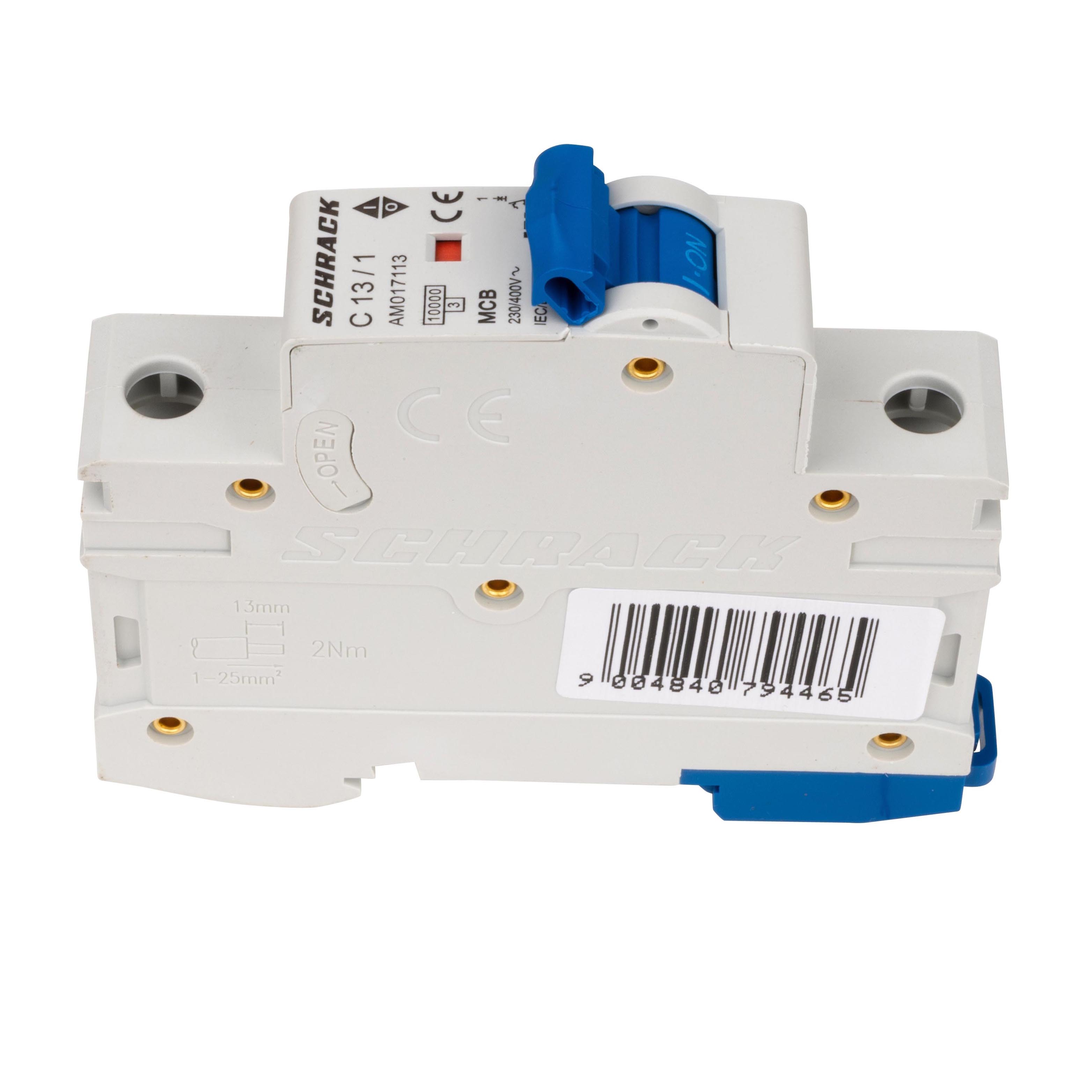

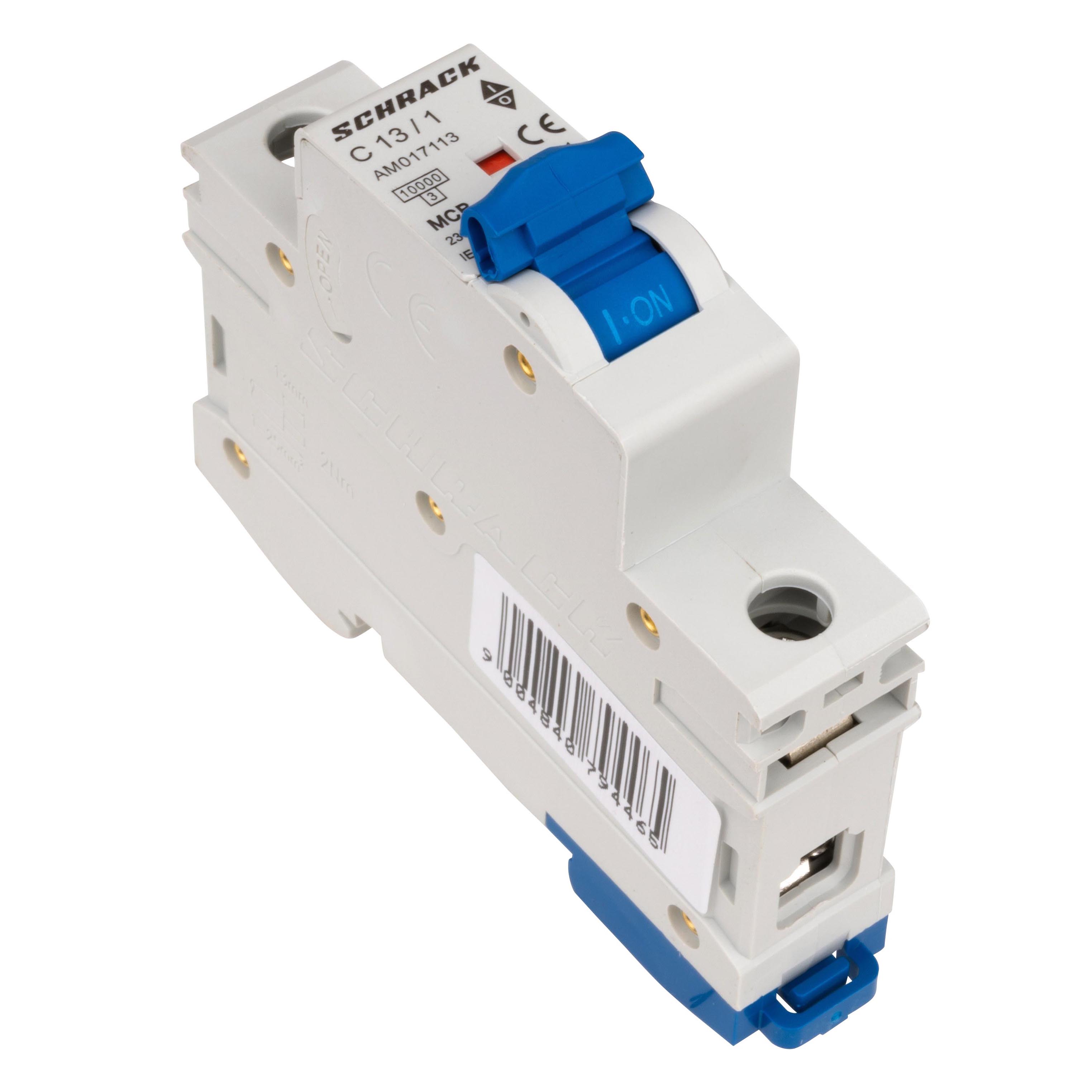

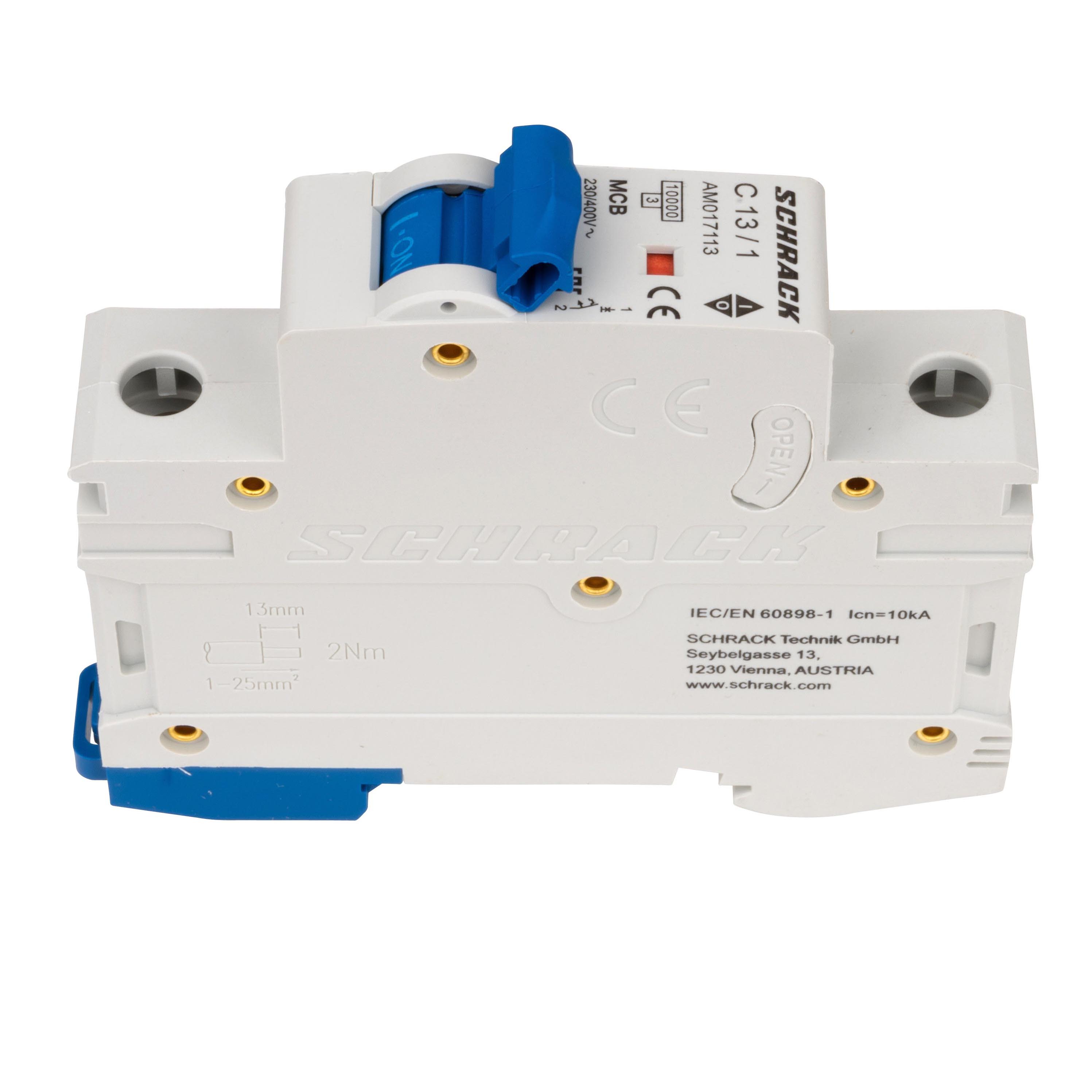

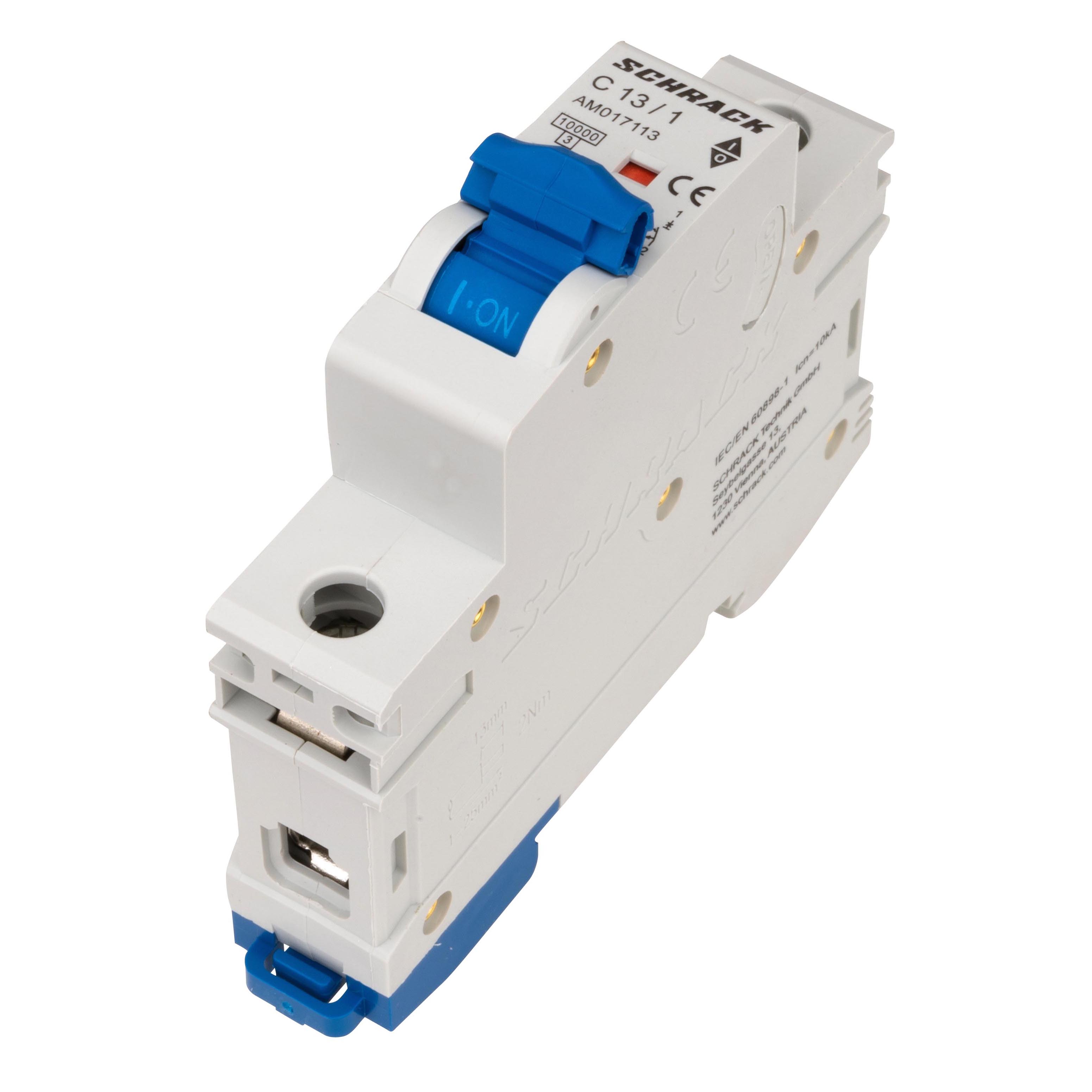

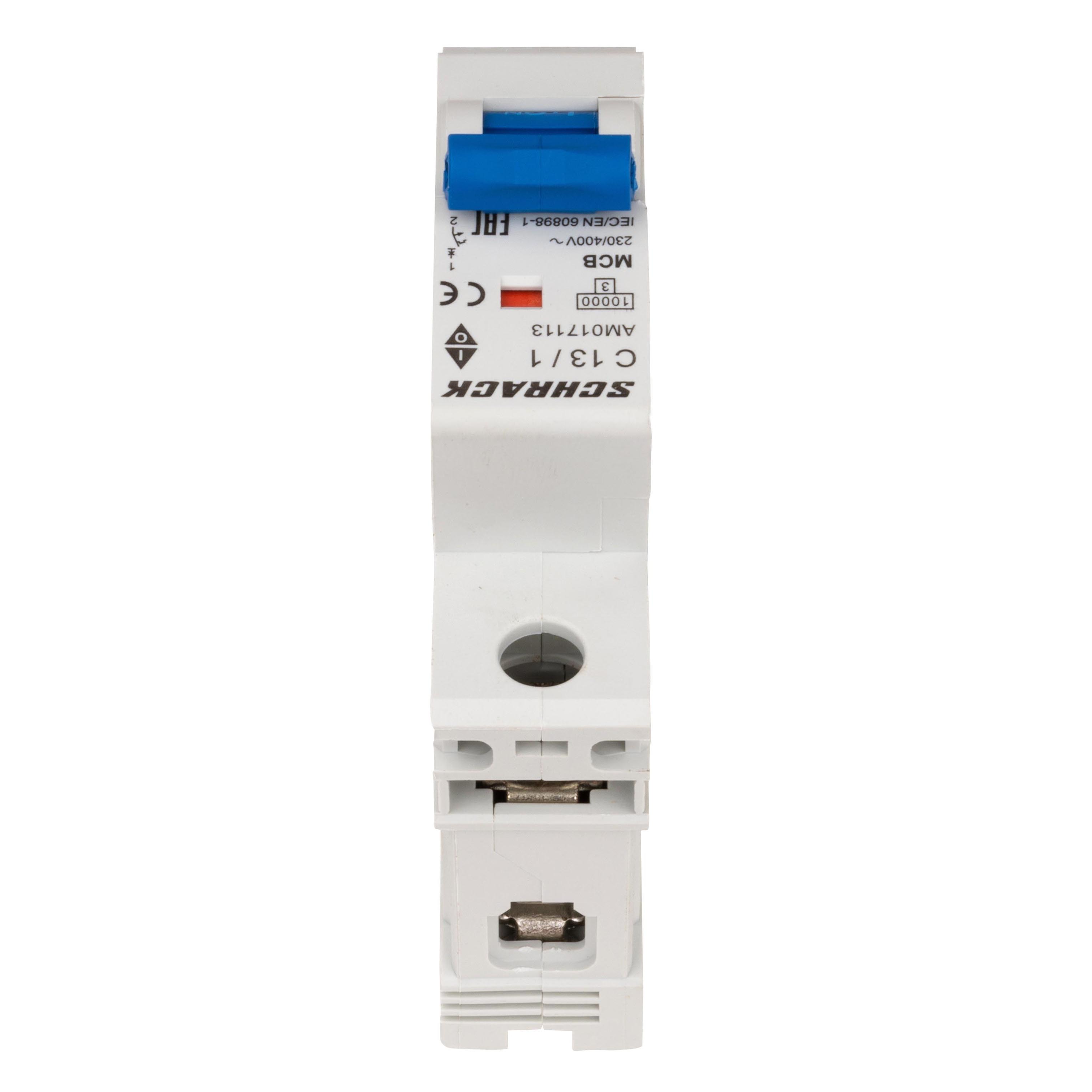

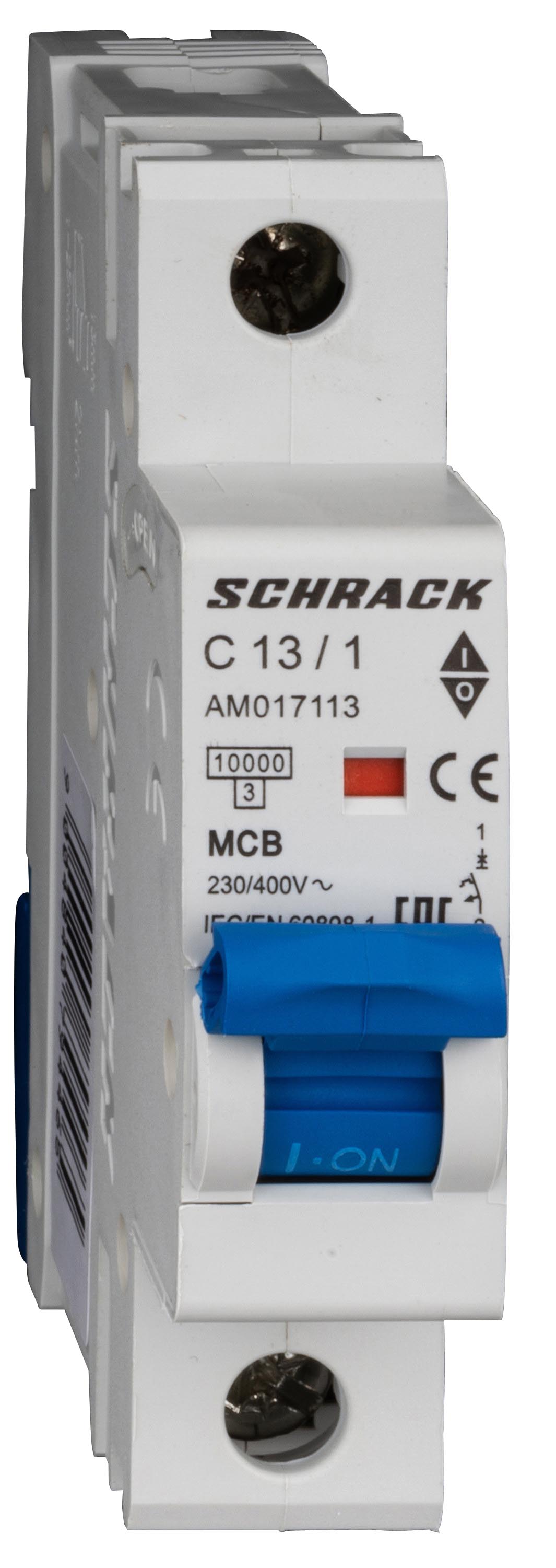

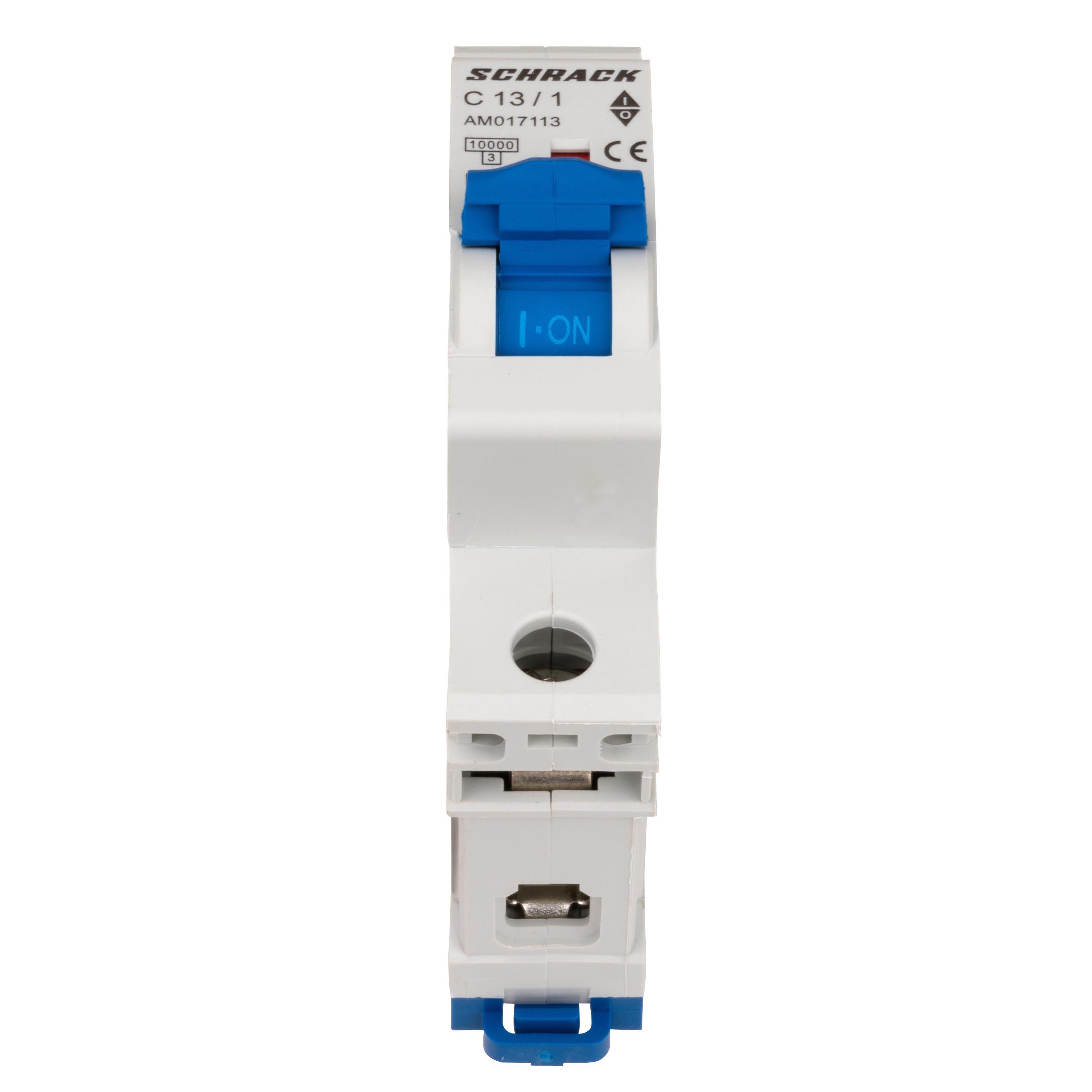

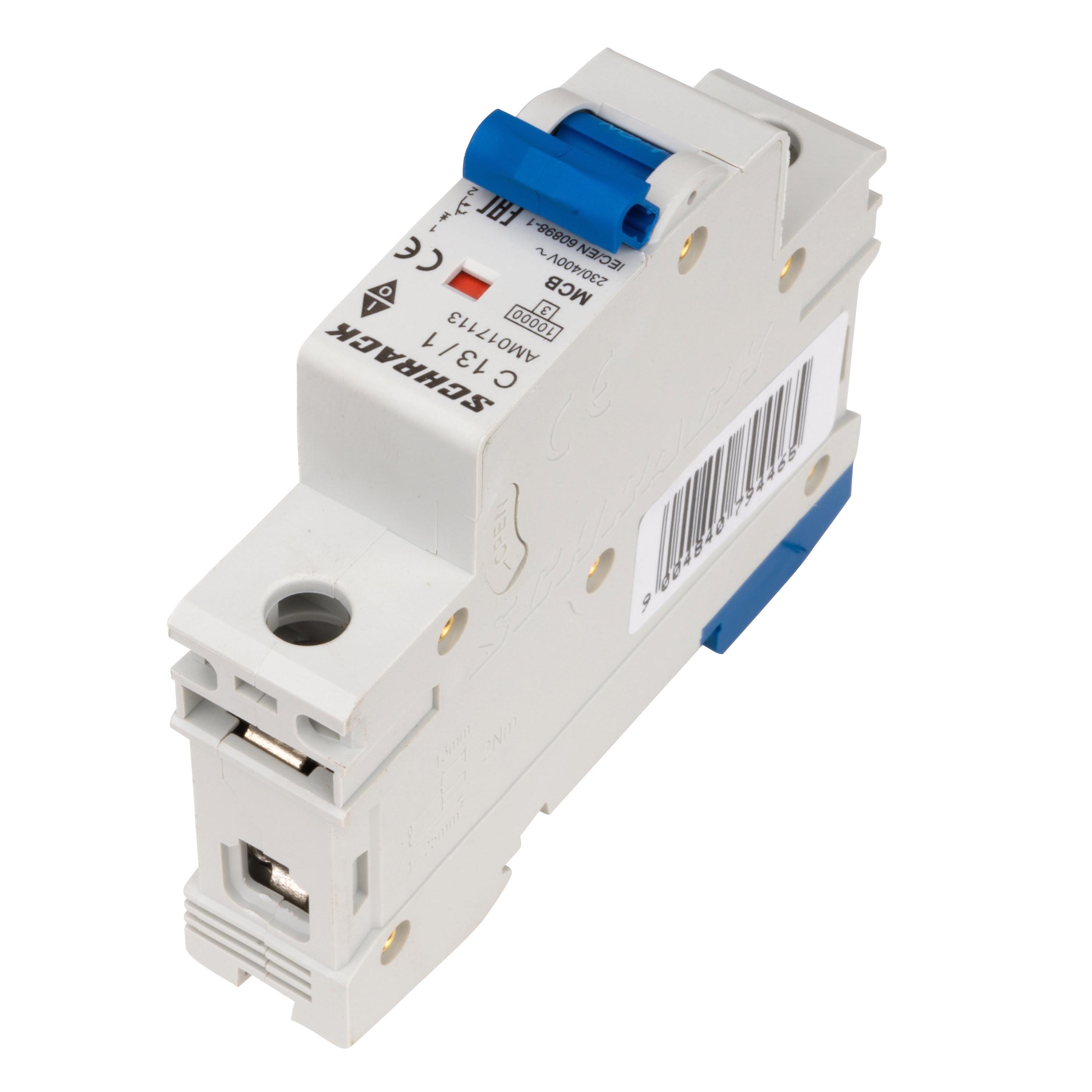

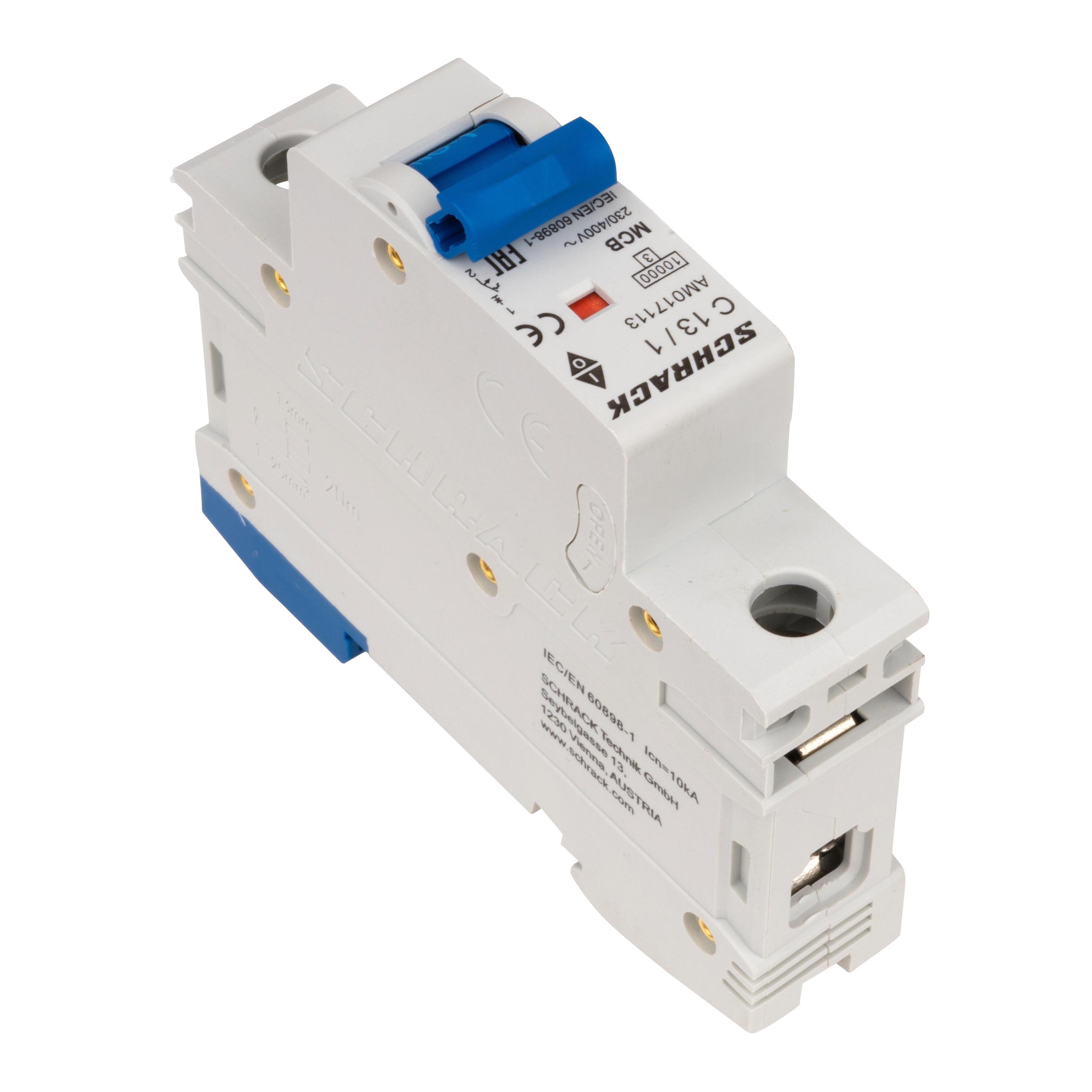

Automatic Circuit Breaker C13А/1, 10kA — single-pole modular automatic switch of the AMPARO series manufactured by Schrack, designed to protect electrical circuits from overloads and short-circuit currents.

Main Characteristics:

• Nominal Current: 13 A
• Tripping Characteristic: C (for protection of mixed networks with moderate inrush currents)
• Breaking Capacity: 10 kA
• Number of Poles: 1
• Type: AC-MCB (alternating current circuit breaker)
• Operating Voltage: 230 V AC (standard for single-pole configuration)
• Operating Temperature Range: -25°C to +70°C
• Power Loss: 4.03 W

Physical Dimensions:

• Length: 86 mm
• Width: 18 mm
• Height: 77 mm
• Weight: 0.11 kg

Normative Basis:

Manufactured in accordance with EN 60898-1:2019 and IEC 60898-1, which guarantees compliance with European and international safety standards.

Packaging Options: 1 pc., 12 pcs., 180 pcs.

EAN Code: 9004840794465
