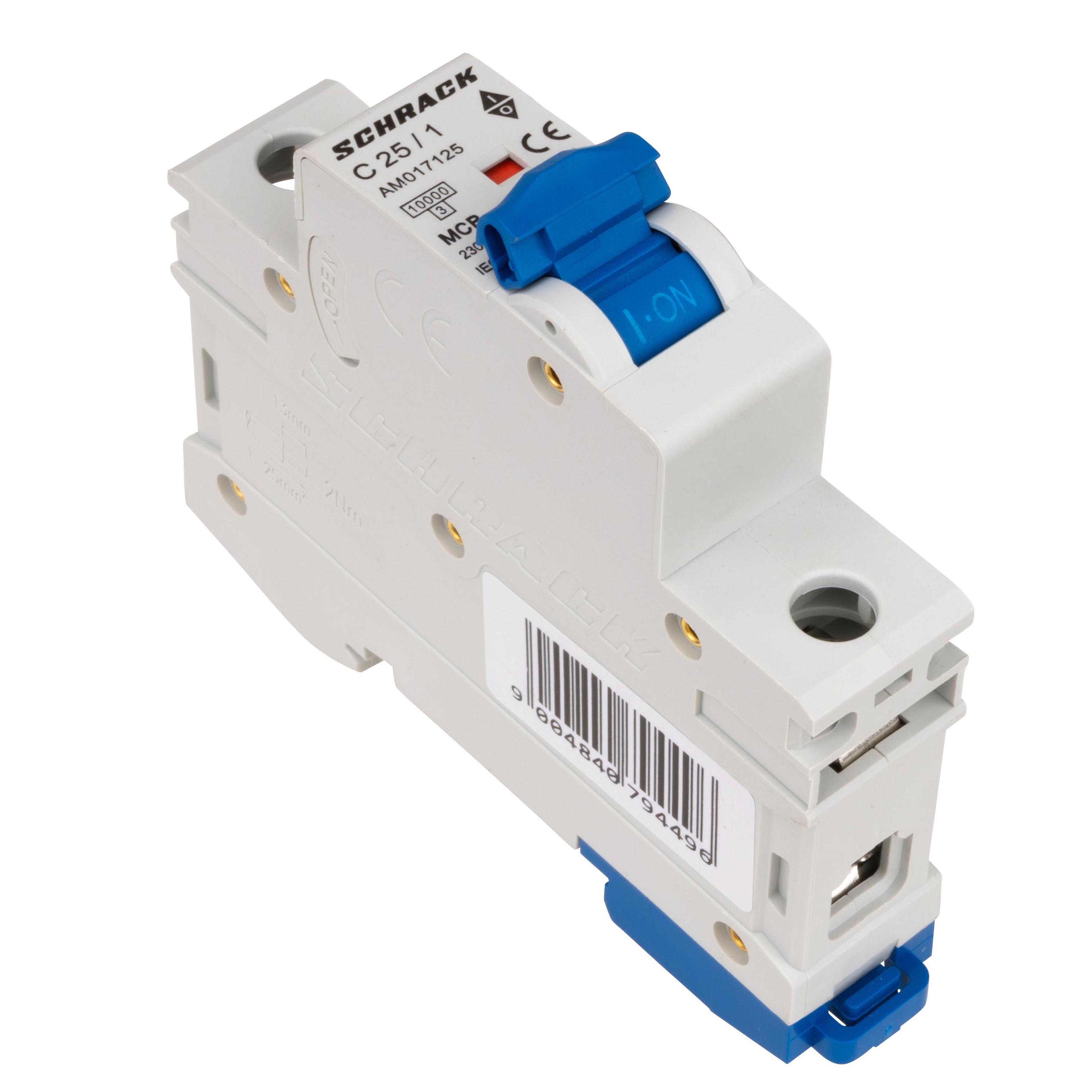

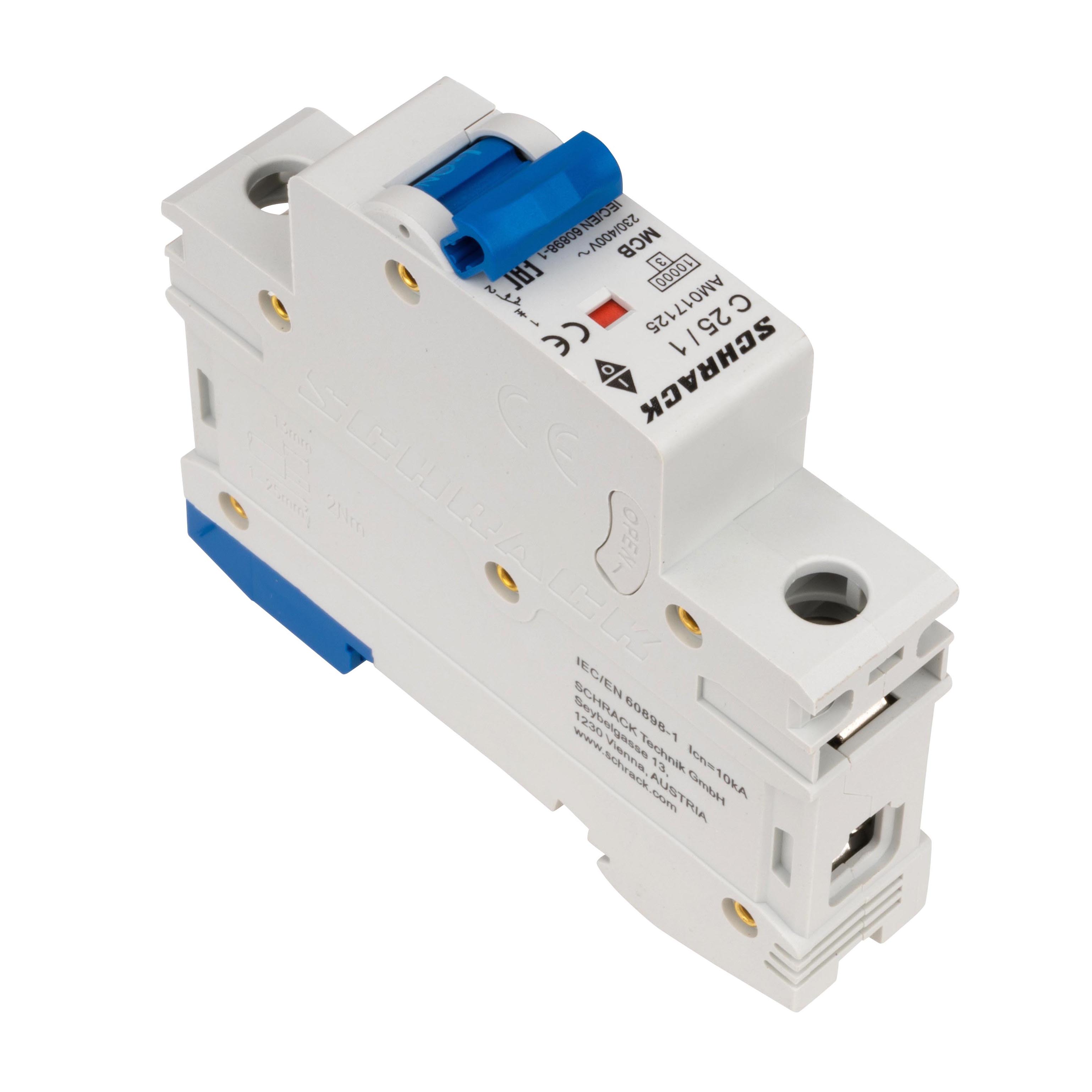

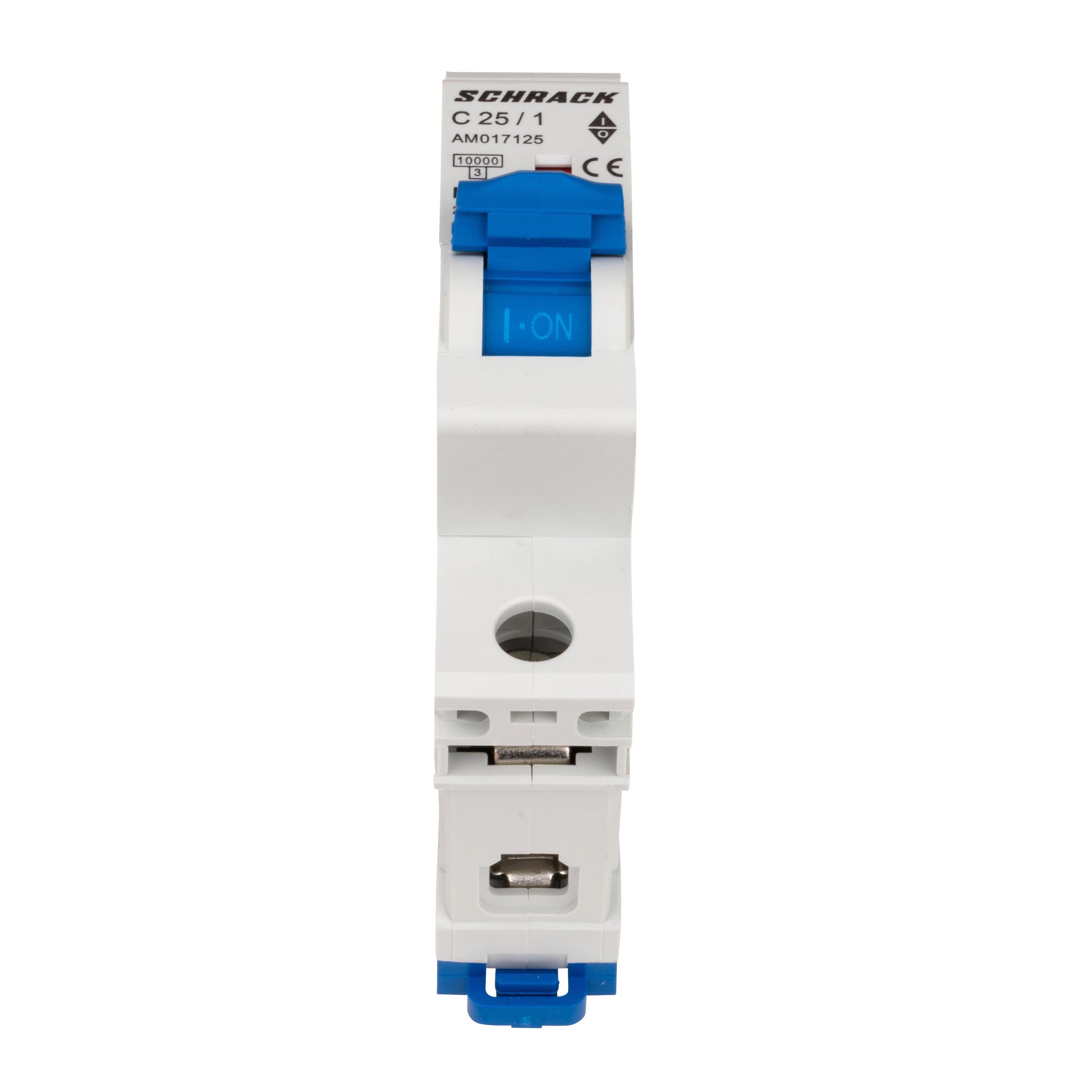

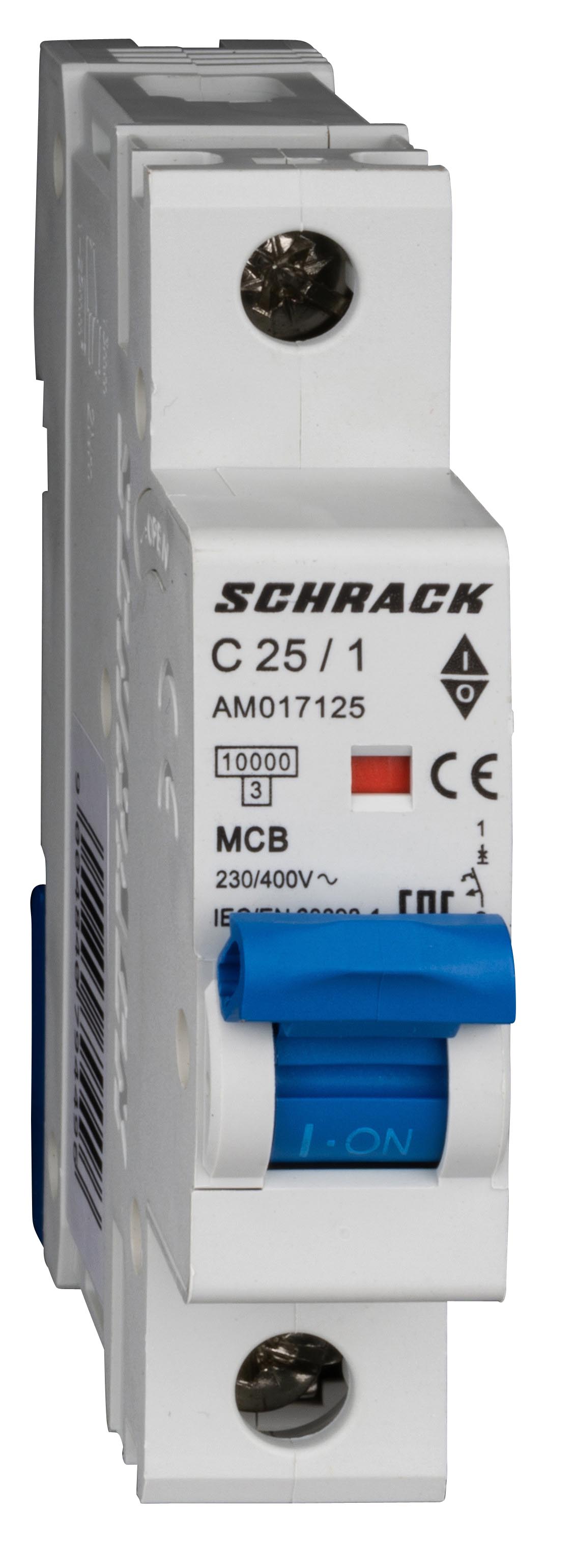

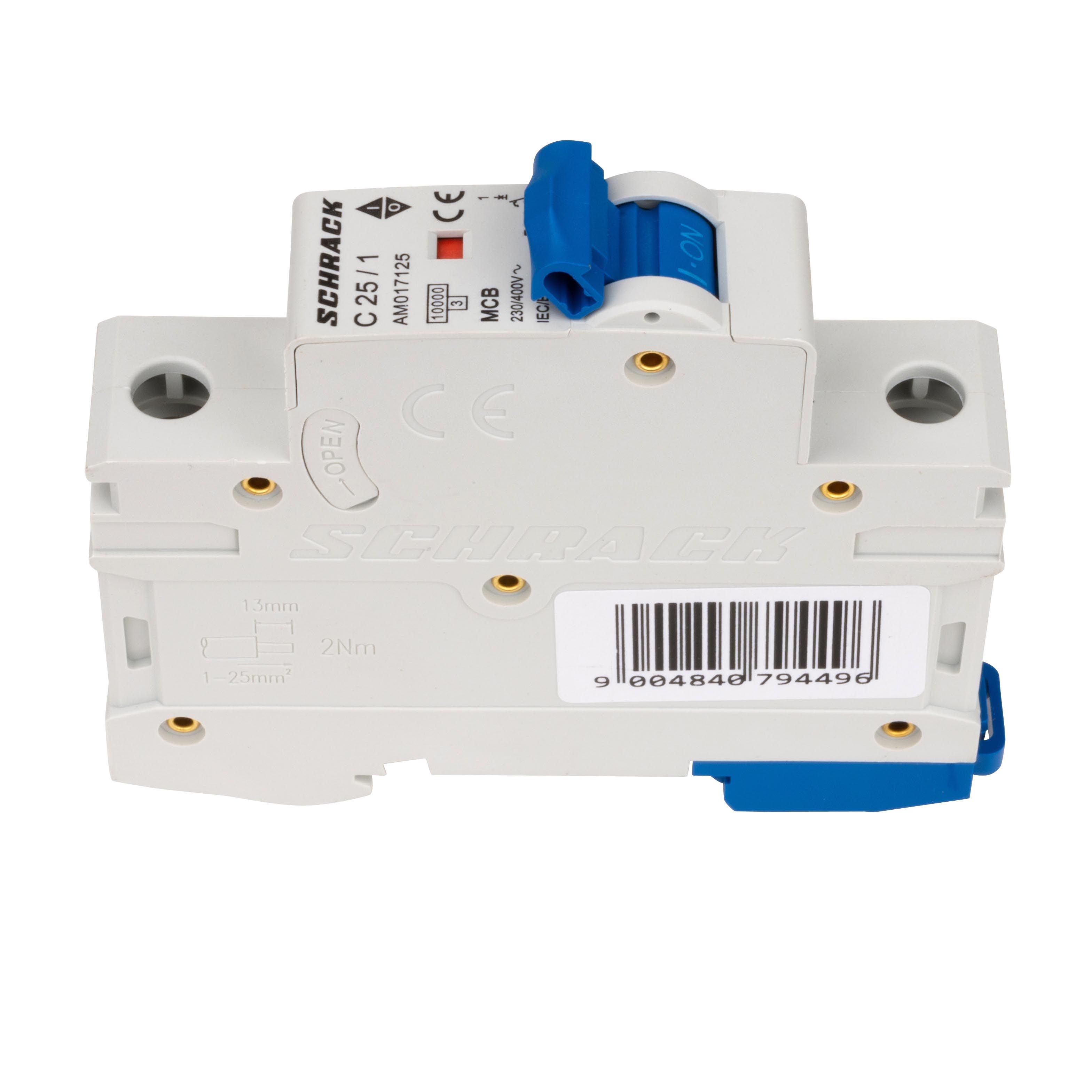

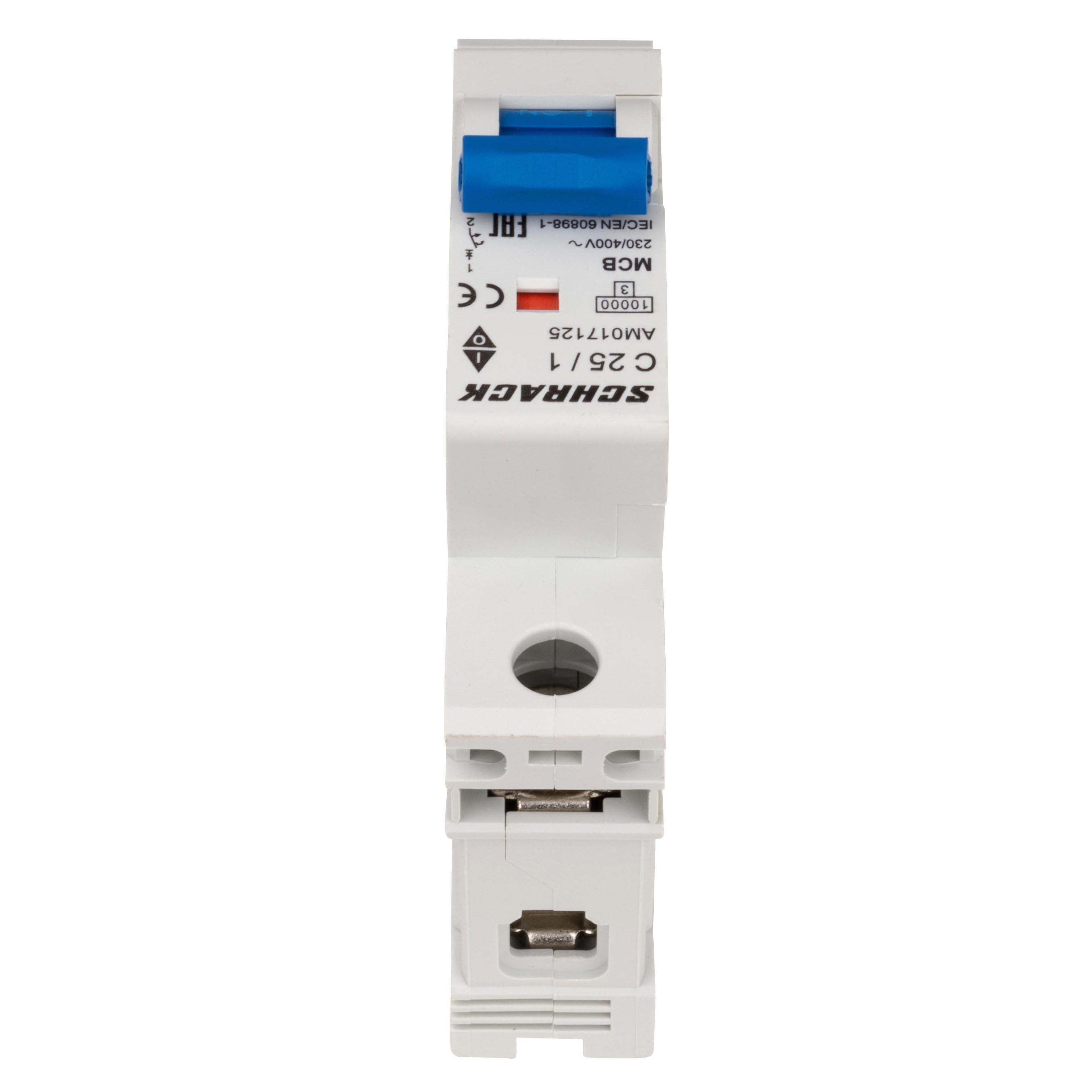

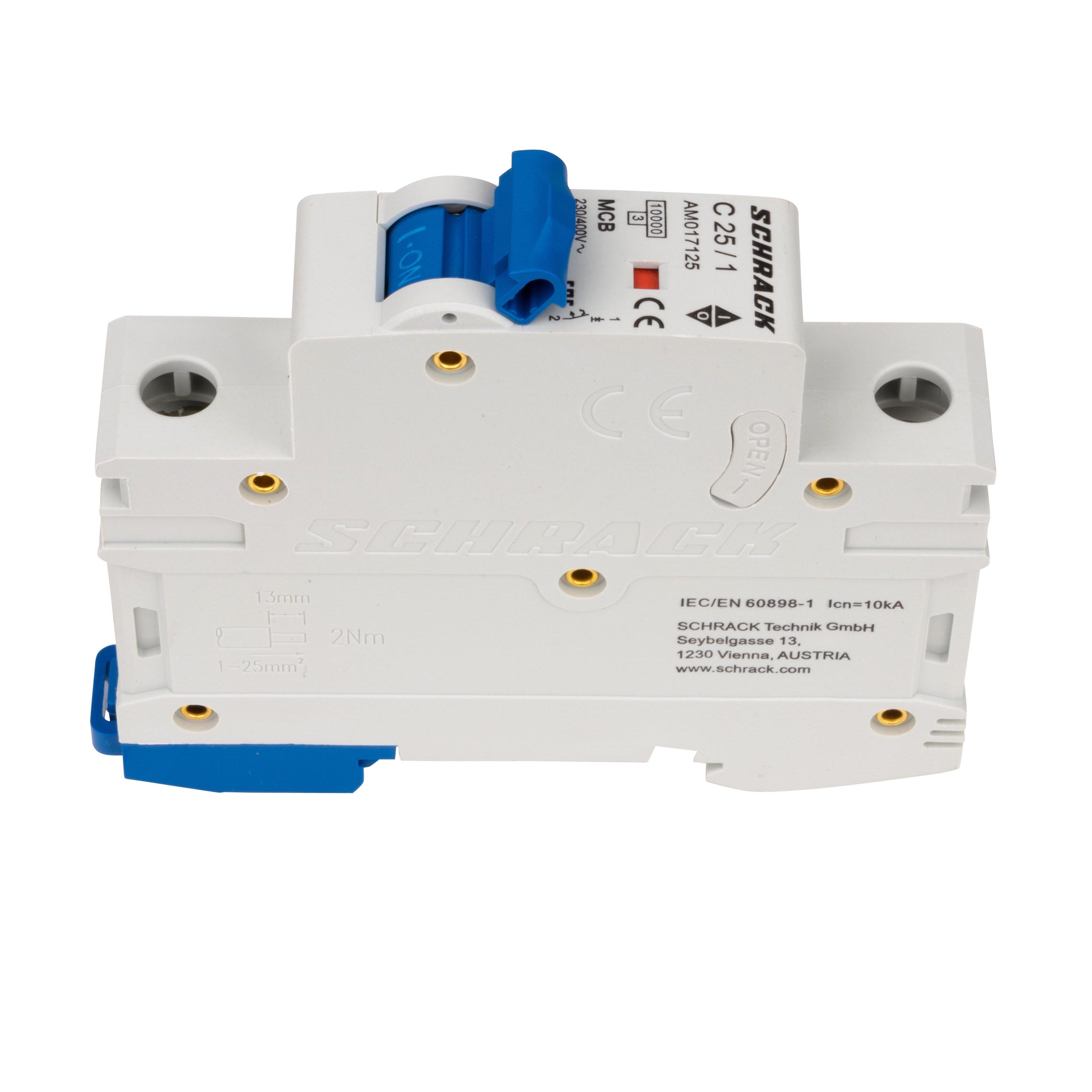

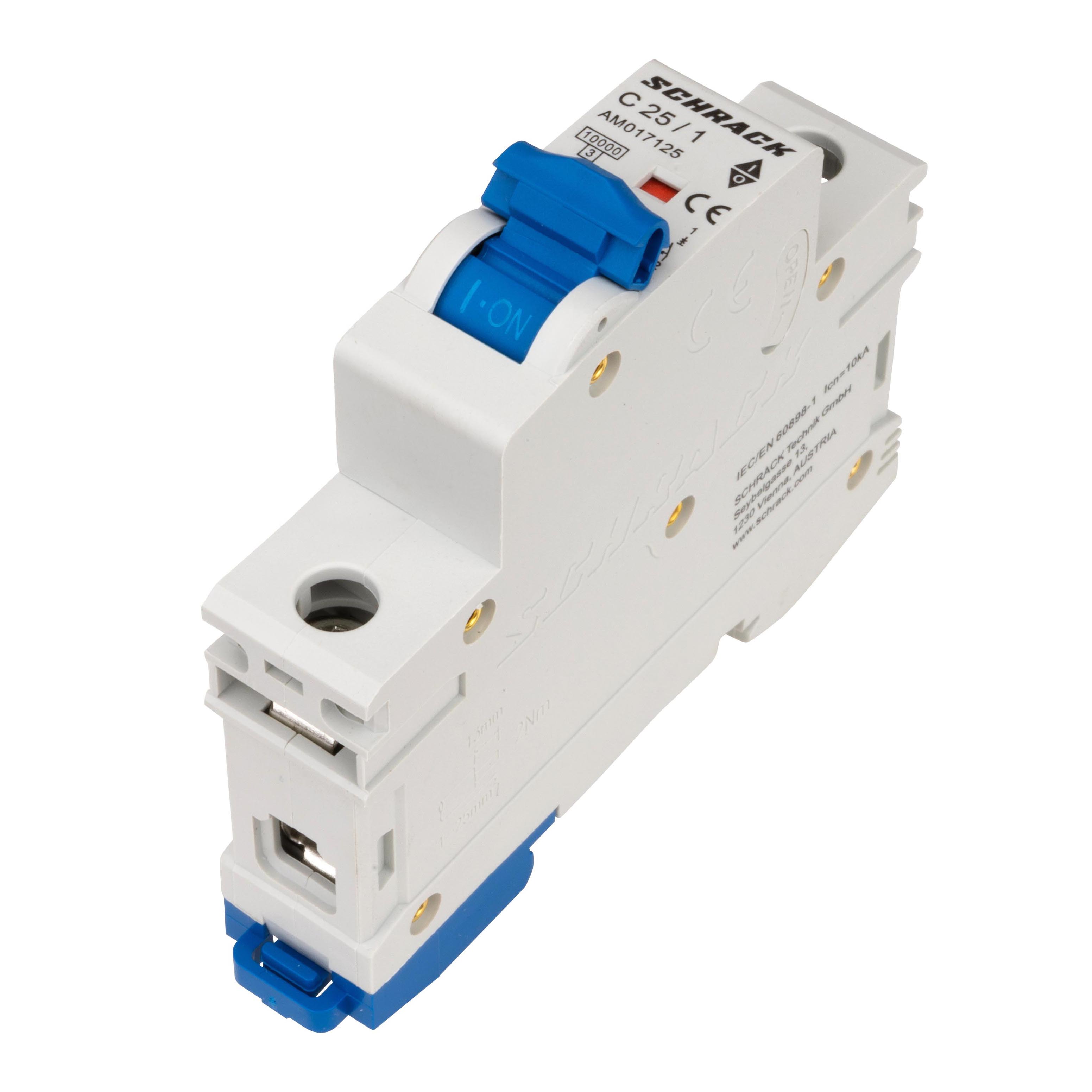

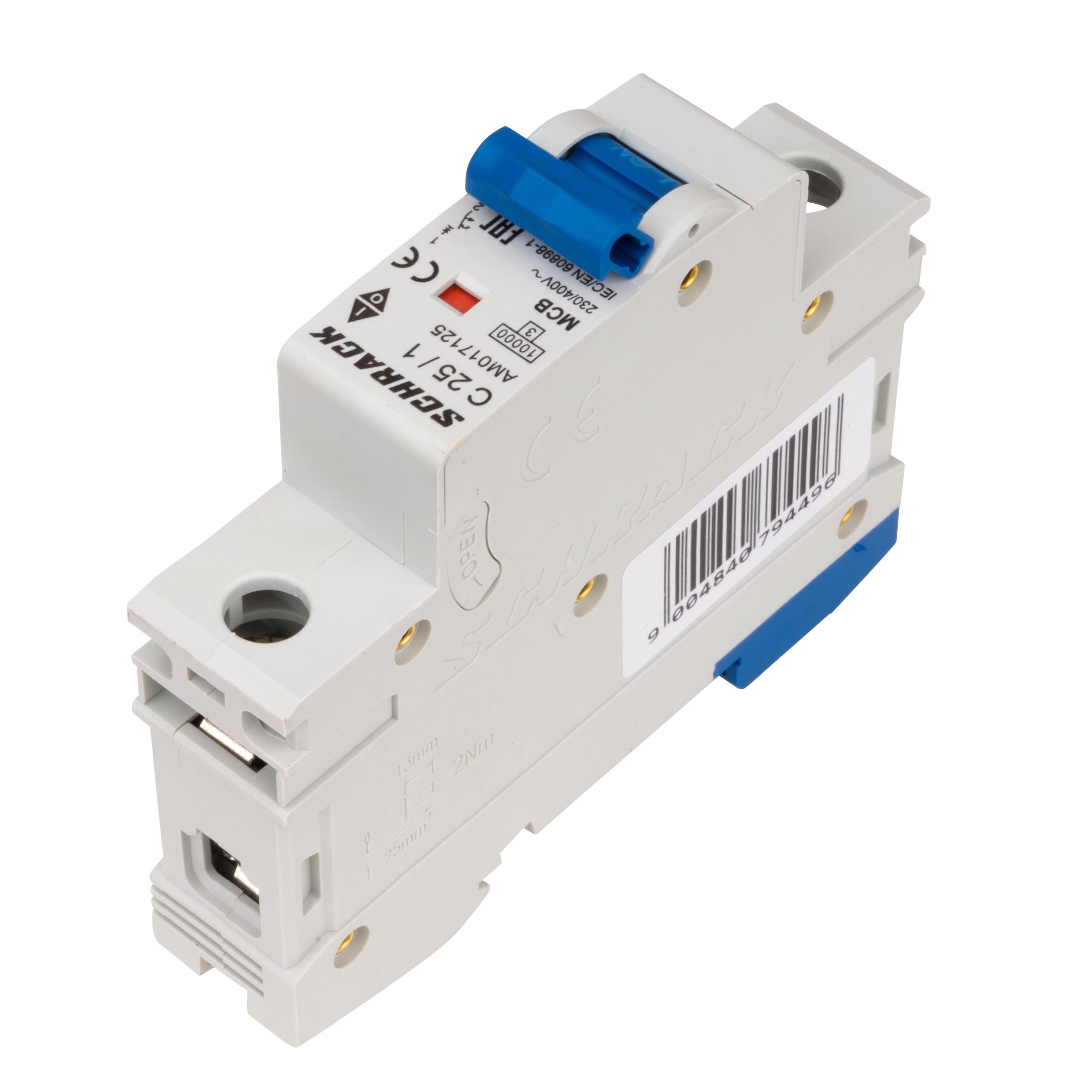

Automatic Circuit Breaker C25A/1, 10kA
1 / 9
Automatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kAAutomatic Circuit Breaker C25A/1, 10kA

Automatic Circuit Breaker C25A/1, 10kA

Article: AM017125--

Автоматические выключатели AMPARO

3 250 ₸

In stock
WhatsAppTelegram

Single-pole automatic circuit breaker of the AMPARO series with a rated current of 25 A and a switching capacity of 10 kA. Designed to protect electrical circuits from overloads and short circuit currents.

Key Characteristics:

  • Trip Characteristic: C (applied in circuits with moderate inrush currents)
  • Rated Voltage: AC (alternating current)
  • Operating Temperature Range: -25°C to +70°C
  • Power Loss at Rated Current: 4.03 W
  • Design: Compact modular construction for DIN rail installation
  • Execution Type: AC-MCB (automatic circuit breaker for alternating current)
  • Compliance Standard: EN 60898-1:2019, IEC 60898-1
  • Manufacturer: Schrack (Austrian company, a renowned supplier of electrical equipment)

Dimensions (Net):

  • Length: 86 mm
  • Width: 18 mm
  • Height: 77 mm
  • Weight: 0.11 kg

Packaging Options: 1 piece, 12 pieces, 180 pieces

EAN Code9004840794496
Net Length86.00 mm
Net Width18.00 mm
Net Height77.00 mm
Net Weight0.11 kg
Power Loss4.03 W
Min. Ambient Temperature-25°C
Max. Ambient Temperature70°C
CharacteristicC
Poles1
Rated Current25 A
TypeAM10
SeriesAMPARO
Switching Capacity10 kA
DesignAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pc., 12 pc., 180 pc.
