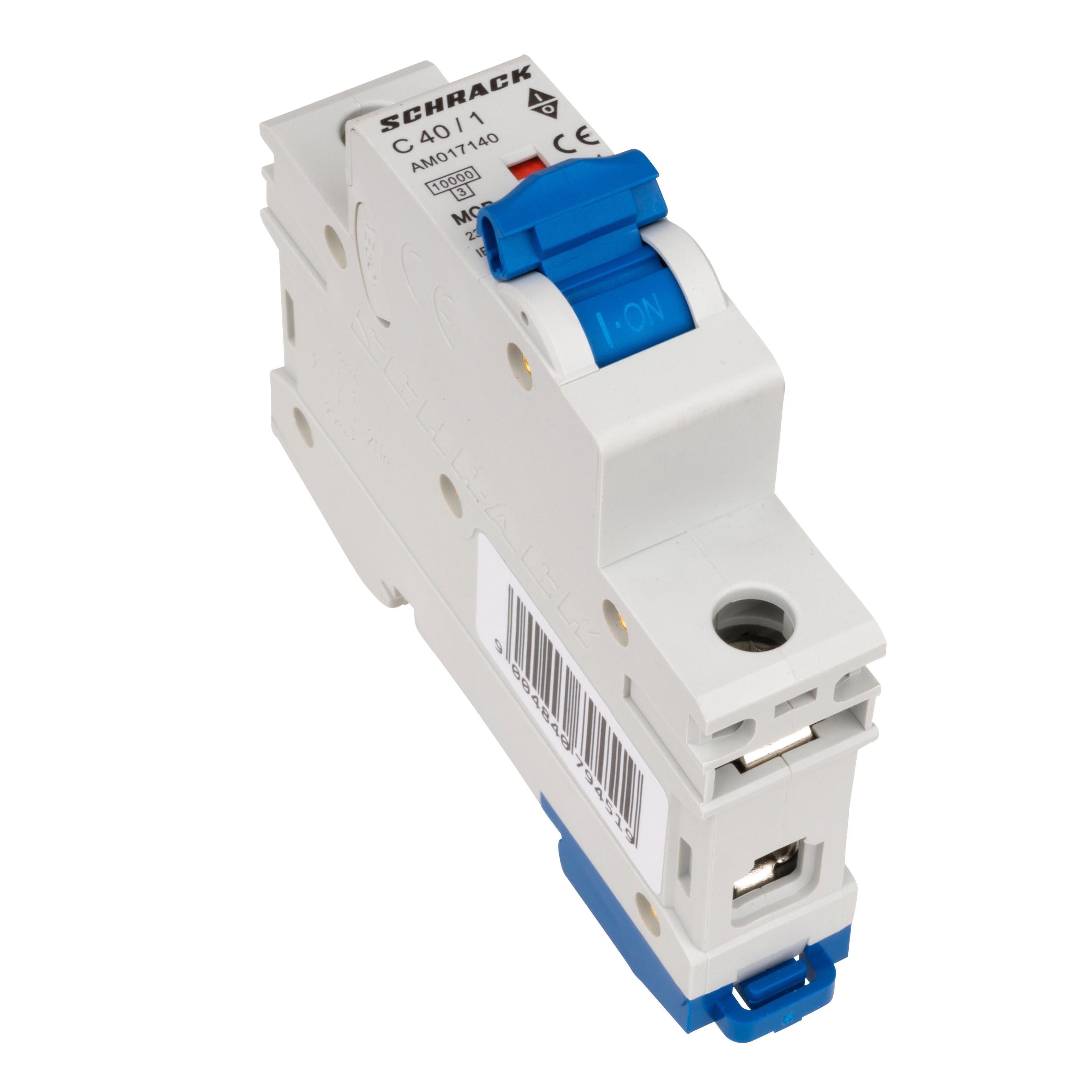

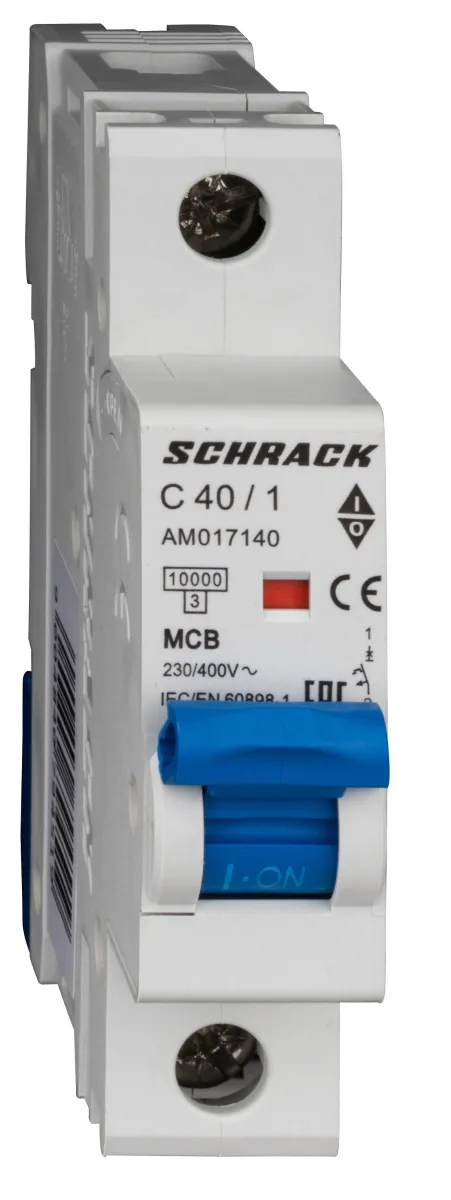

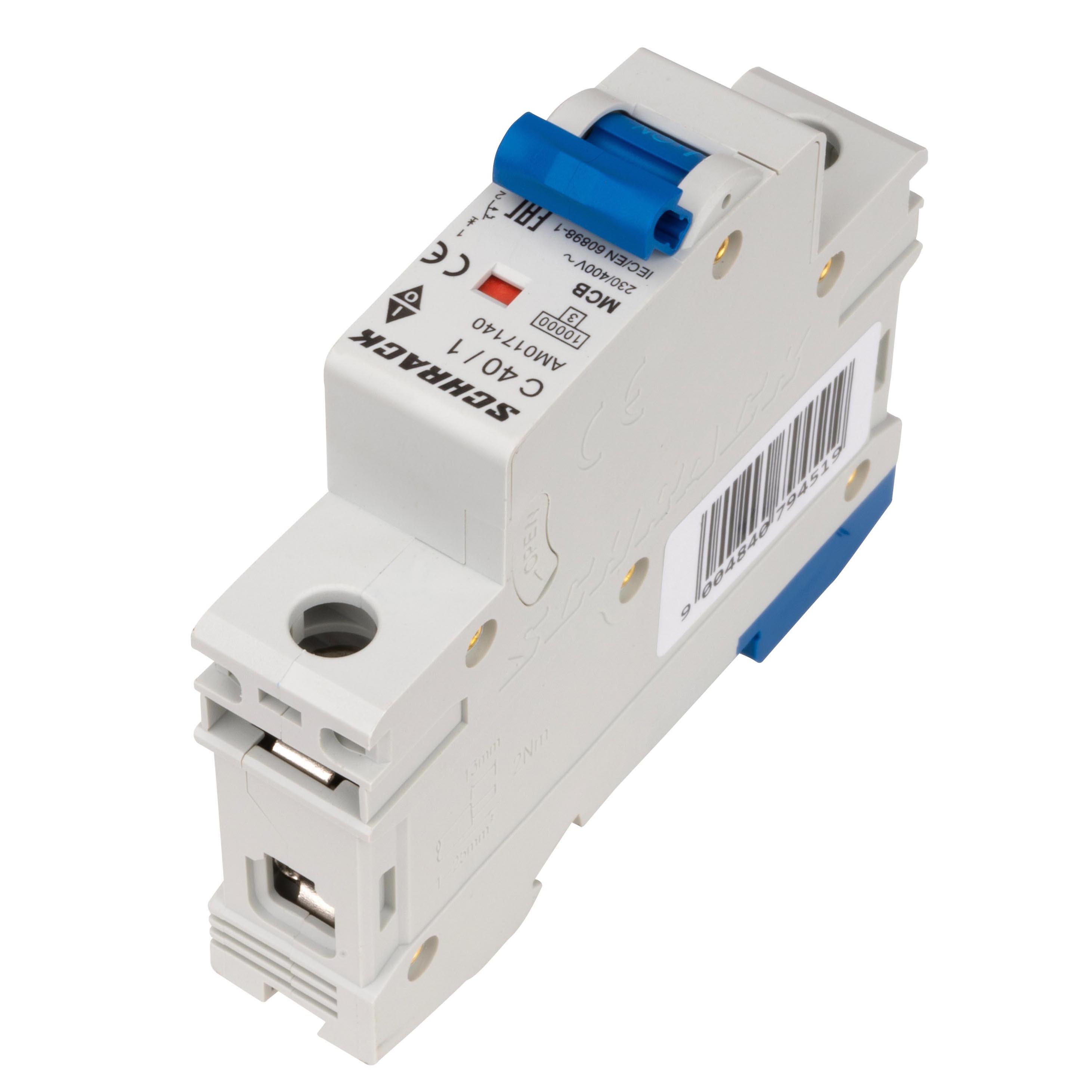

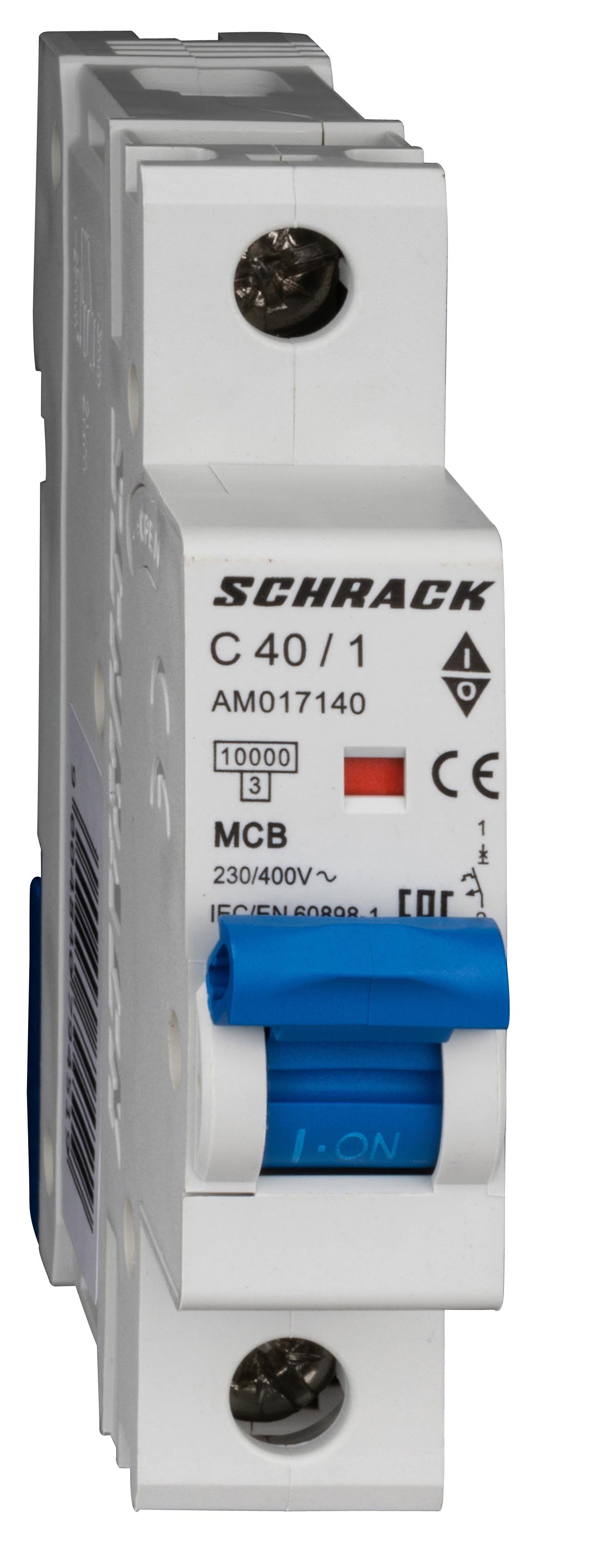

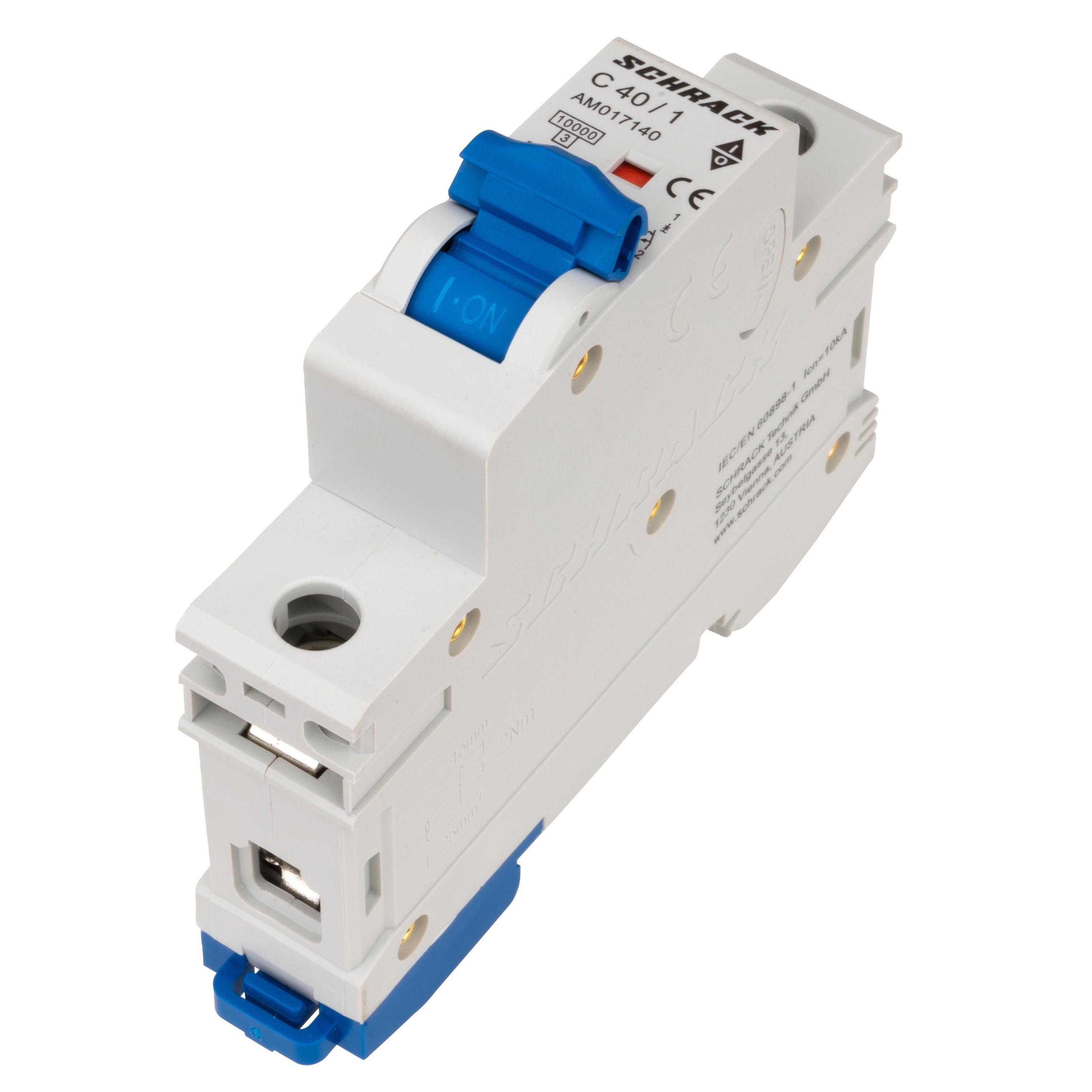

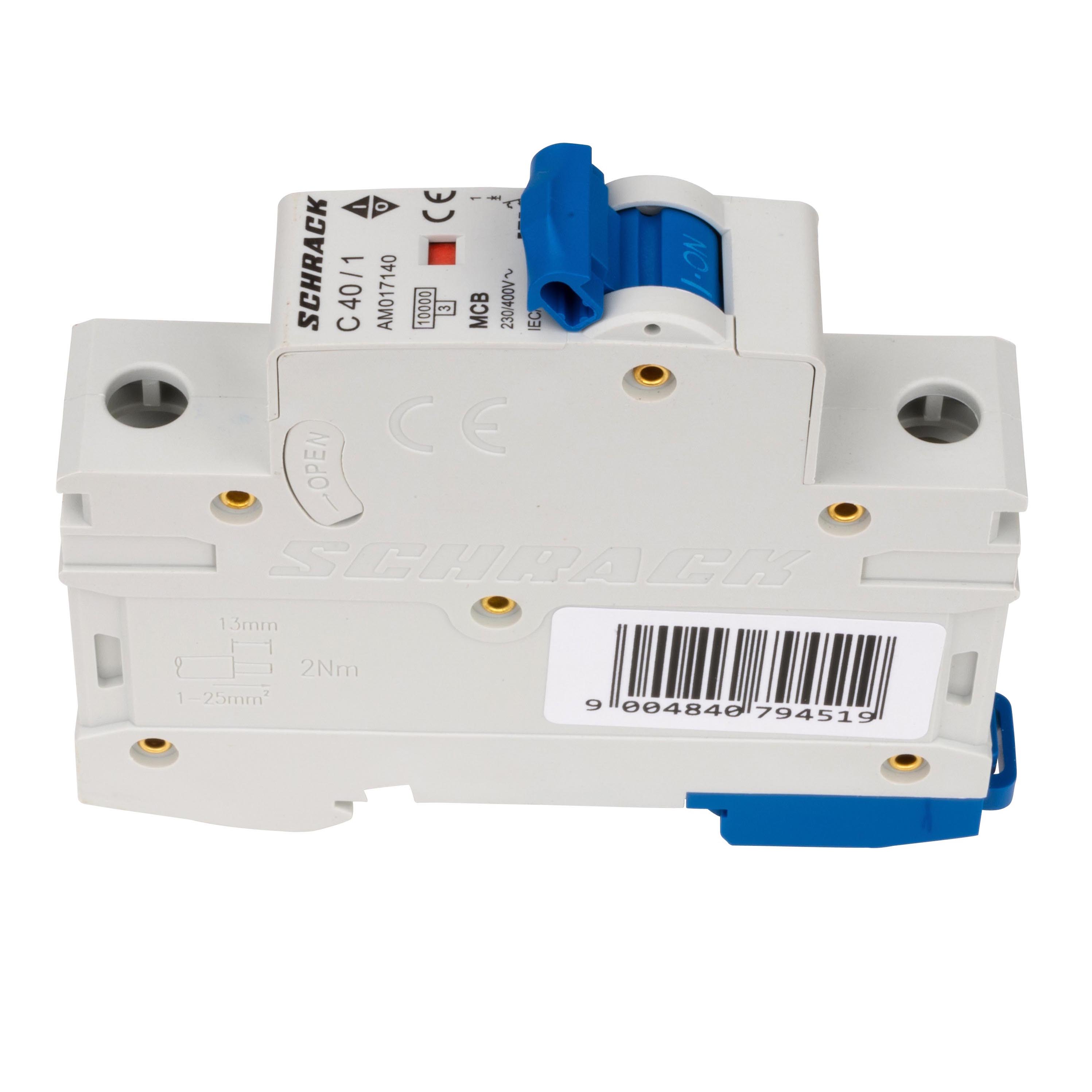

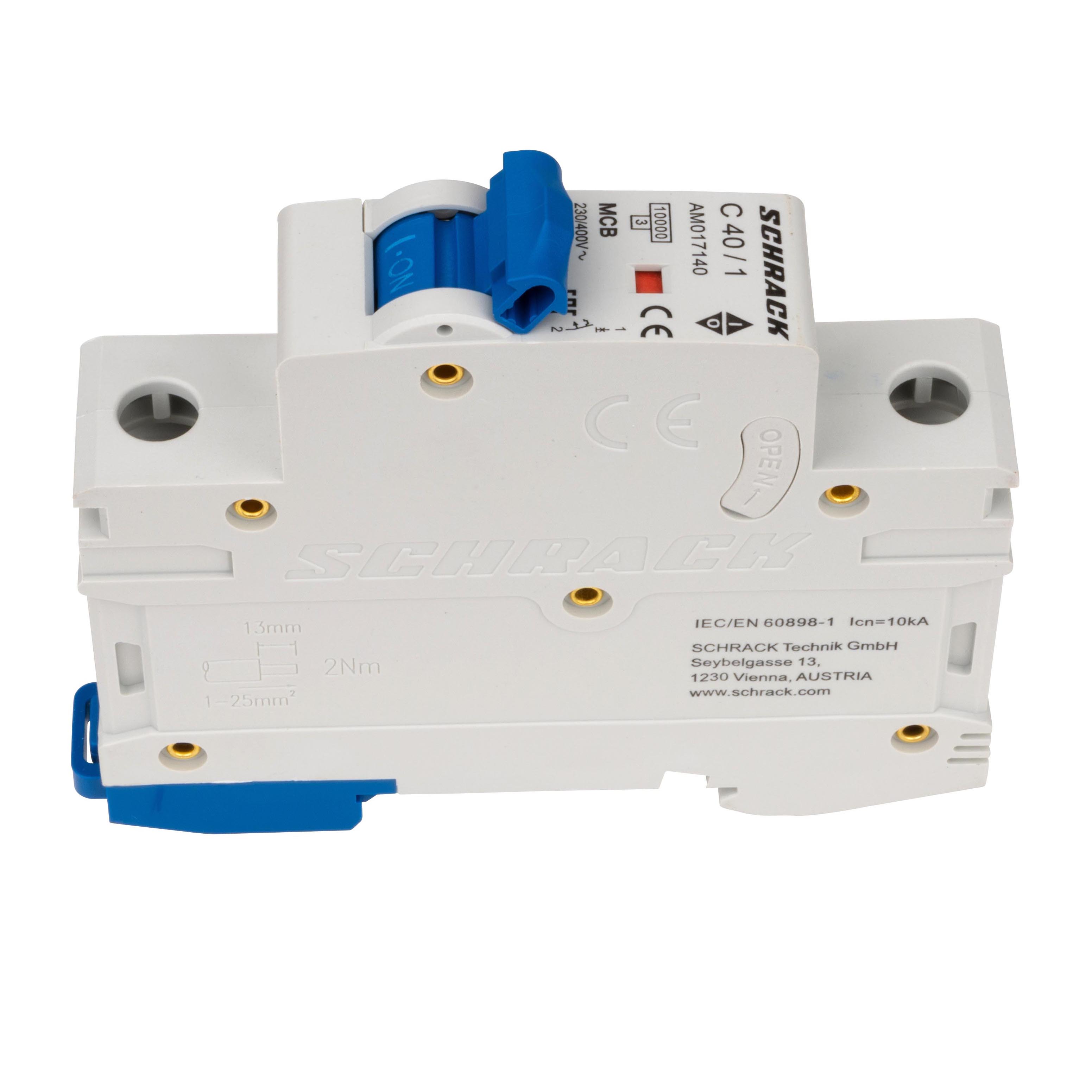

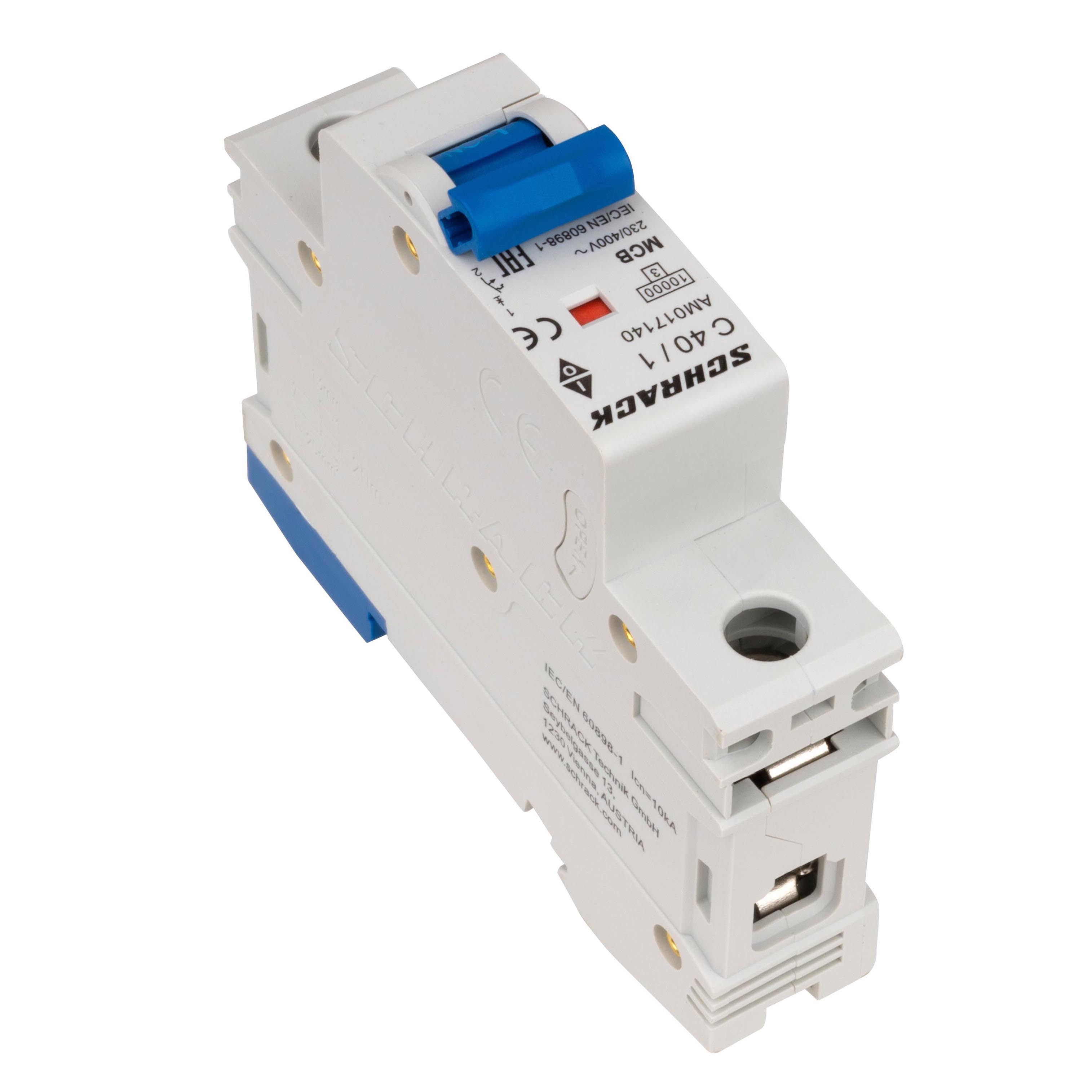

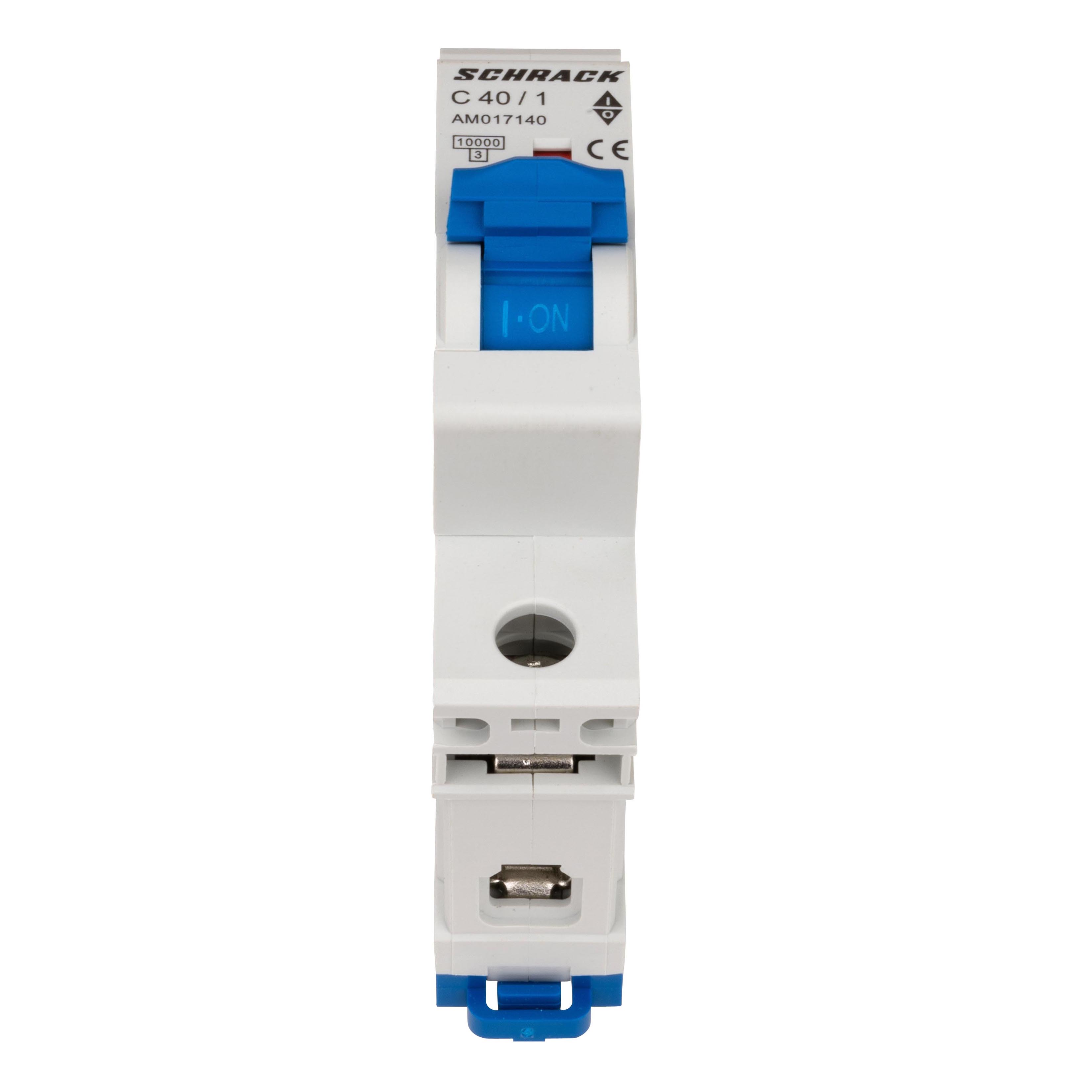

Automatic Circuit Breaker C40А/1, 10kA

Single-pole automatic circuit breaker of the AMPARO series with a nominal current of 40А and a switching capacity of 10кА. Designed to protect AC electrical circuits from overloads and short-circuit currents.

Technical Parameters:

• Tripping Characteristic: C (for circuits with moderate inrush currents)
• Type: AC-MCB (single-pole modular alternating current circuit breaker)
• Operating Temperature Range: from -25°C to +70°C
• Power Loss: 5.75W
• Overall Dimensions: 86×18×77mm
• Weight: 0.11kg

Standards Compliance:

The circuit breaker is designed and tested in accordance with EN 60898-1:2019 and IEC 60898-1, ensuring reliability and safety when used in electrical installations of residential and commercial facilities.

Manufacturer: Schrack (Austria)

Packaging Options: 1 piece, 12 pieces, 180 pieces.
