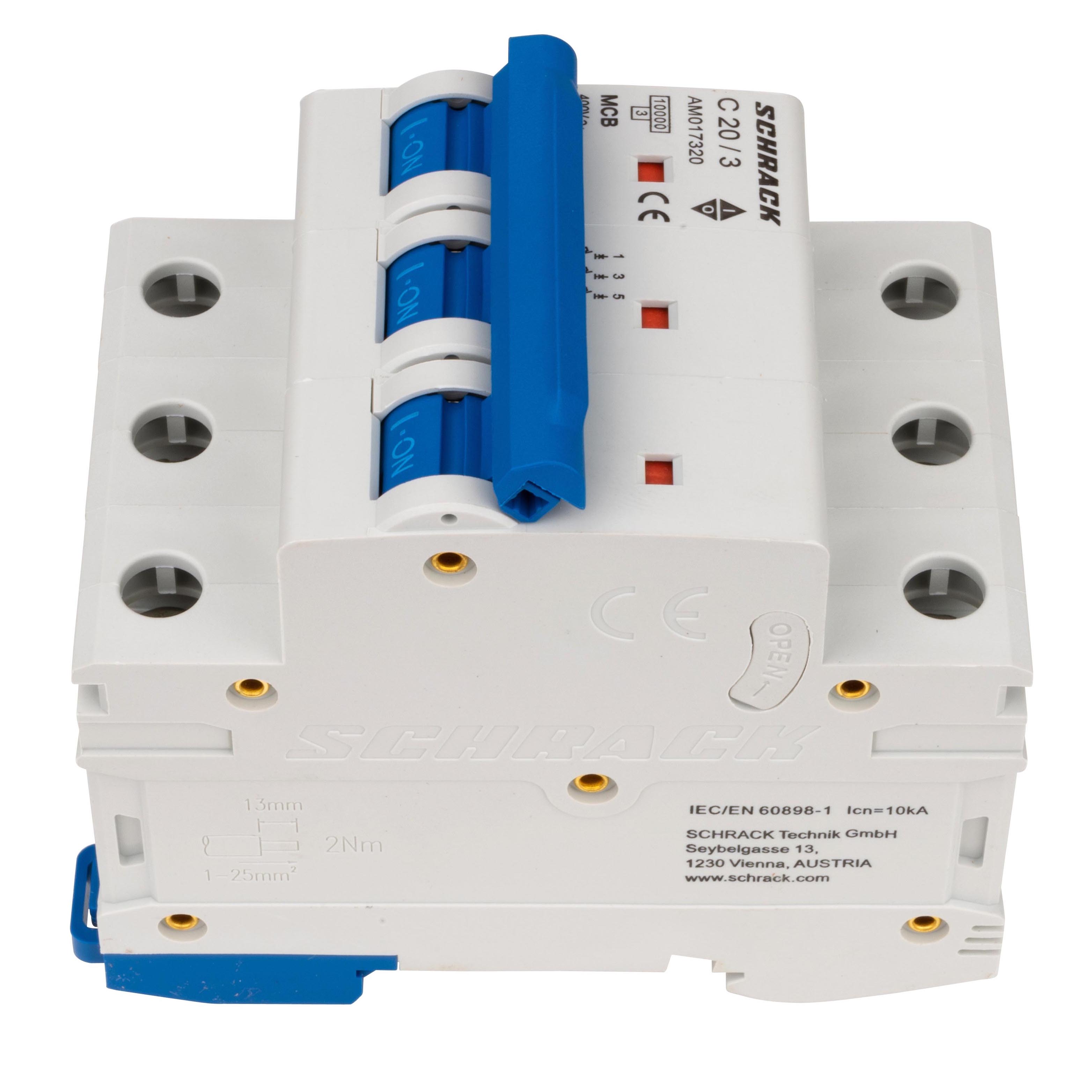

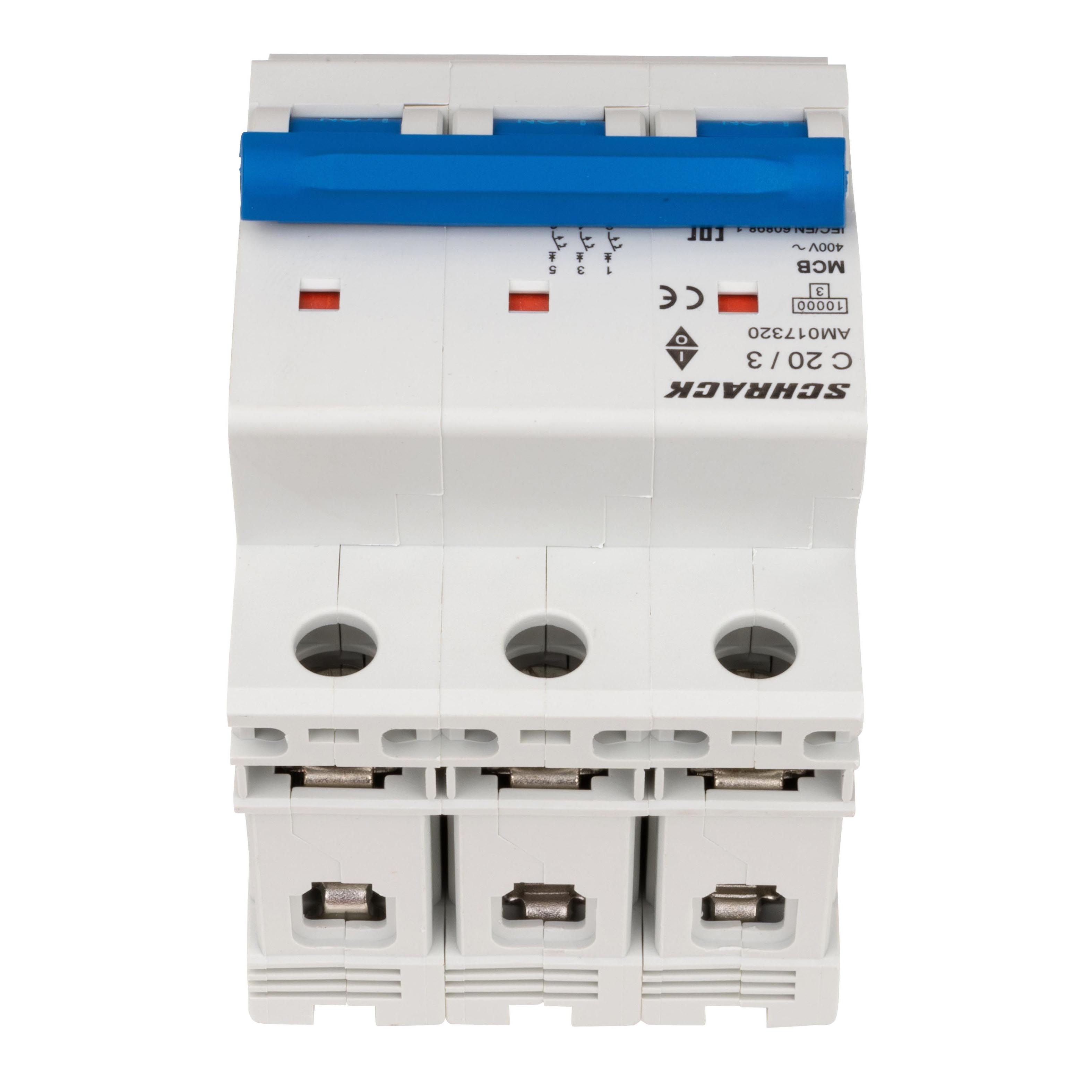

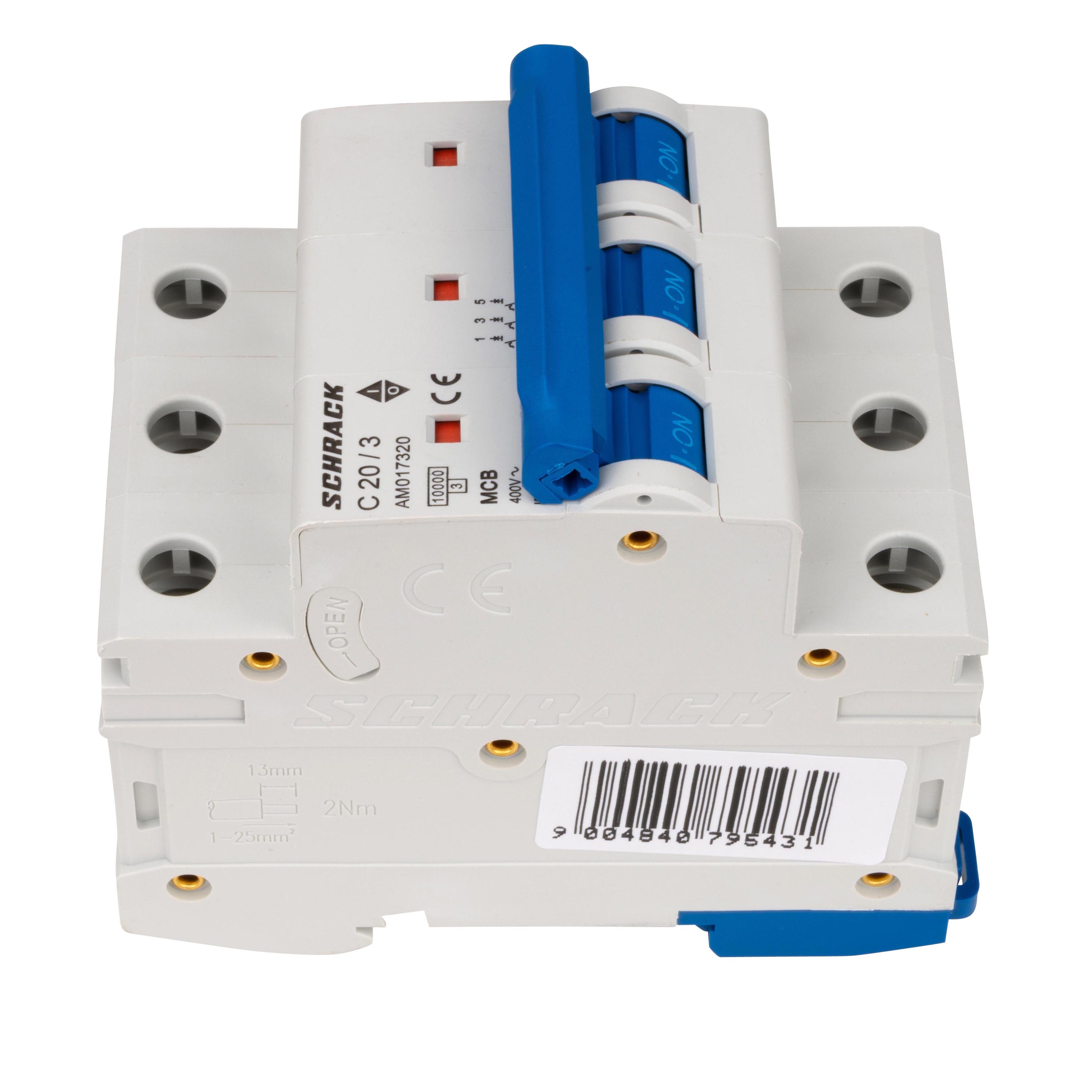

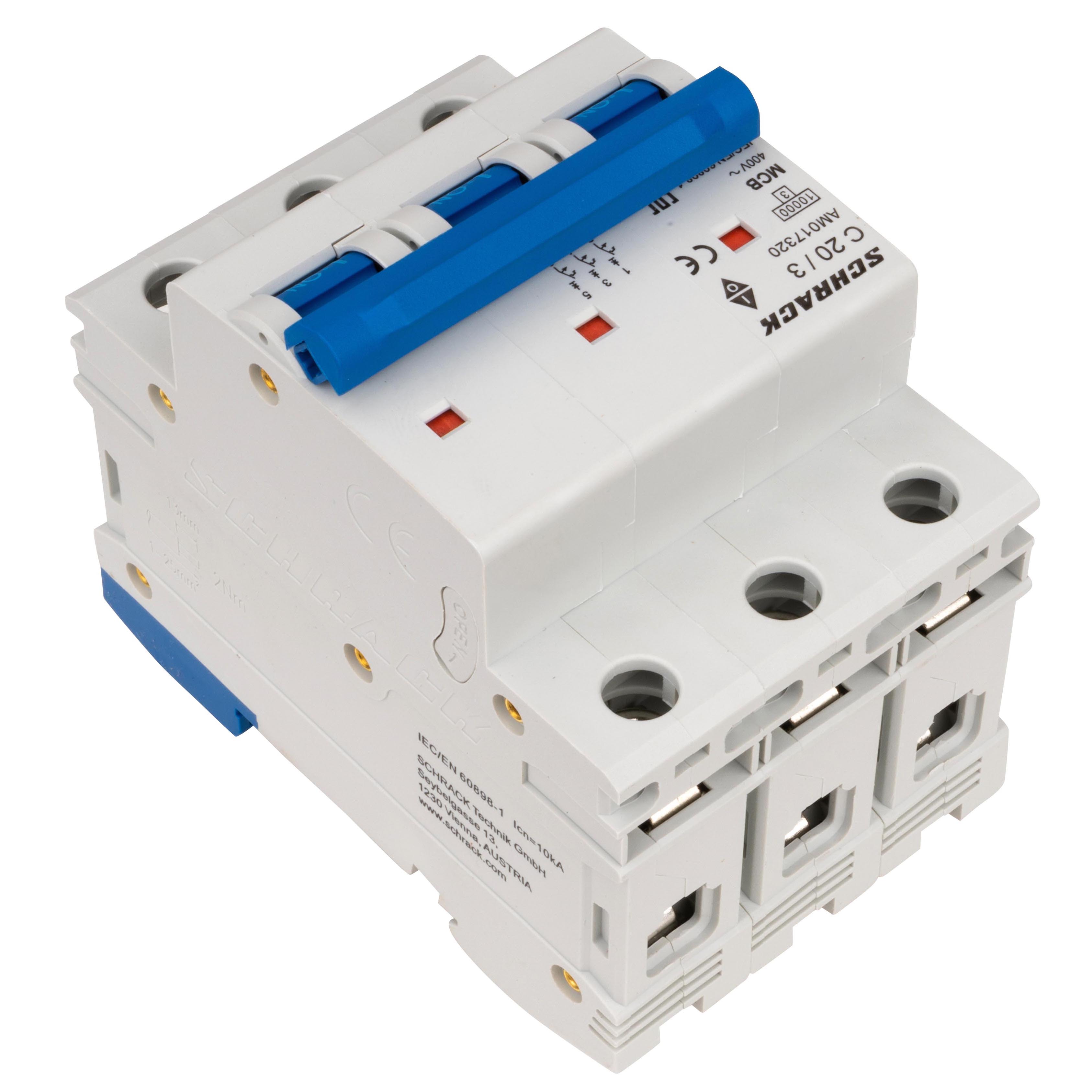

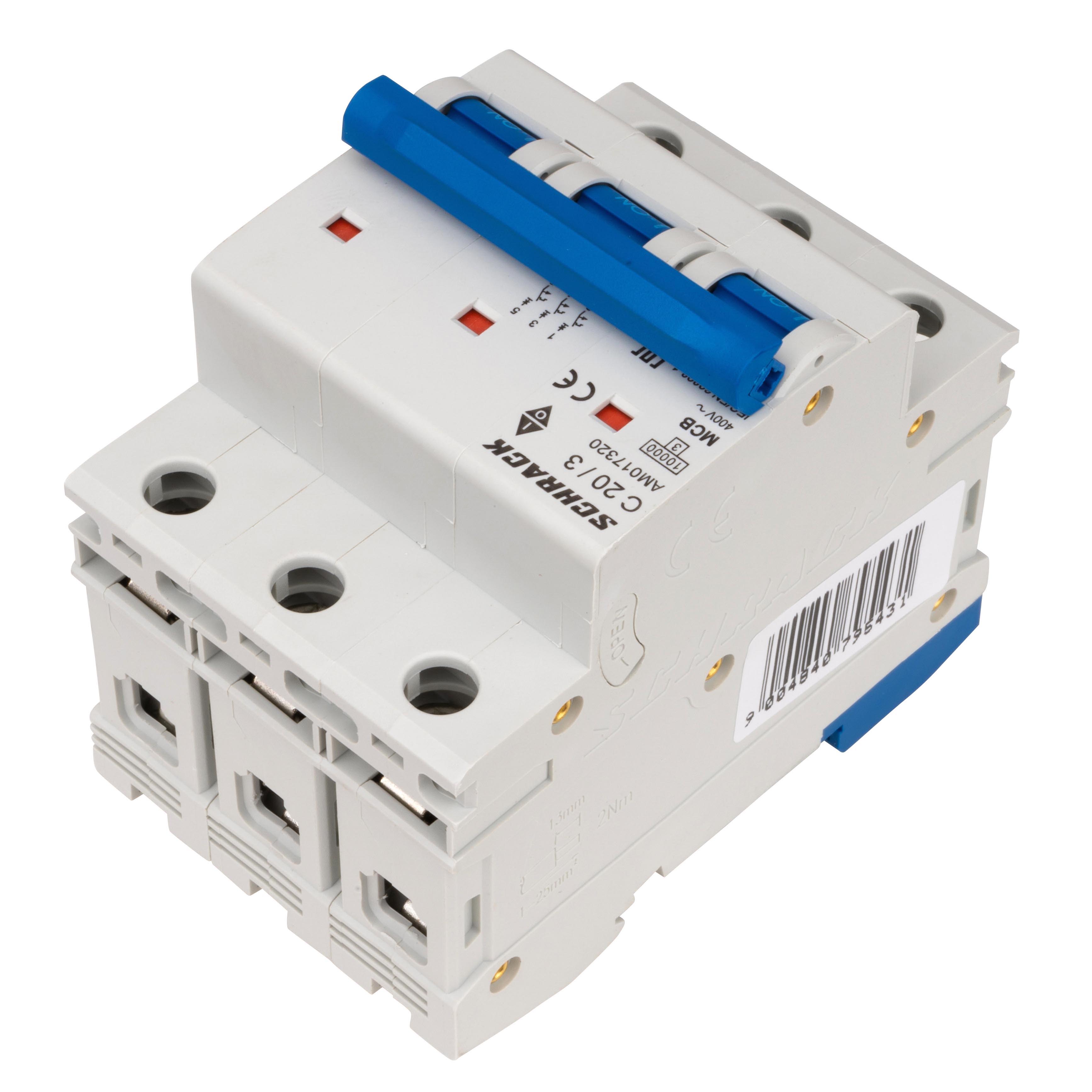

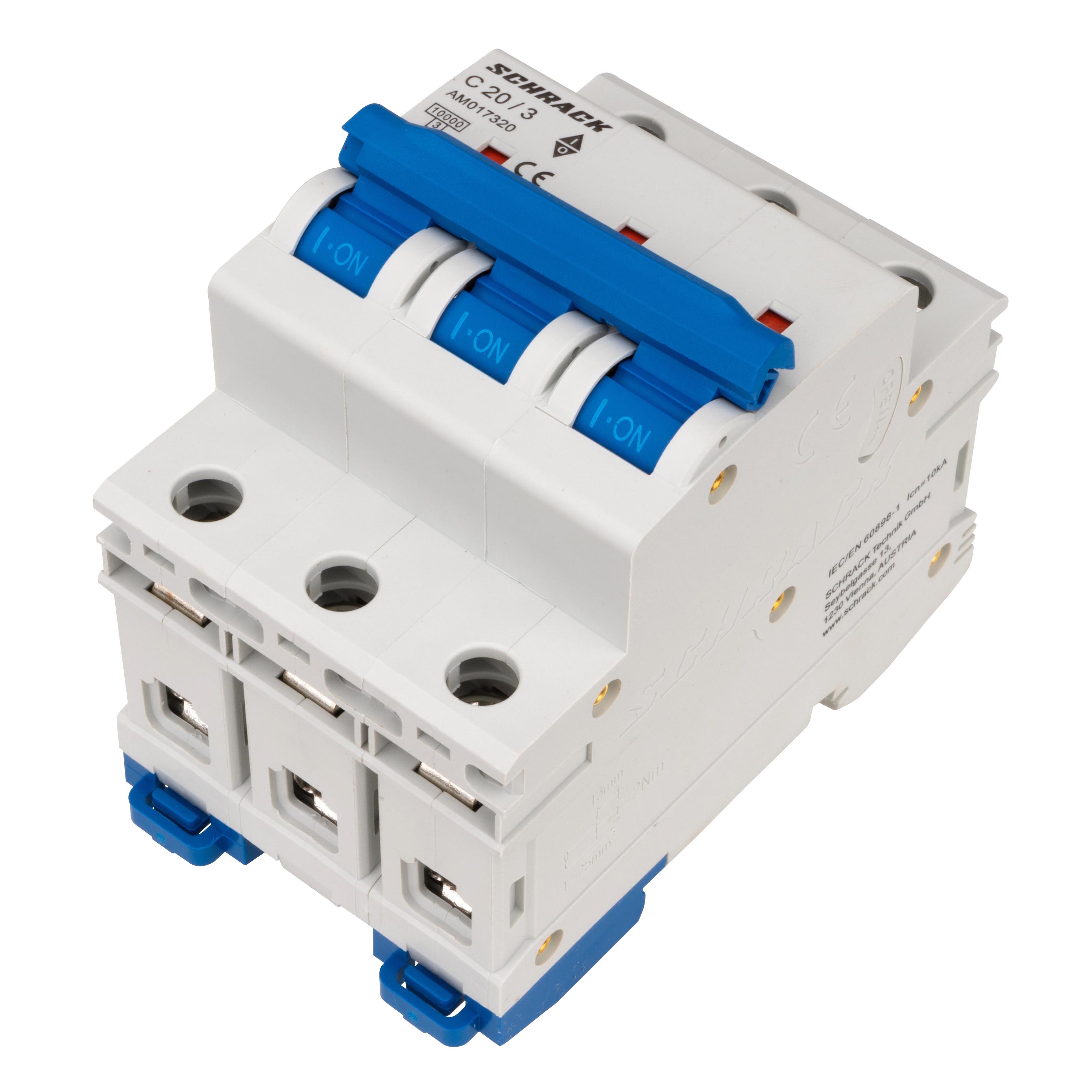

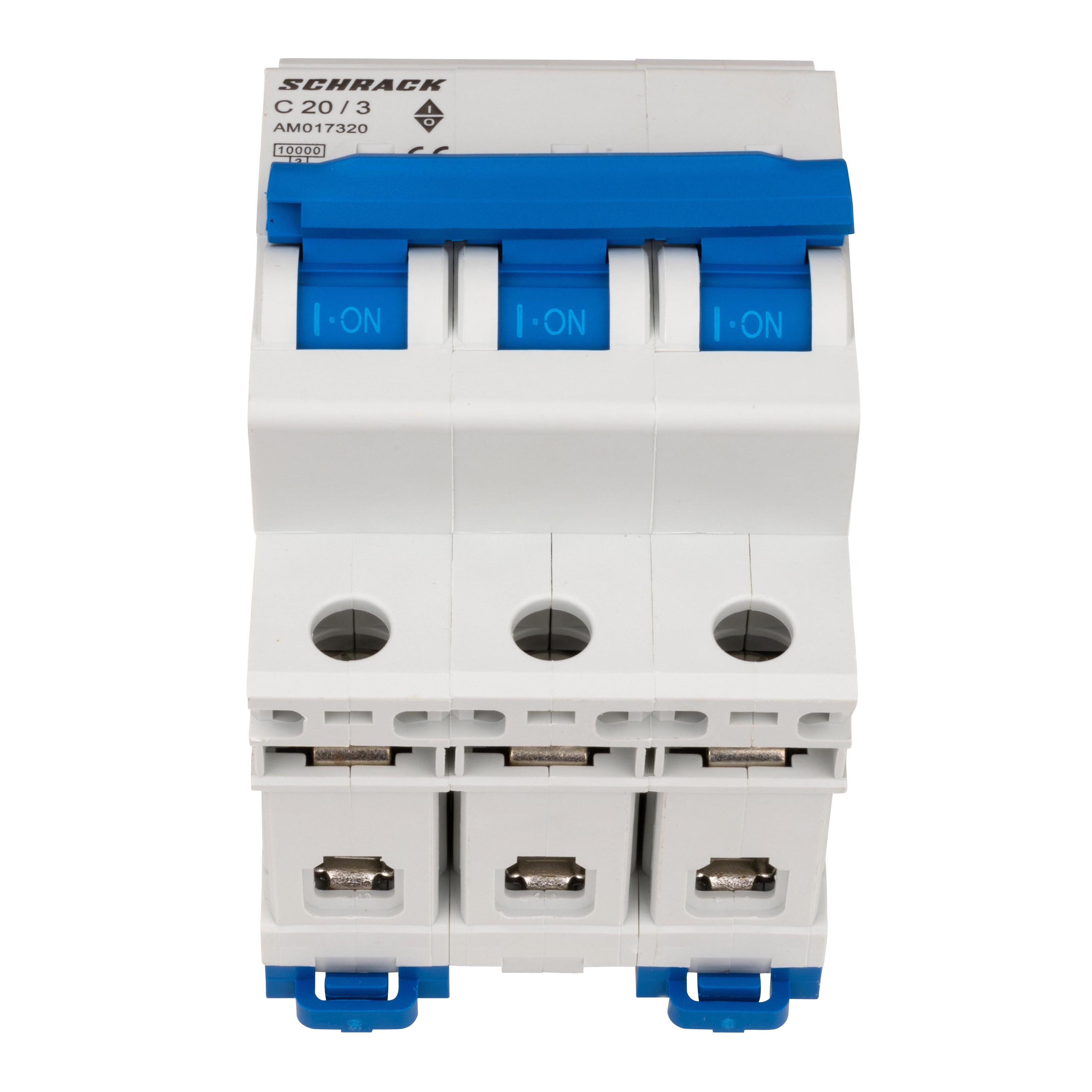

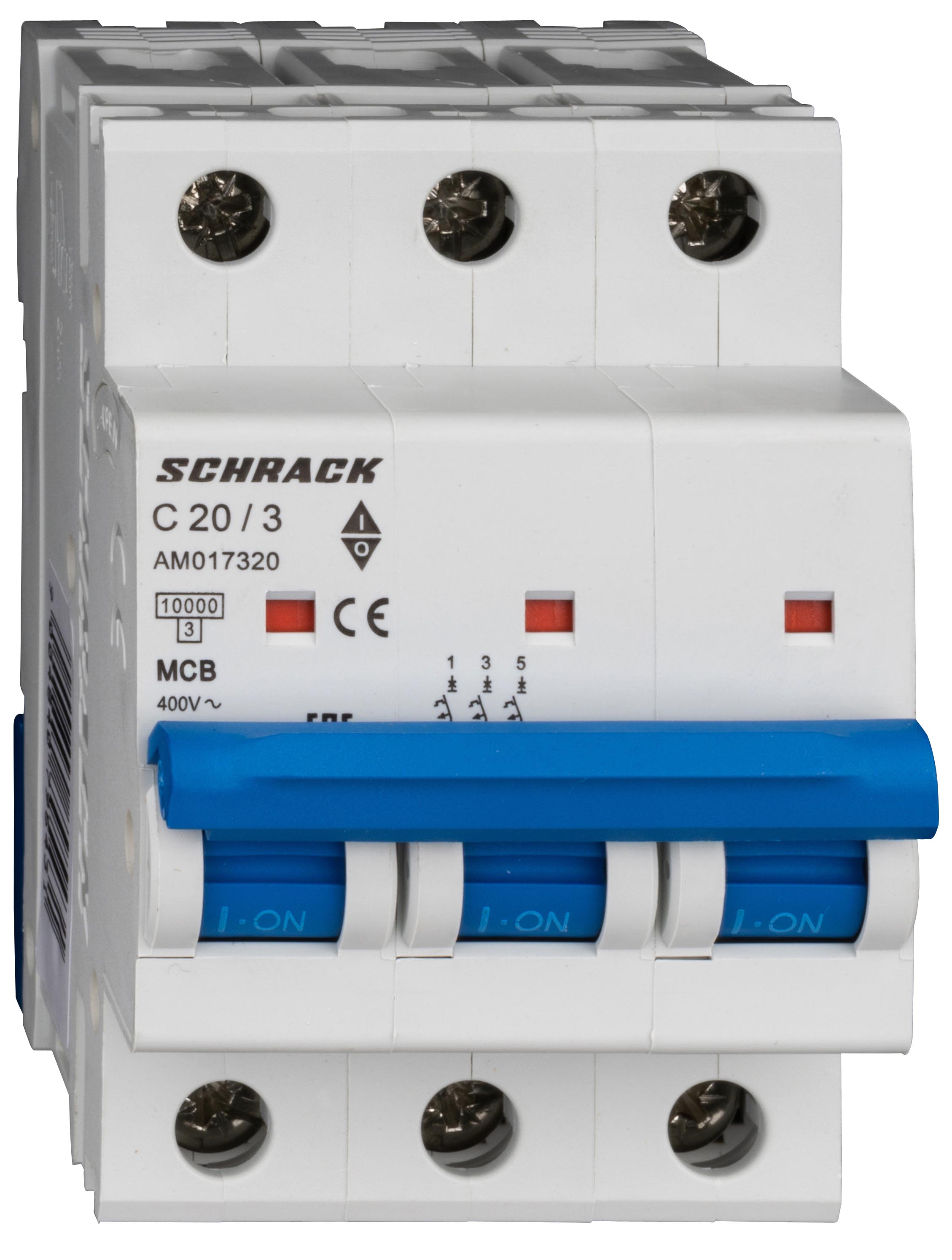

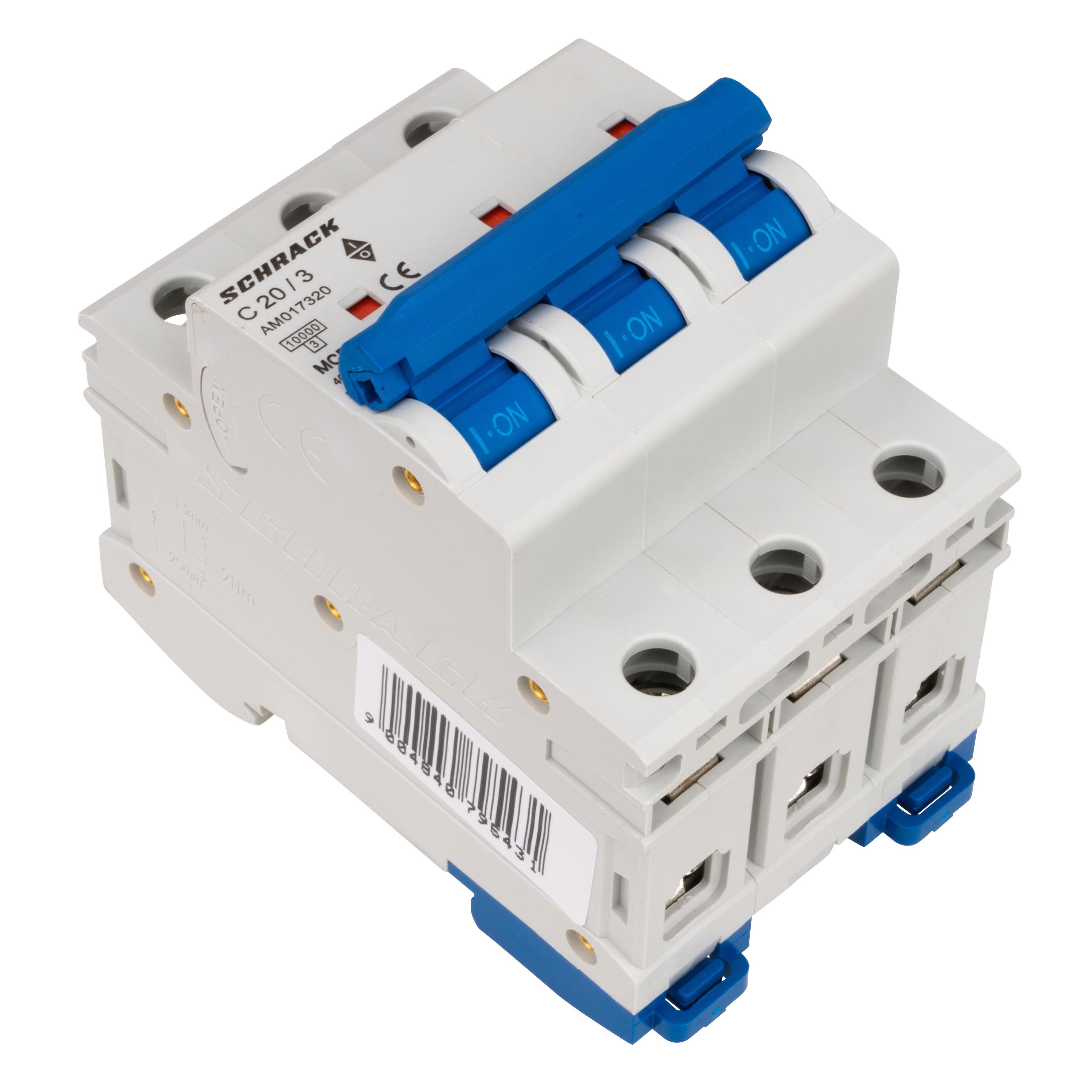

Automatic circuit breaker C20A/3, 10kA
1 / 9
Automatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kAAutomatic circuit breaker C20A/3, 10kA

Automatic circuit breaker C20A/3, 10kA

Article: AM017320--

Автоматические выключатели AMPARO

9 980 ₸

In stock
WhatsAppTelegram

Automatic circuit breaker C20A/3, 10kA from the AMPARO series is designed to protect electrical circuits from overloads and short-circuit currents.

Technical specifications:

  • Rated current: 20 A
  • Number of poles: 3
  • Trip characteristic: C (Class C time-current characteristic)
  • Breaking capacity: 10 kA
  • Design: AC-MCB (single-phase modular automatic circuit breaker for AC)
  • Type: AM10
  • Series: AMPARO
  • Manufacturer: Schrack

Operating conditions:

  • Temperature range: from -25°C to +70°C
  • Power loss: 12.08 W

Dimensions:

  • Length: 86 mm
  • Width: 54 mm
  • Height: 77 mm
  • Weight: 0.34 kg

Regulatory standards:

Complies with EN 60898-1:2019 and IEC 60898-1 standards.

Packaging options: 1 pc., 4 pc., 60 pc.

EAN code9004840795431
Length (net)86 mm
Width (net)54 mm
Height (net)77 mm
Weight (net)0.34 kg
Power loss12.08 W
Min. ambient temperature-25°C
Max. ambient temperature70°C
CharacteristicC
Poles3
Rated current20 A
TypeAM10
SeriesAMPARO
Breaking capacity10 kA
DesignAC-MCB
StandardEN 60898-1:2019, IEC 60898-1
ManufacturerSchrack
Packaging1 pc., 4 pc., 60 pc.
